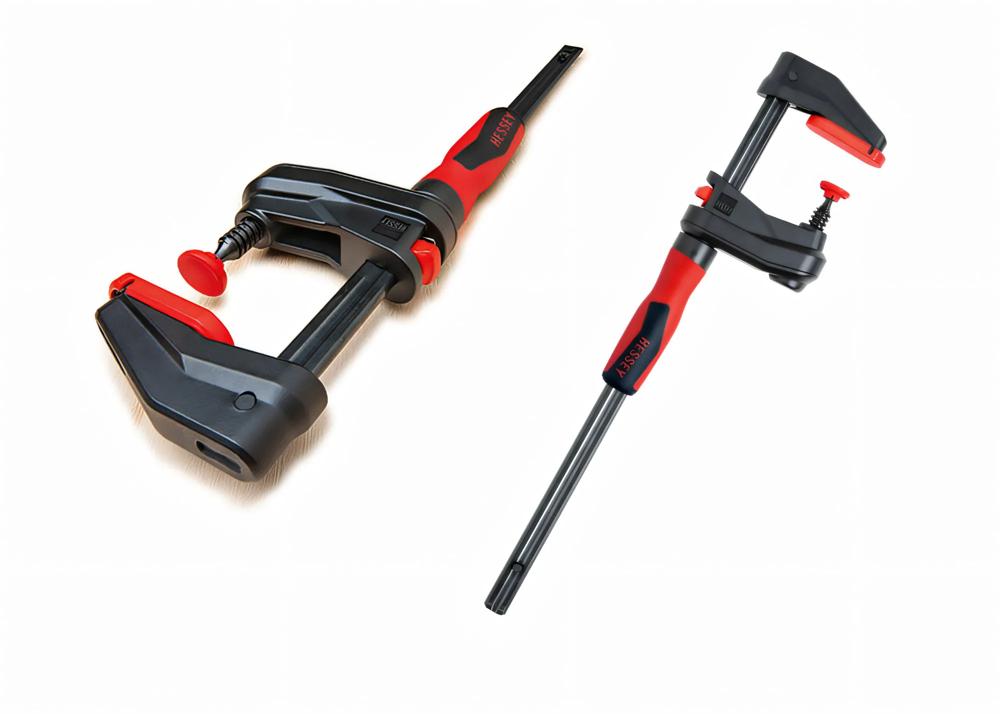

With the new gear clamp, clamping work is possible even in the tightest of spaces. This is made possible because the spindle has been separated from the handle and placed around the rail. From starting there, with each turn the clamping force is transmitted to the spindle via a mechanism hidden in the sliding bracket. Compared to classical screw clamps or one-handed clamps, the Gear clamp much more compact.
Technical Data
Span width: 600 mm
Projection: 60 mm
Rail: 25 x 12 mm
Weight: 0,95 kg
Clamping force: up to 2000 N
Properties & Advantages
No disturbing tool components in the working area
Ergonomic handling in every clamping situation guaranteed

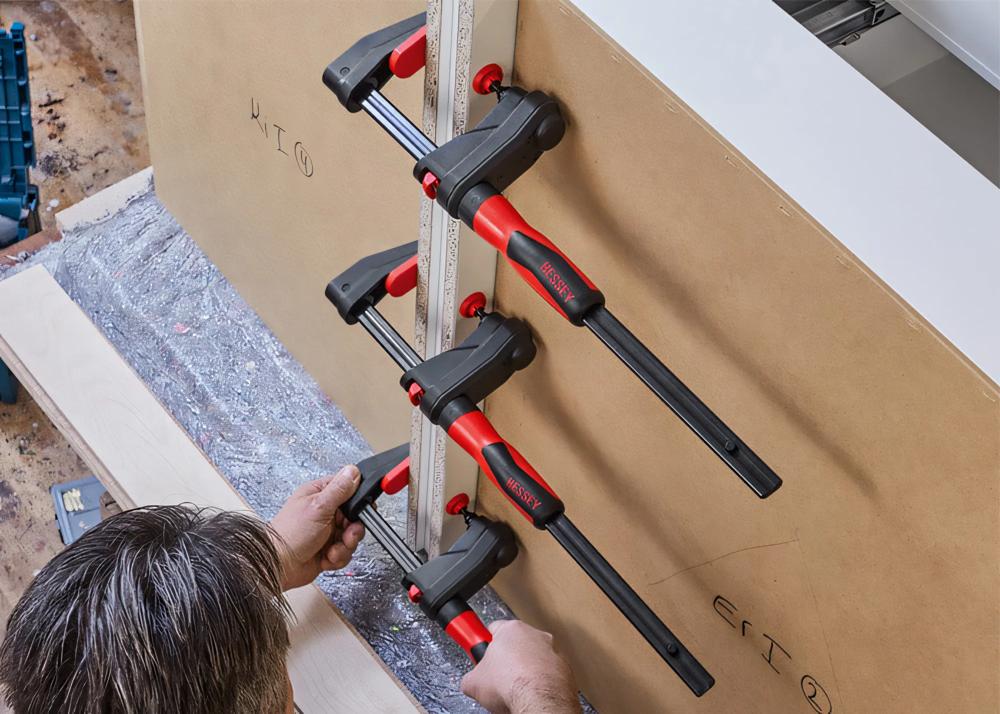

Enormously flexible and suitable for use in the tightest of spaces
2-component plastic handle for safe handling

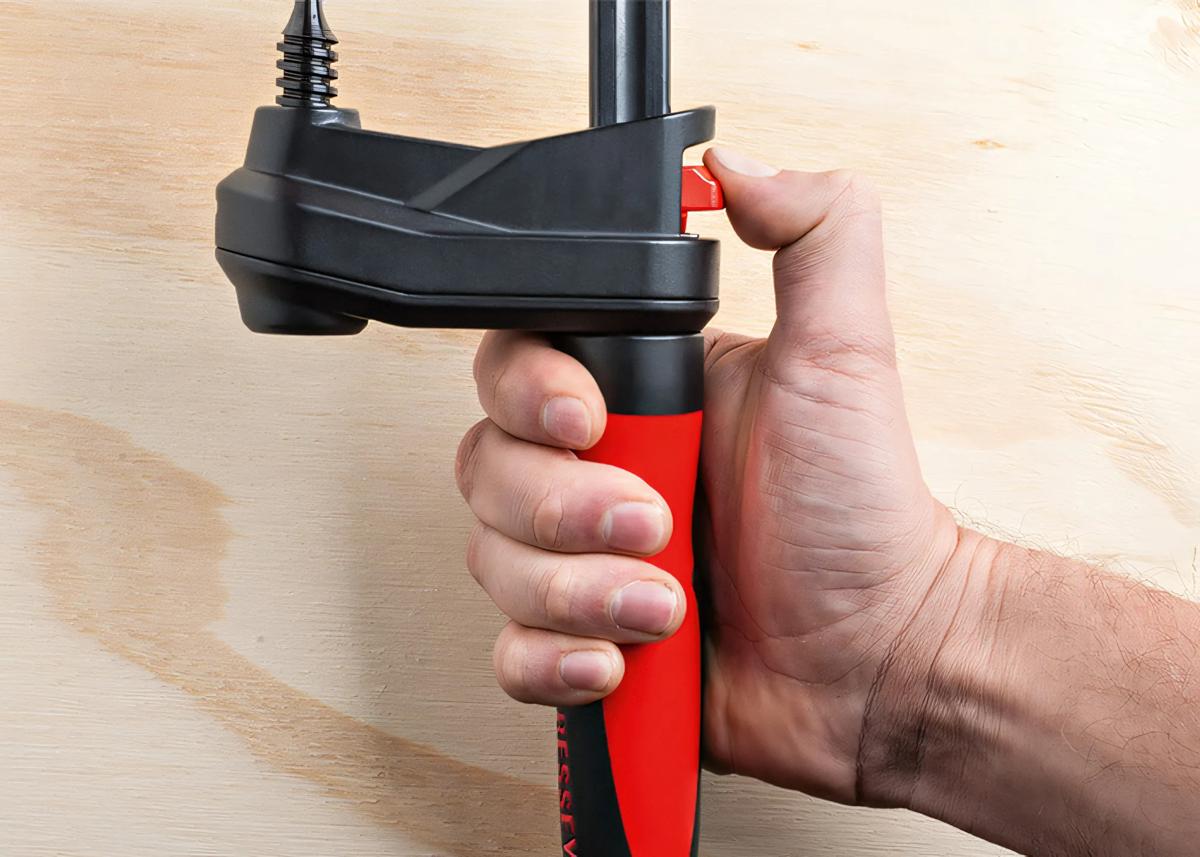

Quick-slide button for quick adjustment of the sliding arm
Schwenkbare pressure plate for perfect adaptation to the workpiece

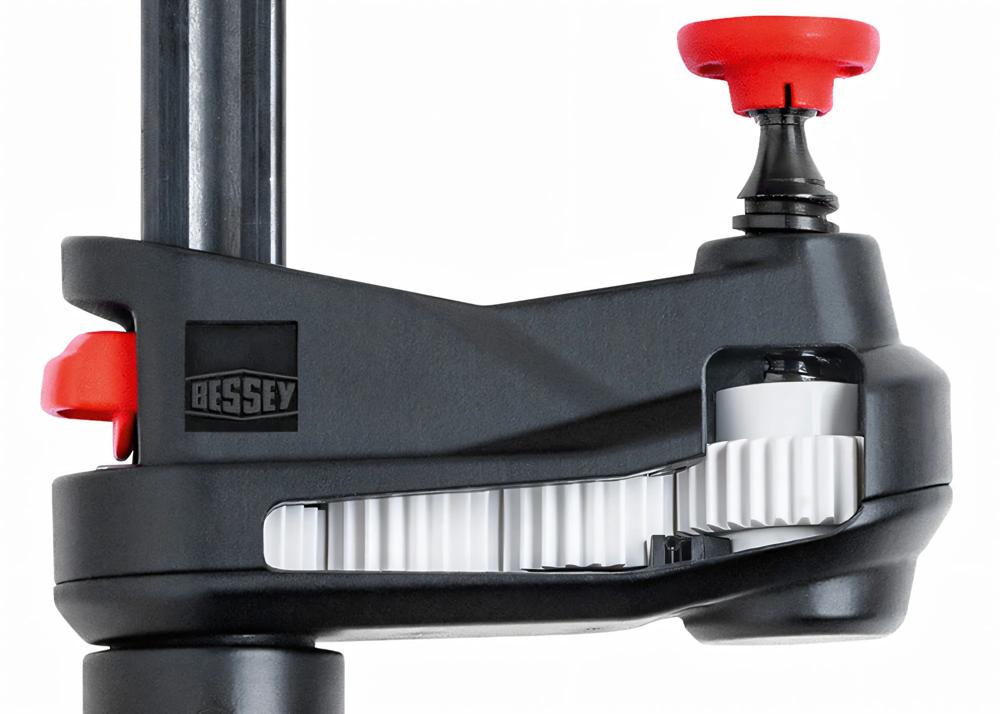

Plastic housing of the sliding bracket protects the drive mechanism from dust and chips
