Ball cutter D1 19 mm

D1: 19 mm | D2: 9.5 mm | R: 8 mm | L: 64 mm

Shipping within 24 hours (working days)

56,13 €

47,71 €

incl. VAT / excl. shipping costs

Brand:Klein
Article no.:KLE-E112-190-R
Weight:0.055kg

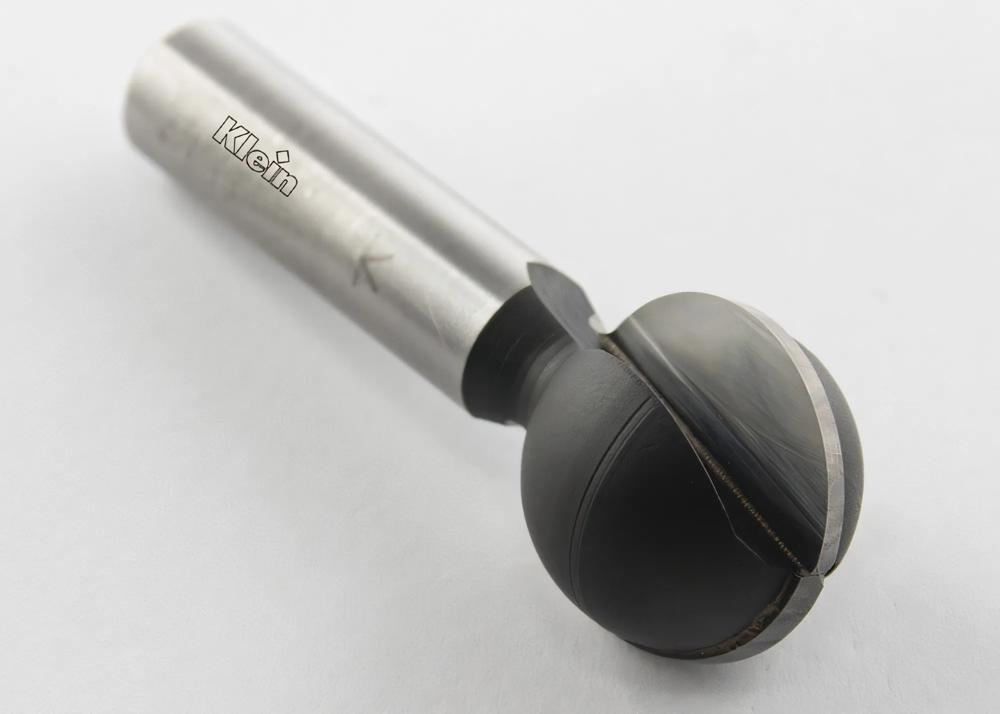

Ball cutter HW (HM) Z2 Ø 19 mm

Spherical milling cutter with two carbide cutting edges, which can be used to cut internal tunnels (e.g. cable ducts) or, with less depth adjustment, for fillets. For tunnels it is absolutely necessary to pre-cut with a Slot Routing Cutter, otherwise the ball cutter would be damaged (groove width varies depending on the ball diameter).

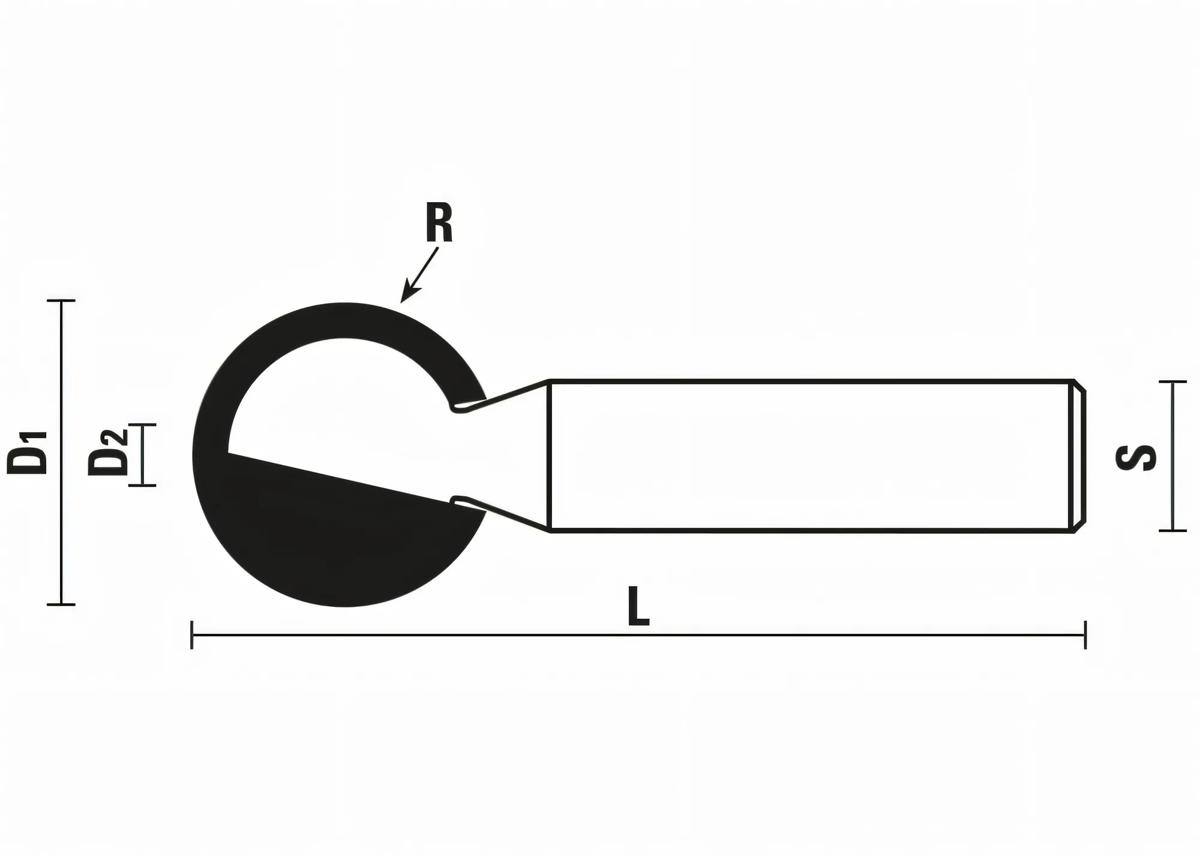

Technical Data

D1: 19 mm
D2: 8,5 mm
R: 9,5 mm
L: 64 mm
S: 12 mm

Properties & Advantages

Clean Routingthe groove (drilling and peripheral cutting).
For hard and soft woods
For plastics (acrylic, polypropylene, and polycarbonate)
For laminates (HPL, Trespa...)
For veneered board materials (chipboard, fibreboard, plywood)
