Beck height-adjustable workbench, mobile

Ergonomic work and assembly table with EP1 workbench top | external dimensions: 1785 x 850 mm | total height: max. 1080 | incl. 2 pairs of bench hooks 80 + 200 mm long | At present shipping is only possible to the EU, Switzerland and Norway

Shipping within 24 hours (working days)

6.587,84 €

4.998,00 €

incl. VAT / excl. shipping costs

Maximum available stock reached

FreightArticle is oversized / overweight and will be dispatched by a freight carrier.

Brand:BECK
Article no.:SET-EP1
Weight:242kg

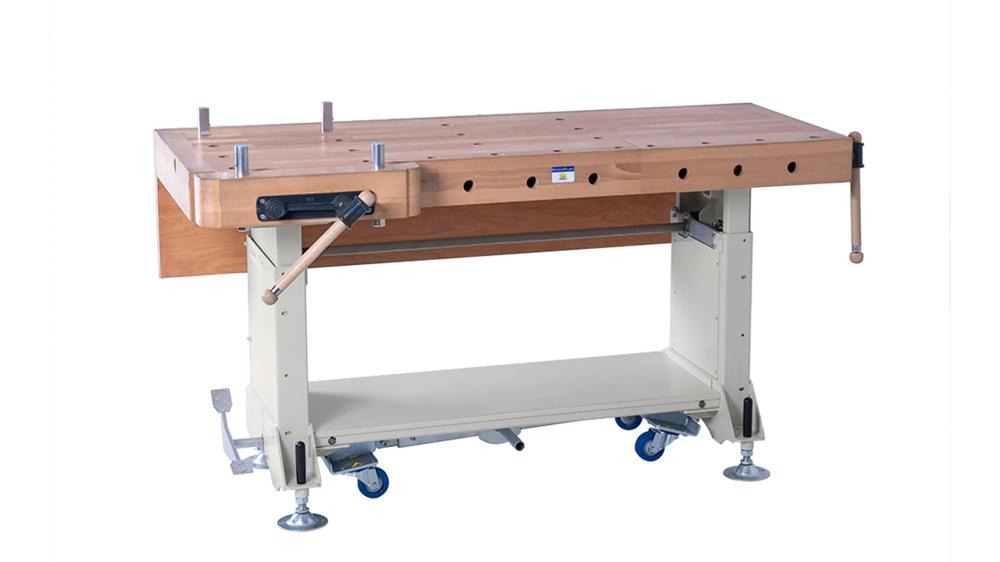

Beck height-adjustable Ergoplan EP1 planing bench

Height-adjustable under load - even with asymmetrical loading of the table top.

The ergonomic workbench is equipped with a solid beechwood top. So you can continue to work at your classic workbench - only without back pain. Regardless of your height. Ideal for schools and workshops.

Technical Data

EP1 workbench:
- Overall external dimensions of the workbench top: 1785 x 850 x 120 mm
- Plane bench top without clamps: 1700 x 640 x 120 mm
- Panel thickness: 120 / 60 mm
- Effective stroke: 300 mm
- Overall height of Ergoplan worktable: 780 mm
- Total height: max. 1080 mm
- Weight of workbench top: 95 kg
- Total weight: 240 kg
- Leg adjustment: +/- 15 mm
- Material of workbench top: red beech, waxed and polished
Round bench hooks:
- Material: Aluminium
- Length 80 + 200 mm
- Diameter: 30 mm

Properties & Advantages

The Ergoplan1 work and assembly table is infinitely height-adjustable under load using foot hydraulics.

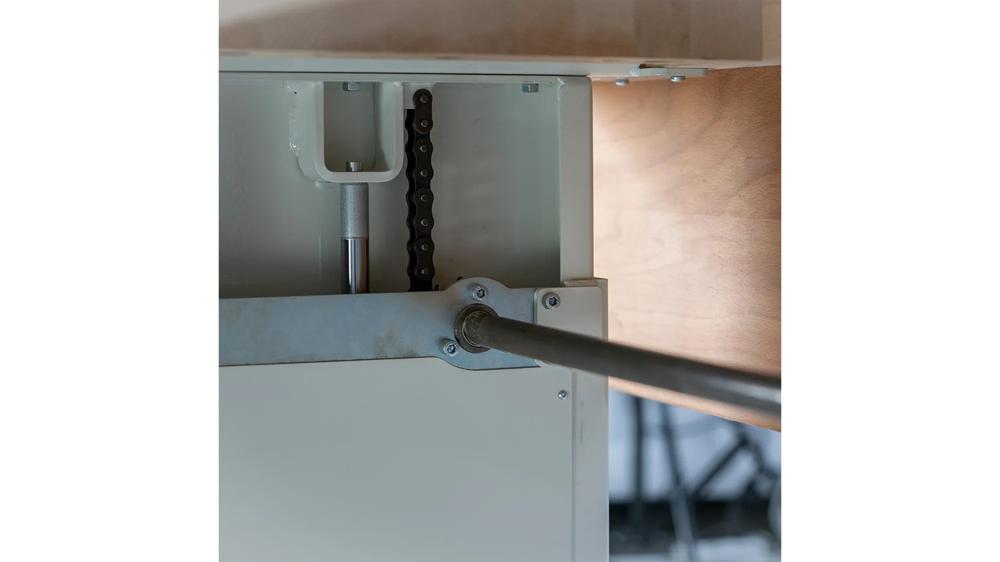

The table's lifting unit is located in a lifting column and is therefore protected from dirt and damage.

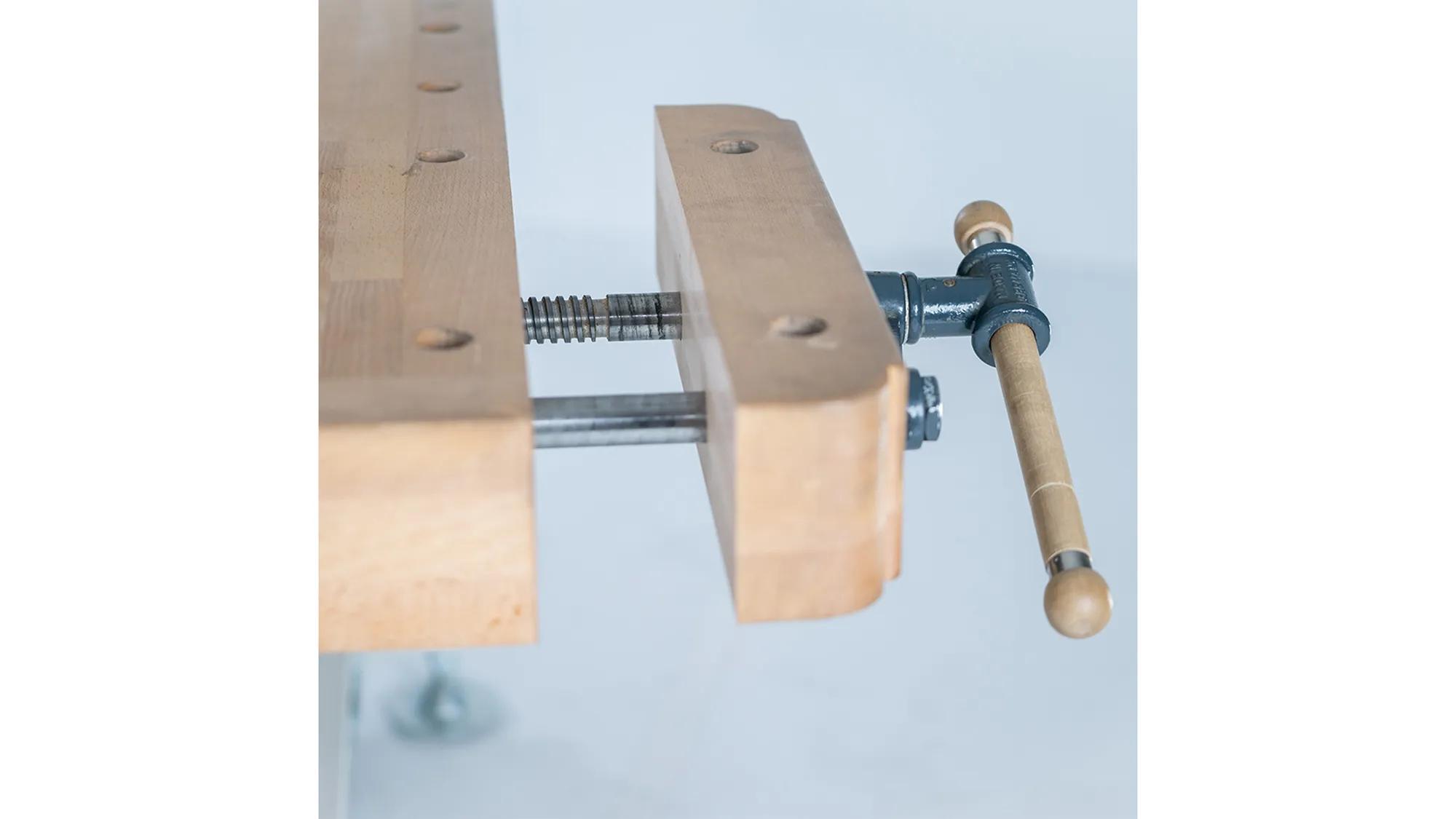

The front gripper is a solid cast iron/steel construction, the rear gripper is a robust aluminium box guide.
There is a cover at the rear of the work table that serves as crush protection.

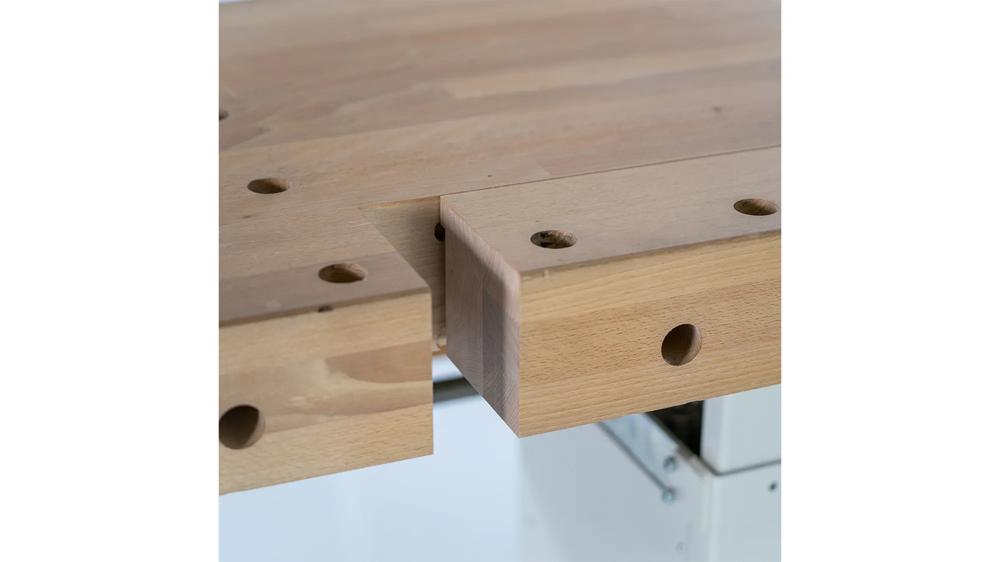

Vertical and horizontal holes in the top for bench hooks for flexible working.
Four height-adjustable feet adapt the table to any surface.
A travelling device is attached to the base frame, which can be folded in and out using a hand lever.
The space in the lifting table provides room for tools in the optionally available base cabinet or simply serves as a storage surface.
The bench hooks can also be inserted at the front and used as a workpiece support.
