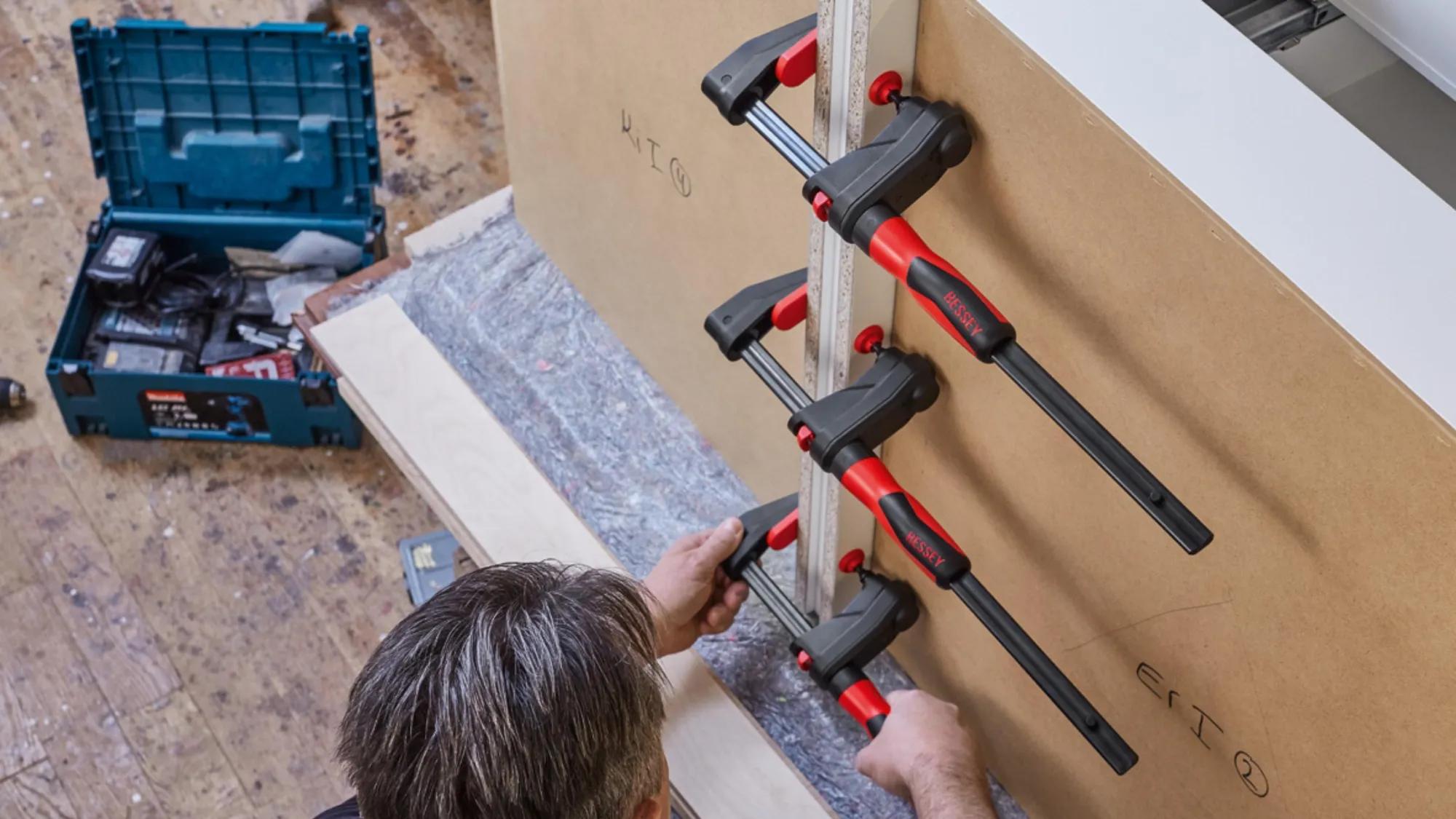

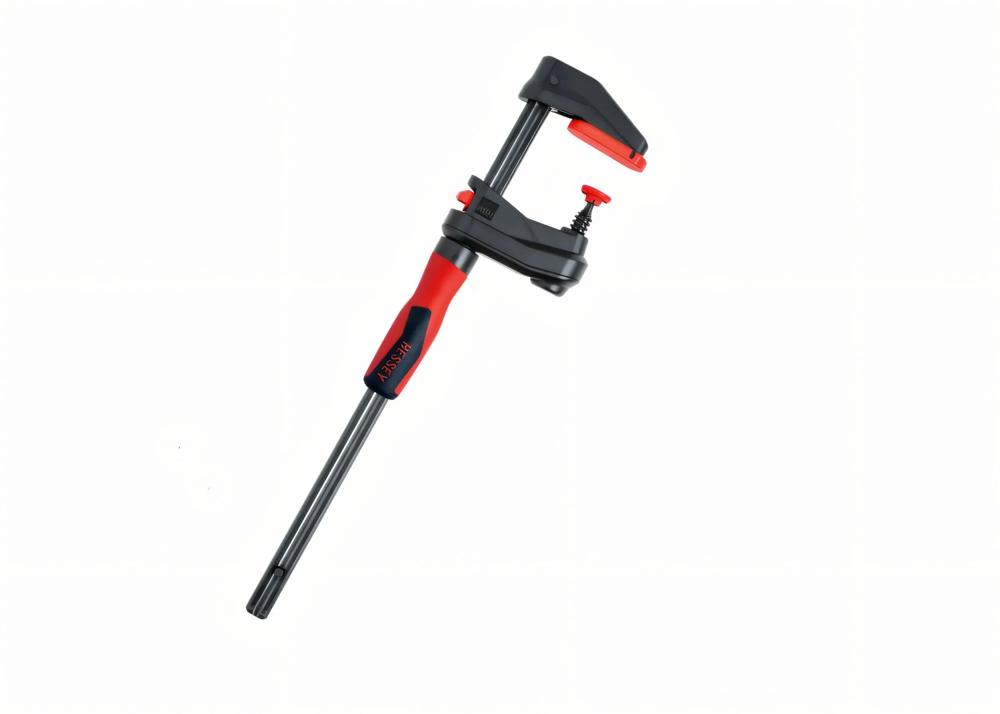

With the new gear clamp, clamping work is possible even in the tightest of spaces.

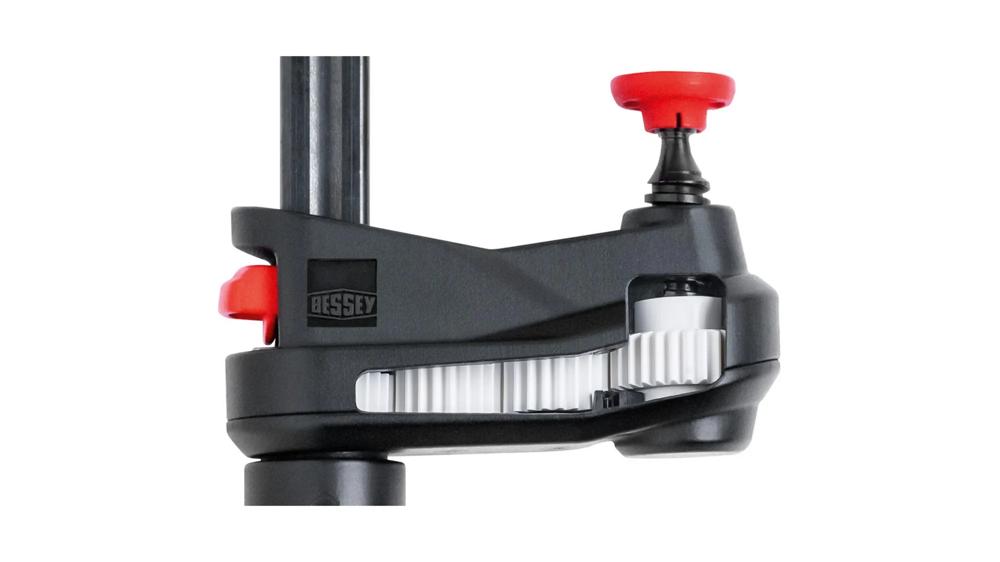

This is made possible because the spindle has been separated from the handle and placed around the rail. From there, the clamping force is transmitted to the spindle with every turn via a mechanism concealed in the sliding bracket. Compared to classic screw clamps or one-handed clamps, the geared clamp is much more compact.
Technical Data
Clamping width: 450 mm
throat depth: 60 mm
Rail: 25 x 12 mm
Weight: 0,84 kg
Clamping force: up to 2000 N
Properties & Advantages

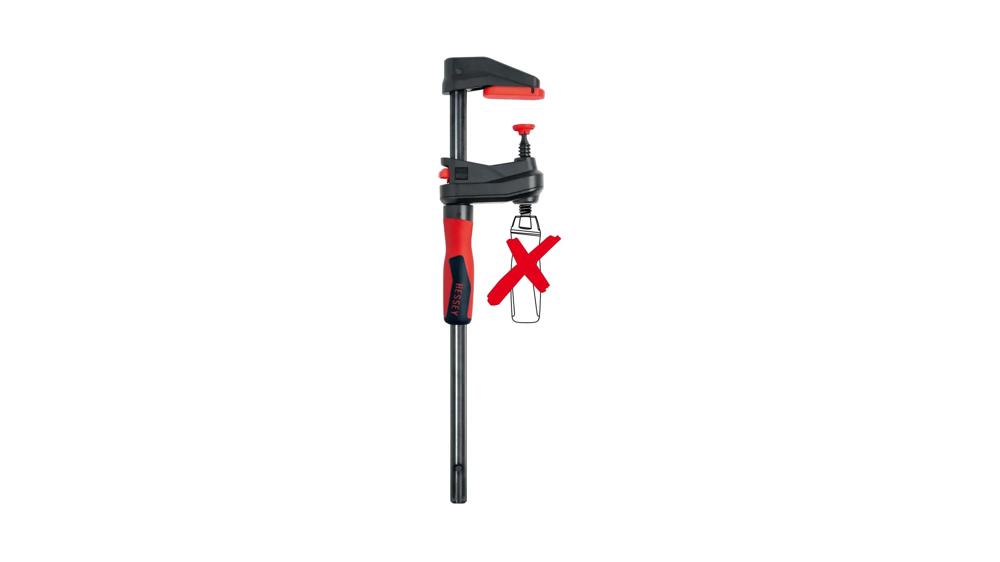

No interfering tool components in the working area

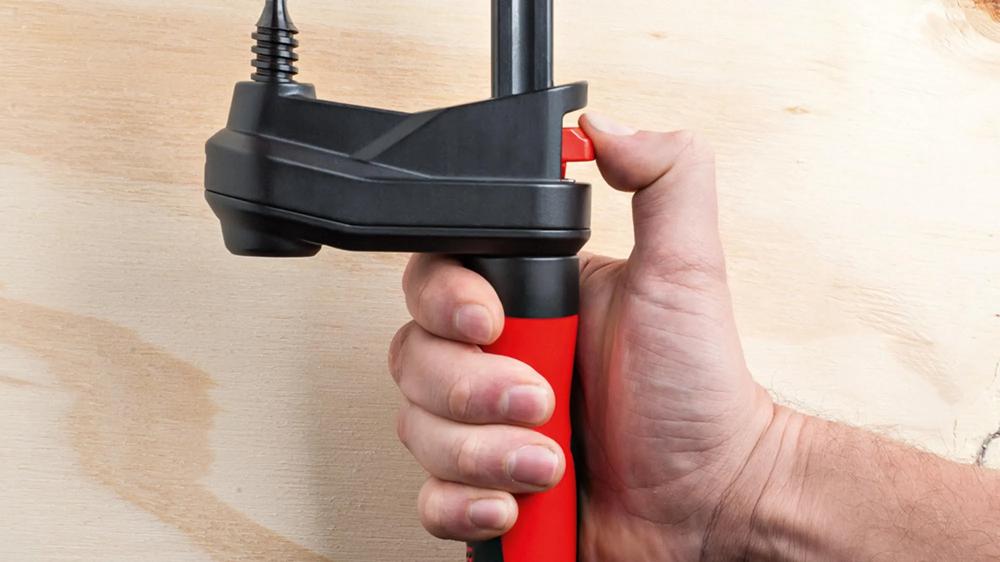

Ergonomic handling guaranteed in every clamping situation

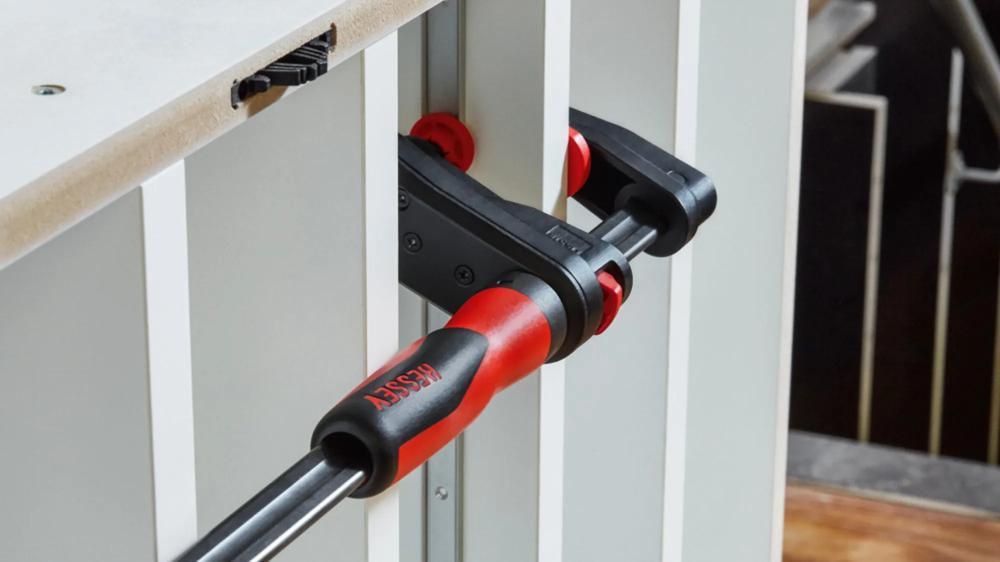

Enormously flexible and can be used in the tightest of spaces
2-component plastic handle for safe handling
Quick-slide button for fast adjustment of the sliding clamp
Swivelling pressure plate for perfect adaptation to the workpiece
Plastic housing of the sliding arm protects the drive mechanism from dust and chips
