Mekanika vacuum table - complete package
Adapted for FAB-CNC | Utilise maximum size | No clamping devices required8.794,10 €
7.500,00 €
Our consultants are here for you!
Our consultants are here for you!

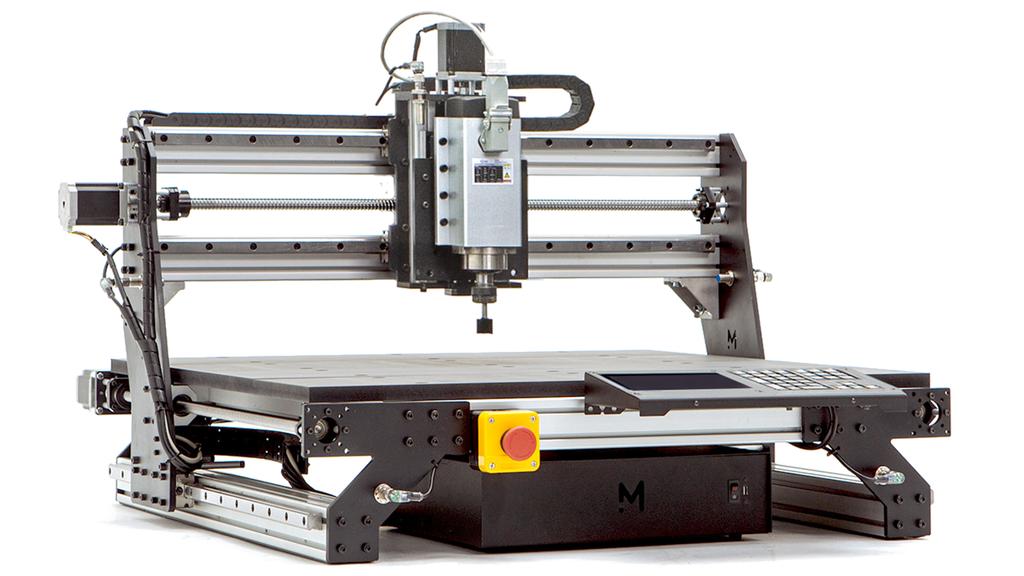

The CNC milling machines from Mekanika were developed for hobbyists and small businesses. It offers all the advantages and possibilities of a fully-fledged CNC milling machine:

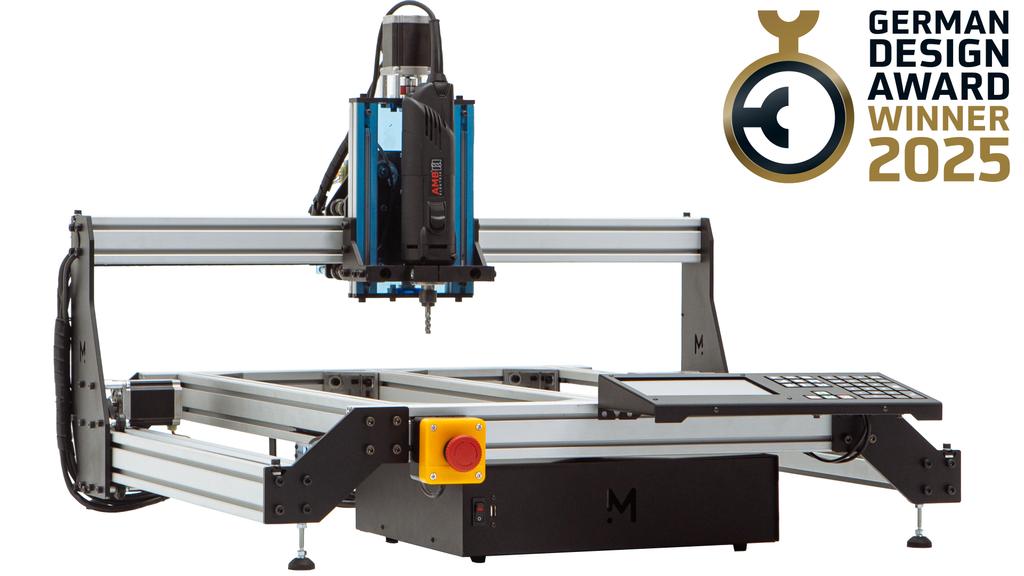

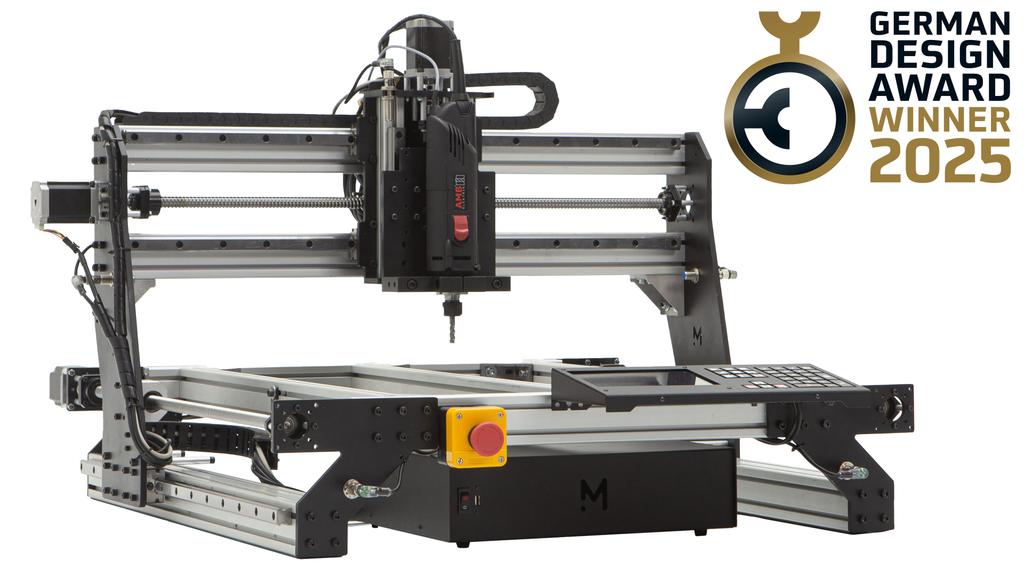

| Name/ Model | EVO model | PRO model | FAB model |
| image |  |  |  |
| Up to 3 available sizes (S, M, L) | Yes | Yes | One size fits all |
| Work surface | From 630 x 630 mm up to 1030 x 1030 mm | From 630 x 630 mm up to 1030 x 1030 mm | 1300 x 2700 mm |
| Starting price (without VAT) | From €2.200 | From 4.700€ | From 11.000€ |
| 5 year guarantee | Yes | Yes | Yes |
| Materials that you can mill | Wood, cork, PMMA (Plexiglas), HPL (Trespa), foam, ATH (Corian), carbon fibre, aluminium and much more... | All materials milled with EVO + stone and hard metals (brass, steel, etc.) | All materials milled with EVO + stone and hard metals (brass, steel, etc.) |
| Typical cutting speeds (softwood) | 2500mm/min | 5000mm/min | 7000mm/min |
| Typical cutting depth (softwood) | 0.5 x tool diameter | 0.7 x tool diameter | 0.8 x tool diameter |
| Linear guide system | V-groove wheels | Double linear rail HGR20 | Double HGR20 prismatic rail |
| Drive system (X-axis & Y-axis) | Steel-reinforced PU GT2 belts and pulleys Nema23 motor 2.2Nm | Ball screw 16mm Nema23 motor 2.2Nm | Y-axis: gear rack Mod 2 ±26µm / 1000mm (DIN5) and Nema34 motor 4.5Nm X-axis: ball screw 16mm and Nema34 motor 4.5Nm |
| Drive system (Z-axis) | T8 trapezoidal threaded spindle Nema23 motor 2.2Nm | Ball screw 16mm Nema23 motor 2.2Nm | Ball screw 16mm Nema23 motor 2.2Nm |
| Control unit (Planet CNC) | Yes | Yes | yes |
| Built-in computer (Raspberry Pi 4 - 2 GB RAM) | yes | yes | yes |
| User interface | 7" TFT IPS capacitive touchscreen Customised Bluetooth keyboard | 7" TFT IPS capacitive touchscreen Customised Bluetooth keyboard | Attachment: 13" capacitive touch screen Customised Bluetooth keyboard |
| Available spindles | AMB 1050 FME-1 AMB 1400 FME-P DI | AMB 1400 FME-P DI Air-cooled 2.2kW VFD | Air-cooled 2.2kW VFD |
| Tool length sensor | Yes | Yes | yes |
| Bundles available | EVO bundle / EVO education bundle | PRO bundle / PRO education bundle | FAB bundle |
| Complete technical data | EVO model | PRO model | FAB model |

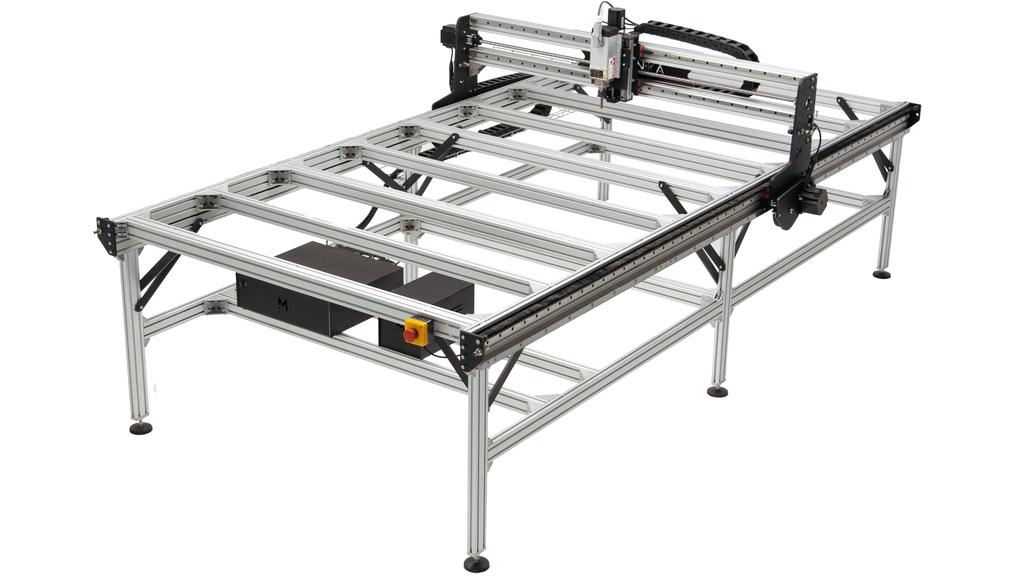

Thanks to the large processing areas of up to 2,700 mm x 1,300 mm, Mekanika CNCs can process panel materials directly without pre-formatting. And with a precision that is in no way inferior to large machining centres.
The intuitive control via the 7-inch touchscreen enables you to produce your first professional results within a short time, even without prior CNC knowledge. And without several days of training!
The uncomplicated data transfer and connection to the CNC portal and the milling unit is important for the CNC control. Once the workpiece has been designed in the CAD/CAM software, the G-code can be easily transferred to the CNC machine via USB with the Mekanika. The rest is done by the driven milling motor and the milling tool used.
You can retrofit or upgrade any machine with the accessories from Mekanika. From the 1,050 watt AMB high-performance spindle to the 2.2 kW VFD spindle, you can customise your machine to suit your applications. You have the option of enclosing the machines and much more.
