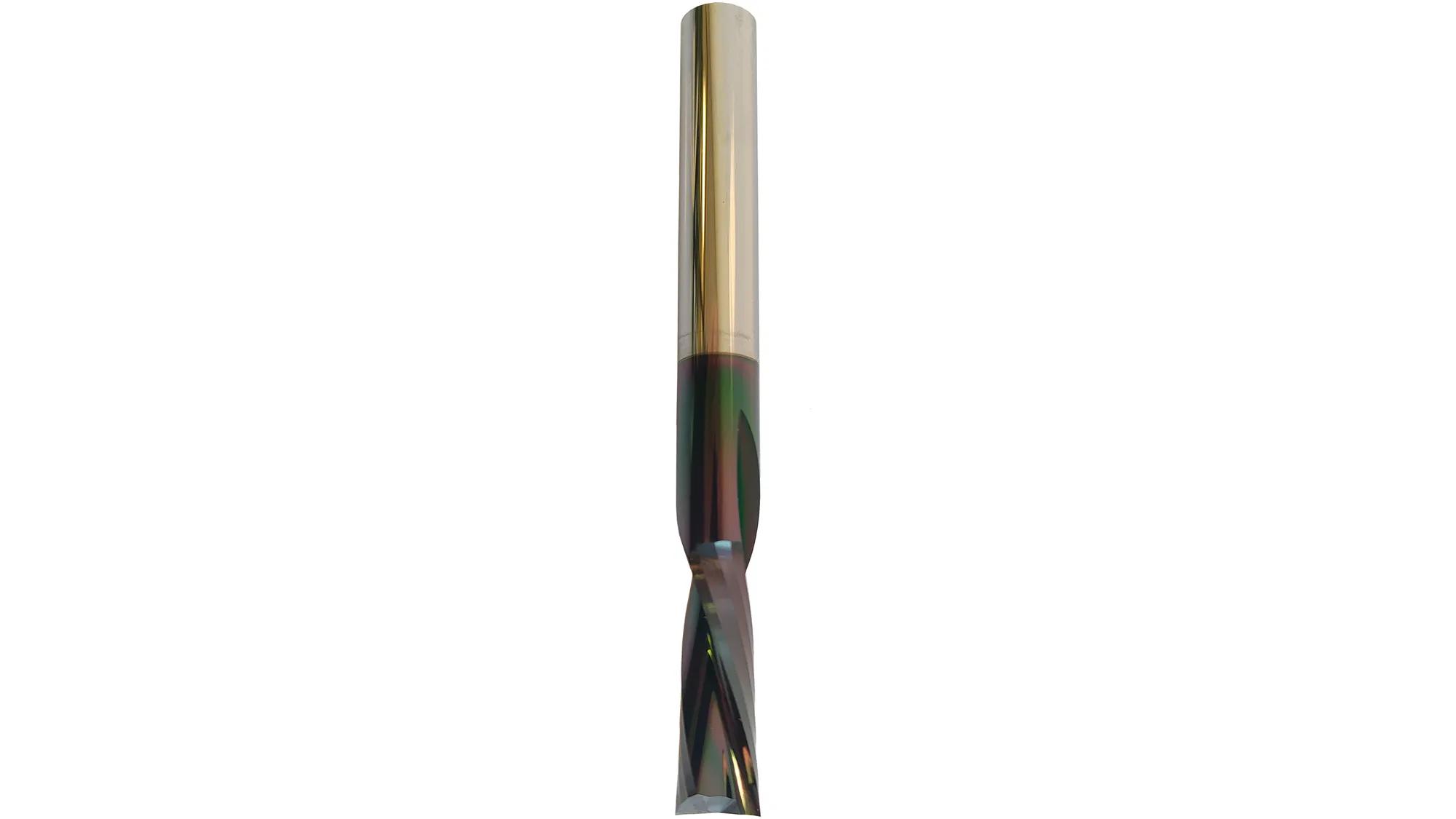

DIA® PERFORMANCE roughing cutter D 8mm, B 22 mm

D:- 8 mm l NL:- 22 mm |; GL: 80 mm | Left twist

Shipping within 24 hours (working days)

89,00 €

75,65 €

incl. VAT / excl. shipping costs

Brand:Klein
Article no.:KLE-T152-080-RKD
Weight:0.018kg

DIA® PERFORMANCE roughing cutter - right-hand twist, Z=3

Roughing cutter with three spiral fluted solid carbide cutting edges with roughing teeth. Basic and peripheral cutting, cylindrical throughout. Right-hand rotation/right-hand twist. Mechanical feed.

Suitable for pre-milling and cutting solid wood and panel materials. With good workpiece clamping, the good side of the workpiece is at the bottom. Optimum chip removal upwards.

DIA® PERFORMANCE - Innovation:

An innovative, friction-avoiding, high-performance diamond coating.
After lapping the flutes and/or cutting edges, a DIA® PERFORMANCE coating (Diamond-like Carbon) of less than 1 micron (0.001 mm) is applied.

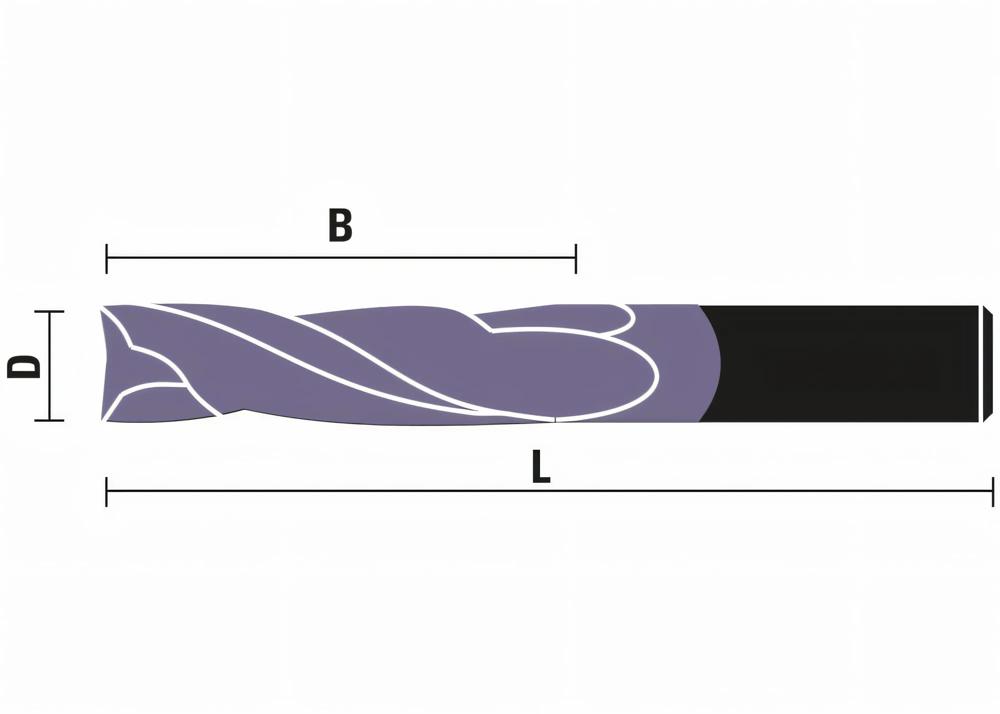

Technical Data

D: 8 mm
B: 22 mm
L: 80 mm
S: 8 mm
Hardness grade: HV0.025: 2500-3100

Properties & Advantages

Tool life 4-5 x higher than solid carbide.
Right-hand twist for clean groove base.
Spiral cutting edges upwards for fast cutting.
Excellent end milling results.
Better chip clearance.
Low coefficient of friction for low working temperature.
Machining of aluminium and plastic materials without lubricant.

Excellent results with:

Hardwood and softwood
Minerals (CORIAN ...)
Plastics (acrylic materials, Plexiglas, HDPE)
Composite materials (HPL, AluDibond, Trespa ...)
