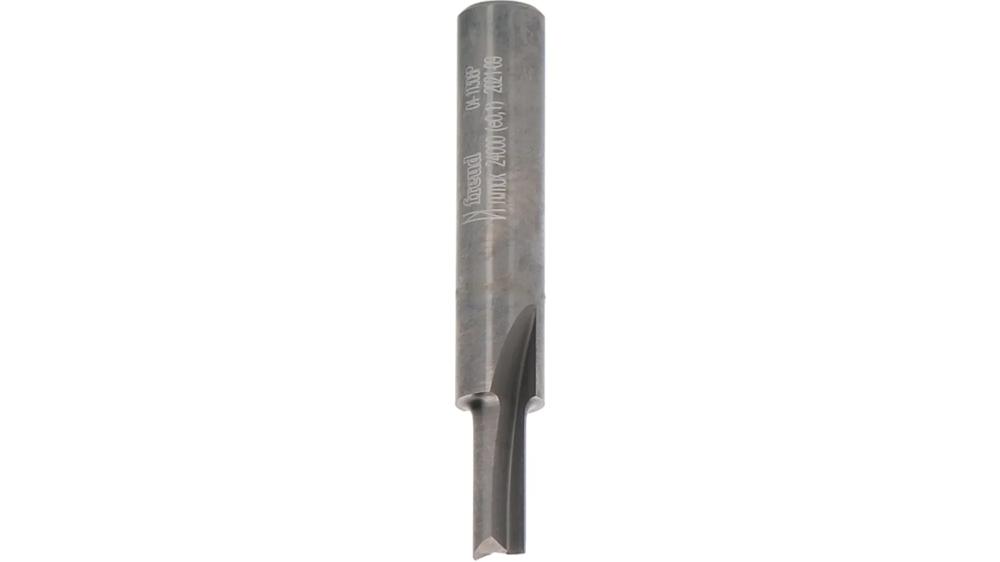

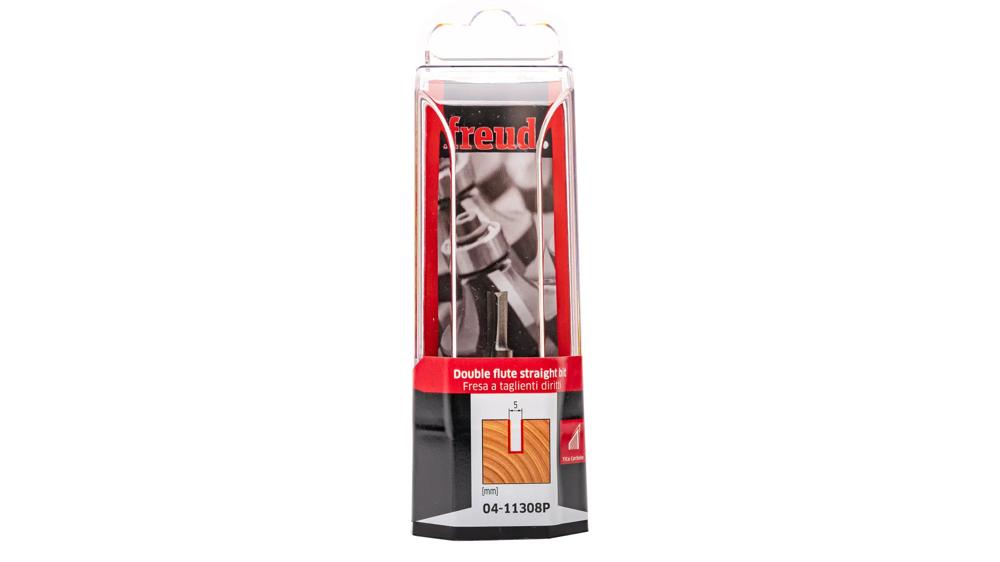

Double Flute Straight Bit Type A D: 5mm R:12,7mm

SC straight bit Type A | D5 | H50.8 | h12.7 | A8

Shipping within 24 hours (working days)

28,08 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-04-11308P
Weight:0.11kg

Freud Double Flute Straight Bit Type A D: 5mm R:12,7mm

SC straight bit Type A, D5, H50.8, h12.7, A8

Technical Data

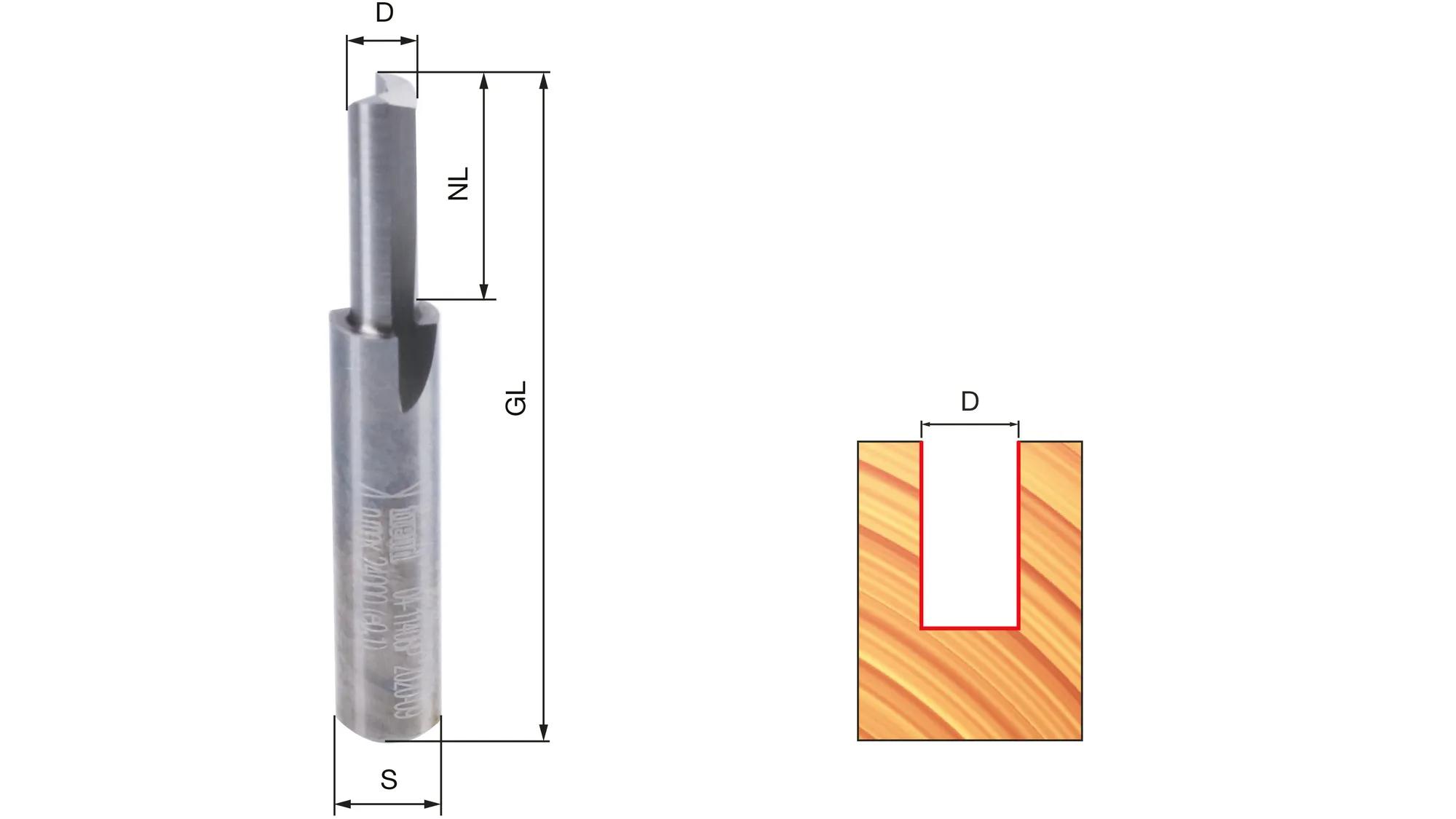

Diameter (D mm): 5Cutting Length (h mm): 12,7Overall Length (H mm): 50,8Shank (A mm): 8R1 Radius: -R2 Radius: -R3 Radius: -Bearing (C mm): - Teeth: 2Angle (°): -Max RPM 1/min: 24000

Properties & Advantages

Applications:
Small cutting diameter solid Carbide double flute straigth bits.
Ideal for grooving, edge-routing, plunge cuts and other general purpose routing tasks.Machines:
Hand-held routers, table routers and CNC machines.Materials:
Softwood, hardwood, plywood and wood based panels.Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.

Double Flute Straight Bit Type A D: 5mm R:12,7mm

SC straight bit Type A | D5 | H50.8 | h12.7 | A8

Freud Double Flute Straight Bit Type A D: 5mm R:12,7mm

SC straight bit Type A, D5, H50.8, h12.7, A8
