Double Flute Straight Bit Type C D: 25mm R:19mm

2-flute straight bit | D25 | H56 | h19 | A8

Delivery time 2-3 days

36,06 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-04-15908P
Weight:0.11kg

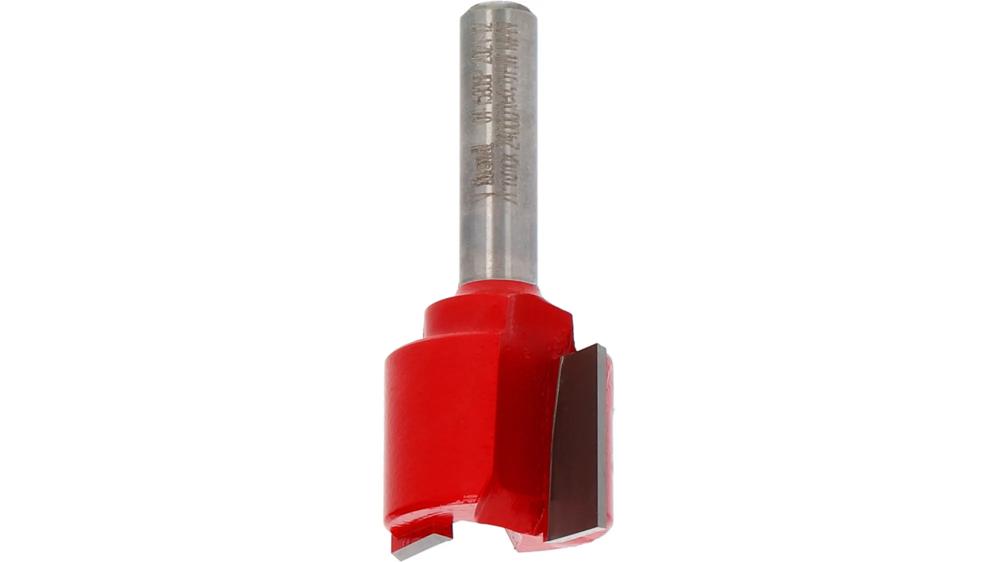

Freud Double Flute Straight Bit Type C D: 25mm R:19mm

2-flute straight bit, D25, H56, h19, A8

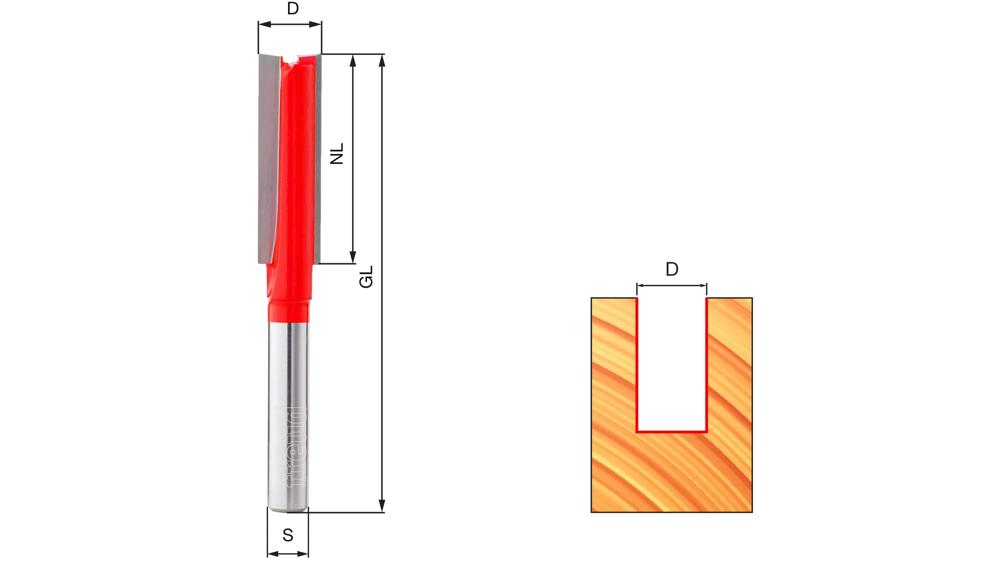

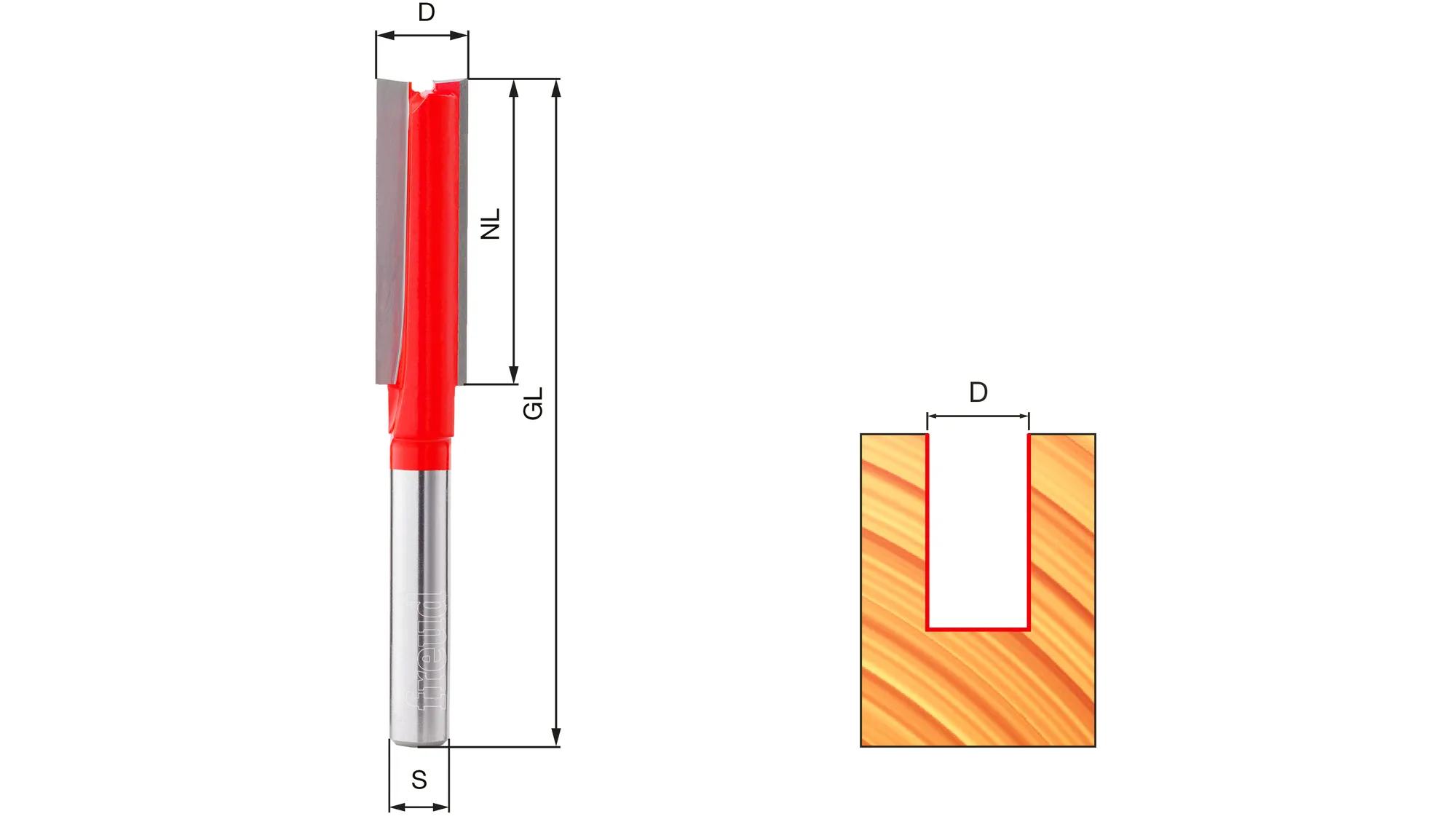

Technical Data

Diameter (D mm): 25

Cutting Length (h mm): 19

Overall Length (H mm): 56

Shank (A mm): 8

R1 Radius: -

R2 Radius: -

R3 Radius: -

Bearing (C mm): -

Teeth: 2

Angle (°): -

Max RPM 1/min: 24000

Properties & Advantages

Applications:
Ideal for grooving, edge-routing and other general purpose routing tasks.

Machines:
Hand-held routers, table routers and CNC machines.

Materials:
Softwood, hardwood, plywood and wood based panels.

Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.

Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.

Double Flute Straight Bit Type C D: 25mm R:19mm

2-flute straight bit | D25 | H56 | h19 | A8

Freud Double Flute Straight Bit Type C D: 25mm R:19mm

2-flute straight bit, D25, H56, h19, A8
