THE POCKET HOLE DRILLING FAMILY FROM KREG

  • Kreg Jig 720 & 720 Pro (successor to the Kreg Jig K5): Especially suitable for efficient work on larger projects.
  • Kreg Jig 520 Pro (successor to the Kreg Jig K4): Particularly versatile and ideal for use in the workshop and on the move.
  • Kreg Jig 300 Series: Ideal for small to medium furniture projects.
  • Kreg Jig R3 (also called Junior): For quick, mobile use

How do pocket holes work with the Kreg Jig drilling system?

Kreg Jigs are a drilling device for pocket holes. Kreg connections can be made in three simple steps:

  1. Clamp workpiece A, select the drilling depth according to the material thickness using a special step drill bit, adjust the drill jig, and drill to the stop. The Kreg Jig guarantees the correct drilling angle. test
  2. Screw in the appropriate self-tapping screws according to the type of wood and the thickness of the workpiece, and firmly connect workpieces A and B.
  3. Done! Thanks to the Kreg Jig drilling jig, you don't need to readjust, glue, or clamp anything. So there are no more waiting times. Finally, the pocket hole can be closed with covers and painted over if you don't want the pocket hole to be visible.

Which Kreg Jig pocket hole jig is right for me?

Below, we present the Kreg Jig pocket hole jigs in a clear overview so that you can decide for yourself which of these world-renowned pocket hole systems is best suited to your application.

Kreg Jig 720 / 720 PRO

  • Successor to the Kreg Jig® K5
  • The drilling station for efficient work
  • For mounting on the workbench
  • With innovative Automaxx® clamping function
  • Automatic pressure regulation thanks to Automaxx® technology
  • Comes with a matching tool storage box
  • The Pro version also has a base station for support and storage
  • Equipped with two extraction ports
  • Can process material thicknesses from 12 to 38 mm
  • Material: Drill jig and guide made of hardened steel, base body made of impact-resistant plastic

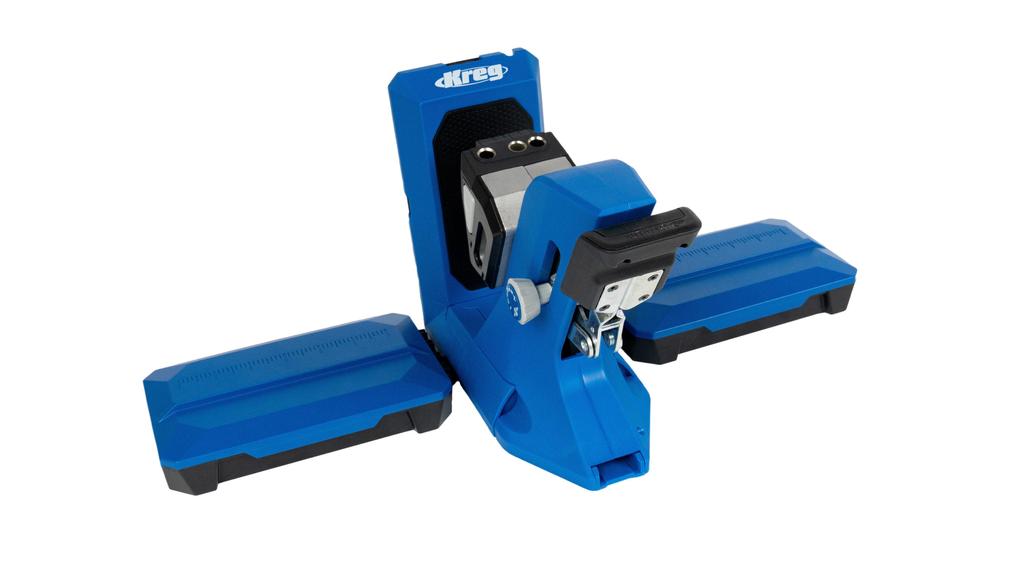

Kreg Jig 520 PRO

  • Successor to the Kreg Jig® K4
  • The versatile pocket hole drilling jig
  • Portable or for mounting on the workbench
  • Workpiece clamping with 360° rotatable clamp handle
  • Manual adjustment of the pressure on the workpiece
  • Expandable with the base station
  • No suction
  • Can process material thicknesses from 12 to 38 mm
  • Material: Drill jig and guide made of hardened steel, base body made of impact-resistant plastic

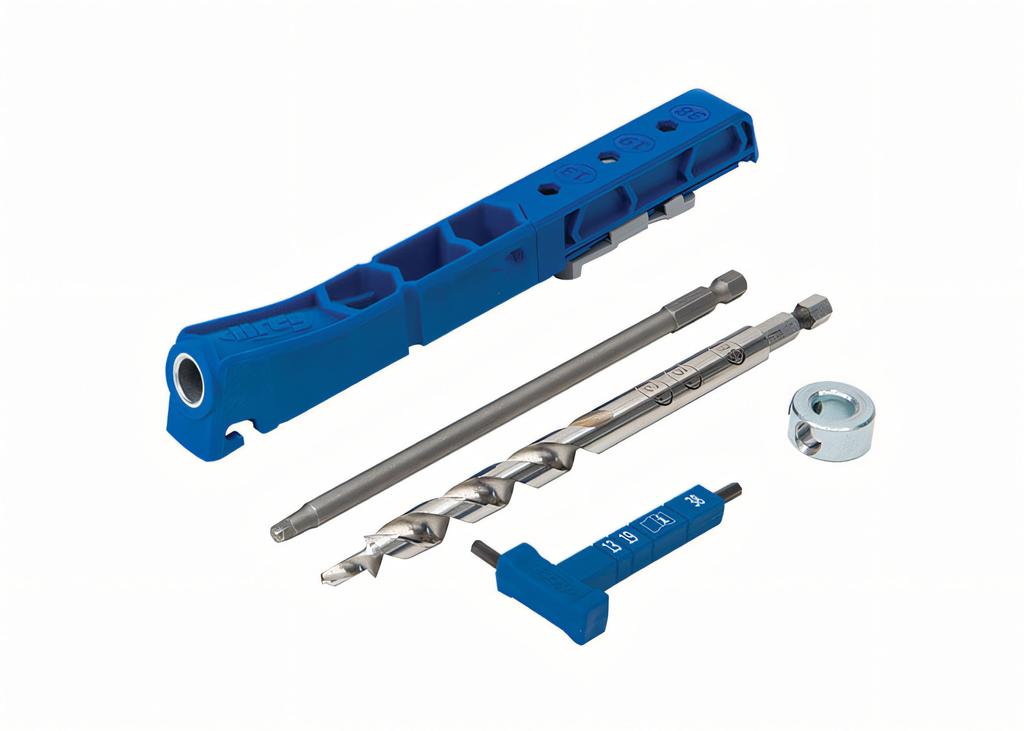

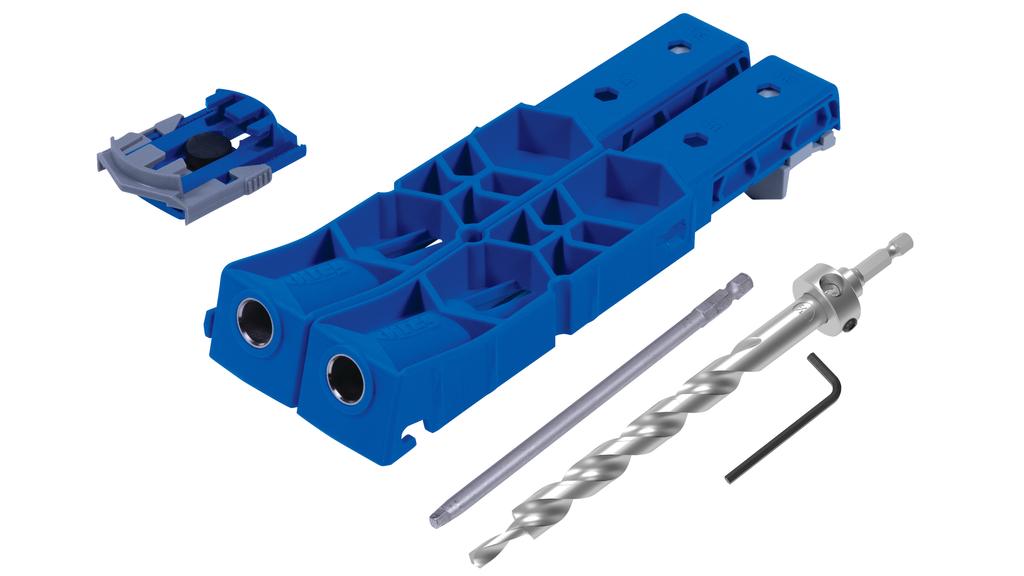

Kreg Jig 310 / 320 and Kreg Jig R3

  • The flexible pocket hole jig
  • Portable
  • Additional clamps are required to secure the workpiece
  • Manual adjustment of the pressure applied to the workpiece
  • No separate tool storage
  • No extraction system
  • Can process material thicknesses from 12 to 38 mm
  • Material: Drill jig and guide made of hardened steel, base body made of impact-resistant plastic


Kreg Jig 230

  • For delicate workpieces
  • Portable
  • Additional clamps are required to secure the workpiece
  • Manual adjustment of the pressure applied to the workpiece
  • No separate tool storage
  • No extraction system
  • Can process material thicknesses from 12 to 19 mm
  • Material: Drill jig and guide made of hardened steel, base body made of impact-resistant plastic

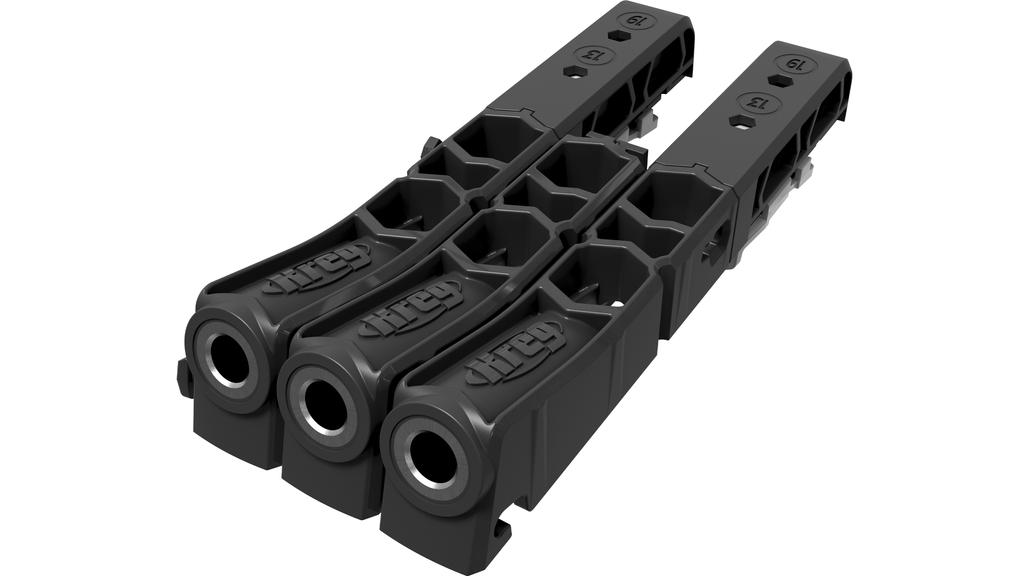

Kreg Jig XL

  • For large cross-sections
  • Portable
  • Additional clamps are required to secure the workpiece
  • Manual adjustment of the pressure applied to the workpiece
  • No separate tool storage
  • No suction
  • Can process material thicknesses from 38 to 89 mm
  • Material: Drilling jig and guide made of hardened steel, base body made of impact-resistant plastic
