Countersinks & Countersink Drills

Some fittings need to protrude above the surface of the material for technical reasons, while for others this is desired for aesthetic reasons. Often, however, screws should be countersunk so that they are flush with the surface. Countersinks and countersink drills are used in woodworking for precisely this purpose. Achieved by working with a countersink the screw to be inserted is absolutely flat to the workpiece.

Countersink 90° adjustable D 12.0-16.0

D1: 12.0-16.0mm | D2: 3.0-7.2mm | GL: 29mm | NL: 12mm | Red: Rmm

27,25 €

Tenon cutter countersink set D 10 | D1 5.0

D: 10mm | D1: 5mm | E: 90° | H: 19mm | S: 8mm

52,90 €

HECO-Decking board drill bit

HSS steel | 1 pcs.

44,95 €

FAMAG carbide drill countersink set with depth stop

depth stop with ball bearings | depth stop made of aluminium | for terrace construction 4-piece

99,90 €

Terrace drill countersink set 4 pieces

in a wooden box | Drill-Ø: 4, 5, 6 mm | with depth stop

76,97 €

Festool Deburring countersink QLS D 2-8 CE

Cross hole countersink QLS D2- 8 CE | Diameter: 2-8 mm

42,01 €

CraftPro Countersink Set - 5pcs

With hexagonal shank for quick clamping | Drill Ø: 2.0 mm | 2.4 mm | 2.8 mm | 3.2 mm | 3.6 mm

40,89 €

FAMAG Pre-drill 4 mm

Matching FAMAG Terrace Drill- Countersink Set | Drill- Ø: 4 mm

5,58 €

Festool Drill countersink BSTA HS D 3,5 CE

Countersink with depth stop BSTA HS D3,5 CE | Diameter: 3,5 mm

64,88 €

Festool Deburring countersink QLS D 5-15 CE

Cross hole countersink QLS D5-15 CE | Diameter: 5-15 mm

51,91 €

Attachable countersink set ENT 5-piece HSS

for wood twist drills with Ø 4-5-6-8-10 mm | perfect complement for the HSS-G wood twist drills from ENT

29,90 €

Variable countersink Ø 3 - 7.2 mm

Countersink for drill bits with Ø 3 - 7.2 mm | α: 90° (2x 45°)

30,94 €

Festool Drill countersink BSTA HS D 4,5 CE

Countersink with depth stop BSTA HS D4,5 CE | Diameter: 4,5 mm

83,03 €

FAMAG Pre-drill 5 mm

Matching FAMAG Terrace Drill- Countersink Set | Drill- Ø: 5 mm

6,10 €

Drill countersink set ENT 5 pieces

in a plastic case | D 4-5-6-8-10 mm

59,00 €

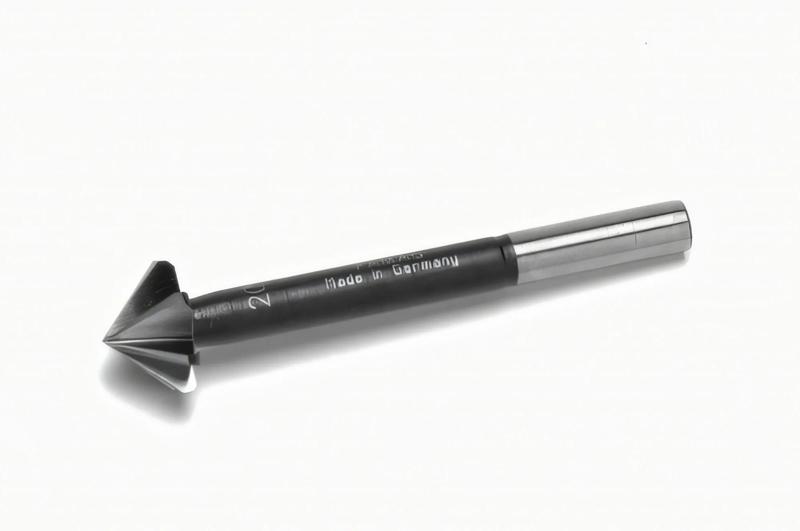

Seven-edged countersink with pointed angle 90° Set

in a wooden box | Countersink Ø: 10, 13, 16, 20, 25 mm

99,00 €

Variable countersink Ø 6 - 10 mm

Countersink for drill bits with Ø 6 - 10 mm | 90° (2x 45°)

67,95 €

Festool Spare part drill bit EB-BSTA D 5/5

Spare drill EB-BSTA D 5/5 | Diameter: 5 mm | Package contents: 5 pcs.

22,16 €

Festool Drill countersink BSTA HS D 4 L60 CE

Countersink with depth stop BSTA HS D 4 L60 CE | Diameter: 4 mm | Max. Drilling depth: 60 mm

80,63 €

FAMAG Pre-drill 3 mm

Matching FAMAG Terrace Drill- Countersink Set | Drill- Ø: 3 mm

3,67 €

Slip-on countersink set 5-piece HSS Ø 2.5 - 4.5 mm

For wood twist drills with Ø 2.5 - 3 - 3.5 - 4 - 4.5 mm | Perfect supplement for the HSS-G wood twist drills from ENT

29,90 €

Festool Drill countersink BSTA HS D 5 CE

Countersink with depth stop BSTA HS D5 CE | Diameter: 5 mm | Package contents: 1 pc.

87,00 €

Tenon cutter countersink set D 10 | D1 3

D: 10mm | D1: 3mm | E: 90° | H: 19mm | S: 8mm

52,90 €

Tenon cutter countersink set D 10 | D1 4,0

D: 10mm | D1: 4mm | E: 90° | H: 19mm | S: 8mm

52,90 €

COUNTERSINKING SCREWS AND OTHER FITTINGS FLUSH WITH THE MATERIAL SURFACE

Basically, three different tools are suitable for countersinking screws:

The upper end of the hole drilled for the screw can be widened with a countersink so that the screw can be screwed in so far that its head is below the surface of the wood. This requires two operations (drilling and countersinking), as well as a tool change.

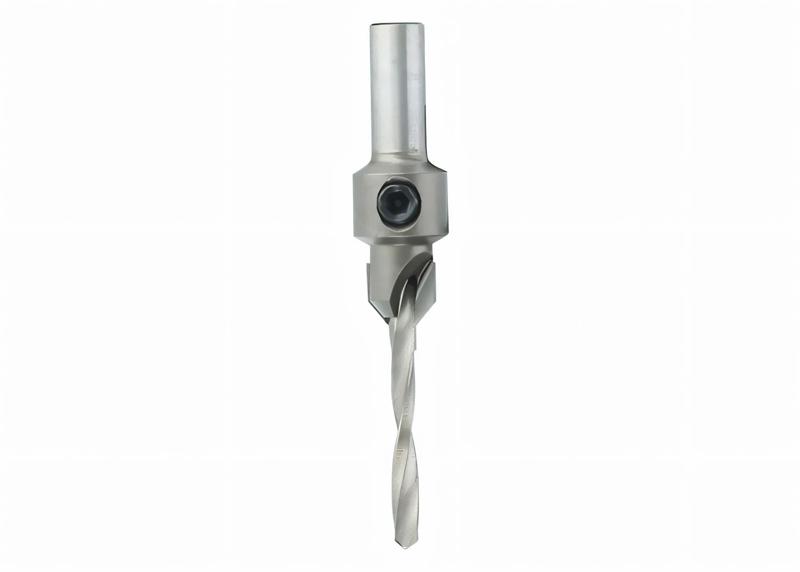

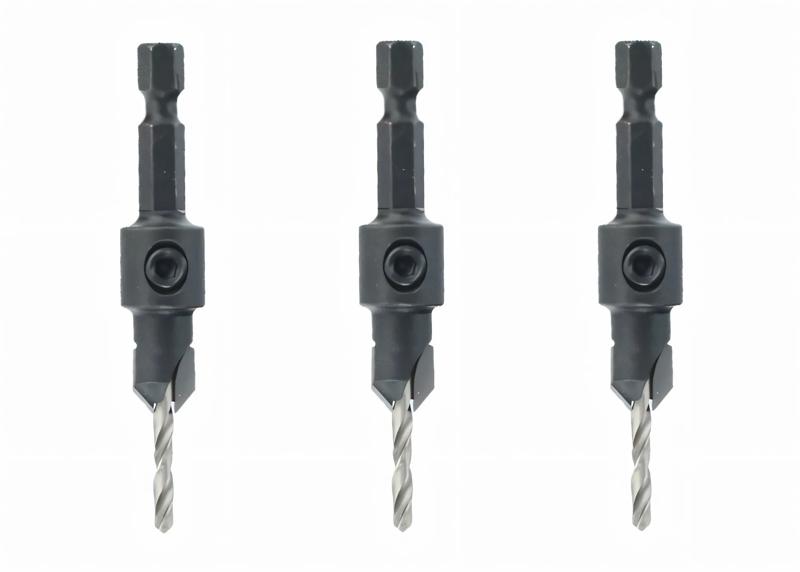

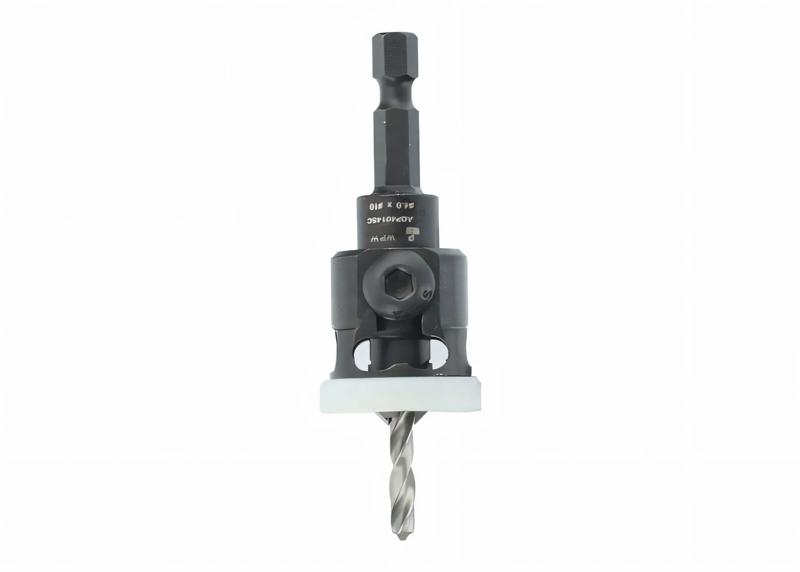

With a countersink drill, there is no need to change tools and there is only one operation. The drill is fitted with a countersink so that the guide hole for the screw and the countersink can be drilled in one go.

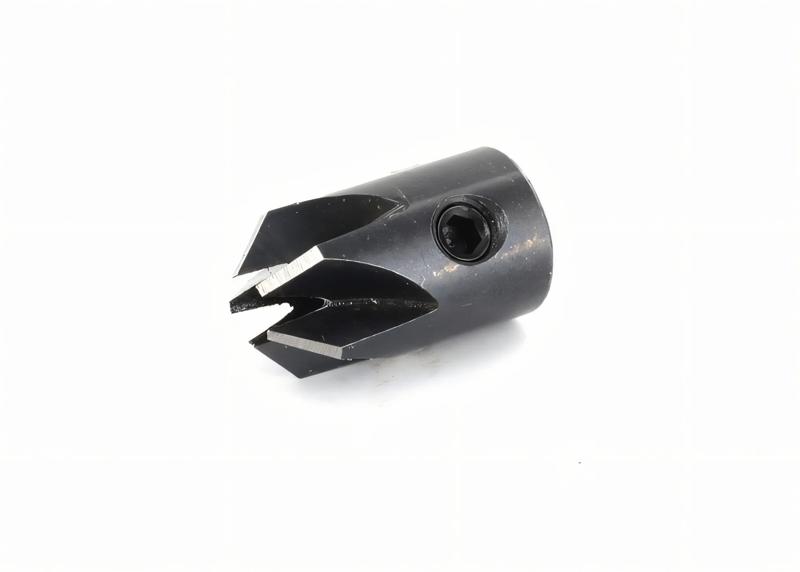

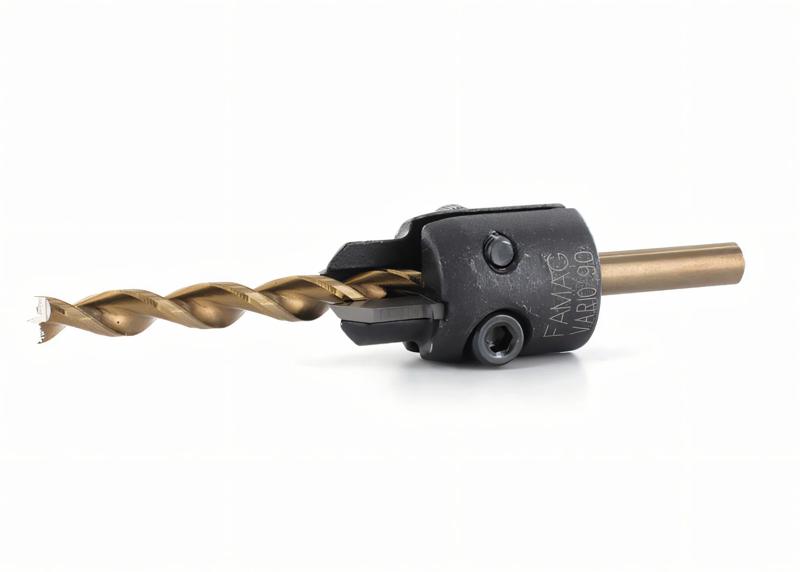

Instead of keeping drill countersinks of the appropriate diameter for countersunk holes, the existing drills can also be fitted with appropriate slip-on countersinks. This solution offers the additional advantage that blunt drills can easily be replaced by sharp ones instead of having to resharpen them.

Basically, pre-drilling the screw hole is essential for screw fastened joints, because pre-drilling and countersinking the screw hole at the same time prevents the wood from splitting.

For hexagonal screws and similar fittings, you can also countersink with a tenon countersink. These tools are similar to the well-known Forstner drills and, like them, cut a blind hole with a flat drilled base.
