Festool Centre panel connector MSV-LR32 D8/25

For stable yet flexible and detachable furniture constructions | For dowel milling machine DF 500 | Drill diameter in the base part: 15 mm

Delivery time 2-3 days

88,80 €

incl. VAT / excl. shipping costs

Brand:Festool
Article no.:F-203169
Weight:0.939kg

Festool Centre panel connector MSV-LR32 D8/25

The perfect connection. The adaptable frame and furniture connectors for the DOMINO DF 500 joining machine.

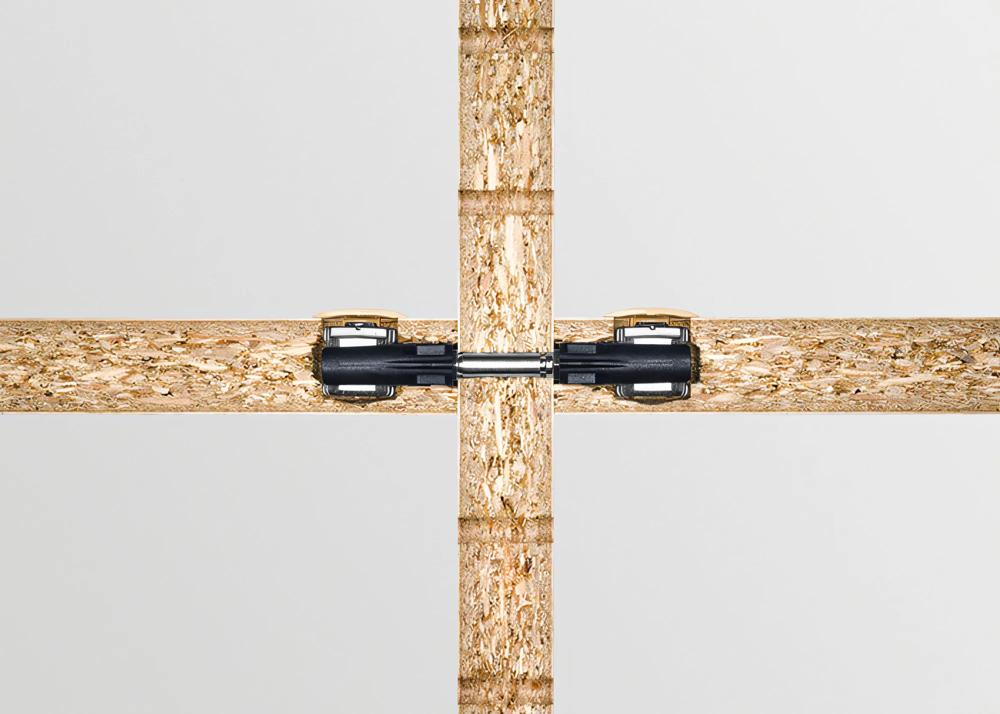

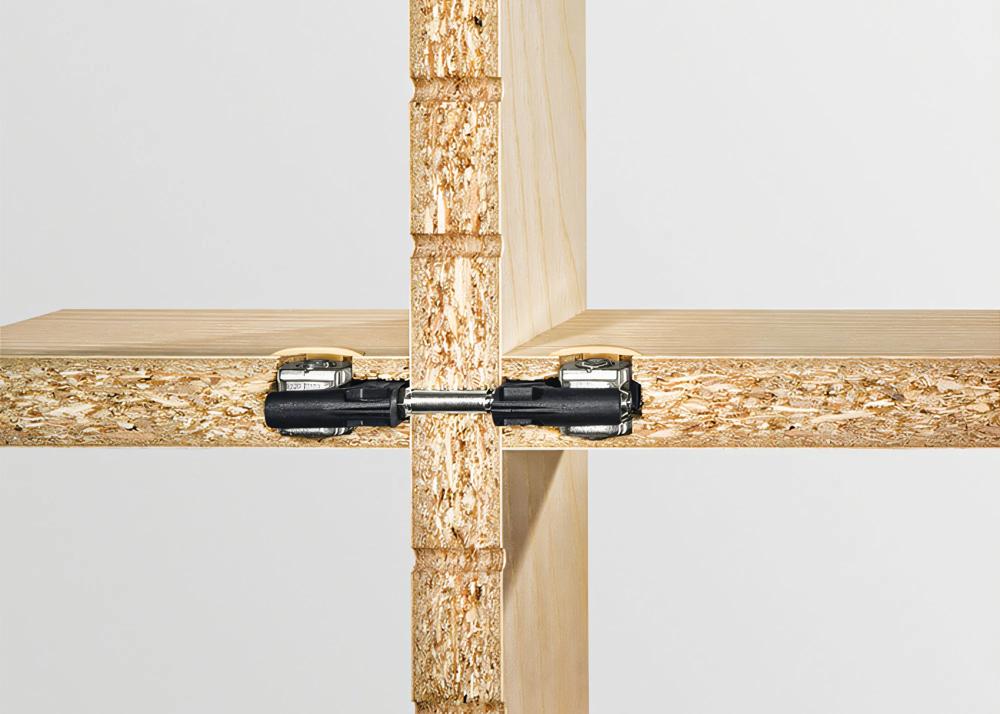

The DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications – from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.

Technical Data

Connecting fitting: 8 mm
Panel thickness: 18 - 28 mm
DOMINO Milling depth for bottom part: 28 mm
Drill diameter for Euro bolts: 5 mm
Drill diameter in the base part: 15 mm

Properties & Advantages

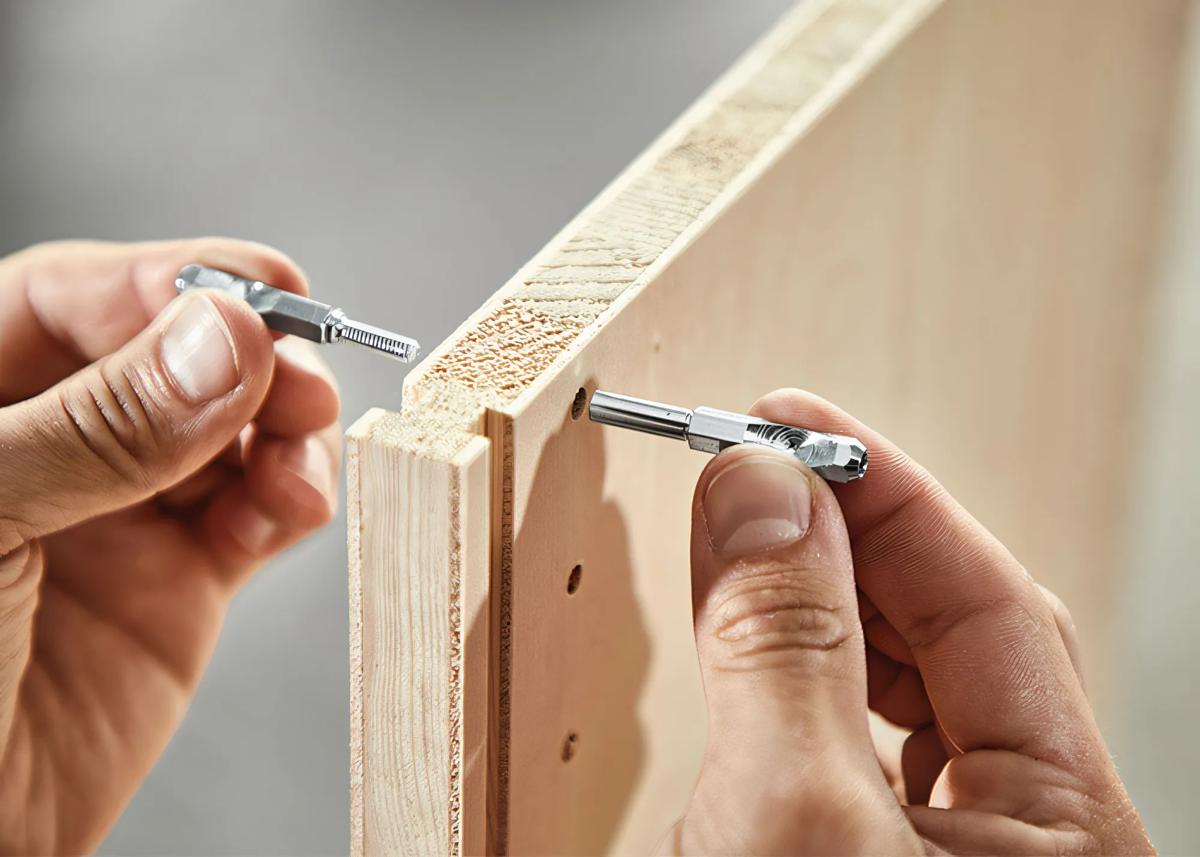

The large tightening travel and the long bolts of the connectors facilitate the furniture assembly extreme. This means that cabinet assembly alone is no problem
The flush fitting elements protect the individual furniture components from scratching
Milling and cutting tolerances of up to 1.4 mm are easily compensated by the fitting
The new, detachable DOMINO cabinet and furniture connectors are ideal for panel thicknesses from 18 to 28 mm
Drilling template required for surface drilling of DOMINO connecting fitting D8 mm

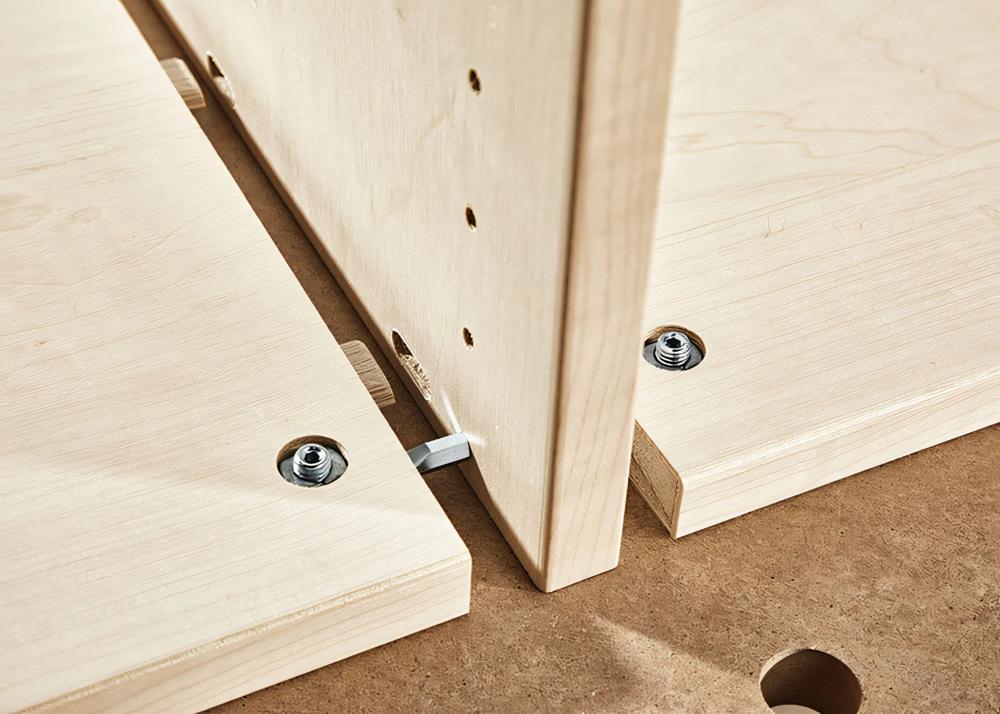

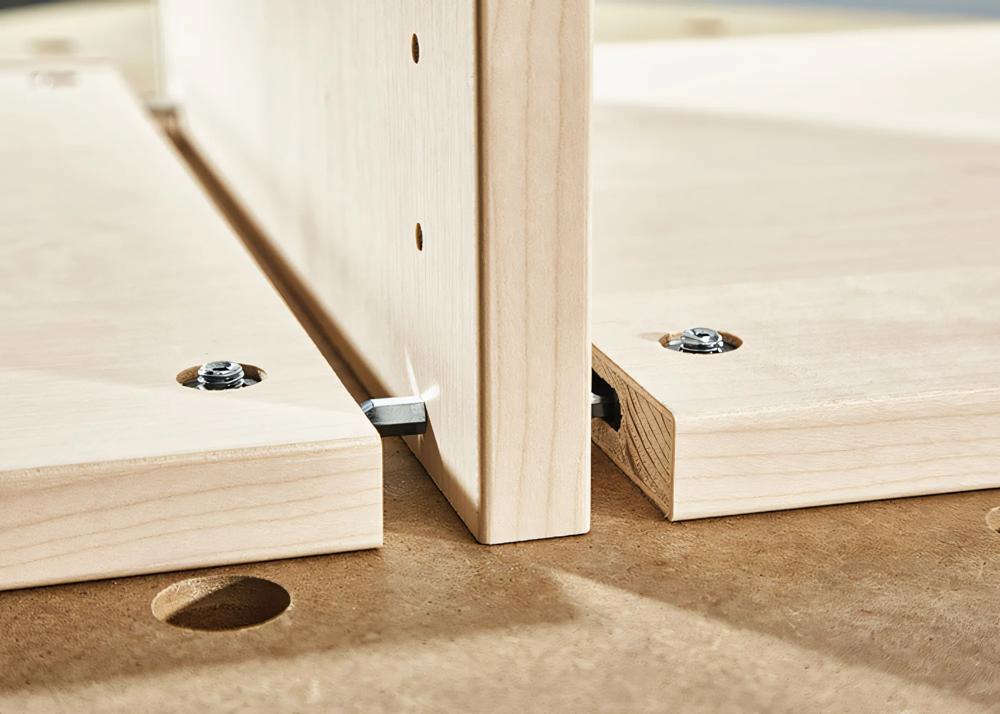

The DOMINO / DOMINO connector KV D8/50 is positioned in the cabinet side as well as in the structural floor with the DOMINO dowel milling machine DF 500
The stable yet detachable DOMINO connection system enables frictionless assembly and disassembly of the Piece of furniture - both in the workshop and at the customer.
