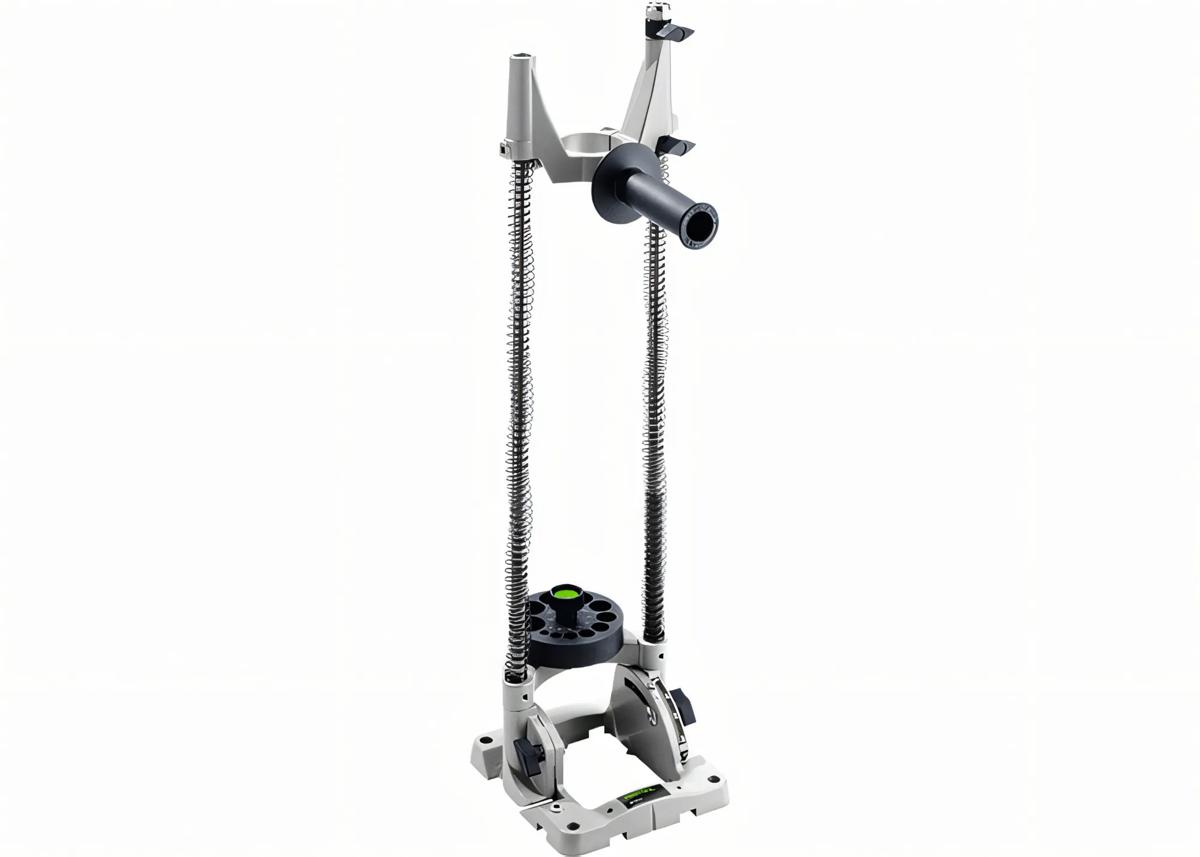

The tiltable drill stand for precise holes in wood construction up to a drilling depth of 310 mm. The holder is suitable for all drills with a collar of 43 mm or 57 mm. The centring plate enables the use of drills with diameters from 8 to 26 mm.
Technical Data
Weight 3,7 kg
Max. Drill length 460 mm
Max. Drilling depth 310 mm
Adapter for clamping neck Ø57/Ø43 mm
Properties & Advantages
Used in wooden structures for precise bore holes with auger bits
Variable swiveling up to 45° with tilt center point exactly on the surface of the work material
Excellent guidance and safe operation through the auxiliary handle located on the carriage, optionally fixed in any of 3 positions
Precise guidance of drill/borer/auger bits through the centring plate bushings, rotatable for various drill/borer/auger bit diameters of 8 mm to 26 mm
Precise adjustment of the drill depth due to the dual lockable depth gauges
Able to fit any drilling machines with 57 mm or 43 mm #d# collar attachment using the adapter ring included as a standard accessory
Easy movement thanks to precise guide rods and bronze slide bearing in the guide block
Positive stability due to the square base plate with precision-milled supporting surface
Practical scale on the parallel stops for fast setting of the position
Parallel stop can be mounted lengthways and crossways to the swivel axis
for right-angled and inclined holes up to a drilling depth of 310 mm
