Chamfering, rounding off, profiling and grooving – evenly, cleanly and without splinters with the OFK 500 edge router. Weighs just 1.4 kg and, thanks to the ideal centre of gravity, is particularly handy, even for vertical and horizontal applications. The special feature of the machine is the router system: All tools used for the edge router have the same external diameter. This has reduced the bench opening for the router to a minimum, which prevents it from tipping over during routing in problematic corner areas.
Technical Data
Power consumption - 450 W
Idle engine speed - 28 000 min⁻¹
Max. cutter diameter - 28.00 mm
Cutter stroke (fine-tuning) - 10.00 mm
Dust extraction connection diameter - 27 mm
Cable length - 4.00 m
Product weight without accessories - 1.40 kg
Transport weight incl. accessories - 4.11 kg
Drive type - 230v 50Hz Mains
Properties & Advantages
Setting: Easy and accurate to 1/10 mm for adjusting the routing depth.
No mess-ups: Perfect matching of all OFK 500 cutters (R1-6, chamfers, flush) for base runner drilling.
Hard fibre base runner: Stops your workpiece getting damaged. Great glide and super scratch-resistant!
Precision: Great run-out accuracy thanks to a solid link between the cutter and the drive.

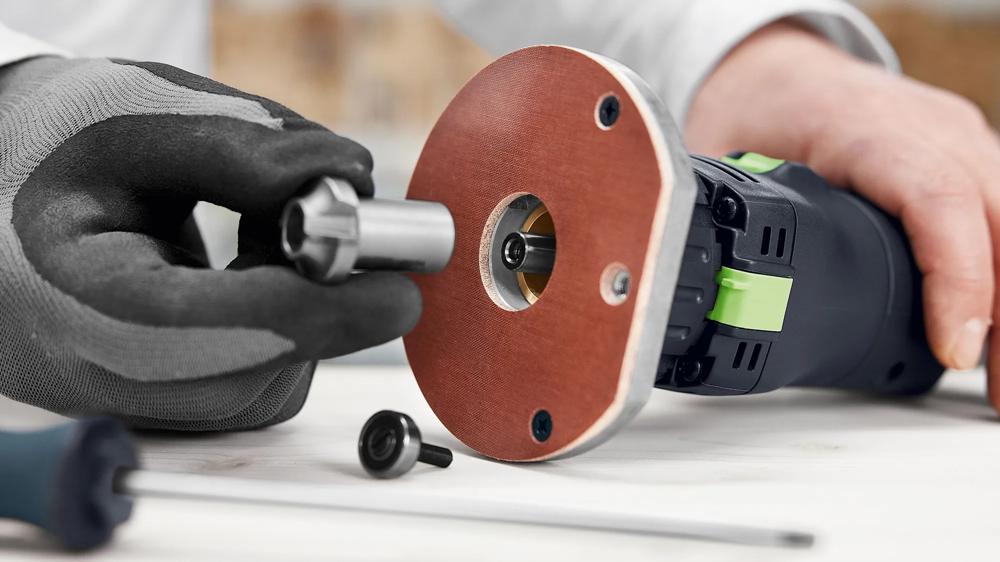

Cutter change: Quick and easy thanks to spindle stop.
Handy: Slim build, lightweight and a well-balanced centre of gravity.
Movement space: Thanks to the spring plate of the ball bearing brake, there's more room to move while working without dust extraction.
All-round support: The see-through dust extraction attachment with built-in ball bearing brake leads, slows down and sucks it all up.
