Festool Hole drilling set LR 32-SYS

System 32 hole drilling set | Perfect for furniture builds

Shipping within 24 hours (working days)
615,00 €
incl. VAT / excl. shipping costs
1
  • Brand:Festool
  • Article no.:F-576799
  • Weight:4.284kg

Festool Hole drilling set LR 32-SYS

Highly efficient production of series of holes with 32 mm spacing.

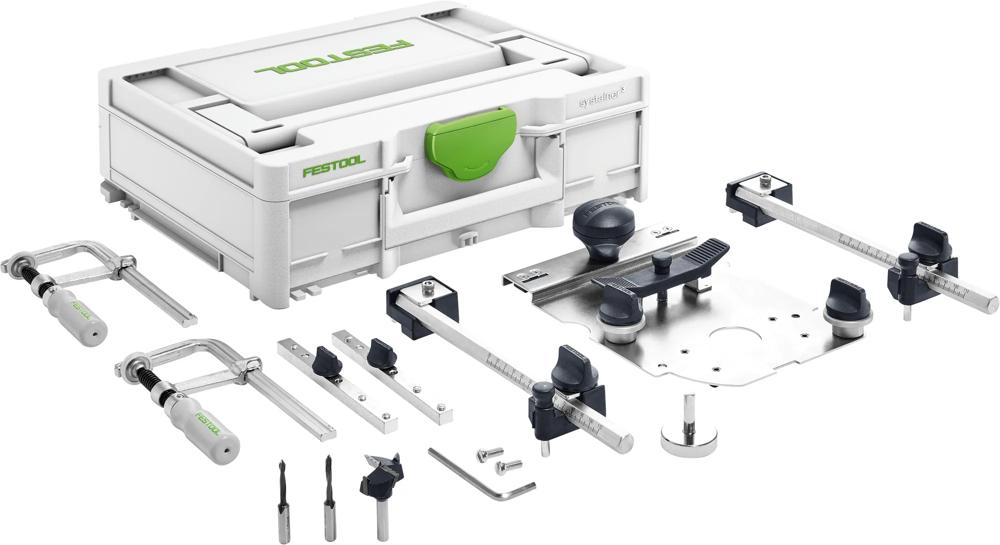

The hole series drilling system is a comprehensive kit designed for the quick and easy production of holes for shelf supports, rear wall supports, and fittings using the OF 1010 or OF 1400 router. All components are contained within a single Systainer for convenient storage and transport.

Technical Data

  • Hole spacing - 32.00 mm
  • Length of series of holes (without guide extension) - 1400 / 2424
  • Side stop setting range - 0 - 110 mm
lochreihenbohrset-festool-f-576799-02

Properties & Advantages

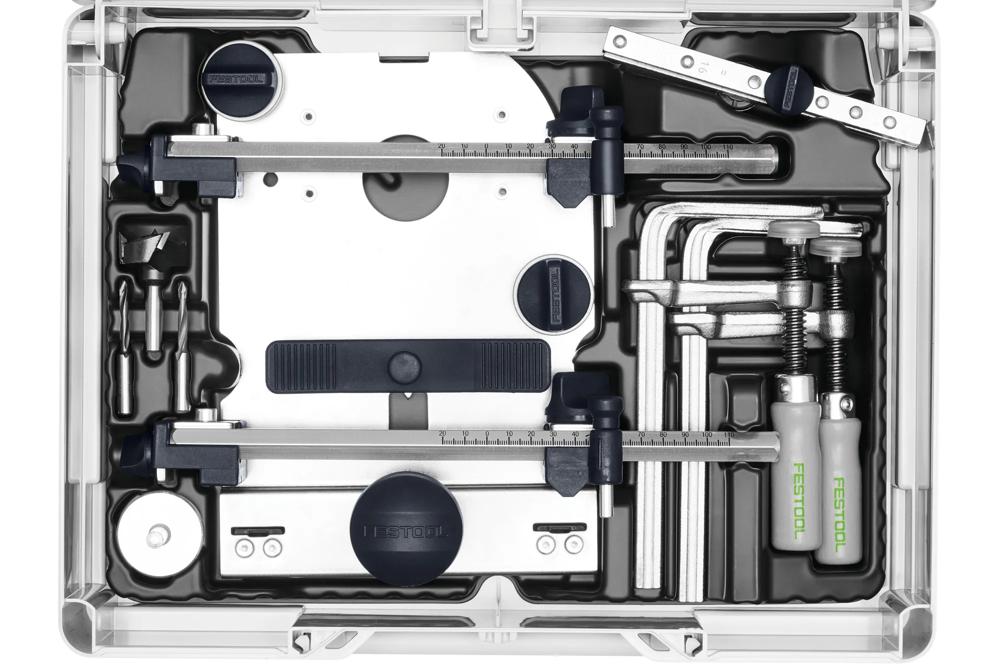

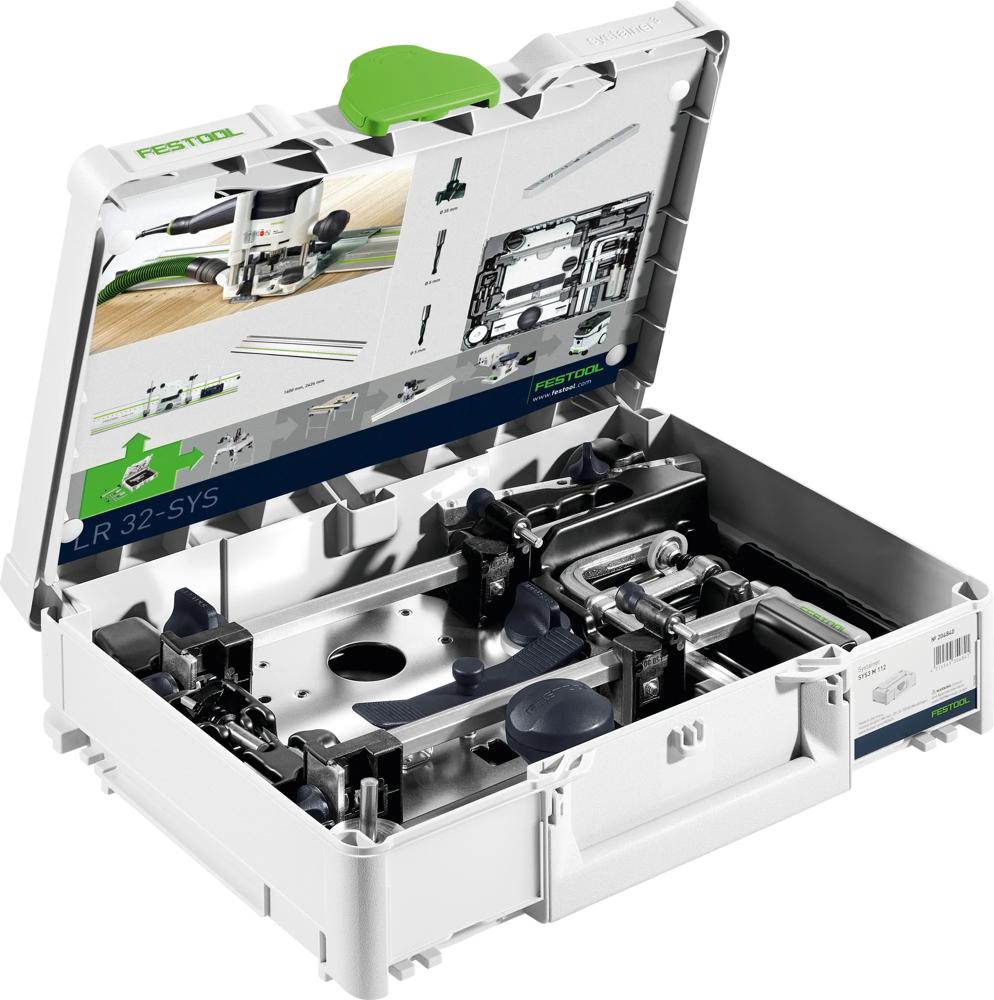

  • All necessary components for hole series production are conveniently housed in one Systainer.

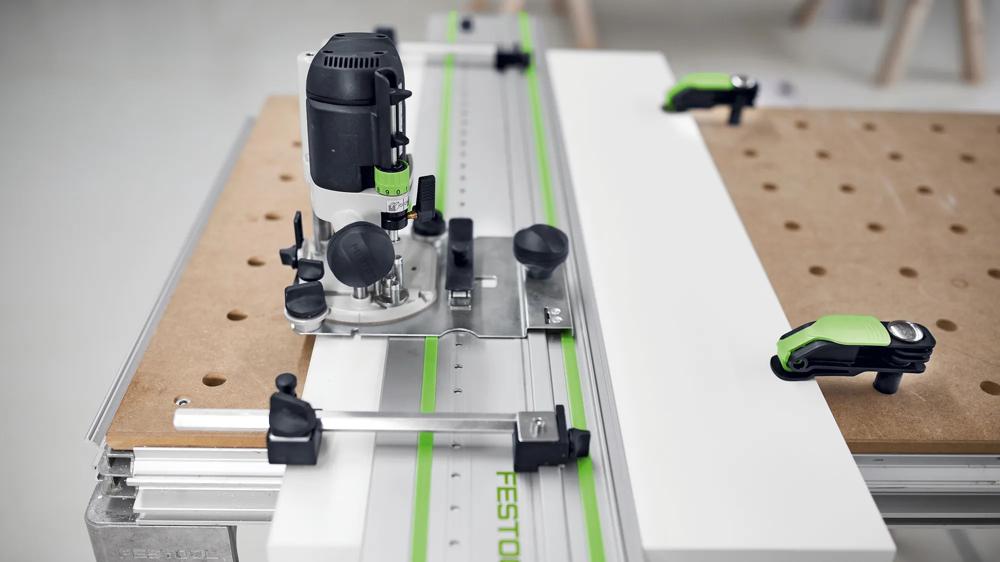

  • With the LR 32 system, which includes the guide rail FS 1400/2-LR 32 or FS 2424/2-LR 32 and the hole drilling system, precise rows of holes spaced 32 mm apart can be drilled using the Festool router.
  • The LR 32 guide rail can be quickly aligned and set parallel to the two side stops, which are adjusted at the workpiece and guide rail using an adjustable stop.
  • The guide rail can be accurately positioned with edge clearances of 9, 5, 16, or 32 mm over the stopper in the longitudinal direction.

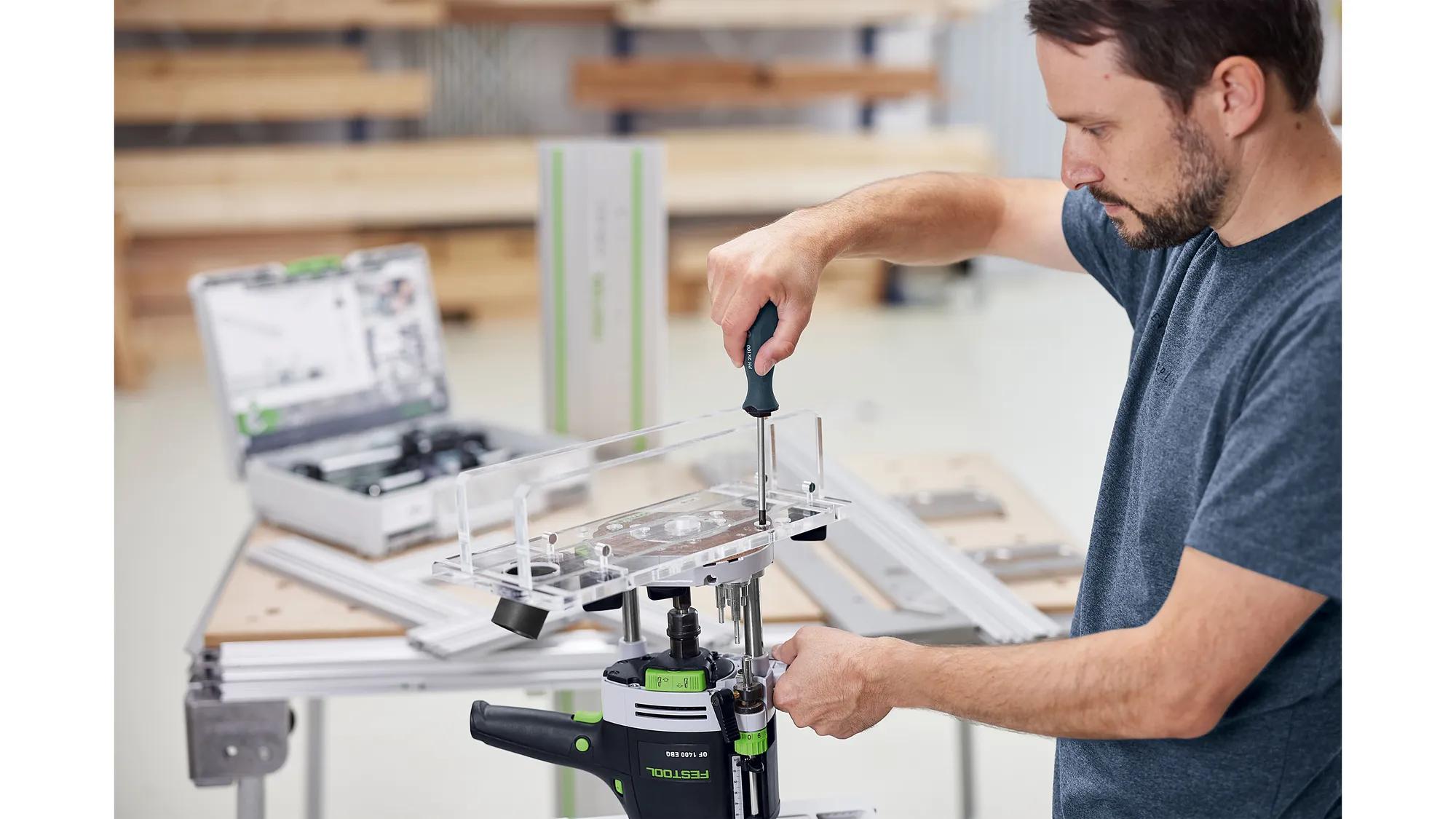

  • A centring mandrel is provided for perfect centring of the router on the guide plate.
  • The system includes a spring-loaded positioning rocker for efficient operation during hole series drilling.
  • Proper guidance is ensured through fine adjustment of the guide play and an additional handle on the guide plate.
  • Secure clamps for the guide rail are supplied to maintain stability during operation.
  • The set already includes the most important hinge location cutters for use with hole line guide rails.
