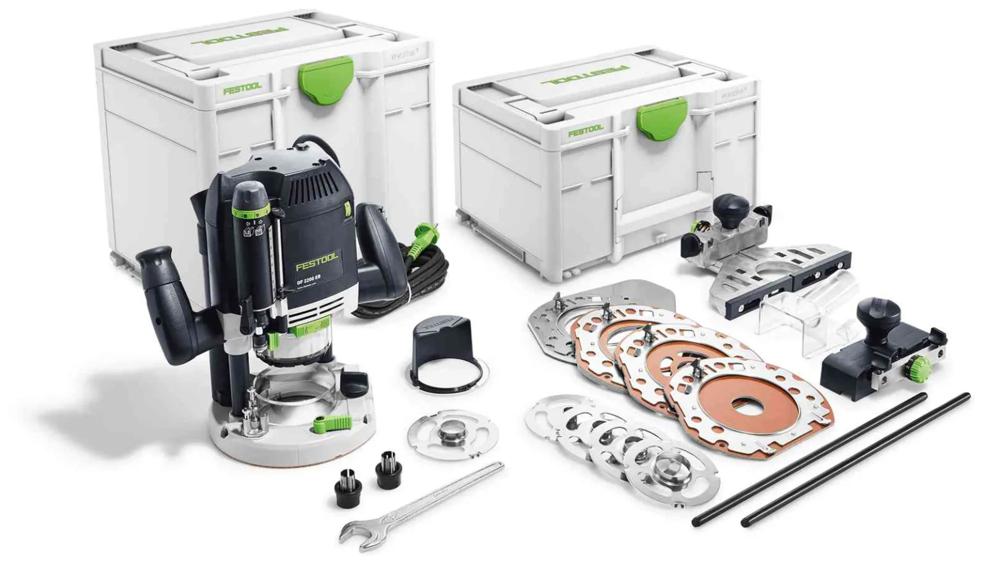

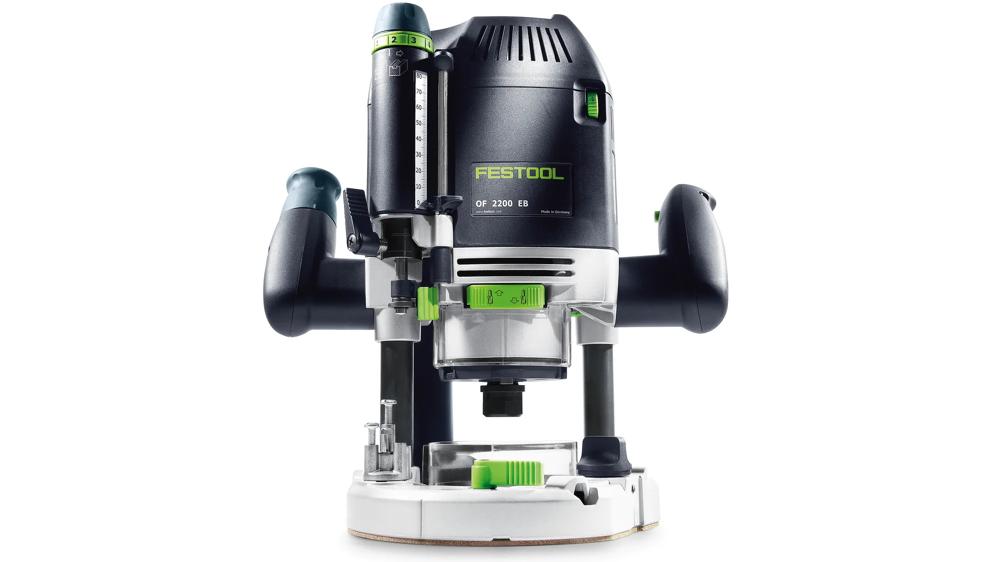

More powerful, easier to use, increased comfort and safer – the OF 2200 offers the greatest low-end torque, the highest precision and the greatest ergonomic comfort. No matter what your task is – with the OF 2200, you have the solution in your hands.
For use in stationary tables | D: 50 mm | NL: 30 mm
Delivery time 2-3 days
195,36 €
incl. VAT
Art.-Nr: SET-ASL20-12
4 Products
Technical Data
Power consumption 2200 W
Weight 7,8 kg
Connection dust extraction Ø 36/27 mm
Speed 10000-22000 min-1
Max. bit size Ø 89 mm
Routing depth fine adjustment 20 mm
Collet Ø 6-12,7 mm
Stroke 80 mm
Dimension base plate: 200 x 180 mm
Restart protection: The router is not suitable for table use.*
*The built-in restart protection prevents unintentional start-up of the machine after a power interruption. The means it is not practical to use the router in a router table in connection with a on-off/ emergency stop /zero voltage switch.
Properties & Advantages
Top power development and fully variable speed for hard materials and increased material thicknesses.
Outstanding ergonomics: guide rods offset by 30 degrees to transfer force efficiently.
Tool-free copying ring and base-runner change.
Fast, convenient router-bit change with rocker and ratchet principle.
Detachable base plate for fast profile cutter adjustment.
Dual guide column clamp for extra torsional rigidity and greater precision.
Simple and exact routing depth setting to 1/10 mm.
Dust extraction of up to 99 % during edge routing through adjustable extraction ring and chip catcher.
