Finger joint bit D: 35mm R:41,5mm

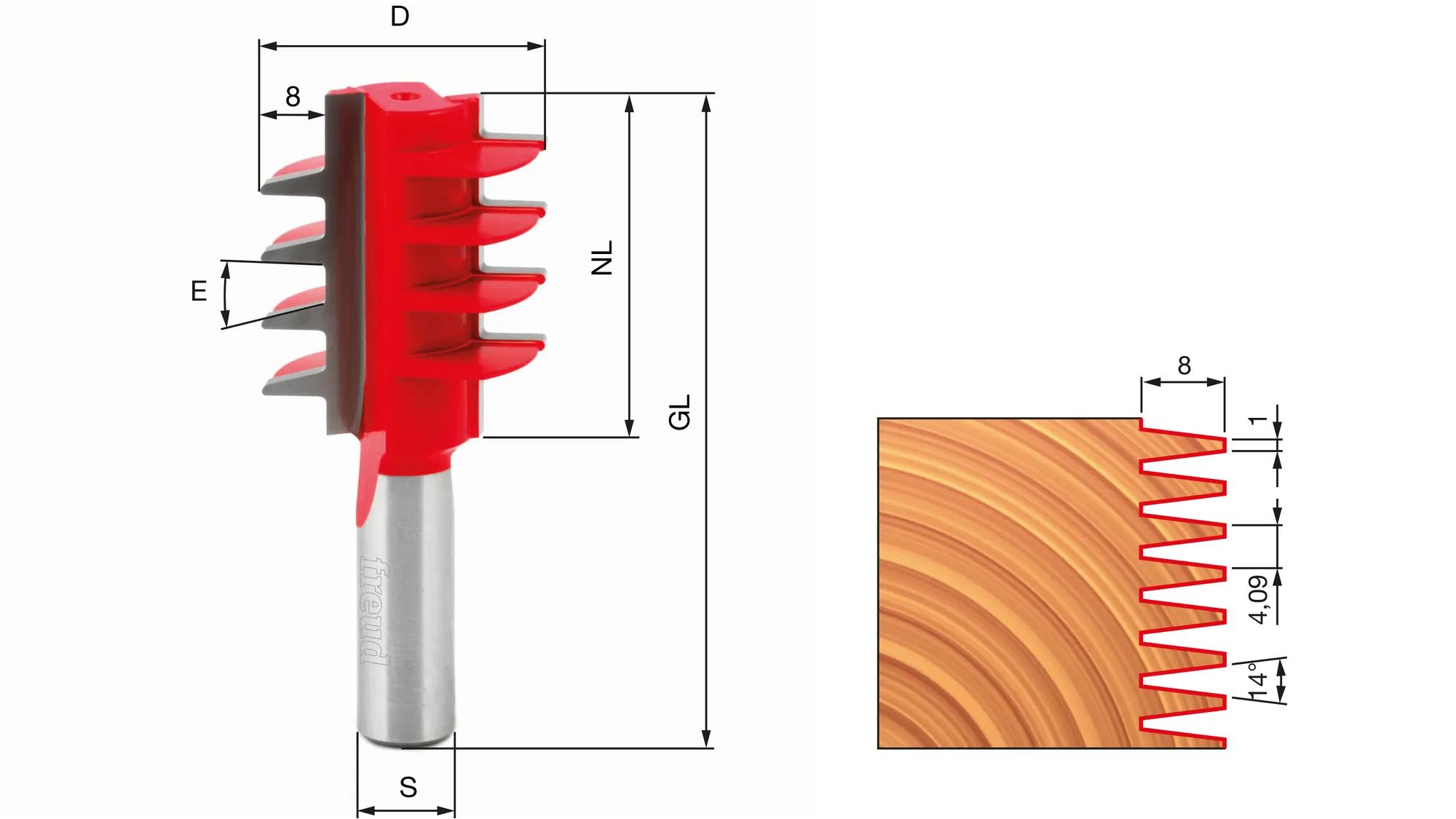

Finger joint bit | D35 | H79.5 | h41.5 | A12

Delivery time 2-3 days
102,22 €
incl. VAT / excl. shipping costs
1
  • Brand:Freud
  • Article no.:FR-99-03712P
  • Weight:0.11kg

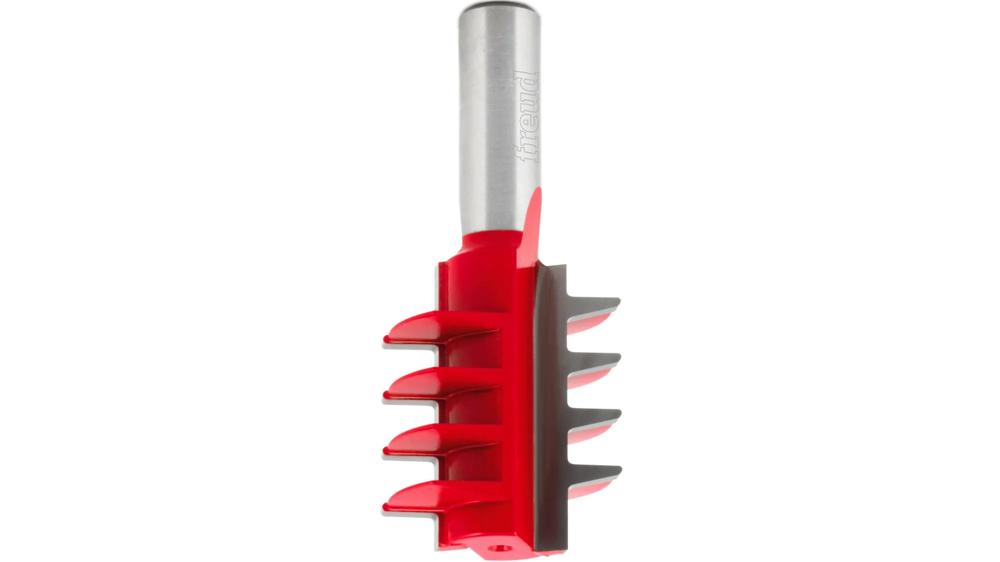

Freud Finger joint bit D: 35mm R:41,5mm

Finger joint bit, D35, H79.5, h41.5, A12

Technical Data

Diameter (D mm): 35Cutting Length (h mm): 41,5Overall Length (H mm): 79,5Shank (A mm): 12R1 Radius: -R2 Radius: -R3 Radius: -Bearing (C mm): - Teeth: 2Angle (°): -Max RPM 1/min: 16000
keilzinken-verleimfraeser-d35-s12-z2-freud-fr-99-03712p-02

Properties & Advantages

Applications:
Create perfectly flat even surface and increase gluing area for a stronger joint.Machines:
Table routers and CNC machines.Materials:
Softwood, hardwood, plywood and wood based panels.Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.Instructions for use:
  1. The upper sides of both workpieces to be joined should face upwards (do not turn them over).
  2. Set one workpiece as desired and rout it.
  3. Other workpiece: Adjust the router bit by 2 mm (exactly 2.05 mm) upwards or downwards and rout it.
