Flat dowel cutter set HW Z2

Name: sauter GmbH
Address: Arzbergerstraße 4, Herrsching a.Ammersee, Germany, Bayern, 82211, Deutschland
Telephone: +49 8152 92898-88

D: 37,2 mm | NL:4 mm | B:12,7 mm | B2:16 mm | B3: 19 mm | S:12 mm

Delivery time 2-3 days

84,78 €

incl. VAT / excl. shipping costs

Brand:Trend
Article no.:T-C152X12MMTC
Weight:0.114kg

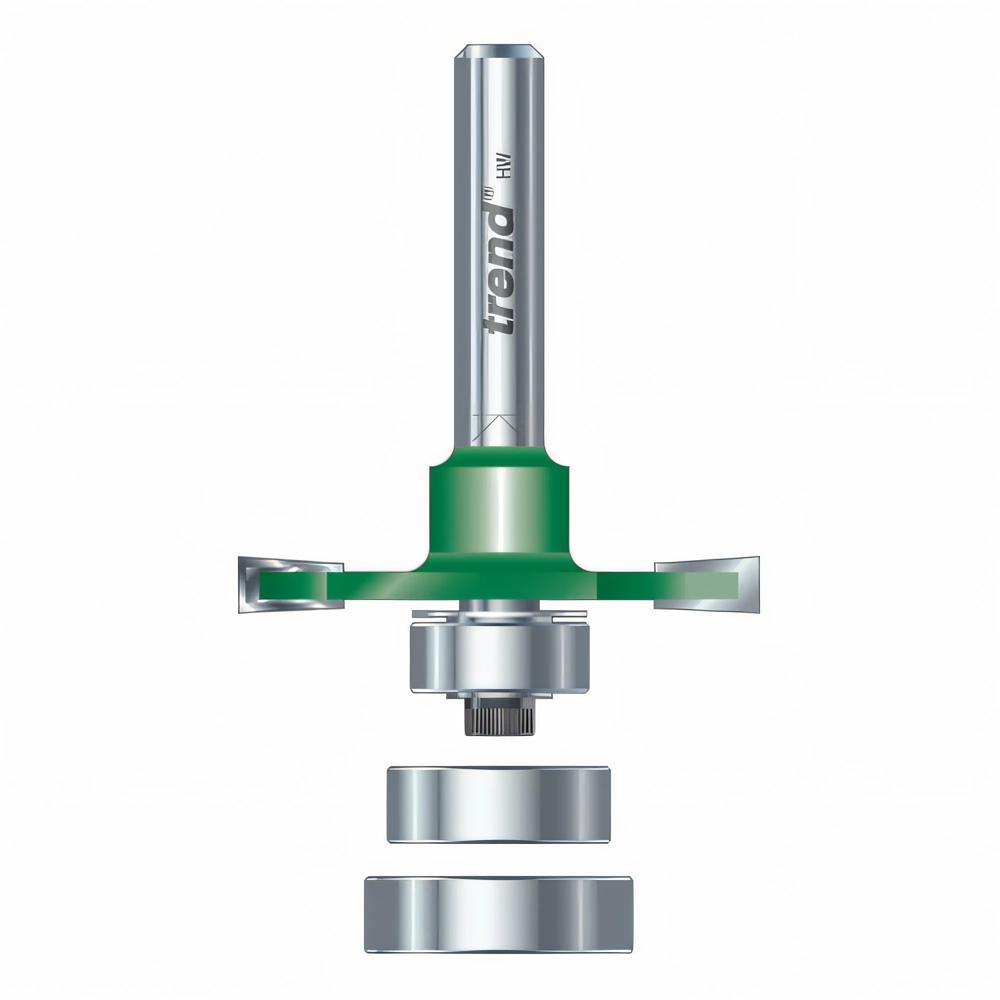

Flat dowel cutter set HW

This 2-leaf HM-tipped Disk Groove Cutteris ideally suited for grooving flat dowel plates. Includes three different ball bearings to use all three sizes of flat dowel plates can.However, the depth of cut should be slightly greater than the plate itself to make it easier to fit together.

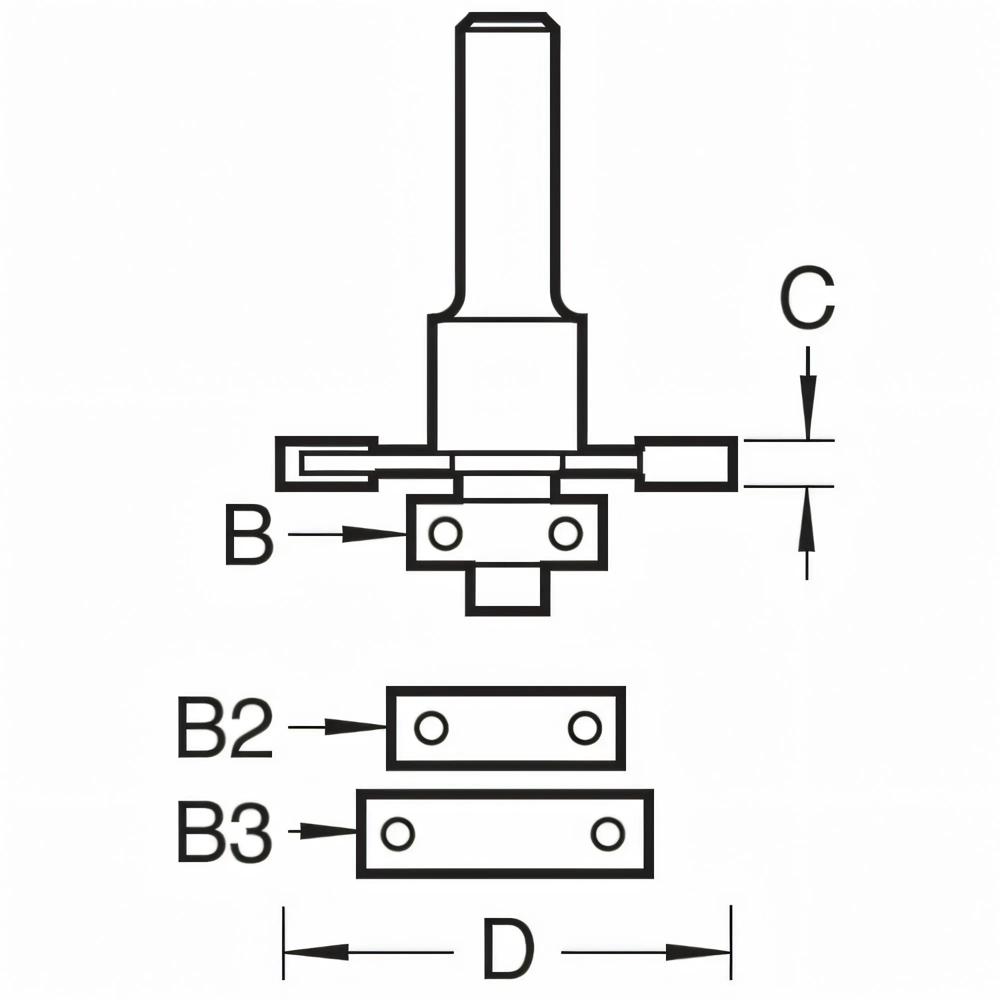

Technical Data

D: 37,2 mm
NL (C): 4 mm
Ball bearing (B): 12,7 mm -> slot depth: 9,05 mm
Ball bearing (B2): 16 mm -> slot depth: 10,6 mm
Ball bearing (B3): 19 mm -> slot depth: 12,25 mm
S: 12 mm
Z: 2
