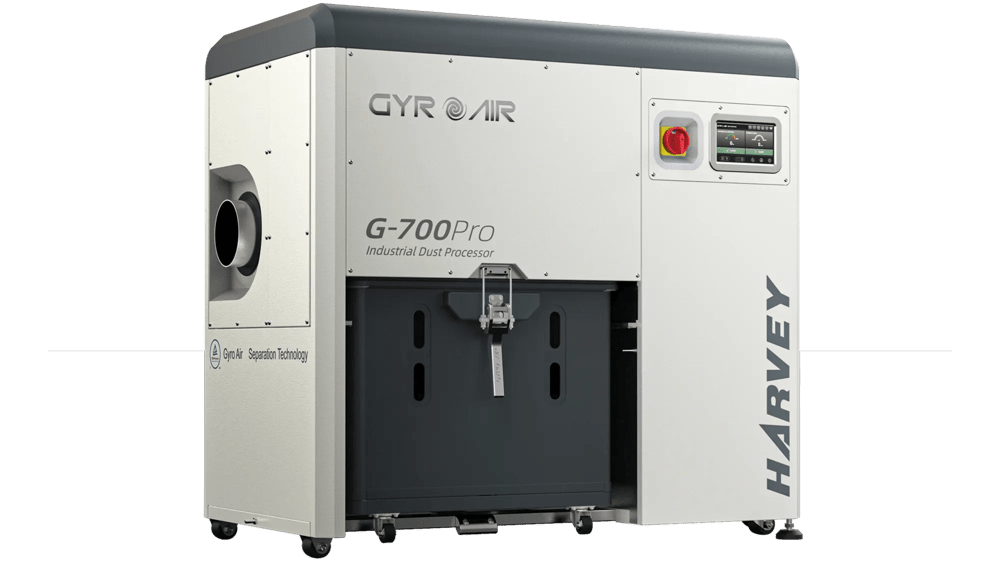

- Harvey GYRO AIR G-700 Pro suction unit (white)
Harvey GYRO AIR G-700 Pro suction unit (white)
230V | remote control | 128 L dust container
- Brand:HARVEY INDUSTRIES
- Article no.:HAR-803519
- Weight:280kg
Harvey GYRO AIR G-700 Pro suction unit (white)
Harvey GYRO AIR G-700 Pro suction unit (white)
POWERFUL and INTELLIGENT
You didn't get into woodworking to constantly fend off dust. You got into it to create, to create, to mould geometry and function out of raw material with your own hands. But somewhere along the way, the dream got buried under sawdust. Conventional dust extractors roared like jet engines, clogging at the most inconvenient times and wreaking havoc on your creative space.
Filters become clogged. The suction power diminishes. You find yourself notching, coughing, frustrated and wondering why the very machine that's supposed to support your work has become the thing that's so demotivating.
The Harvey G-700 Pro was born out of that very frustration. We listened. We designed. We obsessed. This is not just another dust collector. It's a system designed from the ground up to give you back your time, your space and your breath. Combining raw industrial strength with modern intelligence, the G-700 Pro delivers cleaner air, more powerful suction and intuitive control - all in one impressively responsive device. The G-700 pro will bring lasting excitement to your workspace.
Technical Data
- Electrics & control:
- Power supply: 220-240 V 60 Hz 1-phase
- Recommended fuse protection: 20 A
- Mains cable length: 2540 mm
- Display: 7" Android touchscreen
- Motor:
- Motor type: Permanent magnet synchronous motor
- Power: 2.2 kW
- Voltage / phase: 220 V / 3-phase
- Rated current: 6.8 A
- Speed: 2400 - 4200 rpm, variable
- Dimensions & weight:
- Overall dimensions: 1200 x 700 x 1150 mm
- Packaging dimensions: 1375 x 790 x 1300 mm
- Net weight / gross weight: 245 / 280 kg
- Performance data:
- Inlet diameter: Ø 125 mm
- Max. Air flow: 2100m³/h
- Max. static pressure: 4800 Pa
- Max. Air flow with 125 mm hose: 1275 m³/h
- Filter efficiency: 99.35 % at 0.3-0.5 µm
- Filter emission value: 0.05 mg/m³
- Filter area: 6.3 m²
- Number of filters: 2
- Noise level at 3 m: 60-71 dB(A)
- Max. Dust container volume: 128 litres
- Features:
- Automatic jet-pulse filter cleaning: Standard
- Filter monitoring: Standard
- Flow cruise function: Standard
- Overrun switch-off: Standard
- Radio remote control: Standard
Properties & Advantages
- The patented Gyro Air technology
- Rear-mounted blower unit
- Single-pass duct design
- Smarter control system
- Intuitive touchscreen user interface
- High efficiency PMSM motor
- Intelligent jet pulse filter cleaning
- Wireless remote control (20 m range)
- Low-noise operation (60-71 dB(A))
- Pull-out dust container
- Fill level detection
