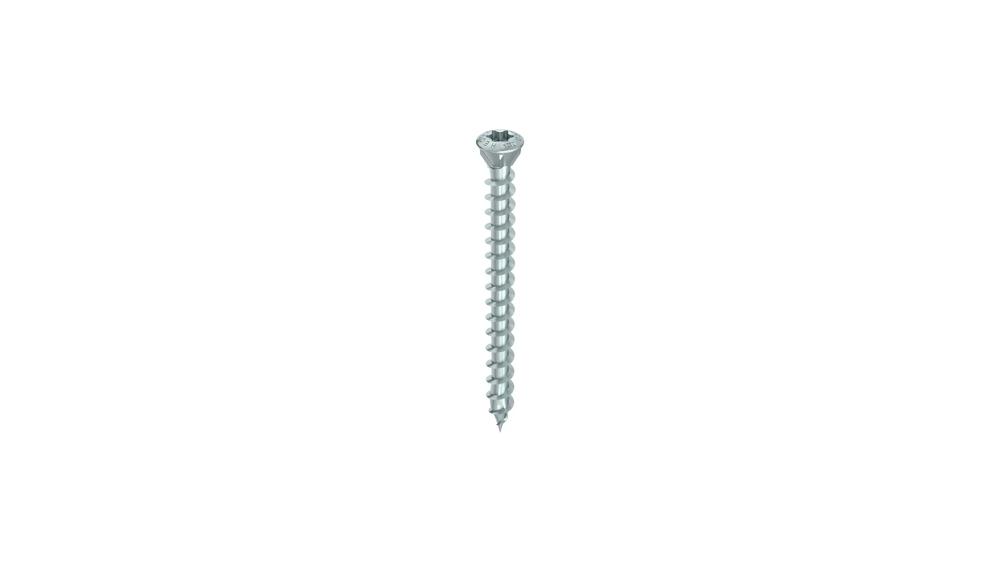

HECO-TOPIX-plus 3,5 x 40, floorboard screw, raised countersunk head, T-Drive, VFT, A3K, 500 pcs.

dielenschraube-linsenkopf-t-drive-heco-schrauben-hc-60294-01

dielenschraube-linsenkopf-t-drive-heco-schrauben-hc-60294-02

dielenschraube-linsenkopf-t-drive-heco-schrauben-hc-60294-03

HECO-TOPIX-plus 3,5 x 40, floorboard screw, raised countersunk head, T-Drive, VFT, A3K, 500 pcs.

3,5 x 40 | floorboard screw, raised countersunk head with milling ribs | T-10 | carbon steel | bright zinc plated, A3K | 500 pcs.

Delivery time 2-3 days

21,57 €

18,35 €

incl. VAT / excl. shipping costs

Brand:HECO-SCHRAUBEN
Article no.:HC-60294
Weight:0.89kg

HECO-TOPIX-plus 3,5 x 40, floorboard screw, raised countersunk head, T-Drive, VFT, A3K, 500 pcs.

The unique floorboard screw with contraction effect

The HECO-TOPIX-plus Floorboard screw pulls timber components together as it is driven in, leaving no gaps, whilst simultaneously fixing the components via the thread. That allows not only a quick and cost-saving working, but also reliably prevents annoying creaking of the floorboards at the screw shank. As the loads are transferred via the thread, the head is used solely for driving and can be designed very small. It can be used in narrow tongue-and-groove mounting areas and does not overlap in subsequent components. That ensures a precise connection of profiled timber components. In addition the patented HECO-TOPIX drilling tip reduces the splitting of timber, enabling the usage in thinnest profiles with lowest edge distances.

Compatible accessories

schrauberbit-set-heco-drive-pozi-drive-heco-schrauben-hc-58561-01

HECO-Bit-Selector, HECO-Drive, 11 parts

1 pcs.

Delivery time 2-3 days

46,74 €

33,93 €

incl. VAT

Art.-Nr: HC-58561

1 Products

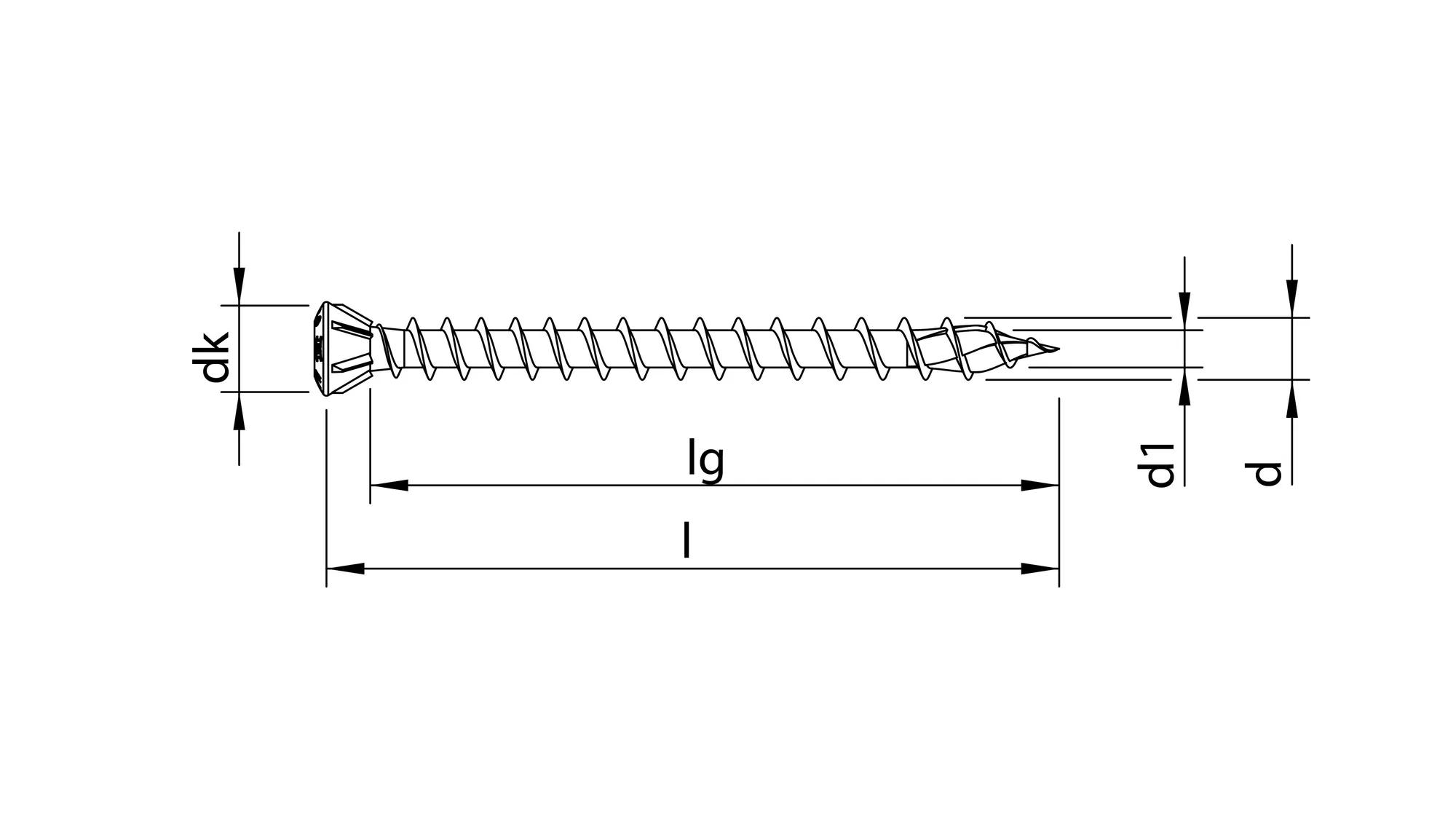

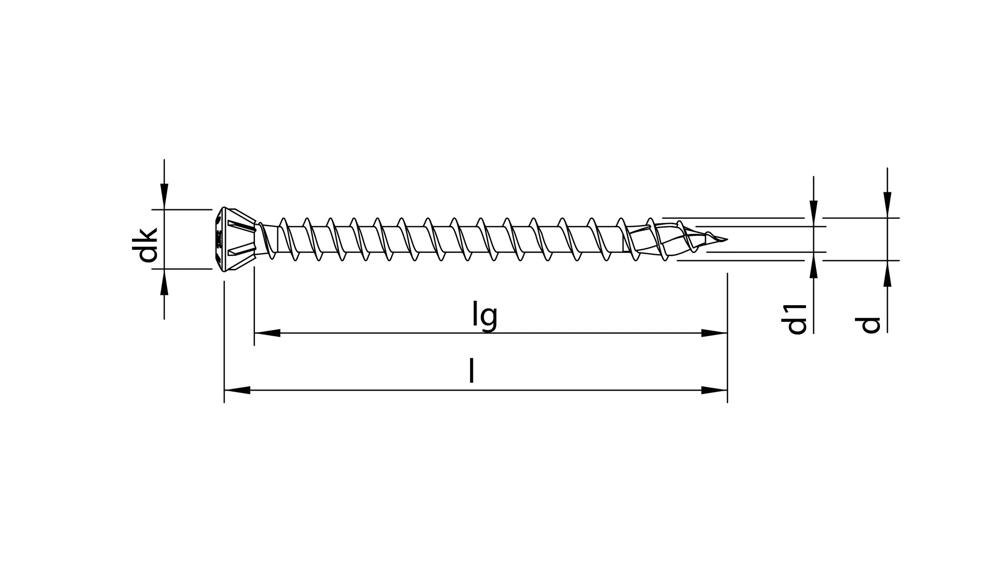

Technical Data

Diameter, d [mm]: 3,5
Length, l [mm]: 40
Material: carbon steel
Head form: floorboard screw, raised countersunk head with milling ribs
Headdiameter, dk [mm]: 5,3

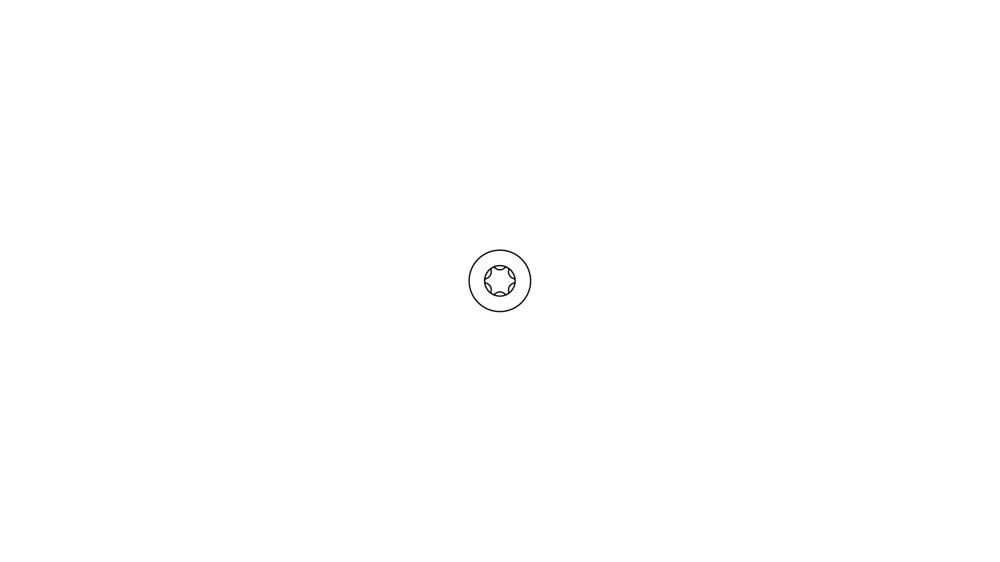

Recess: T-Drive
Size of recess: T-10
Thread: variable full thread
Thread length, lg [mm]: 37
Surface: bright zinc plated, A3K

Properties & Advantages

Mounting and fixing of boards with just one type of screw
No creaking of floorboards due to fixation with HECO-TOPIX-plus full thread
Easy countersinking of the head into the tongue with reduced spreading effect
PerfectPitch: Optimal thread pitch for every screw length. Perfect performance for any wood application.
HECO-TOPIX tip does away with the need for pre-drilling, reduces the risk of the wood splitting and enables narrow edge and centre distances.
Gapless joining of floorboards due to fixation with HECO-TOPIX-plus full thread
Approved and monitored product
