HECO-TOPIX-plus 3,5 x 60, glas strip screw, raised countersunk head, T-Drive, PT, A3K, 200 pcs.

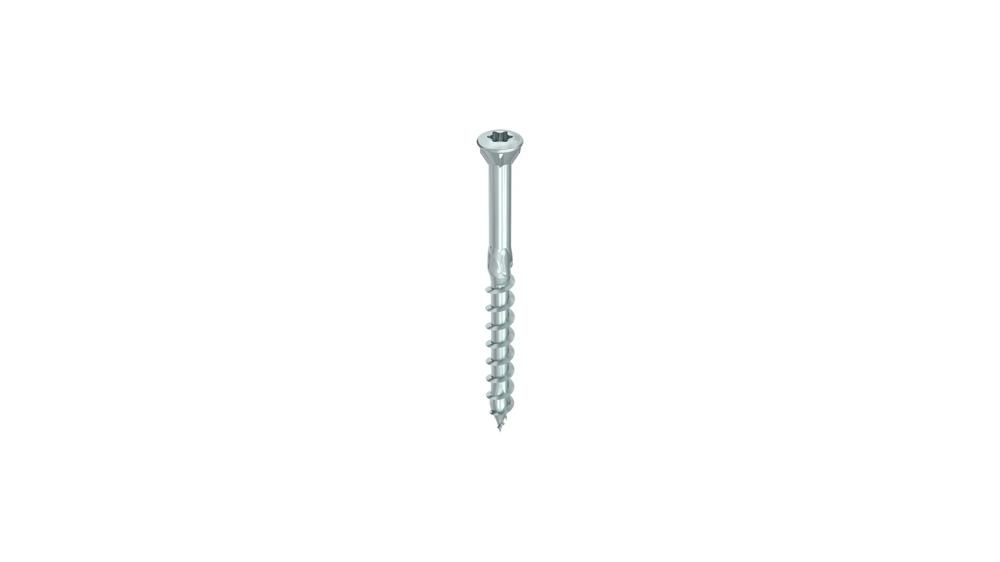

glasleistenschraube-t-drive-heco-schrauben-hc-60349-01

glasleistenschraube-t-drive-heco-schrauben-hc-60349-02

glasleistenschraube-t-drive-heco-schrauben-hc-60349-03

HECO-TOPIX-plus 3,5 x 60, glas strip screw, raised countersunk head, T-Drive, PT, A3K, 200 pcs.

3,5 x 60 | glas strip screw, raised countersunk head with milling ribs | T-10 | carbon steel | bright zinc plated, A3K | 200 pcs.

Delivery time 2-3 days

11,83 €

incl. VAT / excl. shipping costs

Brand:HECO-SCHRAUBEN
Article no.:HC-60349
Weight:0.58kg

HECO-TOPIX-plus 3,5 x 60, glas strip screw, raised countersunk head, T-Drive, PT, A3K, 200 pcs.

The screw with a technological advantage.

The HECO-TOPIX-plus glass strip and floor board screw was specially designed for the work with thin profiles and narrow mounting conditions. Therefore it features a patented drilling tip, which enables a precise positioning and an easy insertion without pre-drilling. Furthermore it reduces the splitting of timber effectively, enabling insertions close to the edge. Due to its high thread-pitch the HECO-TOPIX glass strip and floor board screw can be processed quickly and allows a low driving torque. Its small raised countersunk head enables not only a visually appealing mounting, but can also be sunk accurately due to milling ribs underneath the head, without damaging the structure of the fibres around the screws edge. The result is a clean and flush finish. The HECO-TOPIX glass strip and floor board screw is available as a bright zinc plated or an A2 stainless steel version for outdoor applications and wet rooms.

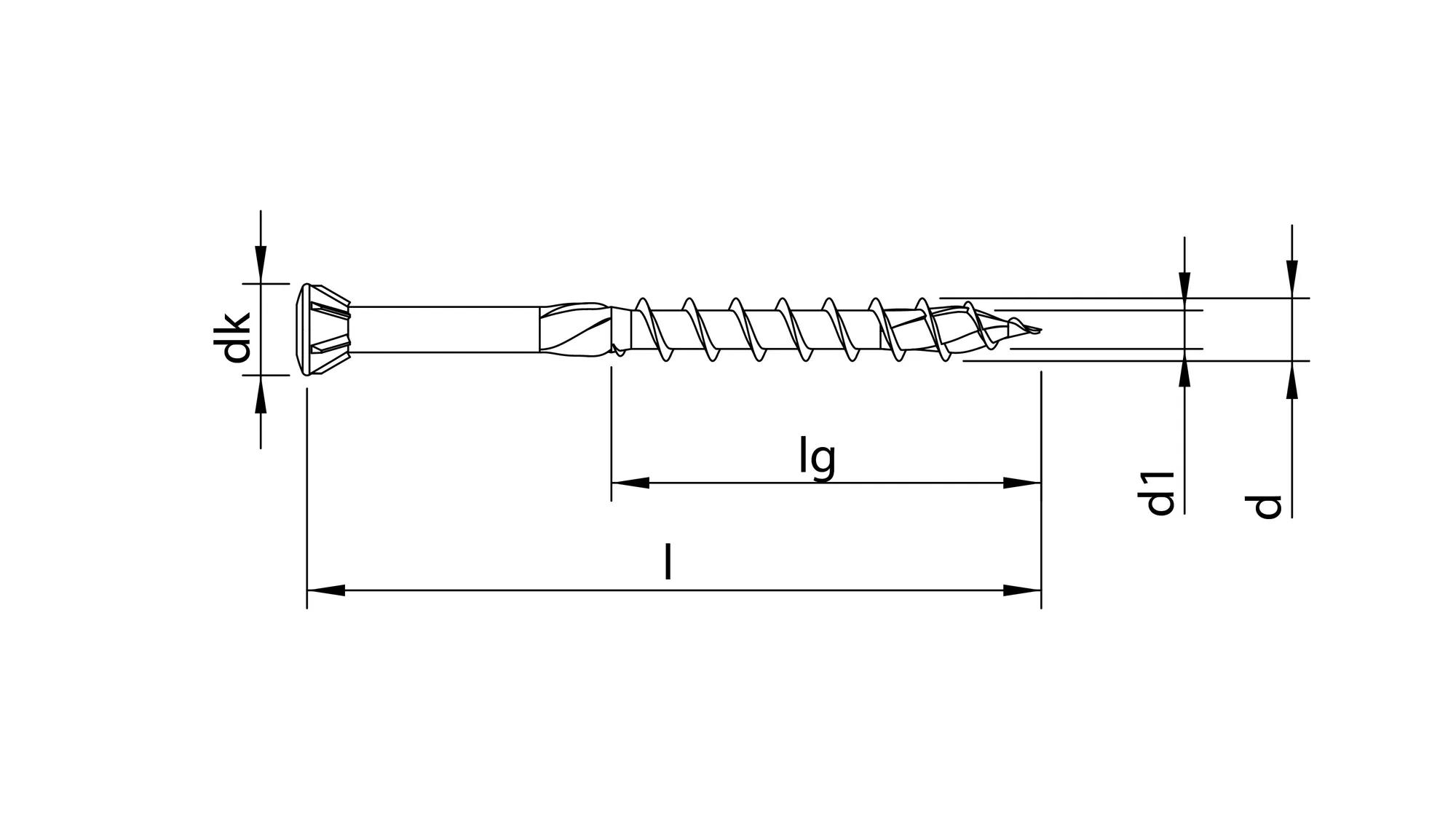

Technical Data

Diameter, d [mm]: 3,5
Length, l [mm]: 60
Material: carbon steel
Head form: glas strip screw, raised countersunk head with milling ribs
Headdiameter, dk [mm]: 5,3
Recess: T-Drive
Size of recess: T-10
Thread: partial thread
Thread length, lg [mm]: 27
Surface: bright zinc plated, A3K

Properties & Advantages

Small special head with milling ribs for easy and neat countersinking
Shank ribs reduce the screwing torque
HECO-TOPIX tip does away with the need for pre-drilling, reduces the risk of the wood splitting and enables narrow edge and centre distances.
PerfectPitch: Optimal thread pitch for every screw length. Perfect performance for any wood application.
The small, slightly raised countersunk head design gives an attractive finishing touch
Chromium (VI)-free coating
