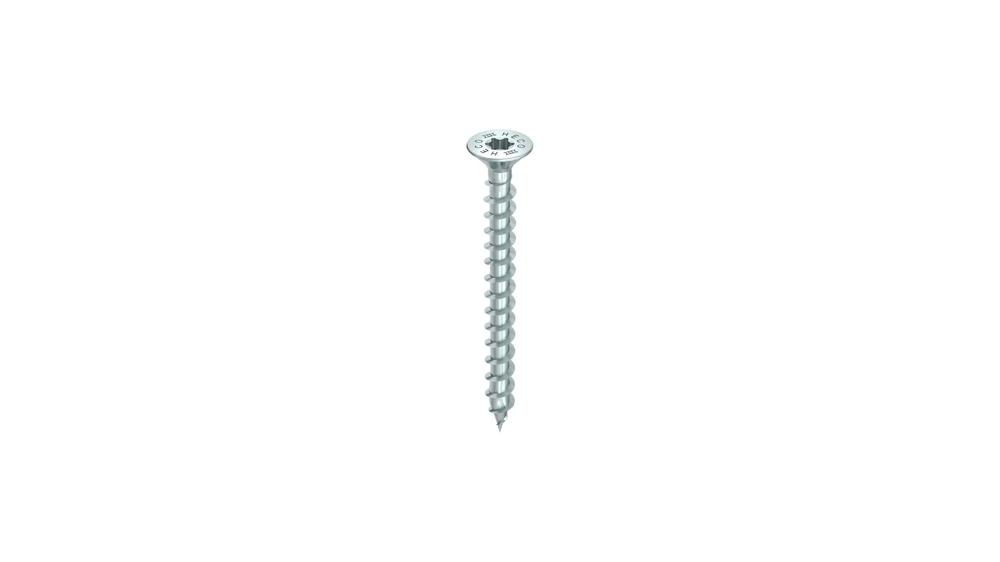

HECO-TOPIX-plus 4,5 x 80, wood panel screw, countersunk head, HECO-Drive, VFT, A3K, 200 pcs.

verlegeschraube-heco-drive-heco-schrauben-hc-60781-01

verlegeschraube-heco-drive-heco-schrauben-hc-60781-02

verlegeschraube-heco-drive-heco-schrauben-hc-60781-03

HECO-TOPIX-plus 4,5 x 80, wood panel screw, countersunk head, HECO-Drive, VFT, A3K, 200 pcs.

4,5 x 80 | wood panel screw, countersunk head with milling grooves | HD-20 | carbon steel | bright zinc plated, A3K | 200 pcs.

Delivery time 2-3 days

23,78 €

20,22 €

incl. VAT / excl. shipping costs

Brand:HECO-SCHRAUBEN
Article no.:HC-60781
Weight:1.178kg

HECO-TOPIX-plus 4,5 x 80, wood panel screw, countersunk head, HECO-Drive, VFT, A3K, 200 pcs.

The unique wood panel screw with contraction effect

The HECO-TOPIX-plus wood panel screw can be adjusted quickly and easily and fixes panel-type materials permanently and flush with the underlying construction. With the HECO-TOPIX-plus wood panel screw, floor fitters can benefit from the contraction effect of this patented full-threaded screw. The decreasing thread pitch on this fully-threaded screw automatically pulls the components together and fixes them with the thread. This means that the boards can be laid quickly and efficiently onto a level substrate, because they are permanently and securely fixed to the underlying wooden construction. Thanks to the HECO-TOPIX-tip the wood panel screw grips immediately, particularly on hard surfaces such as oriented strand board (OSB) or chipboard and facilitates faster installation than with standard screws. The countersunk head with its patented cutting ribs is easy to screw in and forms a neat flush finish with the board surface.

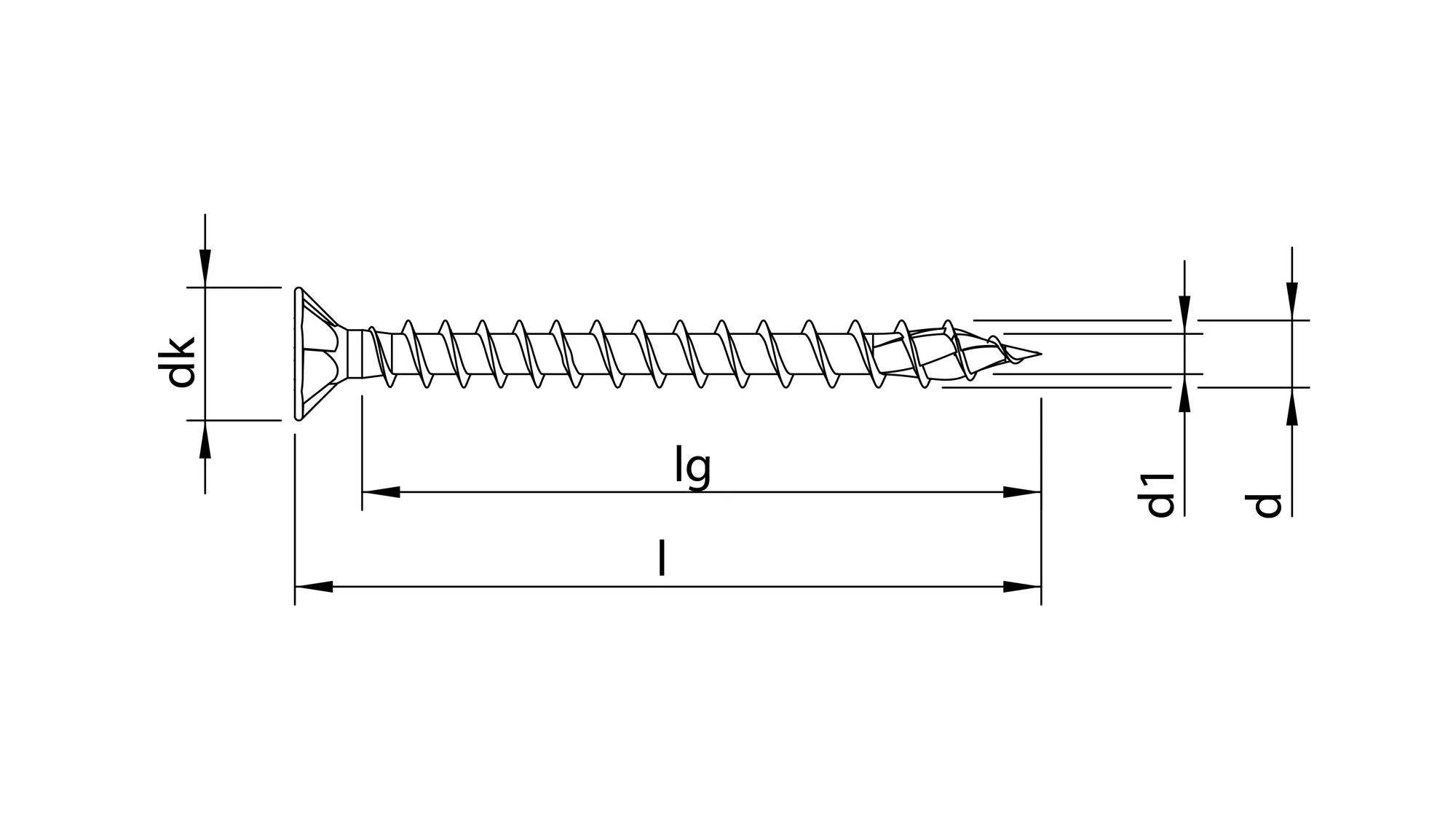

Technical Data

Diameter, d [mm]: 4,5
Length, l [mm]: 80
Material: carbon steel
Head form: wood panel screw, countersunk head with milling grooves
Headdiameter, dk [mm]: 8,9

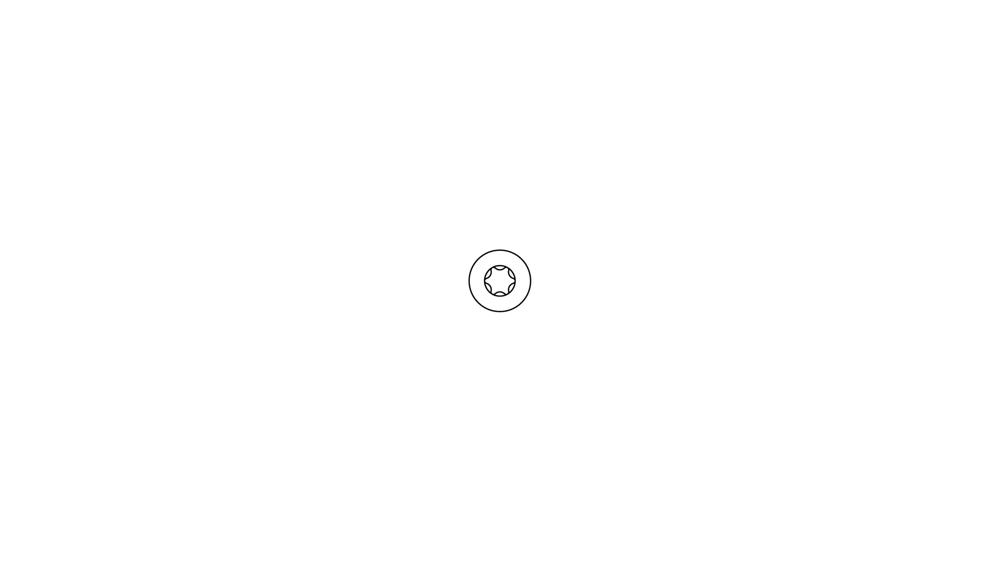

Recess: HECO-Drive
Size of recess: HD-20
Thread: variable full thread
Thread length, lg [mm]: 75
Surface: bright zinc plated, A3K

Properties & Advantages

GripFit: One-handed working possible thanks to the HECO-Drive. Holds the stainless steel screws securely on the bit.
Easy positioning and quick assembling especially on hard surfaces
No creaking of the boards due to the HECO-TOPIX-plus full-threaded fixation
PerfectPitch: Optimal thread pitch for every screw length. Perfect performance for any wood application.
HECO-TOPIX tip does away with the need for pre-drilling, reduces the risk of the wood splitting and enables narrow edge and centre distances.
Countersunk head with milling grooves: Excellent milling properties in wood
Approved and monitored product

Compatible accessories

schrauberbit-set-heco-drive-pozi-drive-heco-schrauben-hc-58561-01

HECO-Bit-Selector, HECO-Drive, 11 parts

1 pcs.

Delivery time 2-3 days

46,74 €

33,93 €

incl. VAT

Art.-Nr: HC-58561
