HECO-TOPIX-plus 5,0 x 20, countersunk head, HECO-Drive, VFT, A3K, 500 pcs.

senkkopfschraube-heco-drive-heco-schrauben-hc-60807-02

senkkopfschraube-heco-drive-heco-schrauben-hc-60807-03

HECO-TOPIX-plus 5,0 x 20, countersunk head, HECO-Drive, VFT, A3K, 500 pcs.

5 x 20 | countersunk head with milling grooves | HD-20 | carbon steel | bright zinc plated, A3K | 500 pcs.

Delivery time 2-3 days

17,58 €

14,95 €

incl. VAT / excl. shipping costs

Brand:HECO-SCHRAUBEN
Article no.:HC-60807
Weight:1.035kg

HECO-TOPIX-plus 5,0 x 20, countersunk head, HECO-Drive, VFT, A3K, 500 pcs.

The screw with a technological advantage.

HECO-TOPIX®-plus is a real screw highlight, combining concentrated technological expertise and wide range of tangible user benefits in a single wood screw. The secret: Our HECO-TOPIX®-plus combines the best properties of four HECO ranges!With the innovative properties of the HECO-Drive, GripFit, MagicClose and PerfectPitch, a new, integrated drive size concept and high-quality system accessory, HECO-TOPIX®-plus is the perfect wood screw for practically all applications. You benefit not only from the impressive technological advantage, but also above all from simple handling and optimum performance.

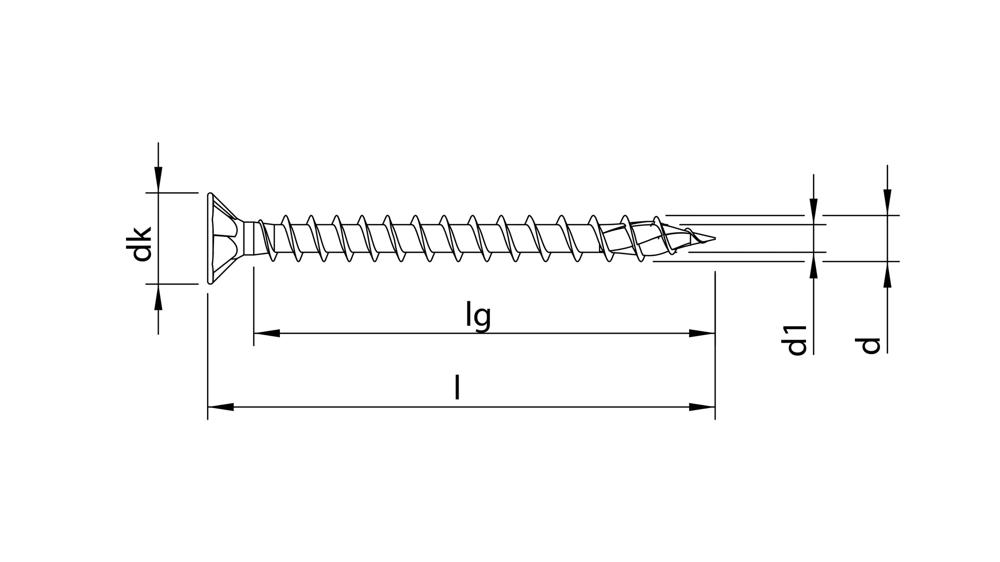

Technical Data

Diameter, d [mm]: 5
Length, l [mm]: 20
Material: carbon steel
Head form: countersunk head with milling grooves
Headdiameter, dk [mm]: 9,6

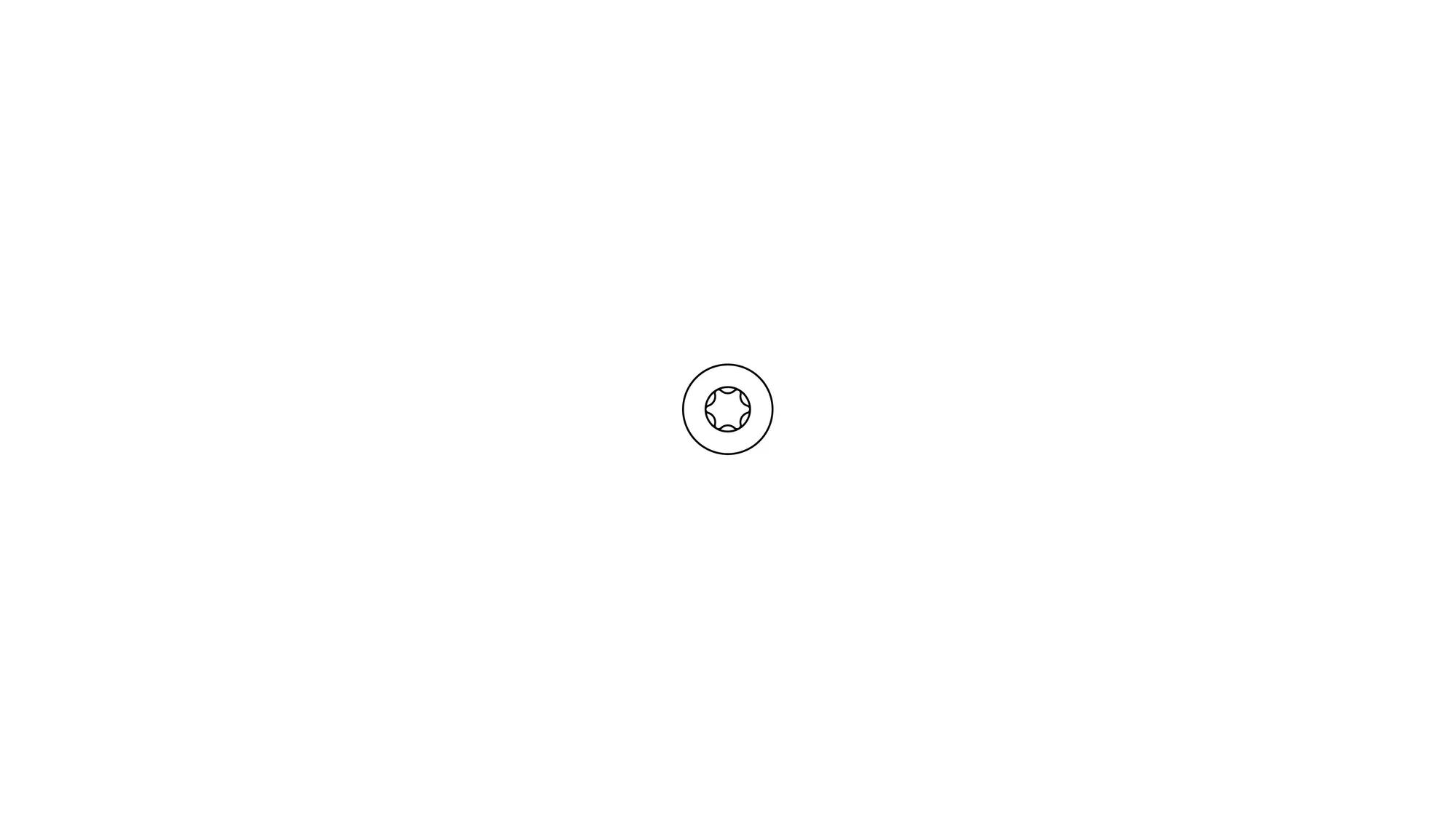

Recess: HECO-Drive
Size of recess: HD-20
Thread: variable full thread
Thread length, lg [mm]: 14
Surface: bright zinc plated, A3K

Properties & Advantages

GripFit: One-handed working possible thanks to the HECO-Drive. Holds the stainless steel screws securely on the bit. (from a screw diameter of 3.5 mm)
MagicClose: Patented full thread joins timber fixtures together with no gaps and no pre-stressing.
PerfectPitch: Optimal thread pitch for every screw length. Perfect performance for any wood application.
HECO-TOPIX tip does away with the need for pre-drilling, reduces the risk of the wood splitting and enables narrow edge and centre distances.
Countersunk head with milling grooves: Excellent milling properties in wood. No surface damage with metal fittings.
Chromium (VI)-free coating
Approved and monitored product
