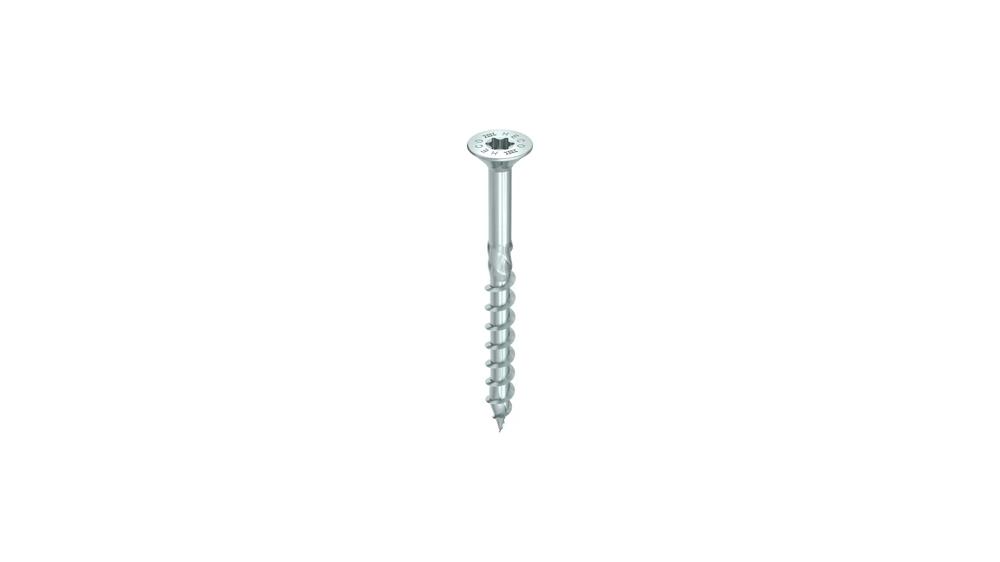

HECO-TOPIX-plus 5,0 x 70, countersunk head, HECO-Drive, PT, A3K, 200 pcs.

senkkopfschraube-heco-drive-heco-schrauben-hc-60945-01

senkkopfschraube-heco-drive-heco-schrauben-hc-60945-02

senkkopfschraube-heco-drive-heco-schrauben-hc-60945-03

HECO-TOPIX-plus 5,0 x 70, countersunk head, HECO-Drive, PT, A3K, 200 pcs.

5 x 70 | countersunk head with milling grooves | HD-20 | carbon steel | bright zinc plated, A3K | 200 pcs.

Delivery time 2-3 days

19,17 €

16,30 €

incl. VAT / excl. shipping costs

Brand:HECO-SCHRAUBEN
Article no.:HC-60945
Weight:1.212kg

HECO-TOPIX-plus 5,0 x 70, countersunk head, HECO-Drive, PT, A3K, 200 pcs.

The screw with a technological advantage.

HECO-TOPIX®-plus is a real screw highlight, combining concentrated technological expertise and wide range of tangible user benefits in a single wood screw. The secret: Our HECO-TOPIX®-plus combines the best properties of four HECO ranges!With the innovative properties of the HECO-Drive, GripFit, MagicClose and PerfectPitch, a new, integrated drive size concept and high-quality system accessory, HECO-TOPIX®-plus is the perfect wood screw for practically all applications.You benefit not only from the impressive technological advantage, but also above allfrom simple handling and optimum performance.

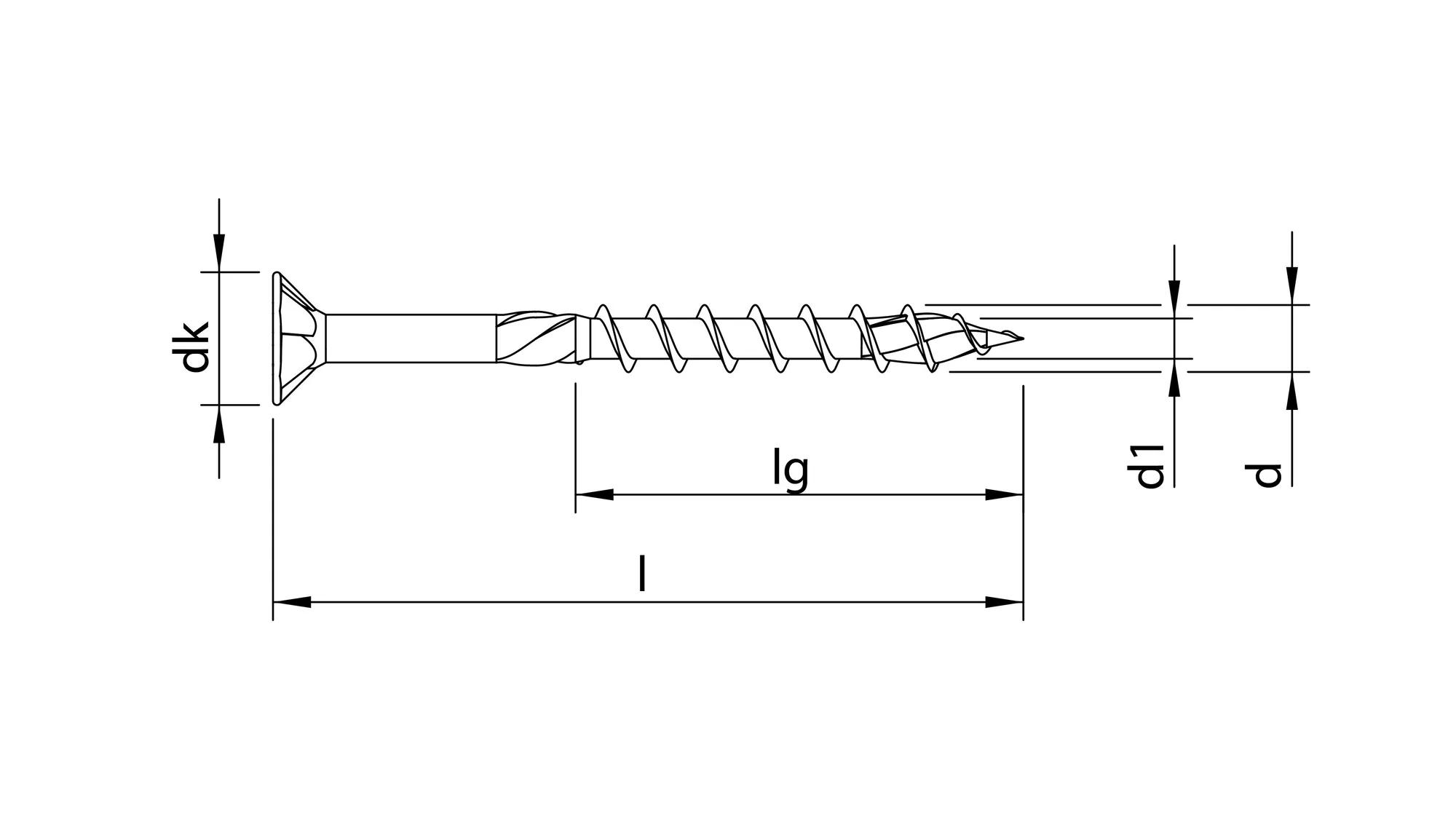

Technical Data

Diameter, d [mm]: 5
Length, l [mm]: 70
Material: carbon steel
Head form: countersunk head with milling grooves
Headdiameter, dk [mm]: 9,6

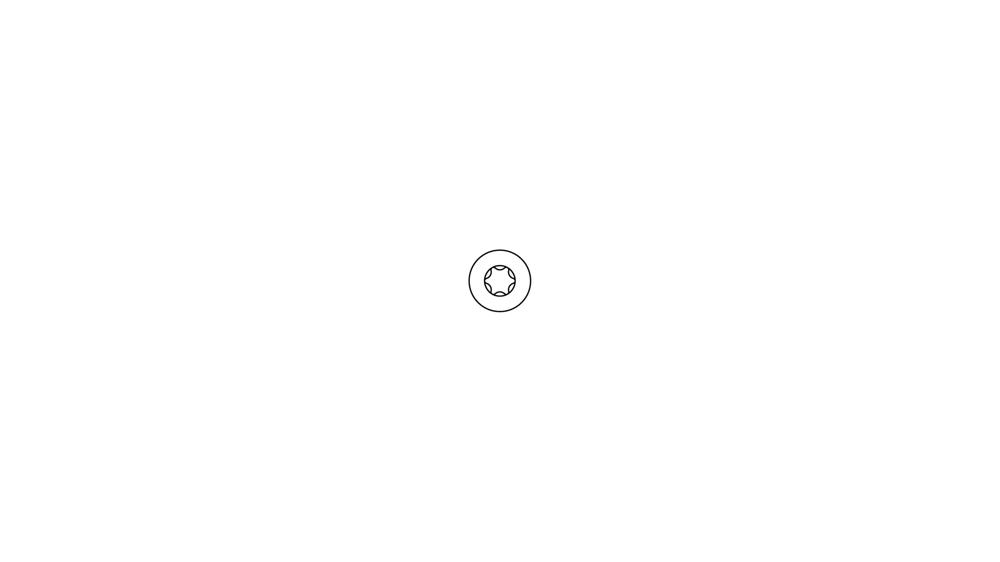

Recess: HECO-Drive
Size of recess: HD-20
Thread: partial thread
Thread length, lg [mm]: 42
Surface: bright zinc plated, A3K

Properties & Advantages

GripFit: One-handed working possible thanks to the HECO-Drive. Holds the stainless steel screws securely on the bit. (from a screw diameter of 3.5 mm)
PerfectPitch: Optimal thread pitch for every screw length. Perfect performance for any wood application.
HECO-TOPIX tip does away with the need for pre-drilling, reduces the risk of the wood splitting and enables narrow edge and centre distances.
Countersunk head with milling grooves: Excellent milling properties in wood. No surface damage with metal fittings.
Shank ribs reduce the screwing torque
Chromium (VI)-free coating
Approved and monitored product

Compatible accessories

schrauberbit-set-heco-drive-pozi-drive-heco-schrauben-hc-58561-01

HECO-Bit-Selector, HECO-Drive, 11 parts

1 pcs.

Delivery time 2-3 days

46,74 €

33,93 €

incl. VAT

Art.-Nr: HC-58561
