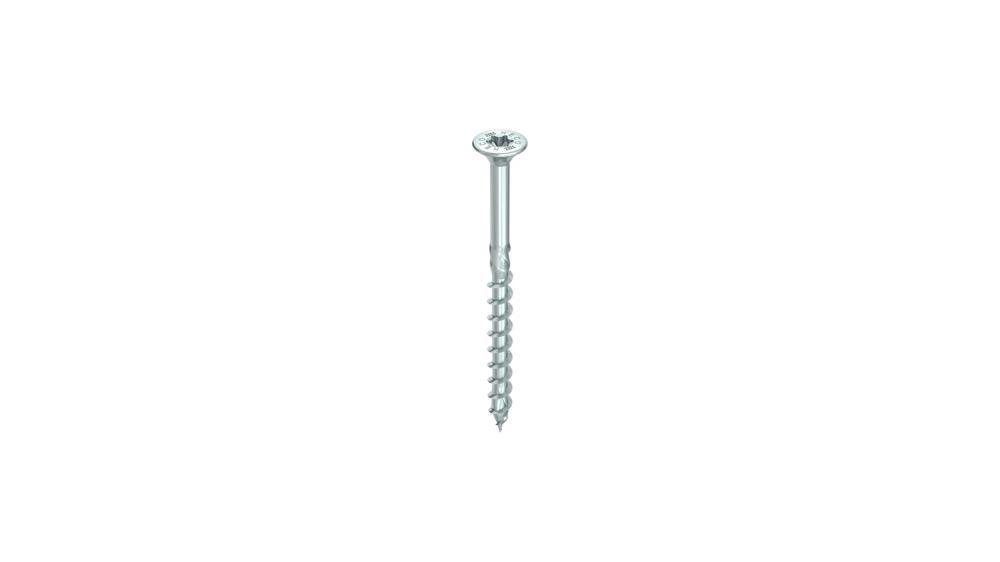

HECO-TOPIX-plus 5,0 x 90, countersunk head, T-25, PT, A3K, 200 pcs.

senkkopfschraube-t-drive-t-25-heco-schrauben-hc-62257-01

senkkopfschraube-t-drive-t-25-heco-schrauben-hc-62257-02

senkkopfschraube-t-drive-t-25-heco-schrauben-hc-62257-03

HECO-TOPIX-plus 5,0 x 90, countersunk head, T-25, PT, A3K, 200 pcs.

5 x 90 | countersunk head with milling grooves | T-25 | carbon steel | bright zinc plated, A3K | 200 pcs.

Shipping within 24 hours (working days)

31,32 €

incl. VAT / excl. shipping costs

Brand:HECO-SCHRAUBEN
Article no.:HC-62257
Weight:1.562kg

HECO-TOPIX-plus 5,0 x 90, countersunk head, T-25, PT, A3K, 200 pcs.

The screw with a technological advantage.

HECO-TOPIX®-plus is a real screw highlight, combining concentrated technological expertise and wide range of tangible user benefits in a single wood screw. The secret: Our HECO-TOPIX®-plus combines the best properties of four HECO ranges!With the innovative properties of the HECO-Drive, GripFit, MagicClose and PerfectPitch, a new, integrated drive size concept and high-quality system accessory, HECO-TOPIX®-plus is the perfect wood screw for practically all applications.You benefit not only from the impressive technological advantage, but also above allfrom simple handling and optimum performance.

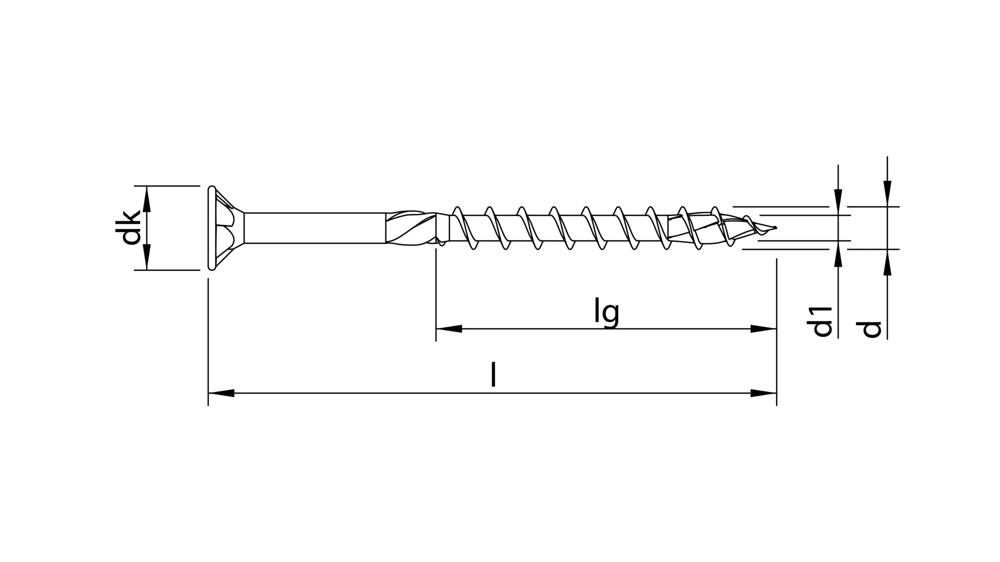

Technical Data

Diameter, d [mm]: 5
Length, l [mm]: 90
Material: carbon steel
Head form: countersunk head with milling grooves
Headdiameter, dk [mm]: 9,6

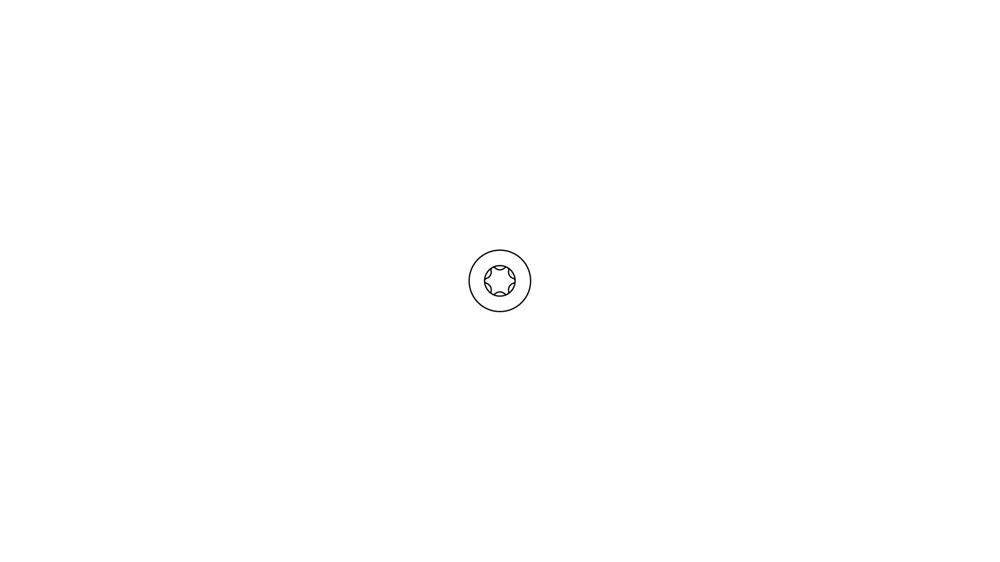

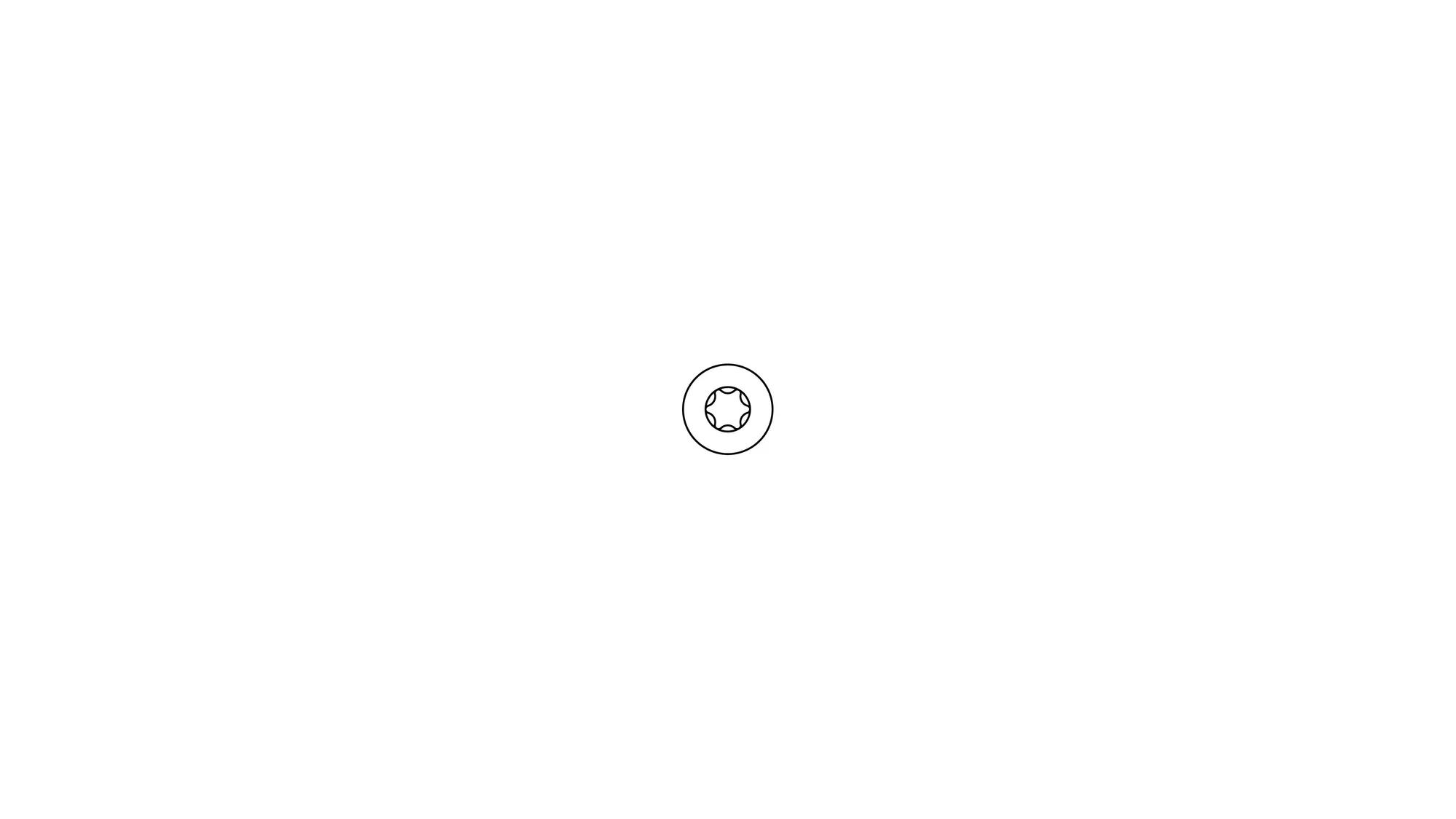

Recess: T-Drive, T-25
Size of recess: T-25
Thread: part thread
Thread length, lg [mm]: 54
Surface: bright zinc plated, A3K

Properties & Advantages

GripFit: One-handed working possible thanks to the HECO-Drive. Holds the stainless steel screws securely on the bit. (from a screw diameter of 3.5 mm)
PerfectPitch: Optimal thread pitch for every screw length. Perfect performance for any wood application.
HECO-TOPIX tip does away with the need for pre-drilling, reduces the risk of the wood splitting and enables narrow edge and centre distances.
Countersunk head with milling grooves: Excellent milling properties in wood. No surface damage with metal fittings.
Shank ribs reduce the screwing torque
Chromium (VI)-free coating
Approved and monitored product

Compatible accessories

schrauberbit-set-heco-drive-pozi-drive-heco-schrauben-hc-58561-01

HECO-Bit-Selector, HECO-Drive, 11 parts

1 pcs.

Shipping within 24 hours (working days)

39,90 €

incl. VAT

Art.-Nr: HC-58561
