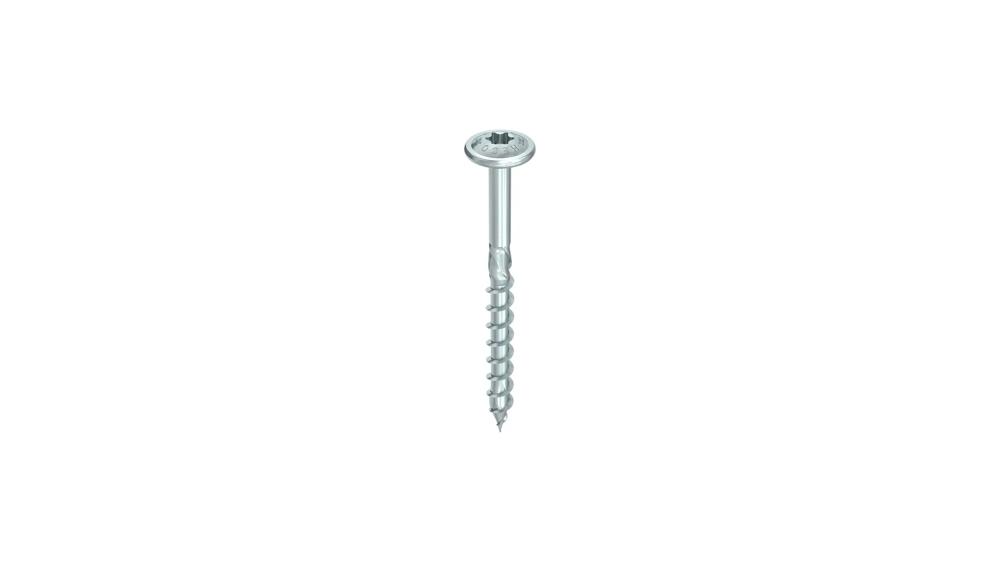

HECO-TOPIX-plus 6,0 x 100, flange head, T-Drive, PT, A3K, 100 pcs.

tellerkopfschraube-t-drive-heco-schrauben-hc-61117-01

tellerkopfschraube-t-drive-heco-schrauben-hc-61117-02

tellerkopfschraube-t-drive-heco-schrauben-hc-61117-03

HECO-TOPIX-plus 6,0 x 100, flange head, T-Drive, PT, A3K, 100 pcs.

6 x 100 | flange head | T-30 | carbon steel | bright zinc plated, A3K | 100 pcs.

Delivery time 2-3 days

20,50 €

incl. VAT / excl. shipping costs

Brand:HECO-SCHRAUBEN
Article no.:HC-61117
Weight:1.378kg

HECO-TOPIX-plus 6,0 x 100, flange head, T-Drive, PT, A3K, 100 pcs.

The screw with a technological advantage.

The HECO-TOPIX-plus flange head screw is specially designed for wood construction applications. It features a larger head diameter and is able to transfer considerably higher loads, due to the increased clamping surface. In addition, the amount of required fastening points is significantly reduced. The part-threaded version features shank ribs, which reduce the driving torque and ensure a tension-free connection. Easy and quick insertion is enabled by the optimally formed thread pitch. Further, the patented HECO-TOPIX-plus tip ensures a reduced splitting of timber, and allows a quick processing without pre-drilling and sinking.

Compatible accessories

schrauberbit-set-heco-drive-pozi-drive-heco-schrauben-hc-58561-01

HECO-Bit-Selector, HECO-Drive, 11 parts

1 pcs.

Delivery time 2-3 days

39,90 €

incl. VAT

Art.-Nr: HC-58561

1 Products

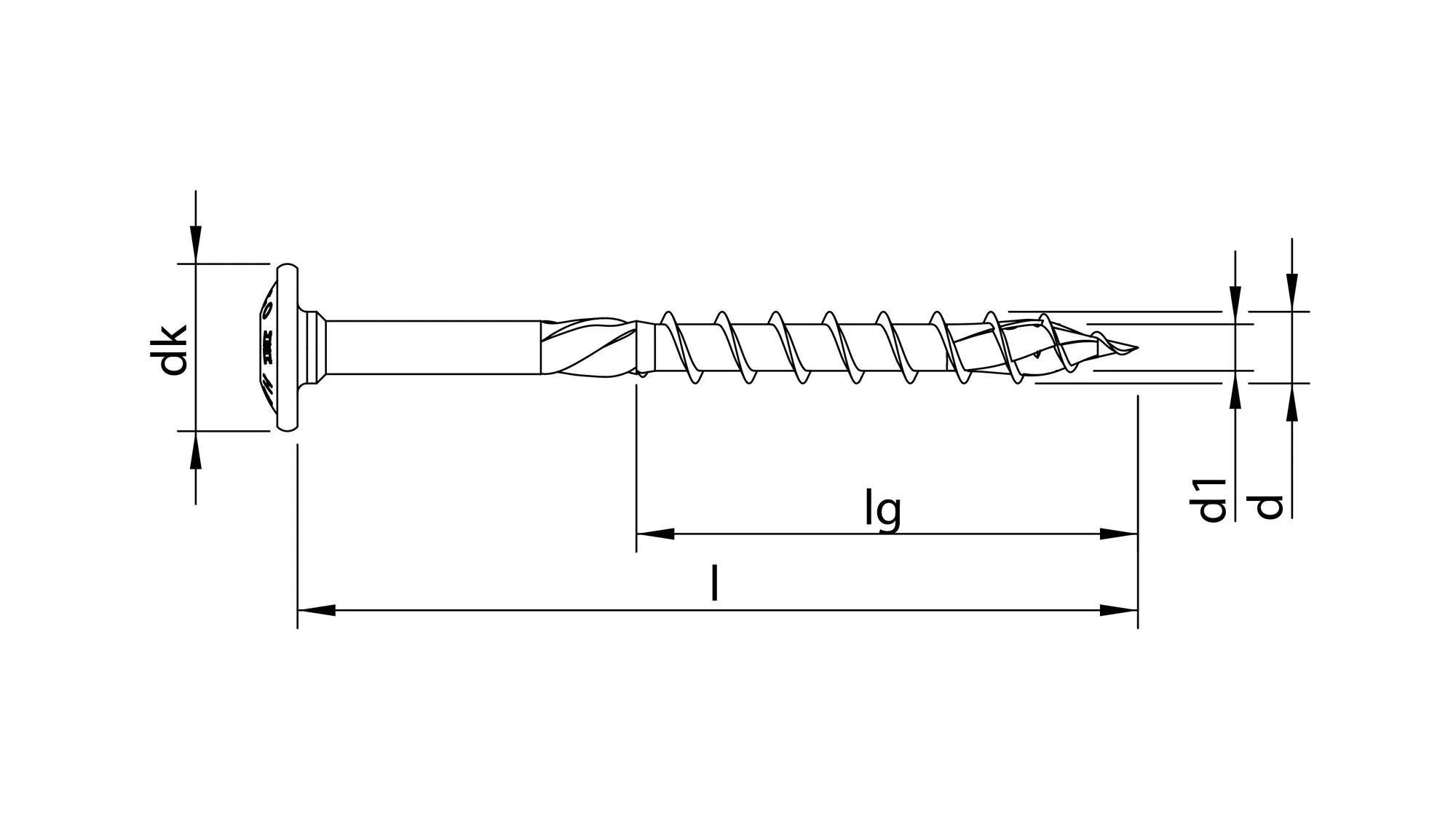

Technical Data

Diameter, d [mm]: 6
Length, l [mm]: 100
Material: carbon steel
Head form: flange head
Headdiameter, dk [mm]: 14

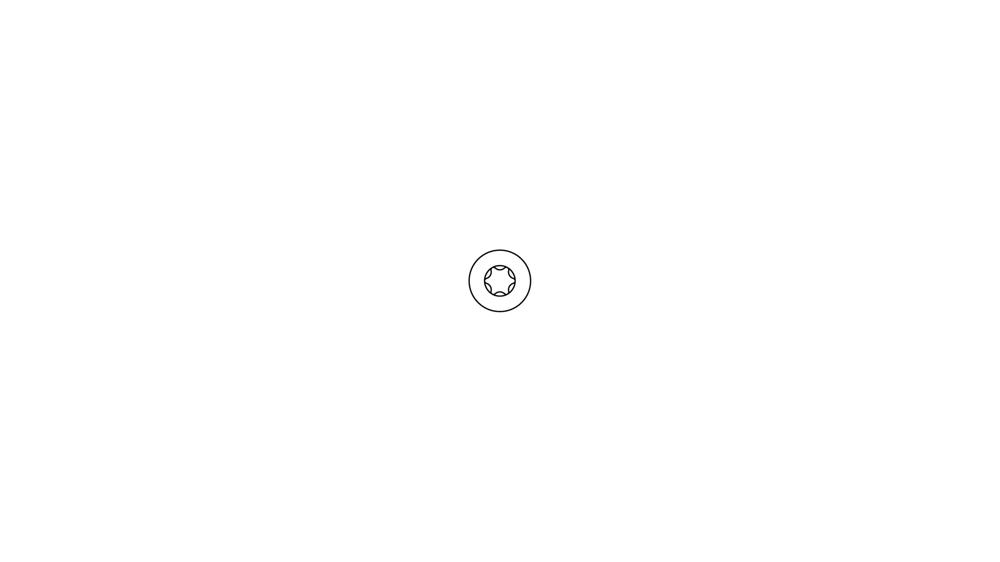

Recess: T-Drive
Size of recess: T-30
Thread: partial thread
Thread length, lg [mm]: 60
Surface: bright zinc plated, A3K

Properties & Advantages

PerfectPitch: Optimal thread pitch for every screw length. Perfect performance for any wood application.
HECO-TOPIX tip does away with the need for pre-drilling, reduces the risk of the wood splitting and enables narrow edge and centre distances.
Higher load transmission due to the increased clamping surface of the head
Shank ribs reduce the screwing torque
Chromium (VI)-free coating
Approved and monitored product
Calculation certificates via HECO HCS or calculation service
