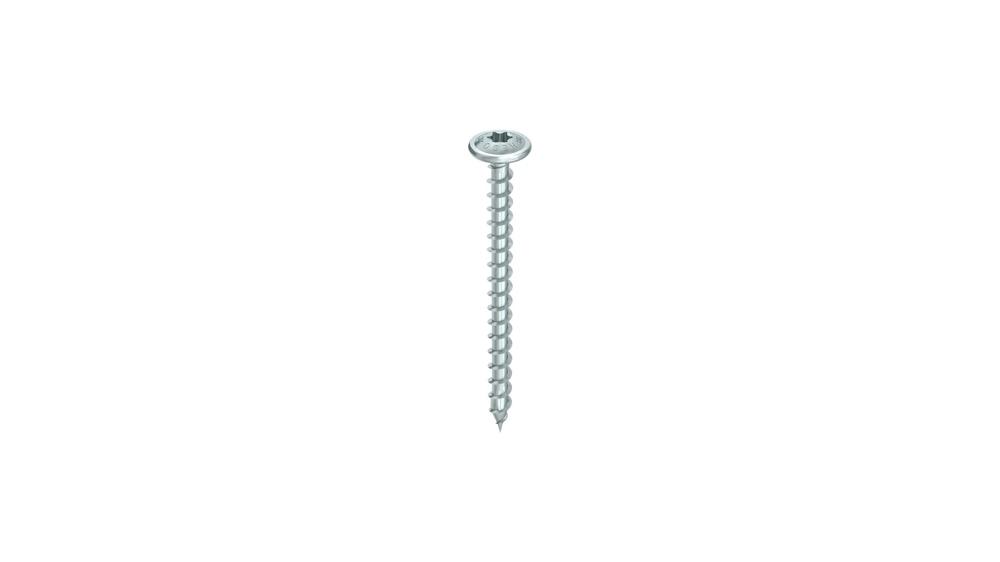

HECO-TOPIX-plus 6,0 x 50, flange head, T-Drive, VFT, A3K, 200 pcs.

tellerkopfschraube-t-drive-heco-schrauben-hc-61039-01

tellerkopfschraube-t-drive-heco-schrauben-hc-61039-02

tellerkopfschraube-t-drive-heco-schrauben-hc-61039-03

HECO-TOPIX-plus 6,0 x 50, flange head, T-Drive, VFT, A3K, 200 pcs.

6 x 50 | flange head | T-30 | carbon steel | bright zinc plated, A3K | 200 pcs.

Shipping within 24 hours (working days)

23,28 €

incl. VAT / excl. shipping costs

Brand:HECO-SCHRAUBEN
Article no.:HC-61039
Weight:1.516kg

HECO-TOPIX-plus 6,0 x 50, flange head, T-Drive, VFT, A3K, 200 pcs.

The screw with a technological advantage.

The HECO-TOPIX-plus Flange head screw is specially designed for wood construction applications. It features a larger head diameter and is able to transfer considerably higher loads, due to the increased clamping surface. In addition, the amount of required fastening points is significantly reduced. The part-threaded version features shank ribs, which reduce the driving torque and ensure a tension-free connection. Easy and quick insertion is enabled by the optimally formed thread pitch. Further, the patented HECO-TOPIX-plus tip ensures a reduced splitting of timber, and allows a quick processing without pre-drilling and sinking.

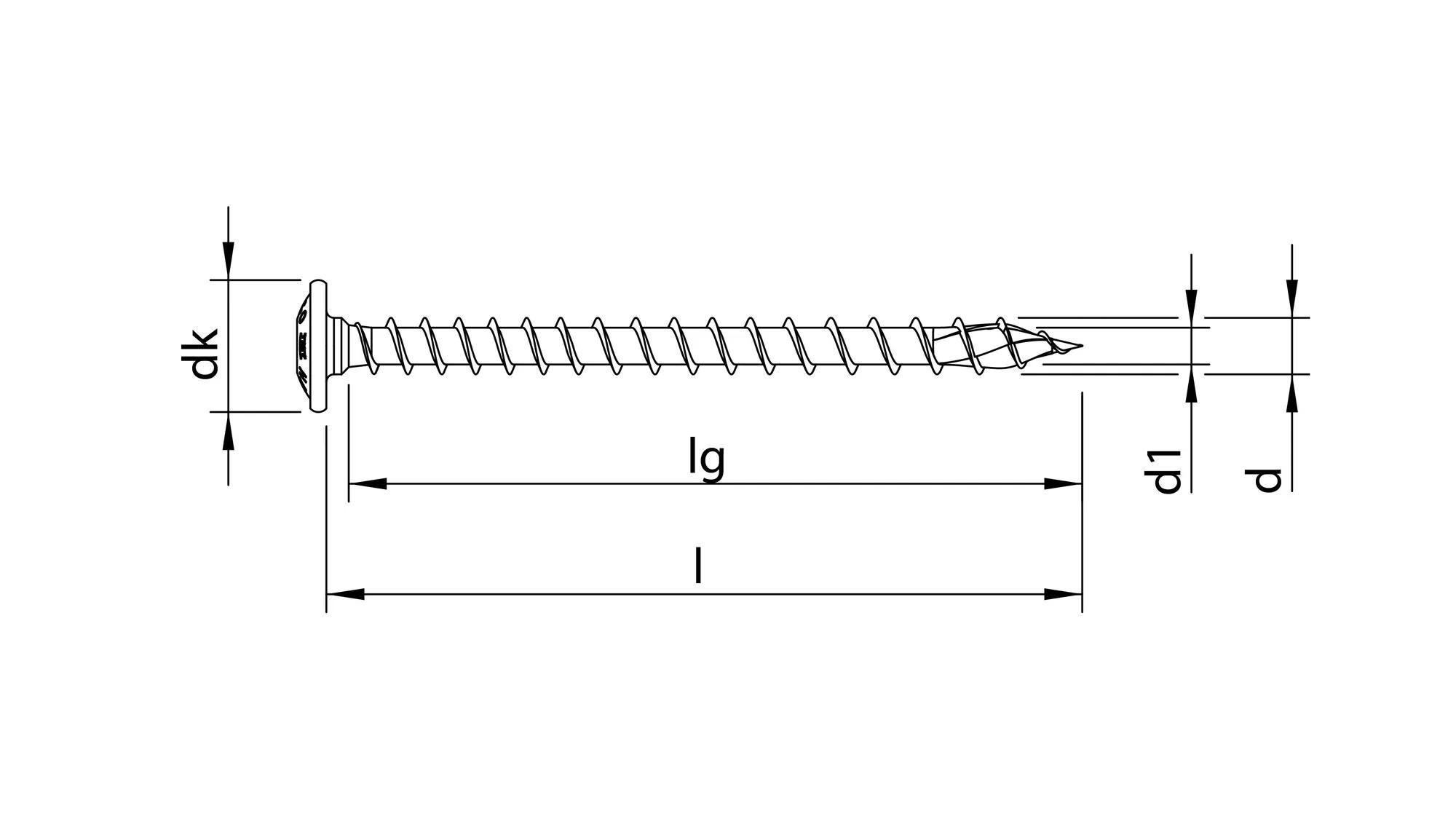

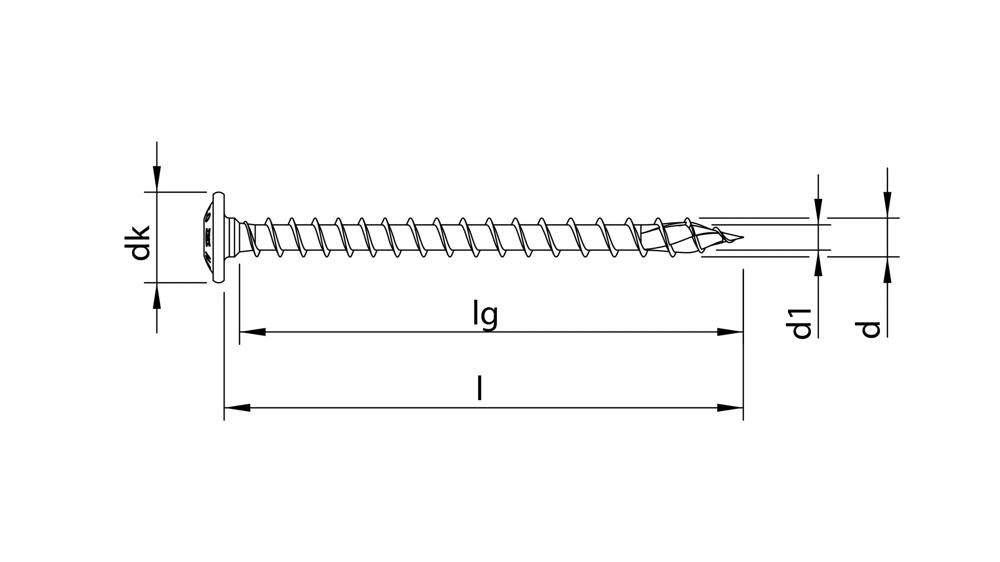

Technical Data

Diameter, d [mm]: 6
Length, l [mm]: 50
Material: carbon steel
Head form: flange head
Headdiameter, dk [mm]: 14

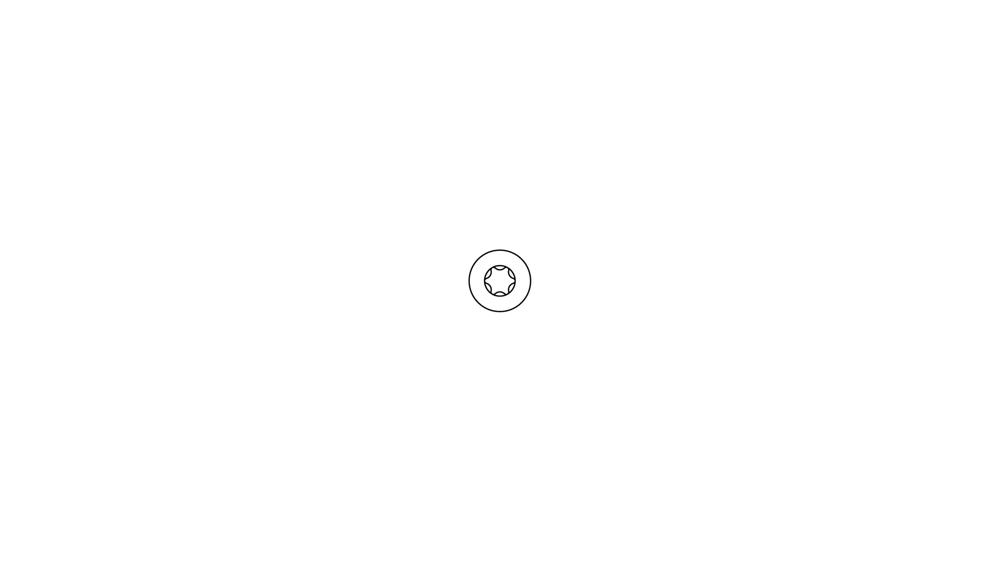

Recess: T-Drive
Size of recess: T-30
Thread: variable full thread
Thread length, lg [mm]: 46
Surface: bright zinc plated, A3K

Properties & Advantages

MagicClose: Patented full thread joins timber fixtures together with no gaps and no pre-stressing. (up to a screw diameter of 6 mm)
PerfectPitch: Optimal thread pitch for every screw length. Perfect performance for any wood application.
HECO-TOPIX tip does away with the need for pre-drilling, reduces the risk of the wood splitting and enables narrow edge and centre distances.
Higher load transmission due to the increased clamping surface of the head
Chromium (VI)-free coating
Approved and monitored product
Calculation certificates via HECO HCS or calculation service
