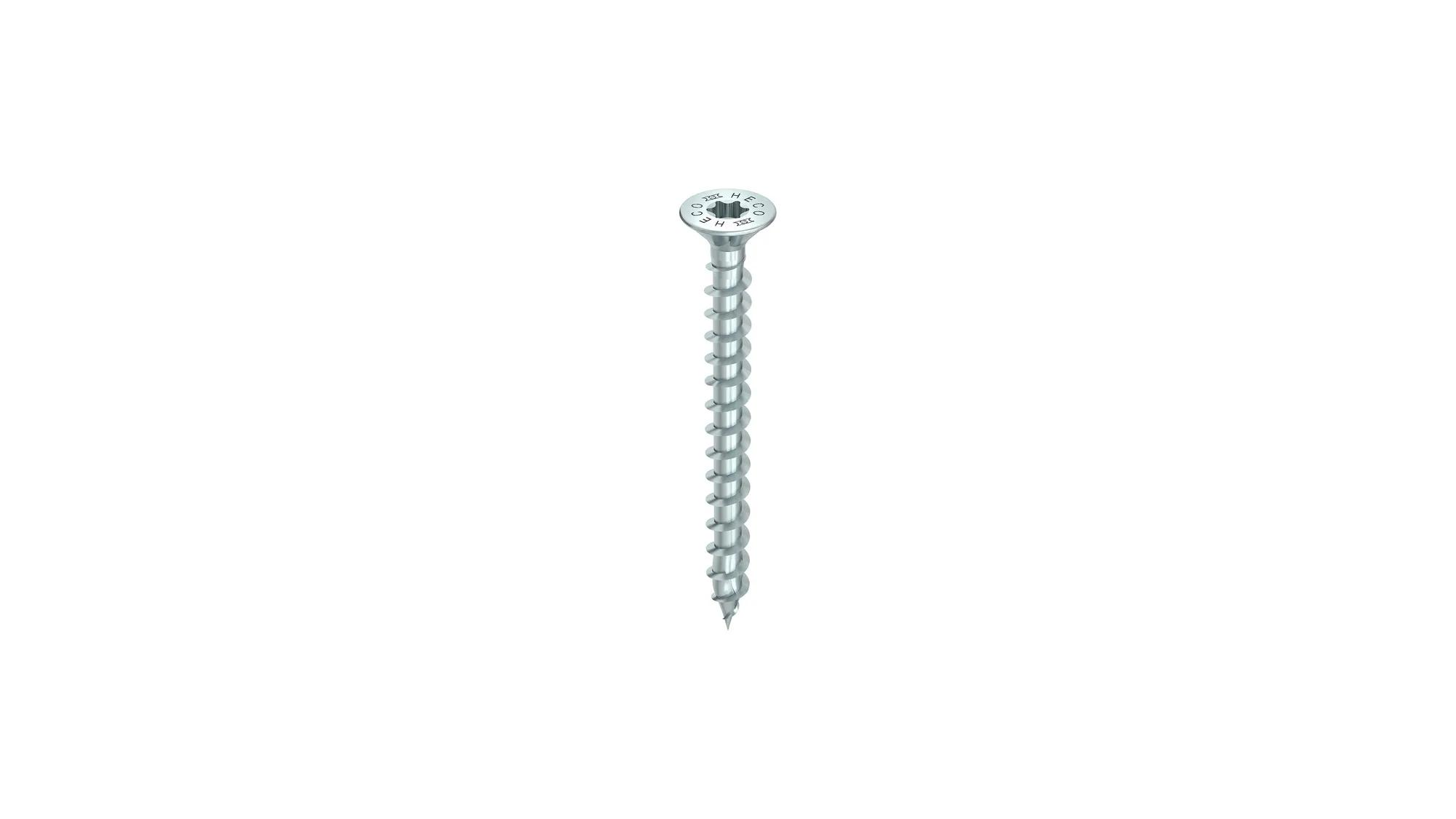

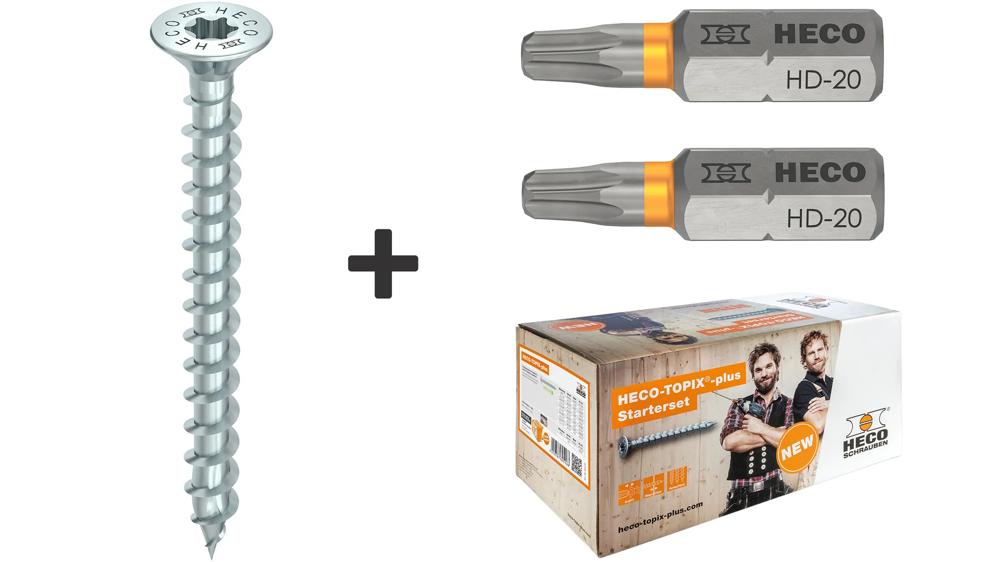

HECO-TOPIX-plus countersunk head 4.5x60 + bit HD-20

The screw with a technological edge + 2x BIT HD-20 4.5 x 60 | Countersunk head with milling pockets | HD-20 | Carbon steel | Galvanised blue, A3K | 200 pcs.

Delivery time 2-3 days

16,96 €

incl. VAT / excl. shipping costs

Brand:HECO-SCHRAUBEN
Article no.:SET-HC-60755-AKTION
Weight:0.908kg

HECO-TOPIX-plus countersunk head 4.5 x 60 + bit HD-20

The screw with the technological edge

HECO-TOPIX-plus is a real screw highlight and combines concentrated technological know-how and many tangible user advantages in one wood screw type. The secret: For HECO-TOPIX-plus we have combined the best properties from four HECO ranges! With the innovative features HECO-Drive, GripFit, MagicClose, PerfectPitch, a new, uniform drive size concept and high-quality system accessories, HECO-TOPIX®-plus is the perfect wood screw for practically all applications. You benefit not only from the great technological advantage, but above all from easy handling and optimum performance.

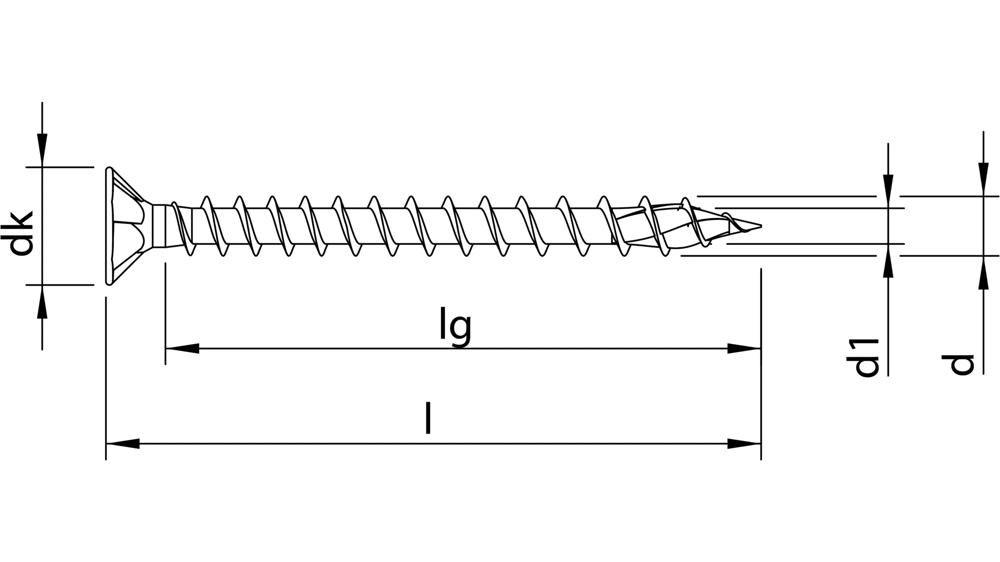

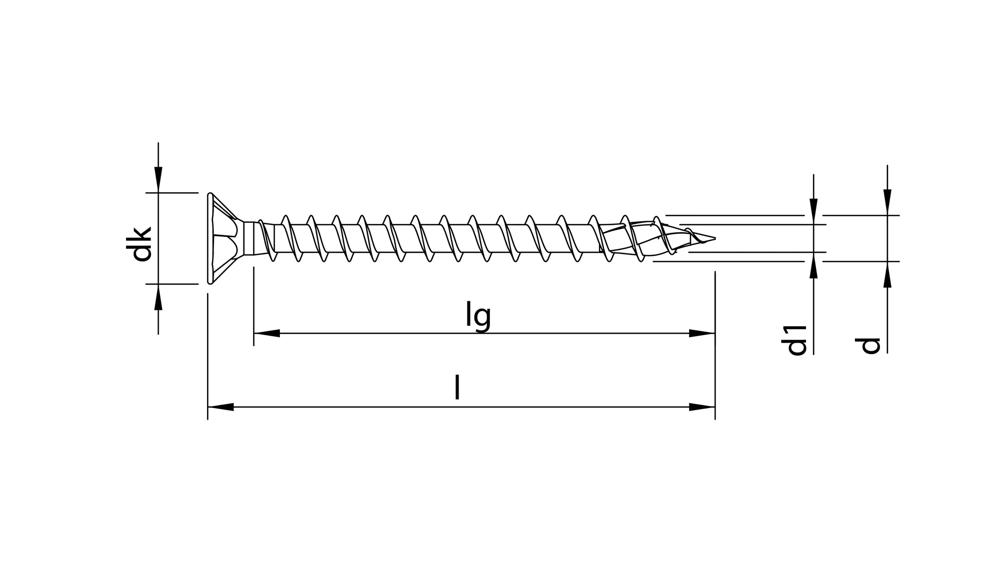

Technical Data

Screw:

Diameter, d [mm]: 4.5
Length, l [mm]: 60
Material: Carbon steel
Head design: countersunk head with milling pockets
Head diameter, dk [mm]: 8.9
Drive: HECO-Drive
Drive size: HD-20
Thread: Variable full thread
Thread length, lg [mm]: 55
Surface: Galvanised blue, A3K

Bit:

Length, l [mm]: 25
Material: steel
Drive: HECO-Drive
Drive size: HD-20

Properties & Advantages

GripFit: HECO-Drive allows one-handed working. Also holds stainless steel screws securely on the bit. (from screw diameter 3.5 mm)
MagicClose: Patented full thread pulls wooden components together without gaps and without pre-tensioning.
PerfectPitch: Optimum thread pitch for every screw length. Perfect performance for all wood applications.
HECO-TOPIX point eliminates the need for pre-drilling, reduces the risk of splitting the wood and allows narrow edge and centre distances.
Countersunk head with milling pockets: Excellent milling properties in wood. No damage to the surface of metal fittings.
Chromium(VI)-free coating
Approved and monitored product (CE marking).
