HM Dado circular saw blade set for precision grooves
For precise grooving of wood, plywood, chipboard or MDF (also coated or veneered)
Technical Data

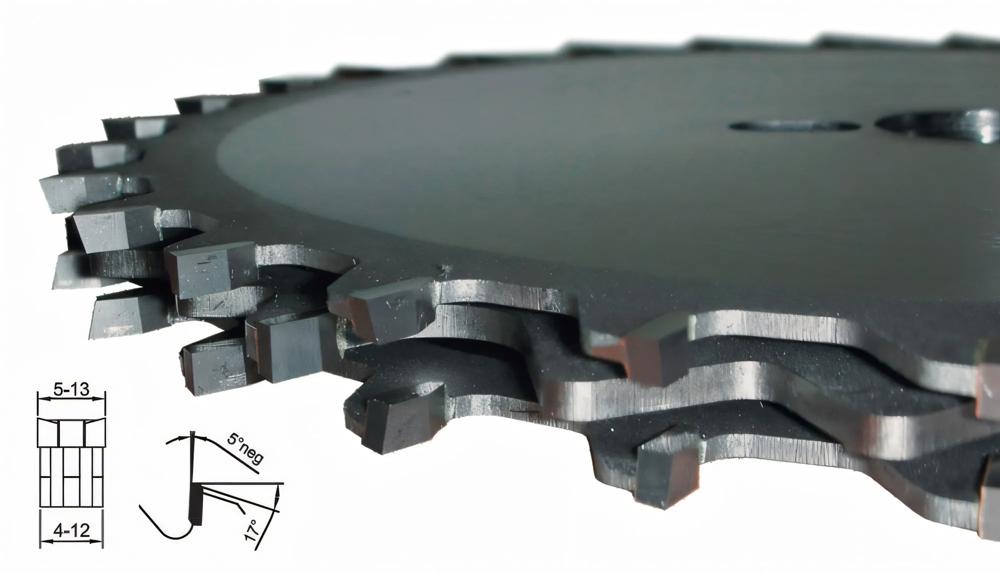

Edge saw blade right: diameter 250 mm - cutting width 4.15 mm - blade thickness 2.0 mm - bore 30 mm - 24 teeth - 5° neg. - side hole combination for 2/10/60 mm, 2/9/46 and 2/7/46 mm
Edge saw blade left: Diameter 250 mm - cutting width 4,15 mm - blade thickness 2,0 mm - bore 30 mm - 24 teeth - 5° neg. - side hole combination for 2/10/60 mm, 2/9/46 and 2/7/46 mm
Hogger saw blade: diameter 250 mm - cutting width 5.20 mm - blade thickness 3.20 mm - bore 30 mm - 5 teeth - 5° neg.
Spacers: 2 x 1.0 mm; 2 x 0.5 mm; 2 x 0.3 mm; 4 x 0.2 mm; 4 x 0.1 mm
Properties & Advantages
Adjustable in 0.1 mm steps
Use on sliding table saws
As a rule, DADO grooving saw blades can be used on all common European machines - also thanks to the universal side holes
Chip thickness limited design for safe working according to DIN EN 847-1
