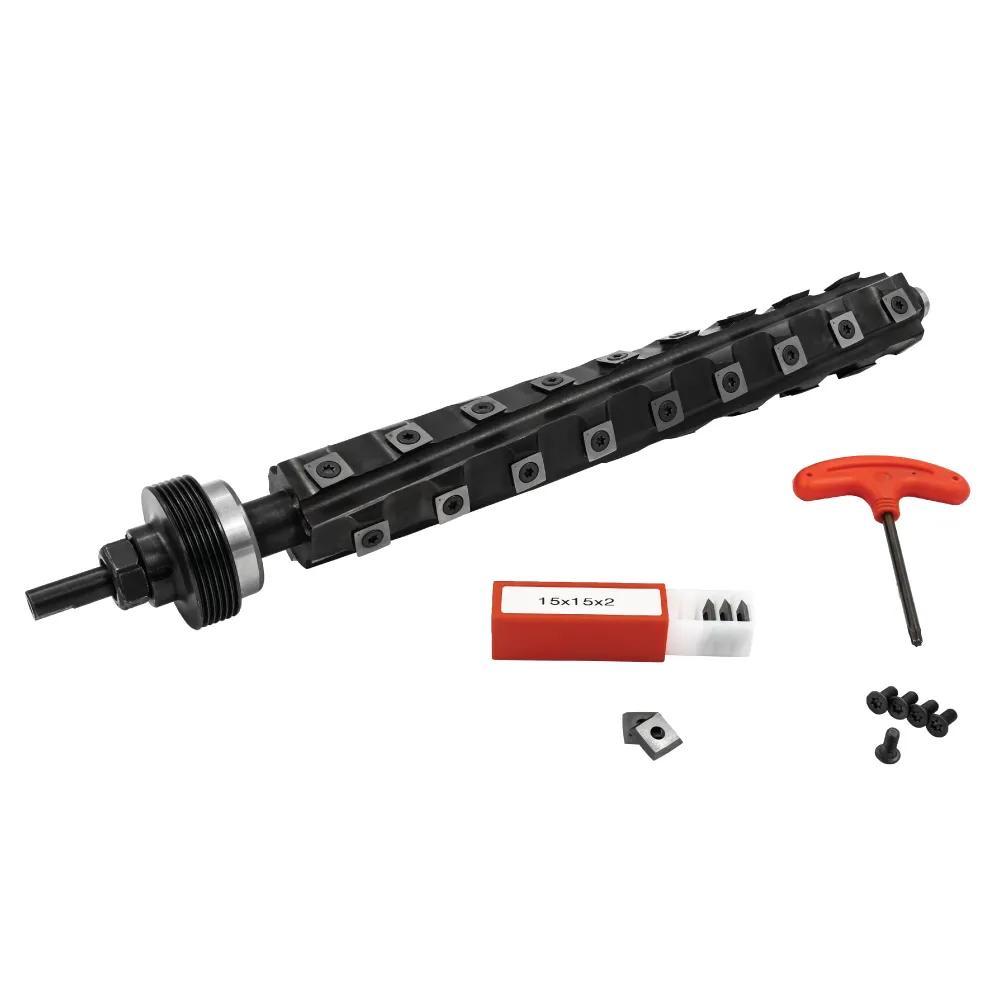

36 carbide reversible blades mounted in 4 spirals - maximum efficiency, maximum smoothness.
The spiral head planes effortlessly and very cleanly even very hard and exotic woods, the wood crosswise, does not split any knots and the planed surface is much smoother under all conditions than after working with ordinary knives. Carbide knives are many times more durable than classic HSS planing knives and can be rotated 4 times for even longer life, without the need for replacement or long waits for sharpening and setting up in a drum. Thanks to the integrated fan and dust bag, the machine can also be used without suction to efficiently remove chips from the cylinder. Of course, an industrial hoover or an extraction system can also be connected here.
The drum sander for small workshops | Automatic feed adjustment | Precise sanding | 1100 W | At present shipping is only possible to the EU, Switzerland and Norway
Power 1.100 Watt | Planing width 152 mm | Material removal 3,2 mm
Shipping within 24 hours (working days)
449,00 €
359,90 €
incl. VAT
Art.-Nr: TS-350767
6 Products
Technical Data
Input power (230 V): 1.8 kW
Planing shaft speed: 9,000 rpm.
Planing shaft diameter: 46 mm
Number of inserts in planing shaft: 36 pieces
Insert size: 15 x 15 x 2.5 mm, R=150
Feed speed: 7.9 m/min.
Minimum workpiece thickness: 3.2 mm
Max. stock removal: 3,2 mm
Max. Planing width: 330 mm
Max. Planing thickness: 156 mm
Min. length of workpiece: 120 mm

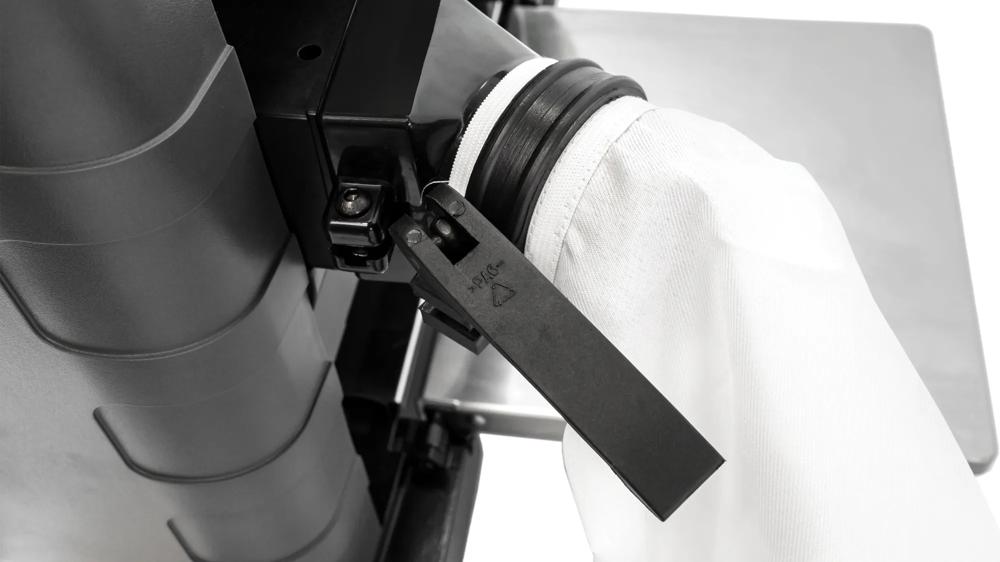

Suction: integrated fan, 62 mm suction nozzle or cloth bag
Noise level: 96 dB
Machine dimensions (length x width x height): 340 x 615 x 555 mm
Machine dimensions with tables folded out (length x width x height): 850 x 615 x 555 mm
Machine weight: 34 kg
Packaging dimensions (length x width x height): 415 x 660 x 545 mm
Properties & Advantages
The powerful motor has restart protection and overload protection and achieves a chip removal of up to 3.2 mm.
With specification and removal table.
Thanks to the HM reversible knives, it is possible to replace the cutting edge of a damaged planing section with pinpoint accuracy.

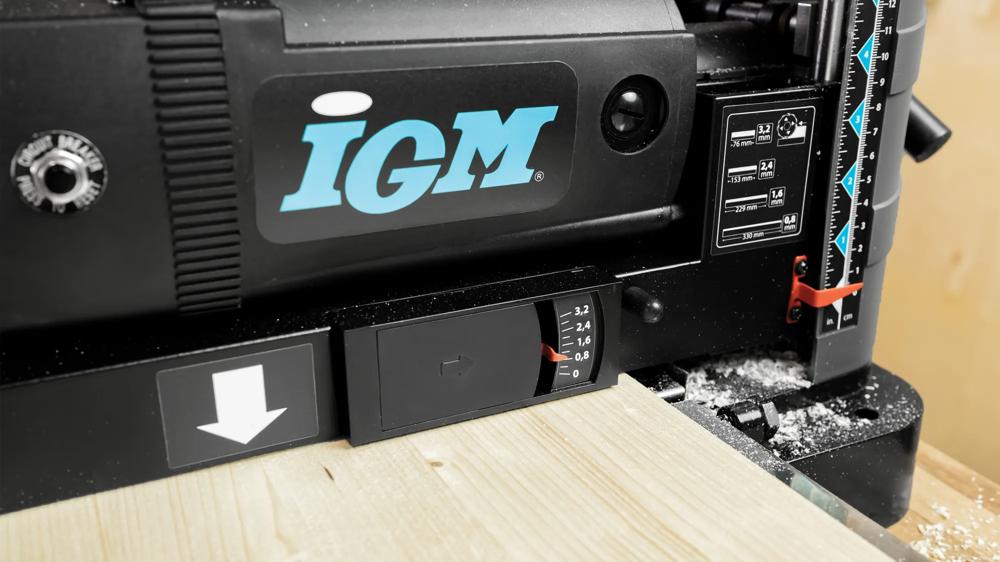

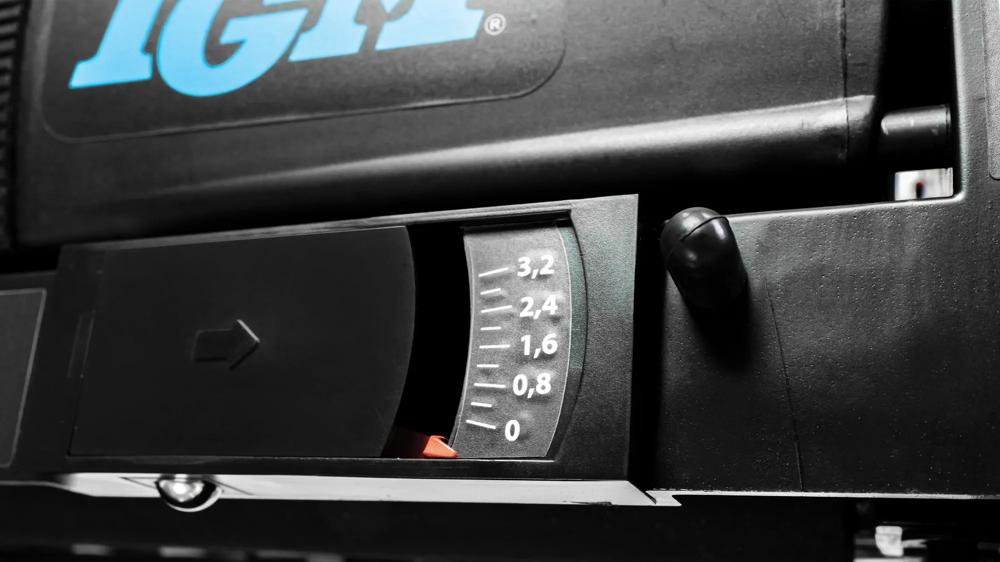

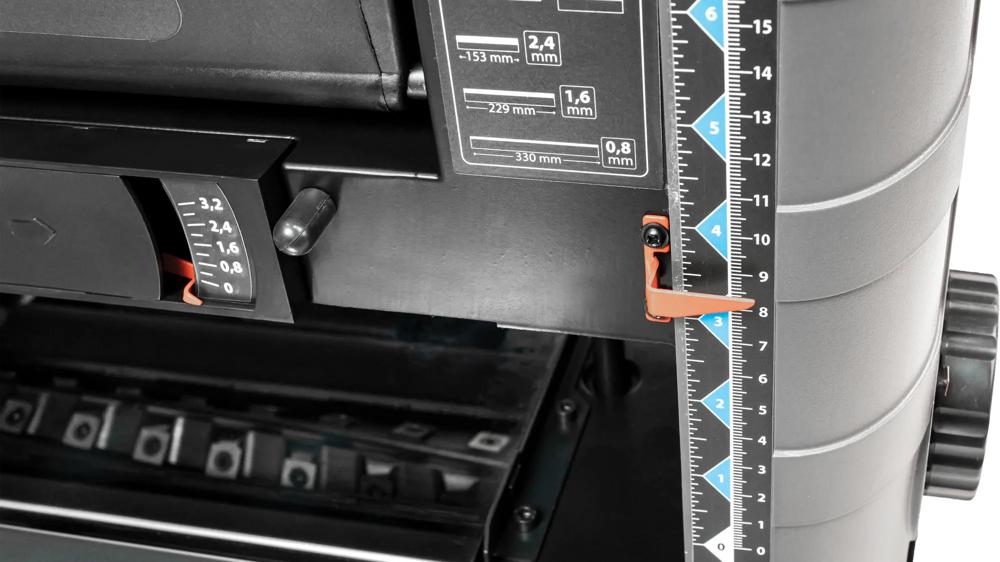

An indicator shows the material removal on the front of the machine.

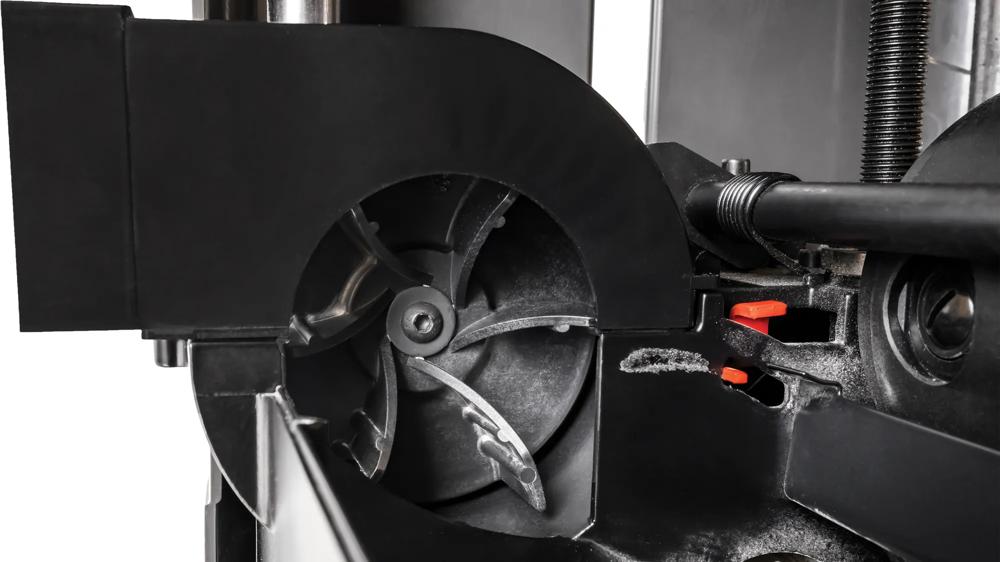

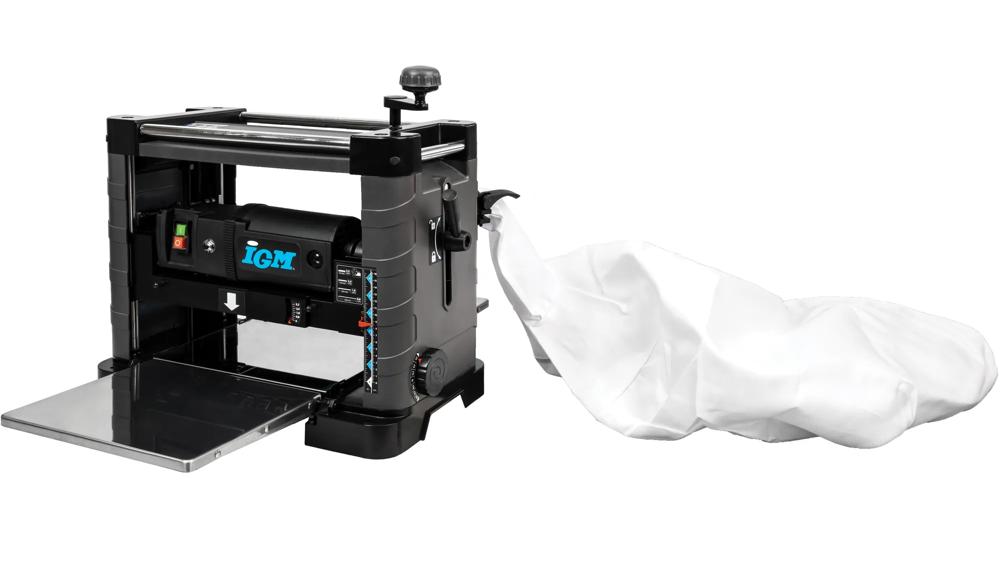

Does not require an extraction system thanks to the integrated fan for removing sawdust from the planer roller.

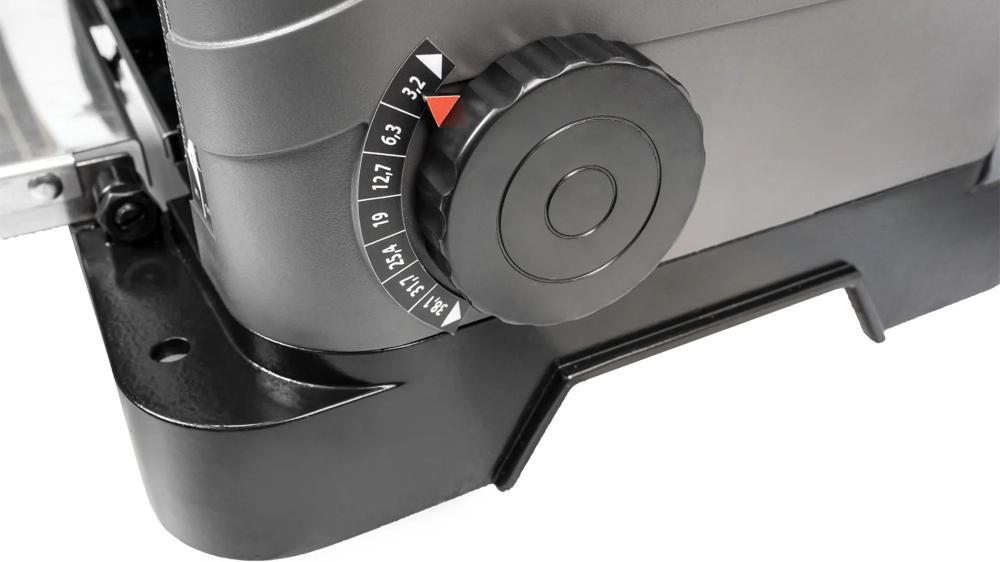

Depth stop with seven positions for repeated thickness planing at the same height.
Maximum part width up to 330 mm.
For maximum working safety, the machine is equipped with rubberised feed rollers that hold and move the workpiece firmly, and steel hooks in front of the roller prevent kickback.
