Lifting table Frame Beck HS300M, mobile

With foot hydraulics | load capacity 300 kg | platform size 1200 x 740 mm At present shipping is only possible to the EU, Switzerland and Norway

Shipping within 24 hours (working days)
2.372,86 €
1.899,00 €
incl. VAT / excl. shipping costs
1
Maximum available stock reached
FreightArticle is oversized / overweight and will be dispatched by a freight carrier.
  • Brand:BECK
  • Article no.:BK-190-200-00
  • Weight:85kg

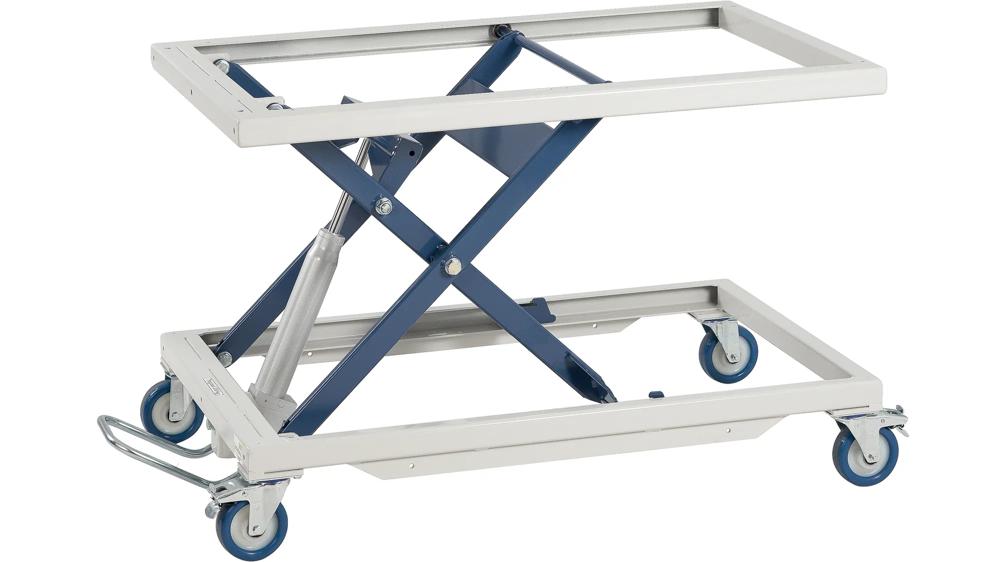

Beck Lifting table HS300M without worktop, mobile

Different worktops can be mounted on the base frame of this model and thus individualised for every industry and every field of application.

The HS300M lifting table from Beck is infinitely variable and height-adjustable under load thanks to the foot hydraulics. Different body sizes and the varying dimensions of the products to be processed make height-adjustable work tables an indispensable prerequisite for ergonomically optimised workplaces.

Technical Data

  • Load capacity: 300 kg
  • Platform size: 1200 x 740 mm
  • Total height: max. 1010 mm
  • Useful lift: 610 mm
  • Overall height: 400 mm
  • Weight: 85 kg
  • 4 swivel castors (wheel ø 125 mm), 2 with brake
hubtisch-mobil-fusshydraulik-beck-bk-190-200-00-02

Properties & Advantages

  • For an ergonomic working method during standing assembly activities due to the simple and individual height adjustment.

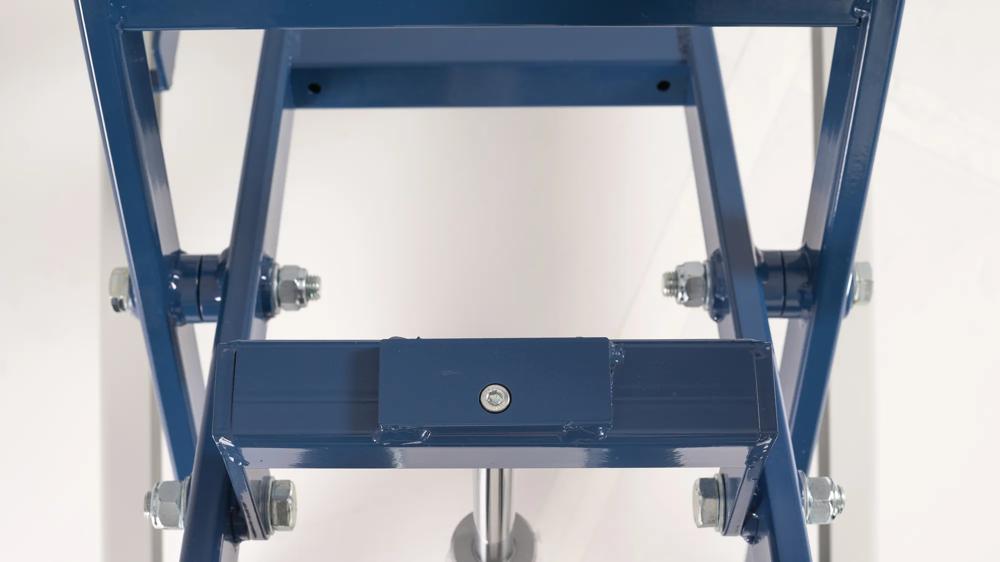

  • The construction of the scissor construction offers maximum stability through square profiles.

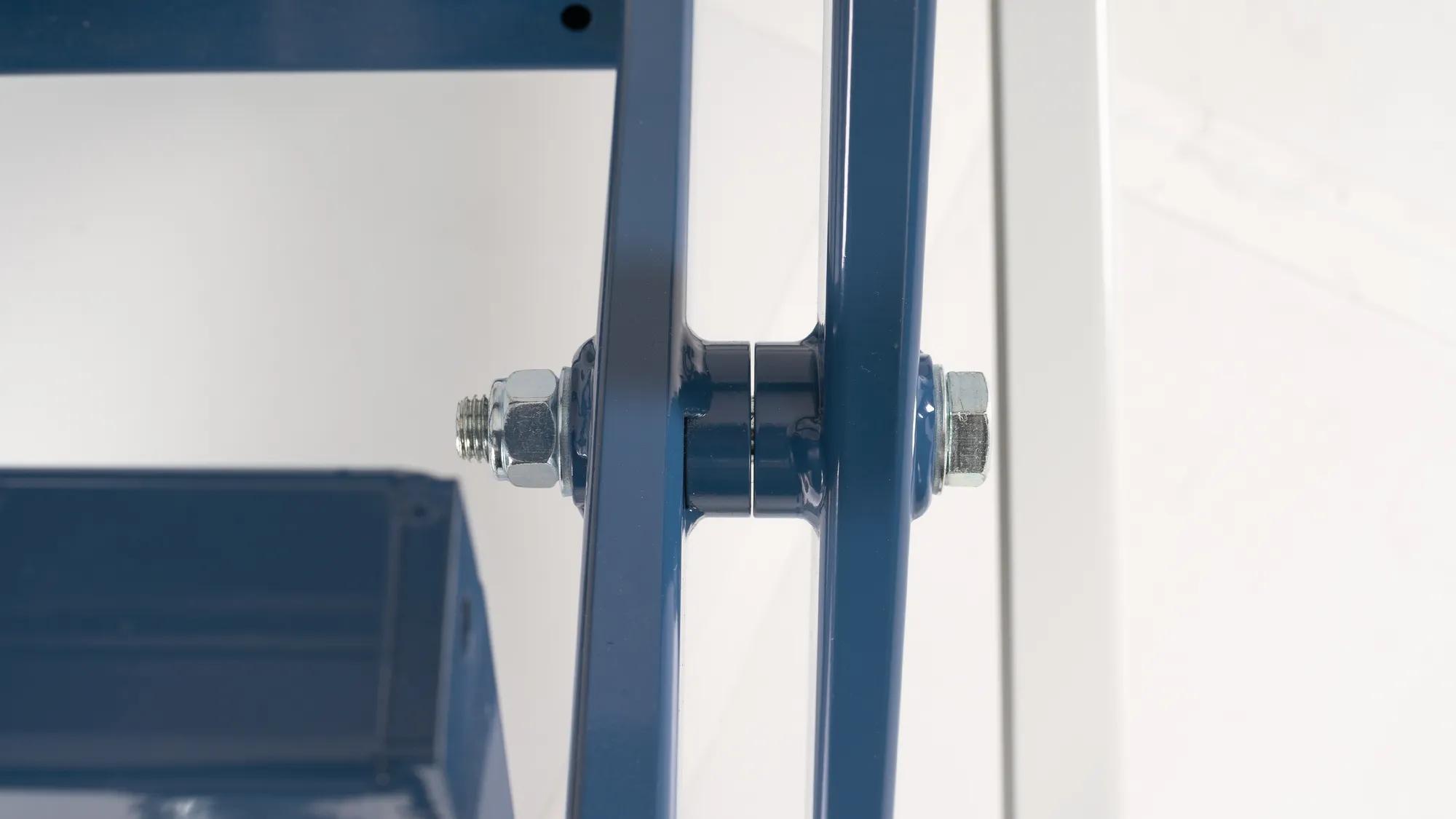

  • The bolted connection of the scissor construction is reinforced throughout.

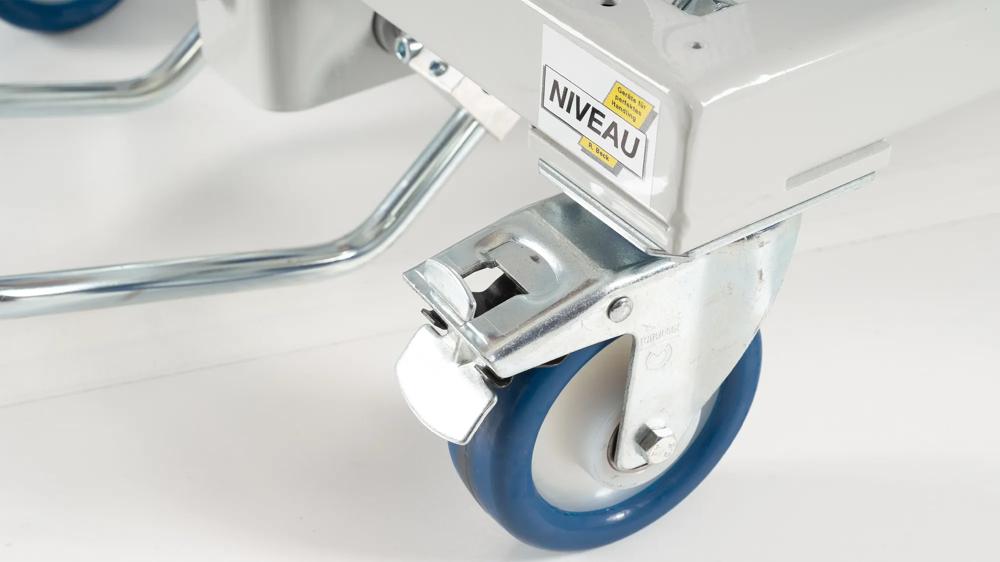

  • Two of the four swivel castors are equipped with locking brakes.

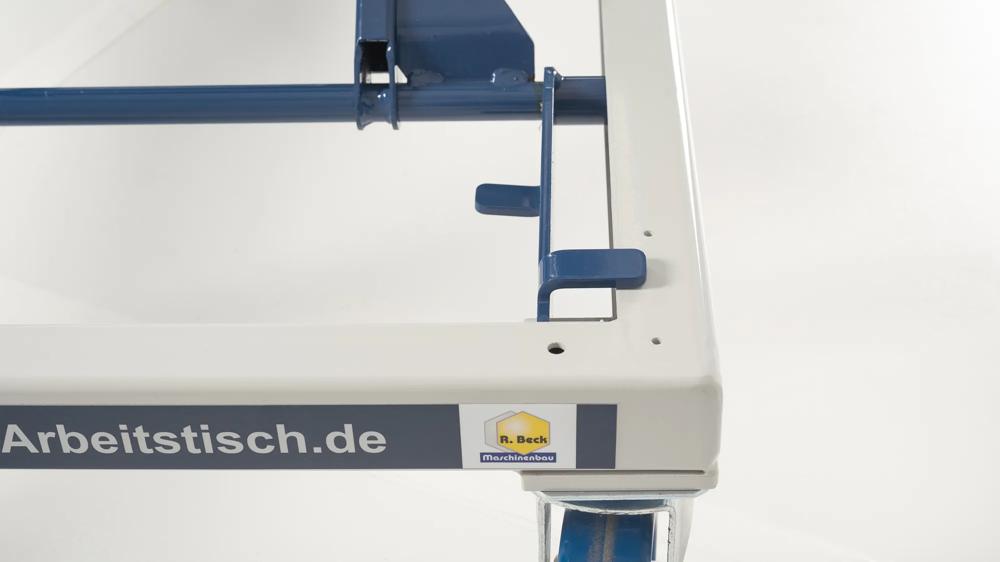

  • The locking lever mechanically locks/secures your lift table at normal height.
