Extremely compact, extremely handy and extremely suitable for sawing panels. Including rigid cross-cut rail for cross-cuts up to 300mm. Professional equipment for cross-cut and mitre cuts.

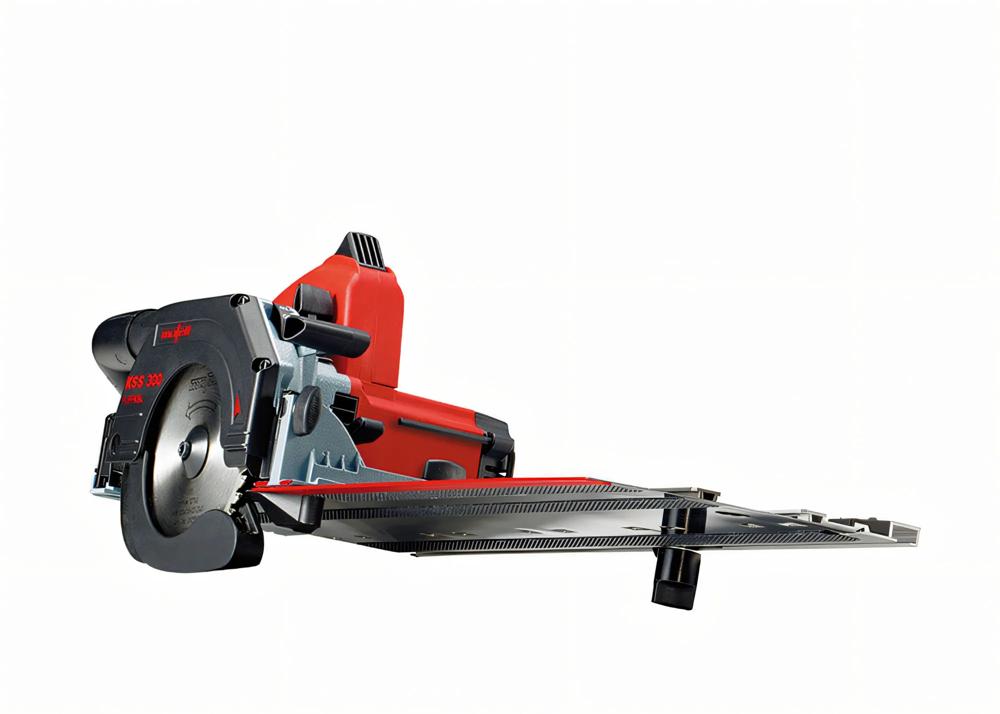

Extremely compact and handy crosscut bar saw

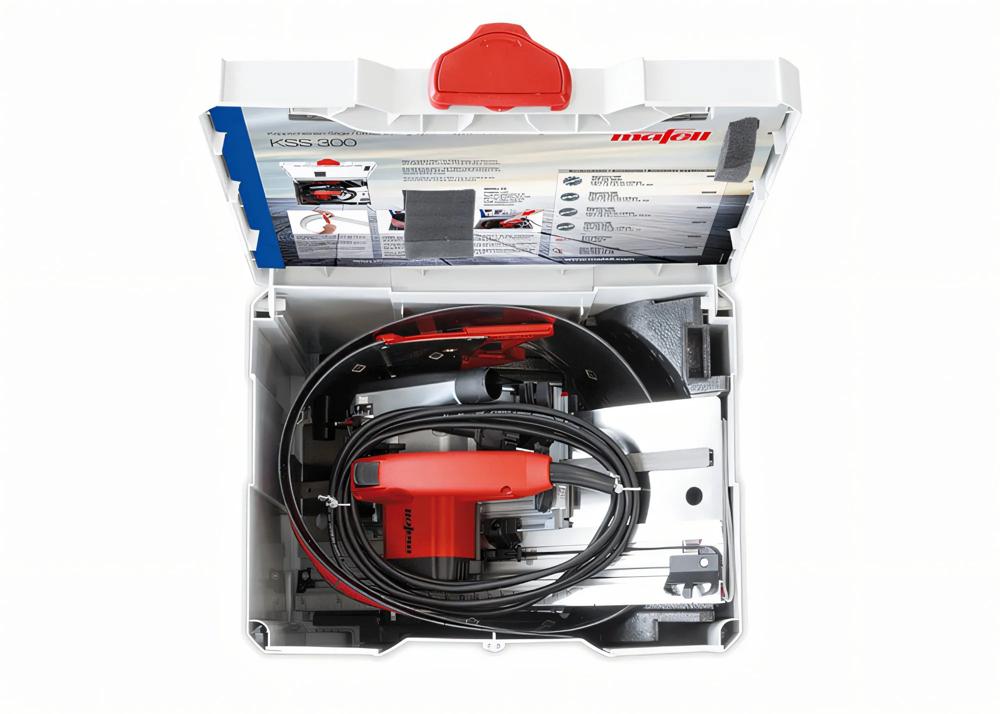

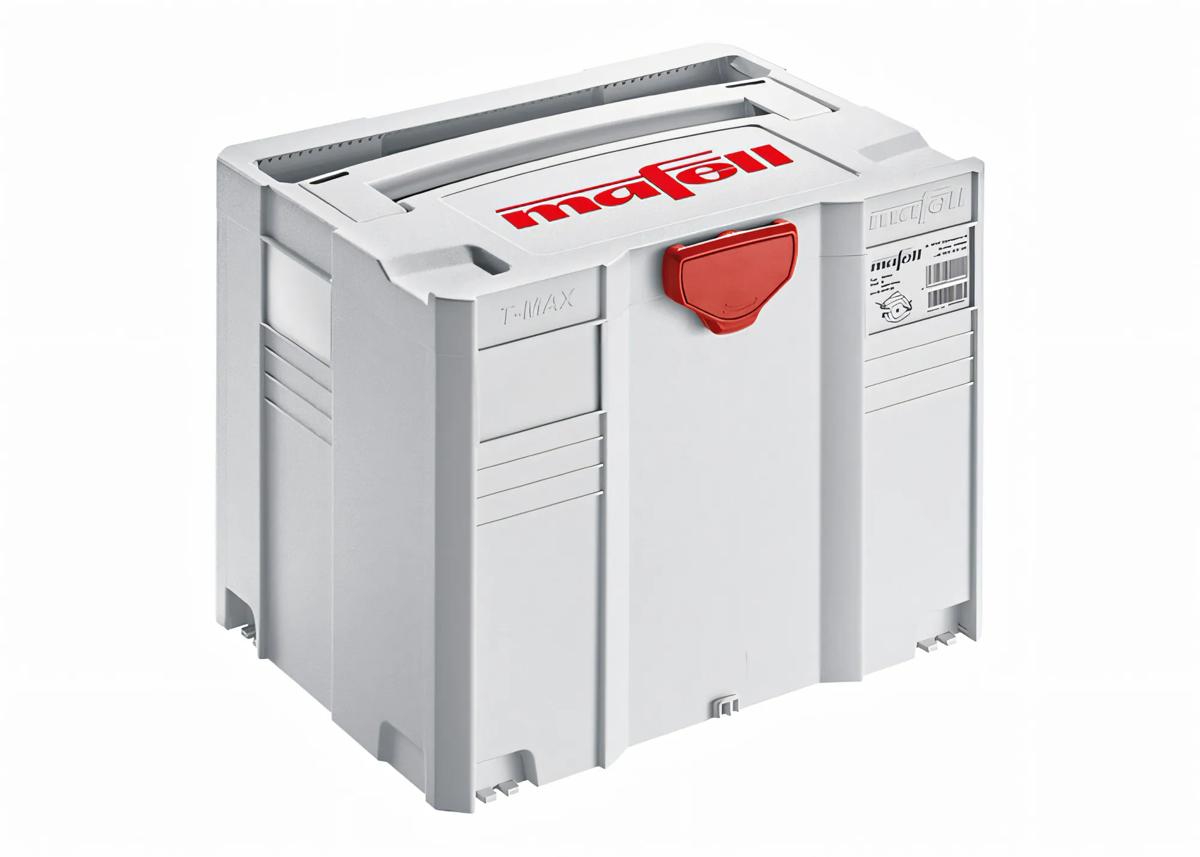

With Kapp and Flexi rail | 300mm cutting length | In T-MAX
Shipping within 24 hours (working days)
1.004,36 €
incl. VAT
Art.-Nr: MAF-916702
1 Products
Technical Data
Saw blade Ø: 120 x 20
Cutting depth with rail at 0°: 40 mm
Cutting depth with rail at 45°: 27 mm
Cutting depth without rail at 0°: 42 mm
Pivoting range: 0 - 45
Cutting length: 300 mm
Angular cuts: -45 to 60°
Nominal idle speed: 8800 rpm
Nominal power consumption: 900 W
Suction connection Ø: 35 mm
Weight with cap rail: 3.0 kg
Properties & Advantages
Highly functional one-hand crosscut saw with feather-light 3,0kg total weight including crosscut bar

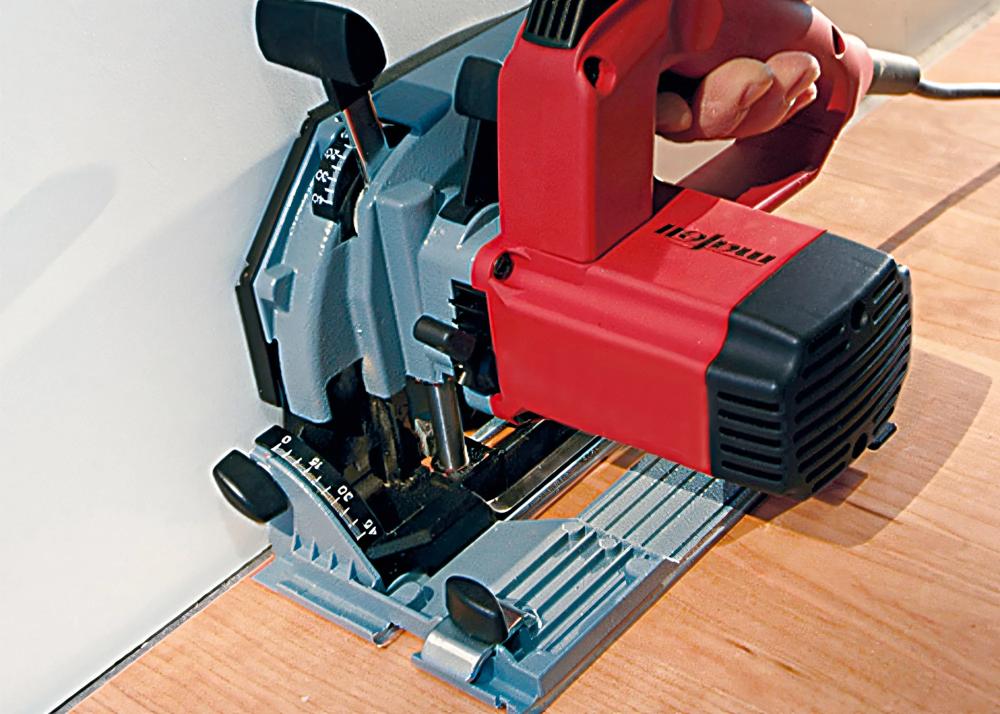

Compact sawing system for shadow joints (from 13mm), longitudinal, oblique, plunge and angle cuts or freehand cuts

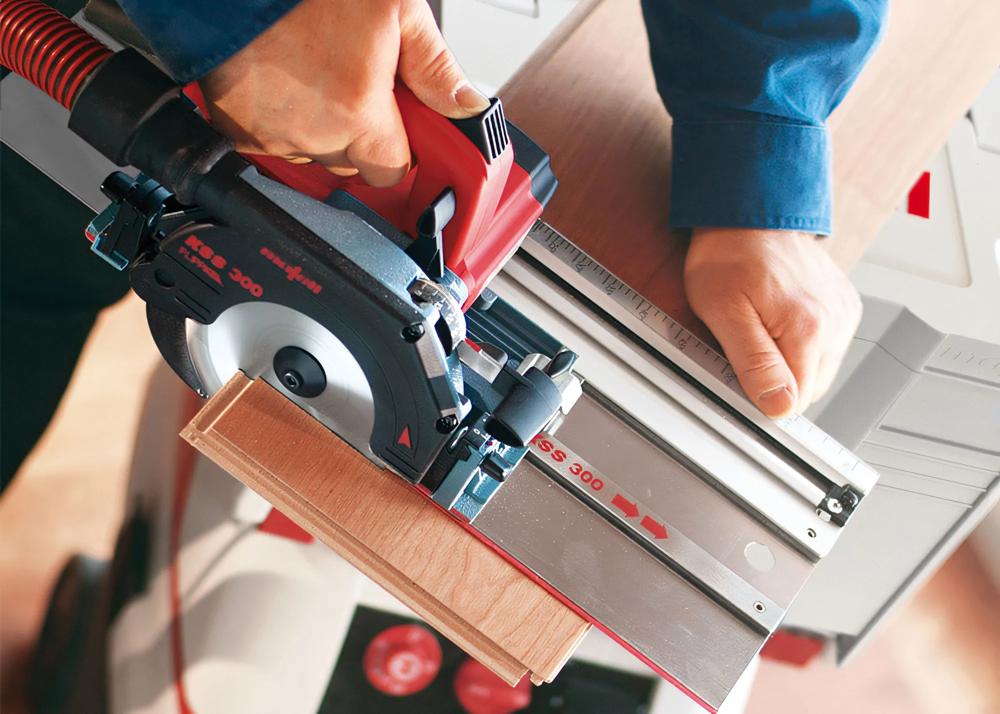

Firm connection by means of quick-release fastener of circular saw with KSS cap bar. The return puller brings the KSS300 back to the starting position after each cut
For precise angle cuts, the crosscut rail is equipped with a fixed positioning cam and - thanks to the large scaling - an exactly adjustable stop
The Mafell flip wedge allows plunge cuts without dismantling the splitting wedge
Fully-fledged circular hand saw also without connection to the crosscut bar
