Mekanika vacuum table - complete package

Adapted for FAB-CNC | Utilise maximum size | No clamping devices required

Delivery time 2-3 days

8.794,10 €

7.500,00 €

incl. VAT / excl. shipping costs

Maximum available stock reached

FreightArticle is oversized / overweight and will be dispatched by a freight carrier.

Brand:MEKANIKA
Article no.:MEK-M01344
Weight:150kg

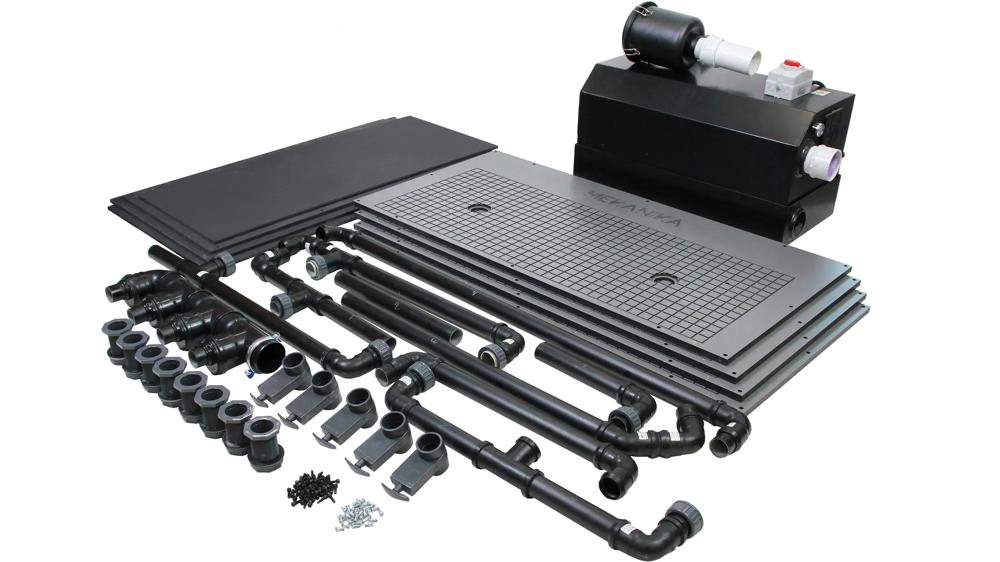

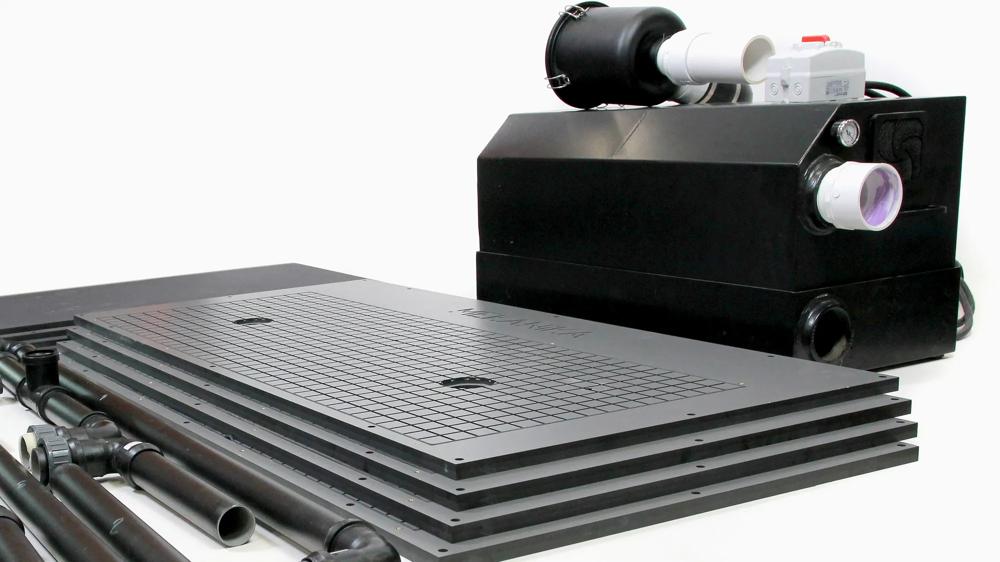

MEKANIKA VACUUM TABLE - COMPLETE PACKAGE

Use this vacuum table to quickly and easily attach your parts to your Fab CNC. With this robust and ergonomic table, you can improve the quality of your parts and significantly reduce your working time.

Working with panel-sized materials such as plywood, MDF or plastic can be challenging, especially when it comes to securing them for machining. Traditional fixturing methods often require time and effort, but a vacuum table offers a more effective solution.

Vacuum tables are a reliable and versatile way to hold large materials in place, making them ideal for large CNC milling machines. They simplify the installation process, reduce the risk of movement during machining and can support a variety of material types.

Whether you're new to CNC machining or have years of experience, using a vacuum table can improve your workflow and the quality of your work.

Technical Data

Size & performance:
- Dimensions: 864x432x432 mm
- Maximum vacuum: -335 mbar
- Suction capacity: 690 m³/h
  - Minimum raw size:
    - Plate 200 x 200 mm, with the following cutting parameters:
    - Depth of passage: 4 mm
    - Feed rate: 2500 mm/min
    - Spindle speed: 20,000 rpm
    - Carbide cutter 3 teeth 6 mm
    - Material: Plywood
Structure & mechanical elements:
- Circuit and connections:
  - 50mm PP circuit with integrated seals
  - PP distributor 90mm

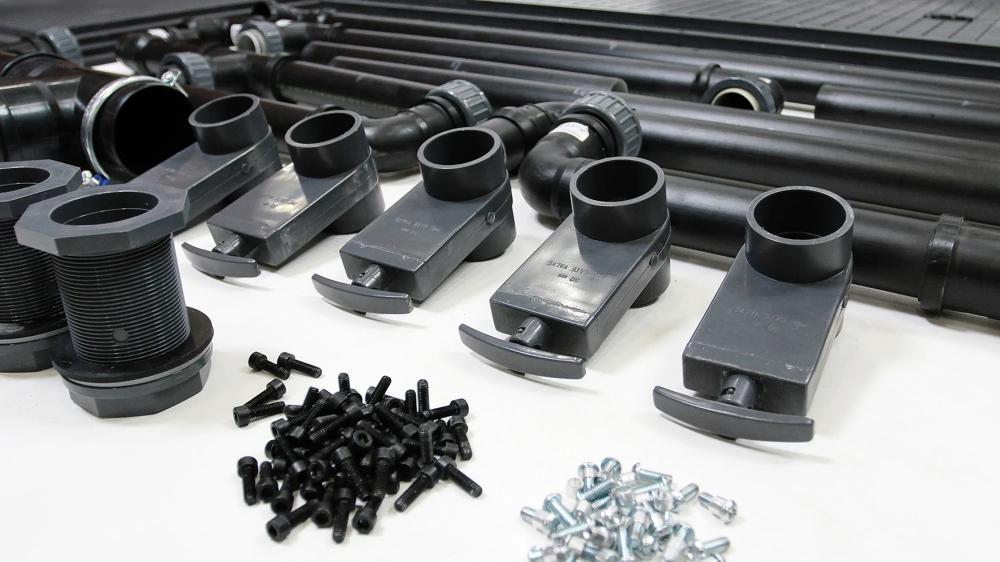

  - Screw-in bulkheads and screw connection

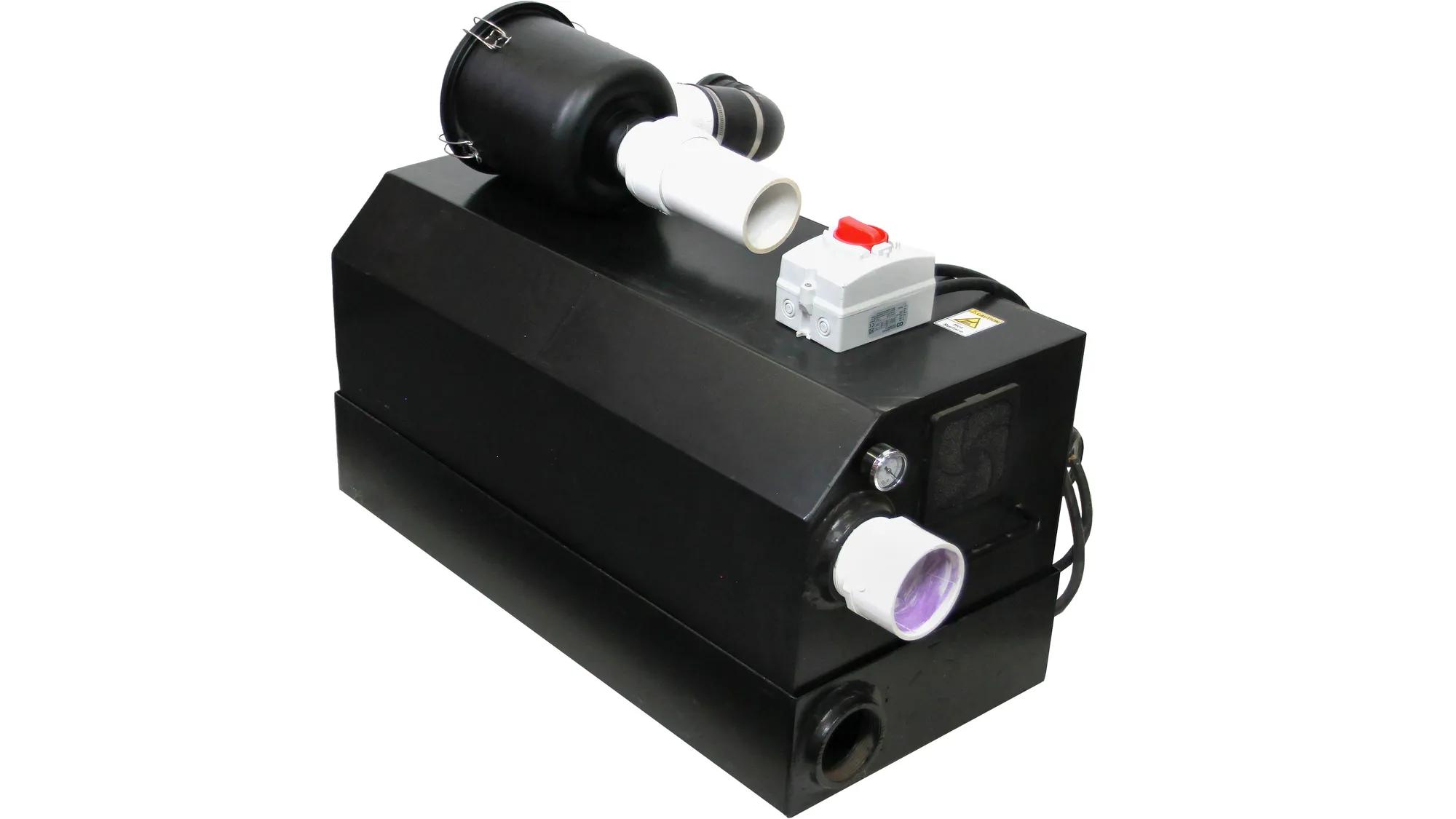

- Pump structure: Folded steel with black powder coating
- Base: Rubber feet for noise limitation
- Canister filter: Supplied and replaceable cartridges
- Vacuum gauge: Integrated
- Relief valve: Integrated
Electricity:
- Circuit and connections: 2x 2 high-performance vacuum pumps with long service life
Connections:
- Industrial sockets 32A 2P+E
- Socket included in the scope of delivery (for connection to the mains)
Switches: 2 mains switches with integrated circuit breakers
Power consumption:
- 1x 230VAC - 30A
- Maximum output: 6.9 kW

Properties & Advantages

A wide range of compatible materials: Our vacuum table is compatible with a wide range of materials as long as they have flat surfaces. Wood, sheet metal, plastic sheets, foam, etc. are all compatible materials.
A wide range of compatible sizes: This is probably the most unique feature of this vacuum table. It allows you to fit a variety of panel sizes without making any changes to the installation. Whether it's a complete panel or a 200 x 200 mm blank, your parts are securely attached.

MEKANIKA VACUUM TABLE - COMPLETE PACKAGE

Whether you're new to CNC machining or have years of experience, using a vacuum table can improve your workflow and the quality of your work.
