Mekanika Vacuum Table - Evo / Pro L - Complete

Adapted for EVO/PRO | Utilise maximum size | No clamping devices required

Delivery time 2-3 days

5.554,92 €

incl. VAT / excl. shipping costs

FreightArticle is oversized / overweight and will be dispatched by a freight carrier.

Brand:MEKANIKA
Article no.:MEK-M01601
Weight:100kg

Mekanika Vacuum Table - Evo / Pro L - Complete

With this vacuum table, you can secure your workpieces quickly and easily on your Evo or Pro CNC. This robust and ergonomic table helps you to improve the quality of your workpieces and significantly reduce your working time.

Technical Data

Maximum vacuum: -335 mbar
Suction capacity: 340m³/h
Minimum bearing size: 200 x 200 mm, with the following cutting parameters:
- Cutting depth: 4 mm
- Feed rate: 2500 mm / min
- Spindle speed: 20,000 rpm
- 3-tooth carbide cutter 6 mm
- Material: Plywood
Circuit and connections: 50 mm pipes with integrated seals, bulkhead and screw-in connectors
Pump housing: Folded steel with black powder coating
Base: Rubber feet for noise reduction
Canister filter: Included in delivery, with replaceable cartridges
Vacuum gauge: Integrated
Relief valve: Integrated
Composition: 1 stage with 2 high-performance vacuum motors
Vacuum motor service life: 800 - 1,000 hours on average. The system is designed for quick and cost-effective motor replacement to minimise downtime.
Connectors: 32A 2P+E industrial sockets; included in the kit (for connection to the mains)
Power consumption: 1x 230VAC - 20A; Maximum power: 3.5 kW
Switch: 1 mains switch with integrated circuit breaker

Properties & Advantages

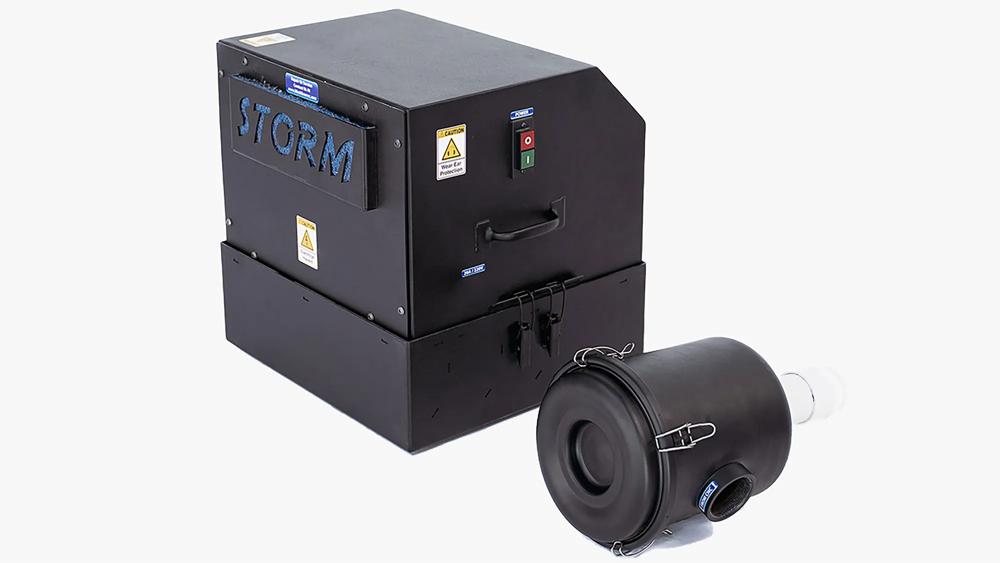

One Storm Blackbox vacuum pump

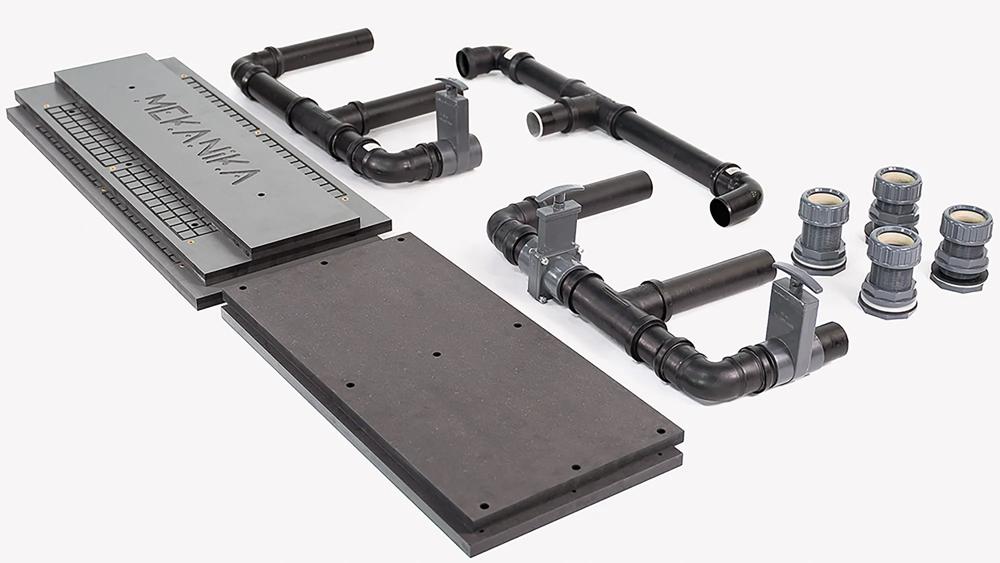

Robust 20mm HPL plates as table base (plenum)
A complete pipework system with valves
An MDF spoiler plate that is customised to your Evo/Pro
A 1000 x 500 mm grip barrier mat that allows you to hold smaller stocks

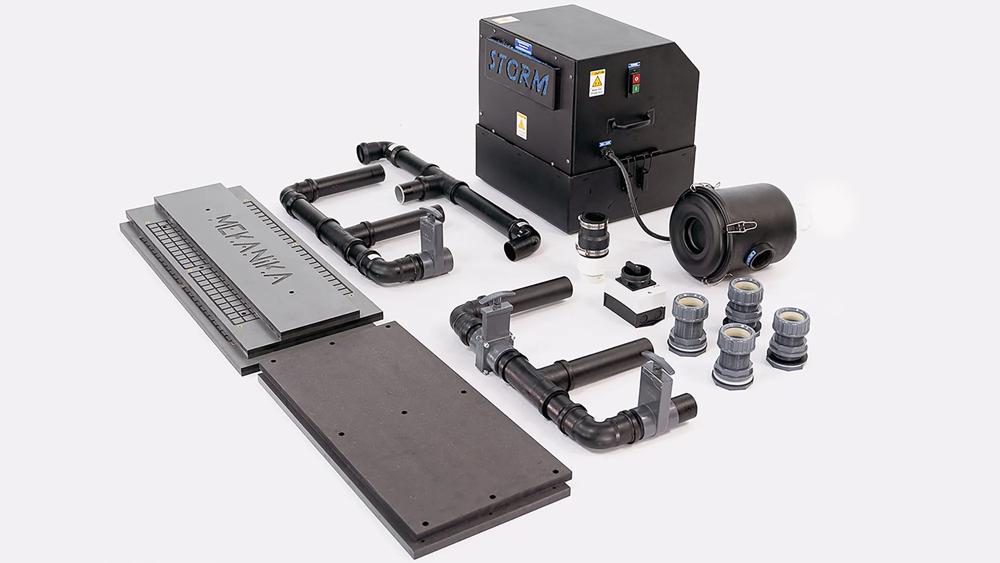

It includes everything you need to set up a fully functional vacuum table.
