Hole grid system 32 with Ø 20 mm holes | for damp areas | MDF class 2 | 1200 x 800 x 19 mm | suitable for sauter base frame UG2.0 | NOT FOR SALE OUTSIDE THE EU, SWITZERLAND AND NORWAY
Shipping within 24 hours (working days)
158,31 €
incl. VAT / excl. shipping costs
1
Bulky GoodsItem is oversized / overweight and will be shipped as bulky goods.
Perforated worktop for multifunctional tables Ø 20 mm - damp-proof
Suitable for sauter base frames UG2.0
This multifunctional table top of service class 2 can be used in areas surrounded by moisture. The MFP2.0-NKL2 can serve as a base for your own multifunctional table or as a perfect complement to sauter base frames UG2.0. The top is already equipped with threaded sockets on the underside to make mounting to the base frame quick and easy.
* Utilization class 2: For service class 2, the wood must be able to withstand ambient conditions with an average air temperature of 20 °C and a relative humidity of 85 % for a few weeks a year without any loss of stability.
the patented heart of the Vario-Bench system | Dimensions: 1200 x 800 mm | CNC milled | Made in Germany
Shipping within 24 hours (working days)
219,00 €
incl. VAT
Art.-Nr: SA-VB-PLATE1.0
3 Products
Technical Data
Dimensions: 1200 x 800 x 19 mm
Drill holes: Ø 20 mm
Hole spacing: 96 mm (System 32)
Threaded sleeves bottom side (4 pieces): Type Rampa SKDZ (M6 x 10 mm)
Material: MDF - class 2* for damp areas
Properties & Advantages

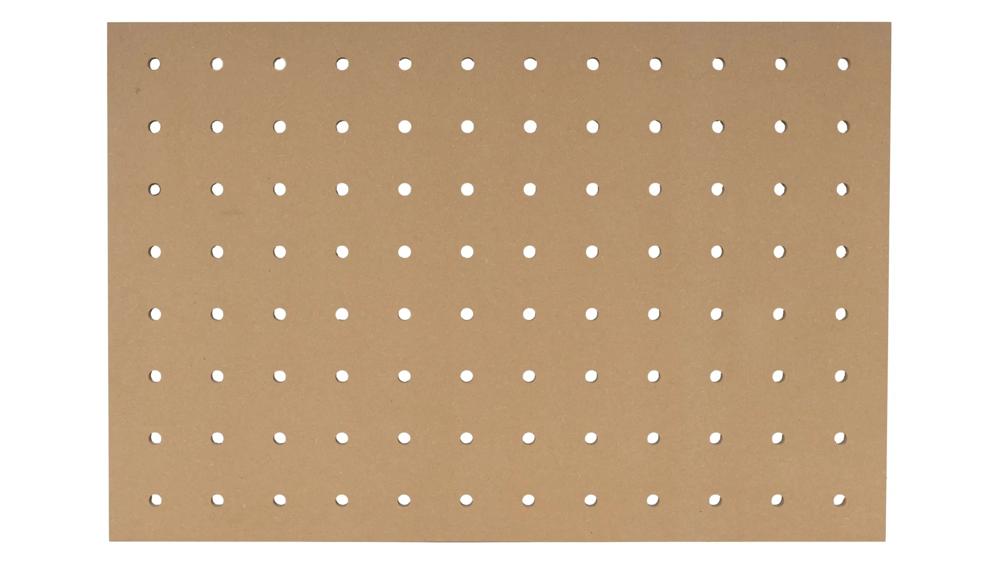

Perforated grid panel in System 32 (hole spacing 96 mm) made of MDF for a wide range of applications.

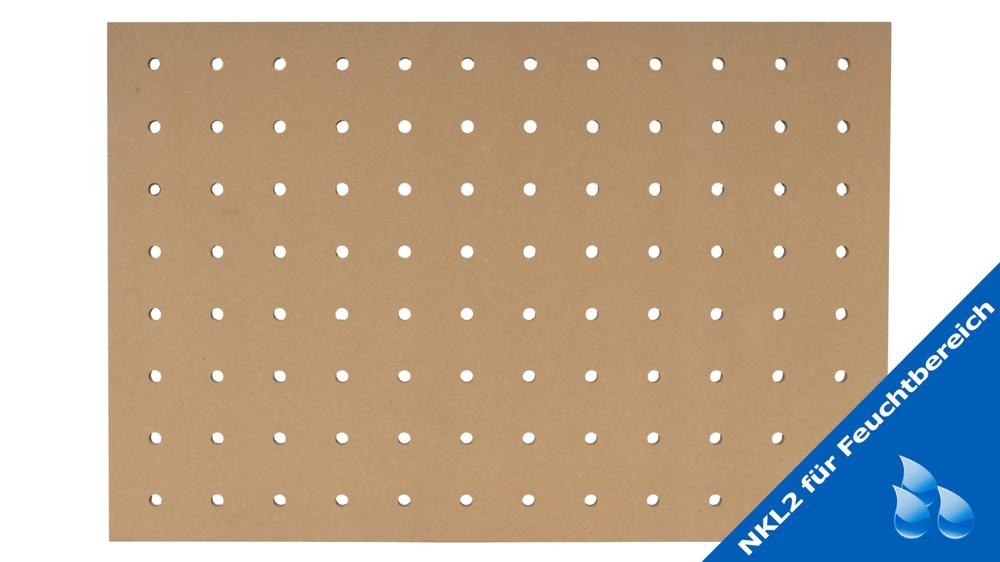

The MDF material - class 2* allows this worktop to be used in humid environments without the material swelling up

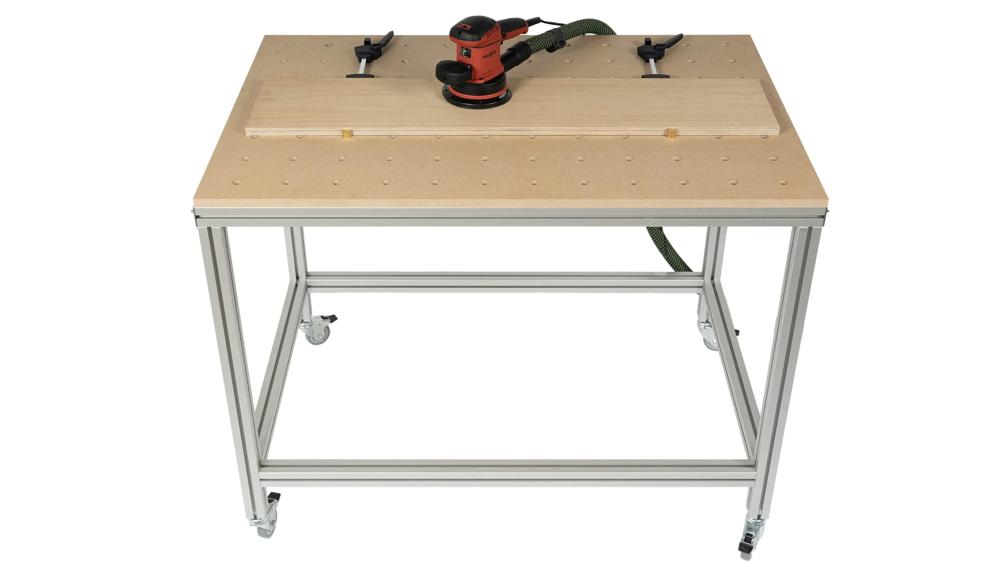

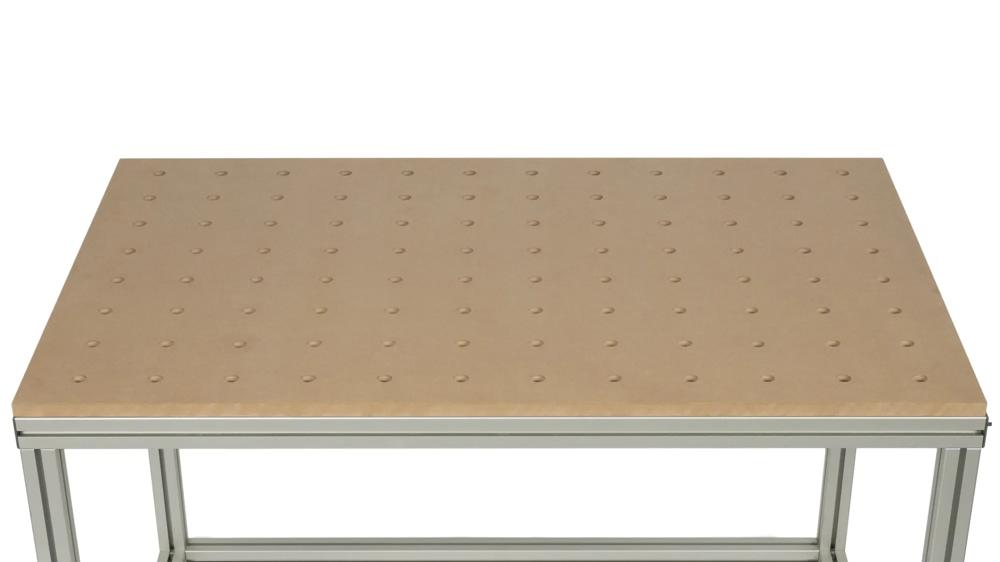

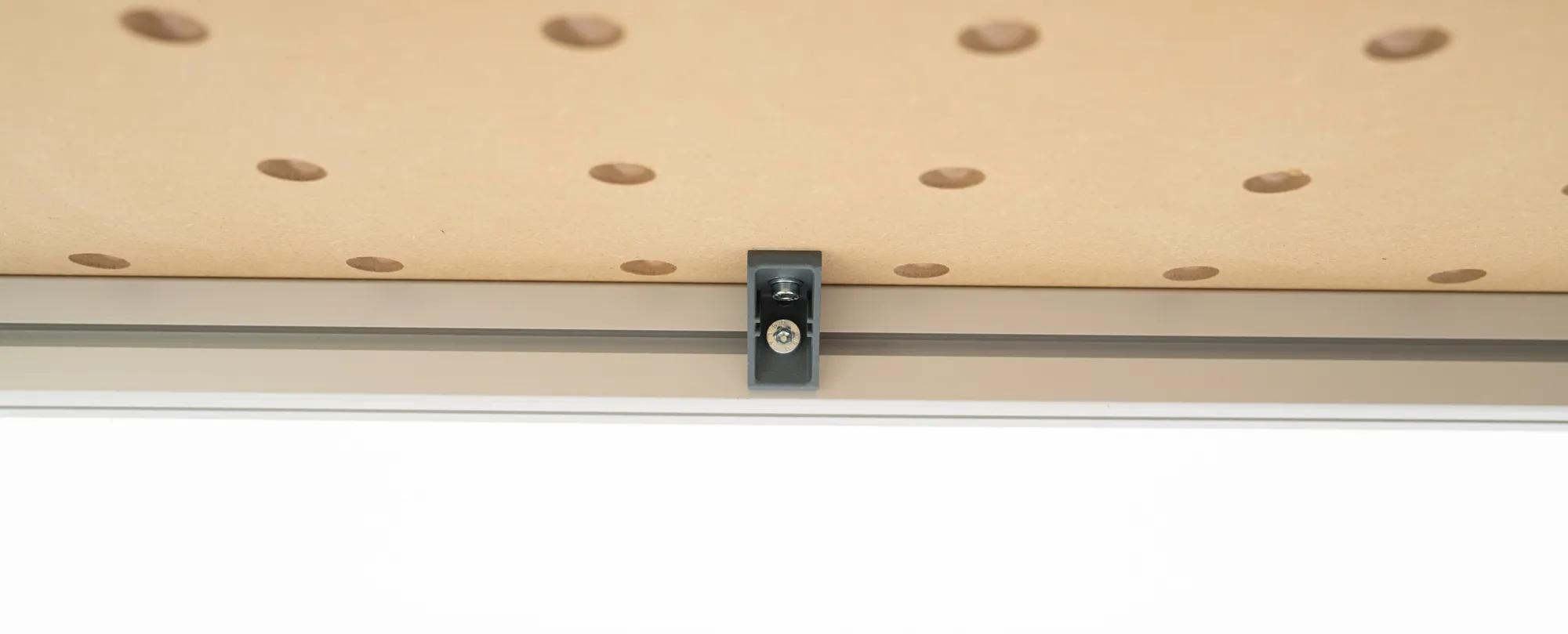

Directly compatible with the sauter base frame UG2.0 Simple attachment to the base frame by means of pre-mounted threaded sleeves on the underside of the worktop

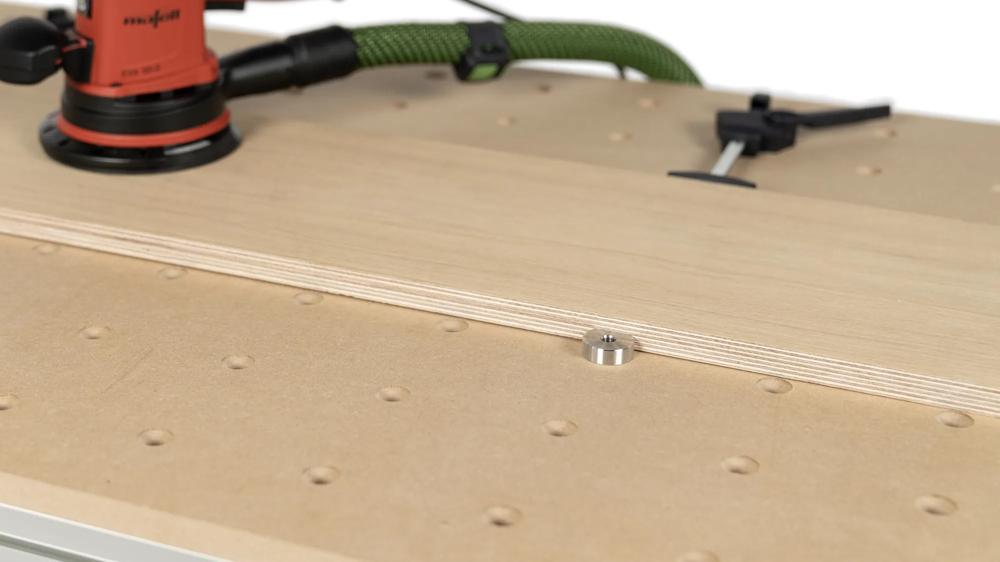

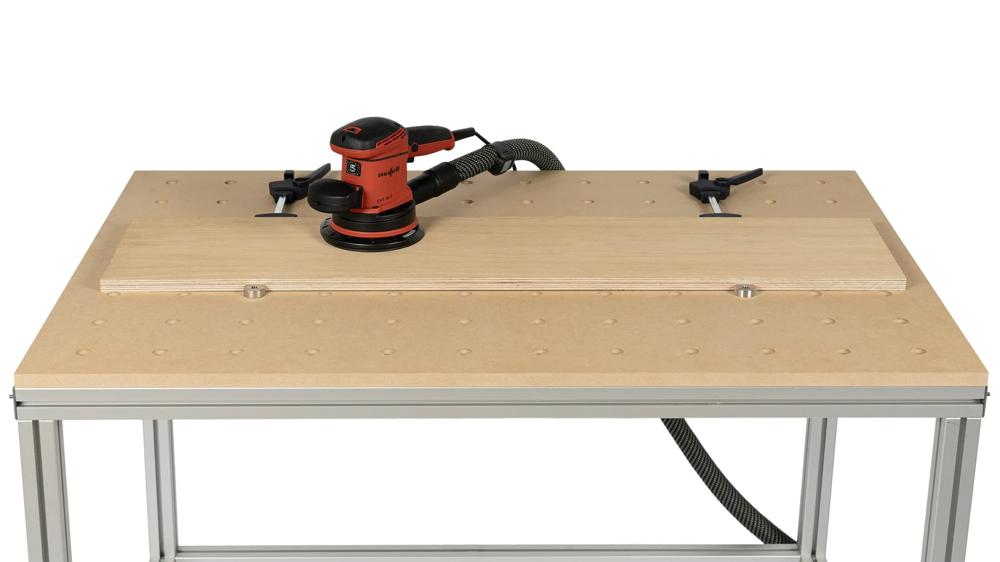

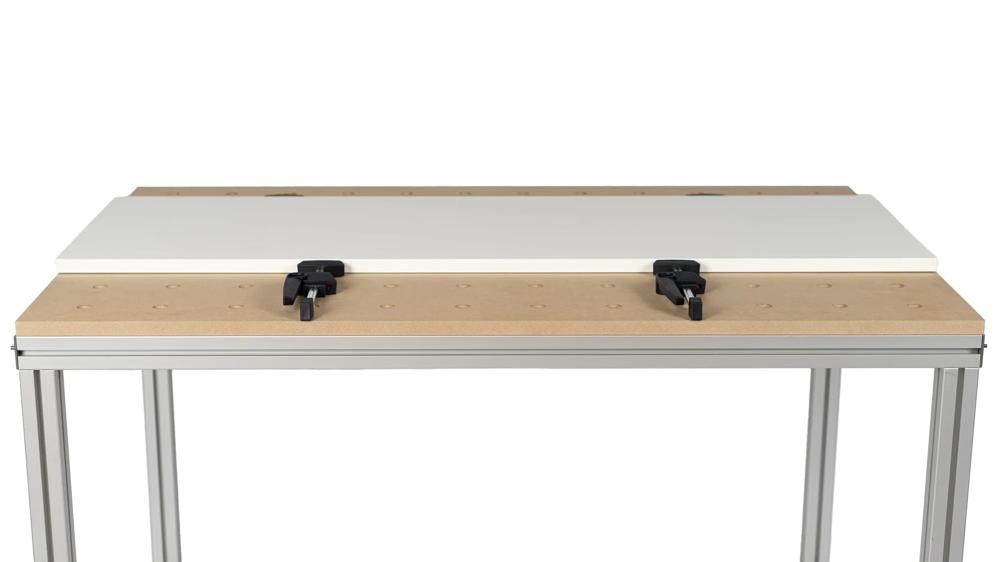

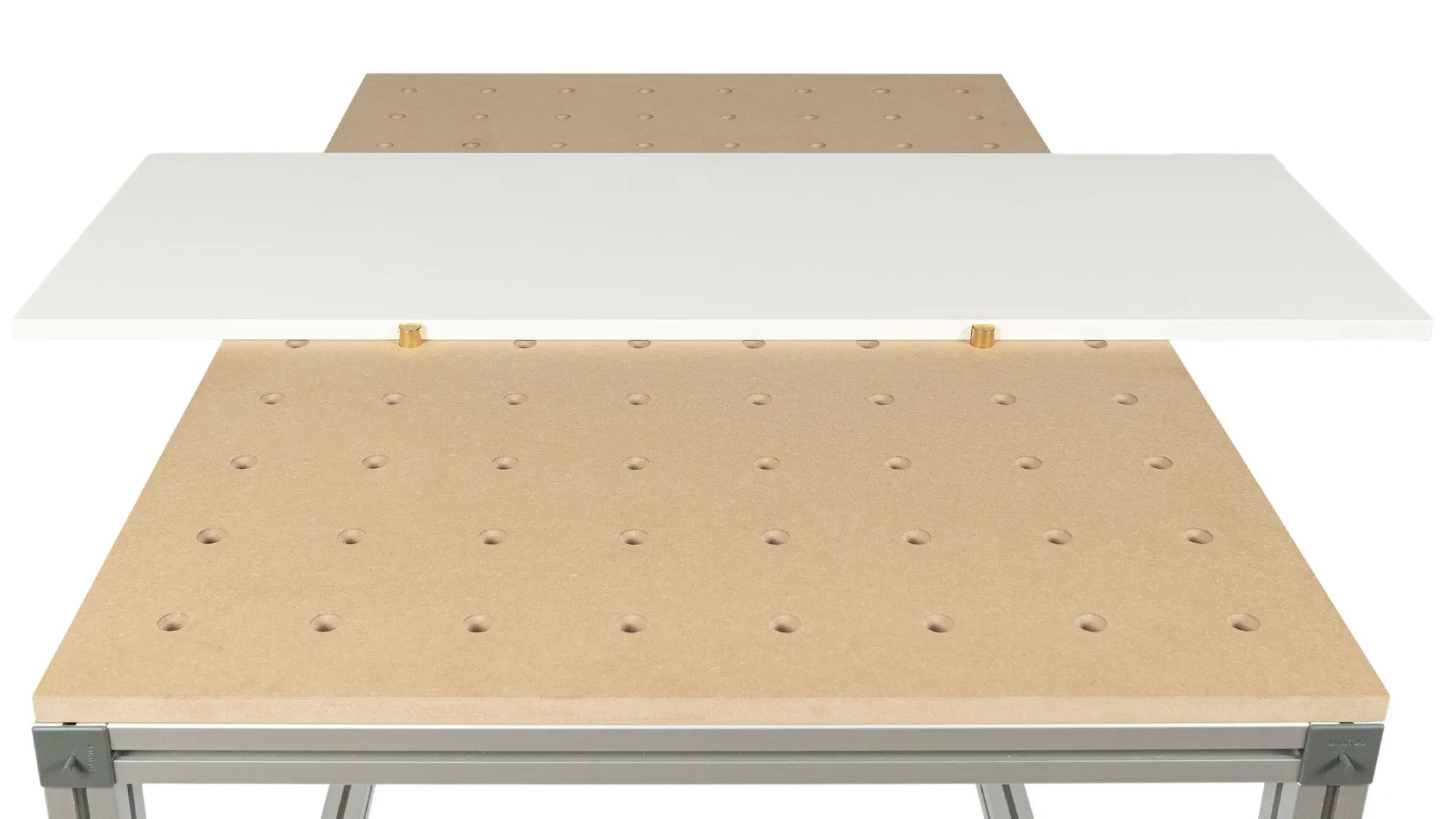

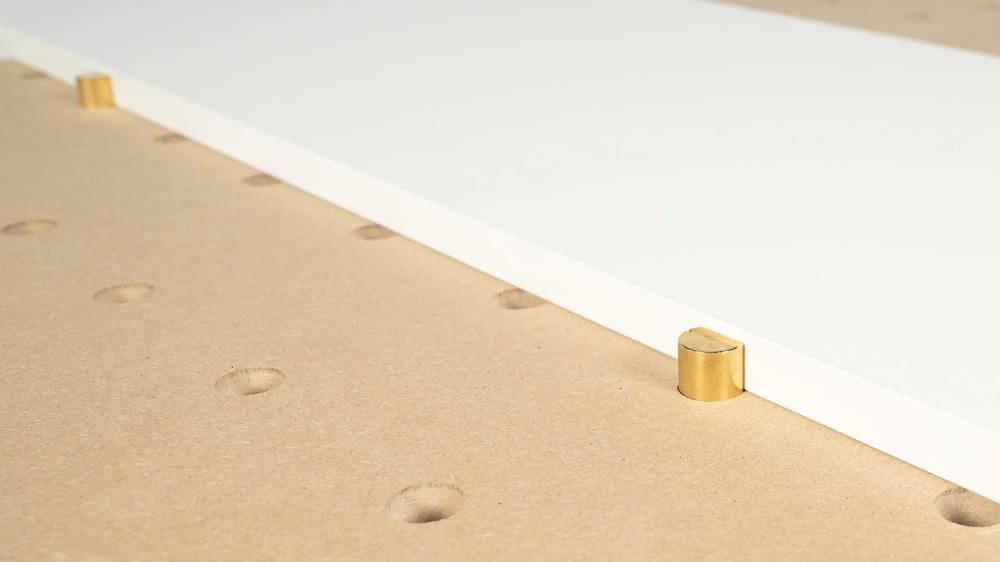

Ø 20 mm holes allow the use of common and diverse accessories, such as workbench clamps, bench dogs, toggle clamps and many more.
The perforated worktop also serves excellently as a base for the sauter SlabMatrix router sled.
Despite service class 2* only for heatable interiors
