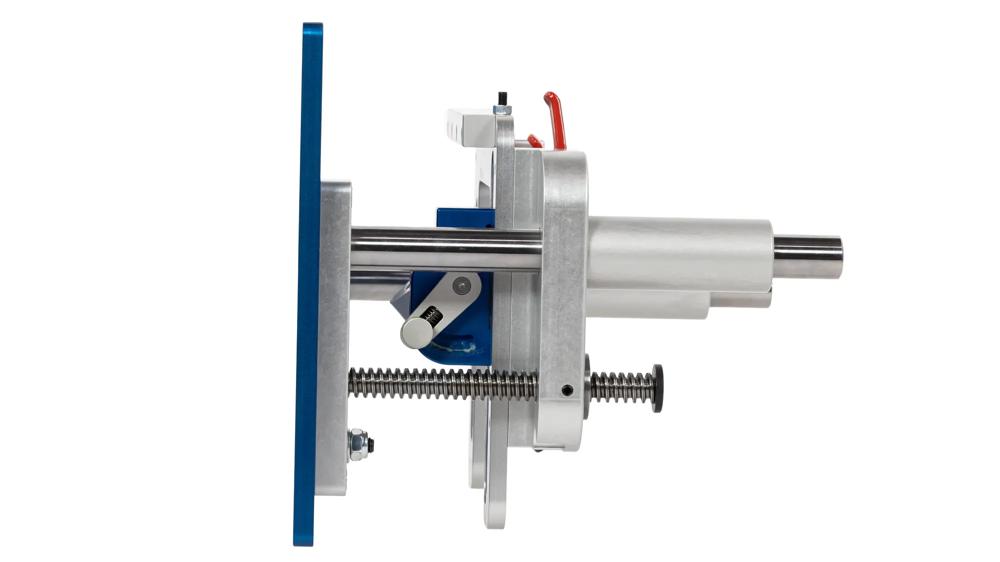

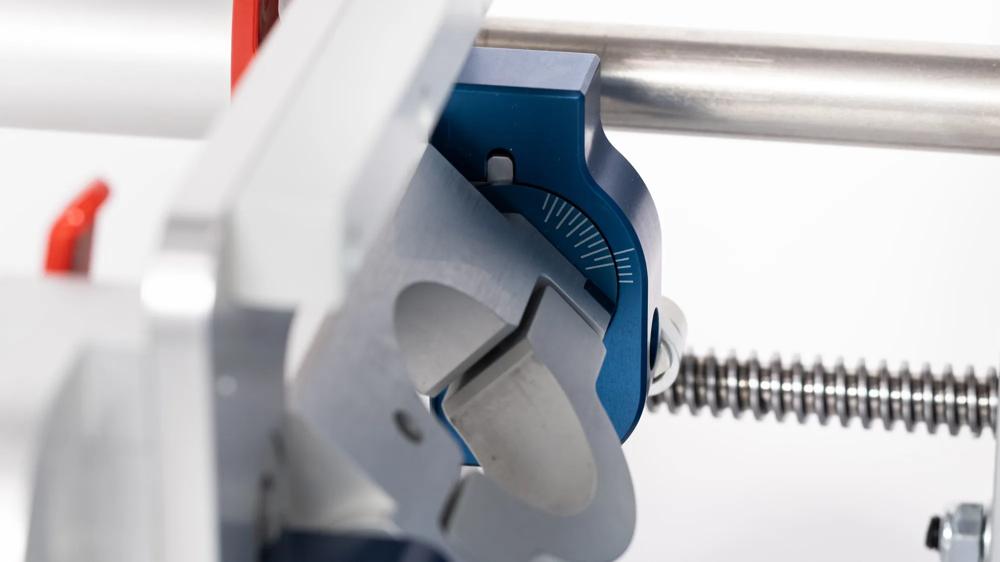

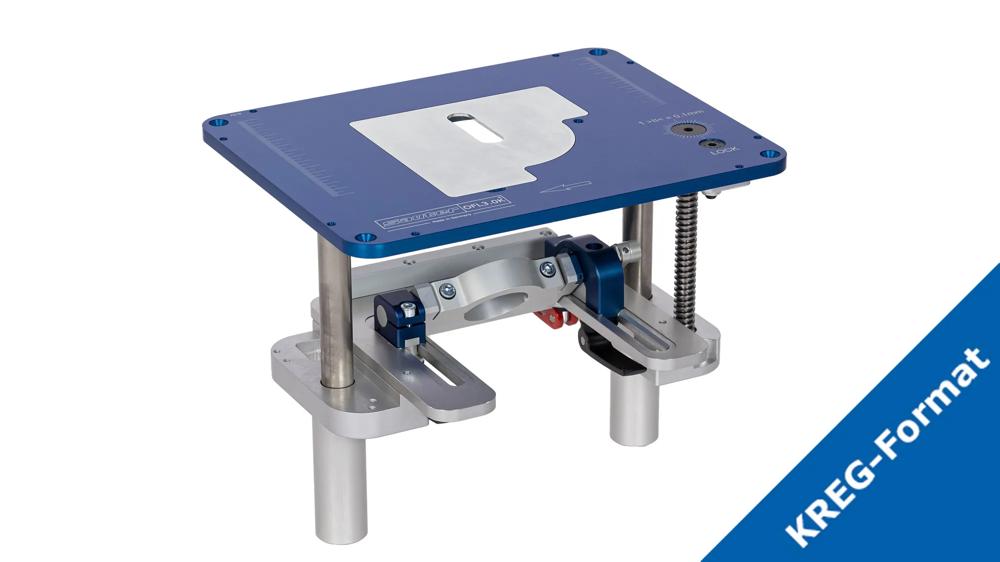

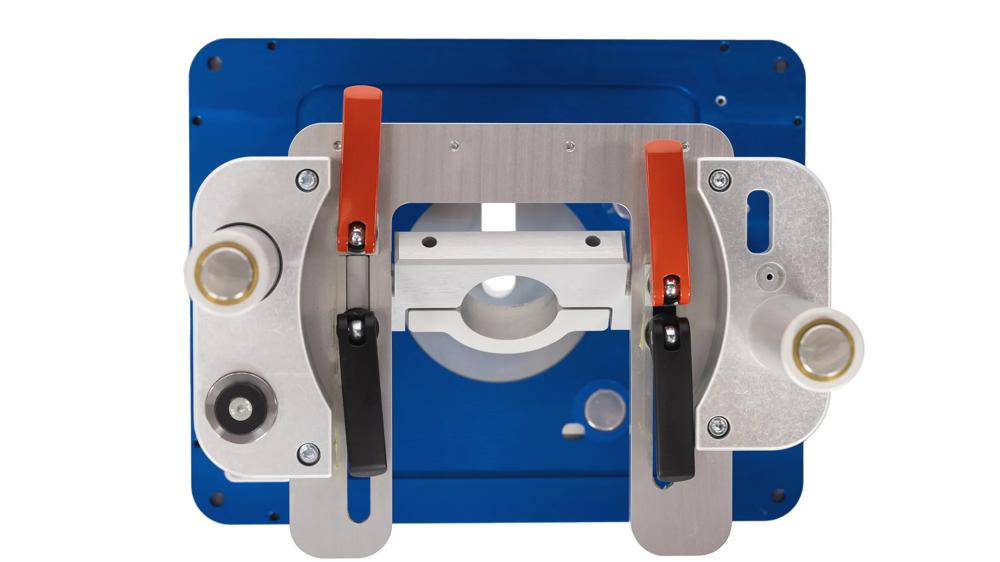

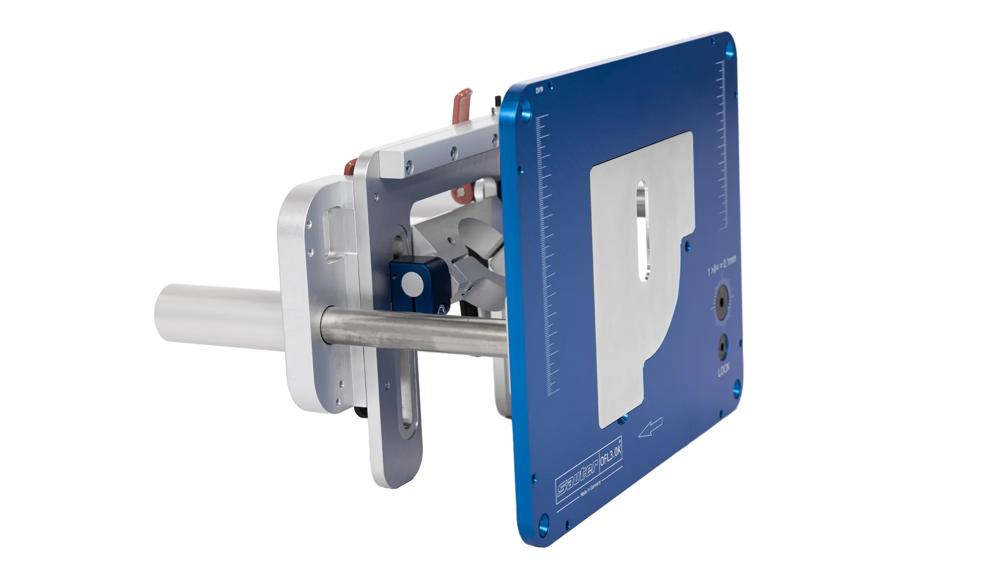

Pivoting Router Lift OFL3.0K in KREG format - pivot-5-° to 50-° | for router motors with neck holder Ø 43 mm | exact height fine adjustment & magnetic reduction plates
Corner inserts for fixing and leveling | four insert plate compensation pieces for Kreg insert plates PRS4034 / PRS 4038
Shipping within 24 hours (working days)
29,74 €
incl. VAT
Art.-Nr: KR-PRS3040
7 Products
Technical Data
Dimension insert plate: 298 x 235 x 9 mm
Corner radius Insert plate: 19.05 mm (3/4")
Height adjustment travel/rotation: 4 mm
Max. Adjustment travel: 101 mm
Height milling lift (max. extended): 240mm
Max. Cutter diameter: 55 mm
Weight: approx. 5 kg
Properties & Advantages
Quality from Germany High quality, solid construction. Construction of high quality aluminium and steel.
Fine height adjustment to 1/10mm Height fine adjustment extremely precise adjustable, with exact scaling and effective spindle lock, conveniently operated via hexagon socket screw.
Smooth-running spindle columns Enable a stepless and exact fine height adjustment.
Compatible to common Routing The OFL3.0K is compatible with a wide range of commercially available milling motors with 43 mm Euro-neck. All models can be found below.

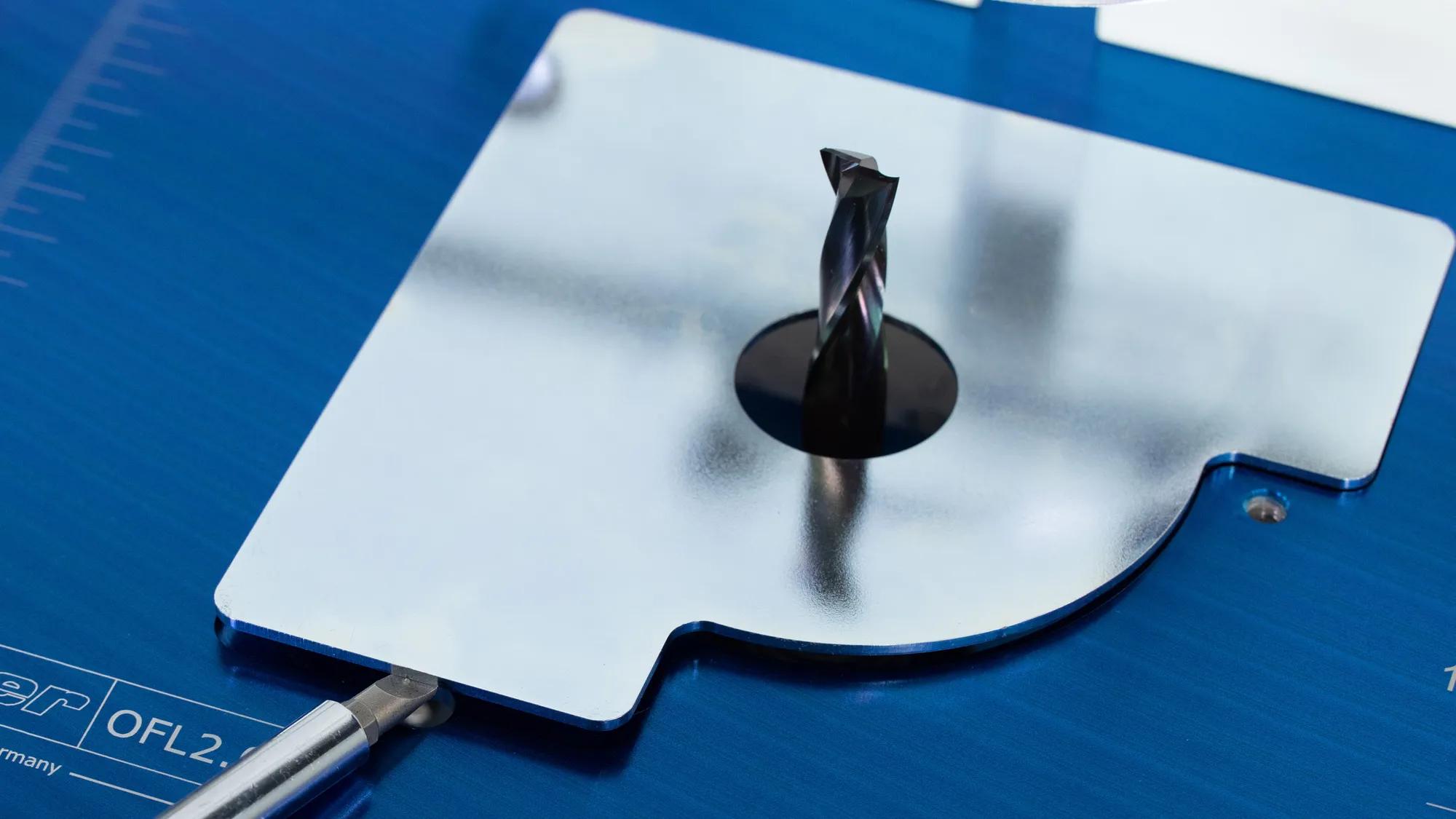

Safe Routing for any diameter The magnetic reduction plates offer more choice and control in choosing the right hole size. Perfectly adapted to the size of the milling cutter - especially for small workpieces, a "snagging and getting stuck" on the edge of the hole eliminated!

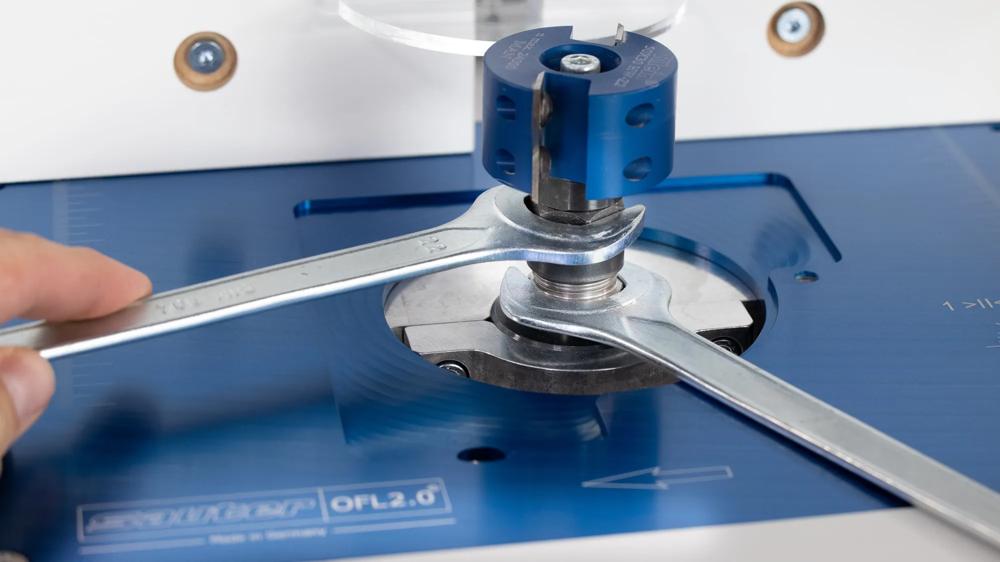

Assembly made easy Simple mounting of the milling cutter to the mounting adapter.
Routing also without rip fence 2 drill holes for the fence pin allow you to free e.g. round workpieces without rip fence (see optional accessories separately - not in Delivery Includes).
Absolutely flat Simple levelling of the OFL3.0K by means of levelling screws in the insertion plate. Optionally a frame for a permanent level adjustment can be purchased.
No own drillings necessary Mounting holes (countersunk head) for quick Router Tableinstallation are already pre-drilled.

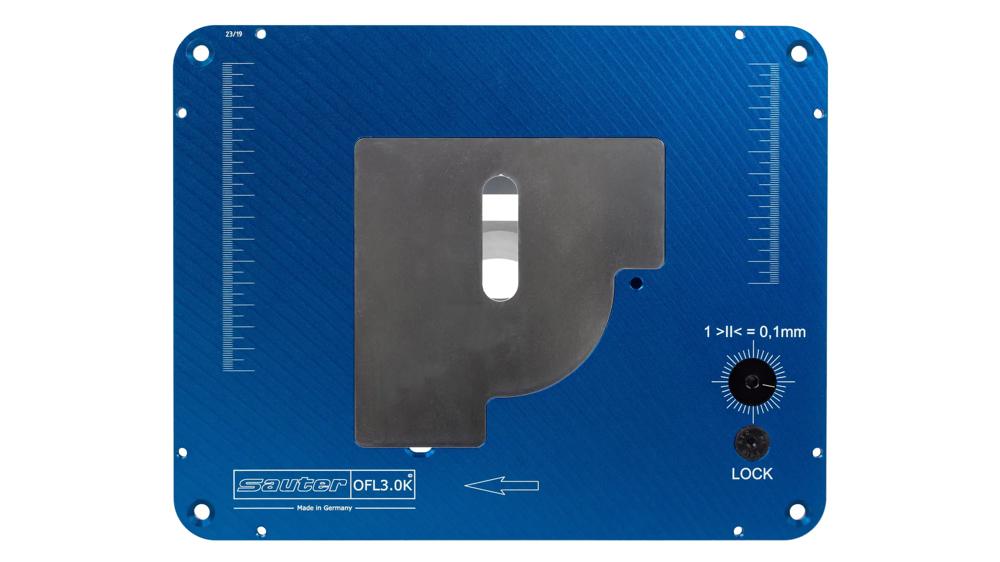

Lasered scaling Millimeter scaling on the surface for exact alignment of the rip fence.
Additional recessed grip for easy changing of the reduction plates.
Magnetism for mounting additional accessories is distributed over the entire reduction plate.
