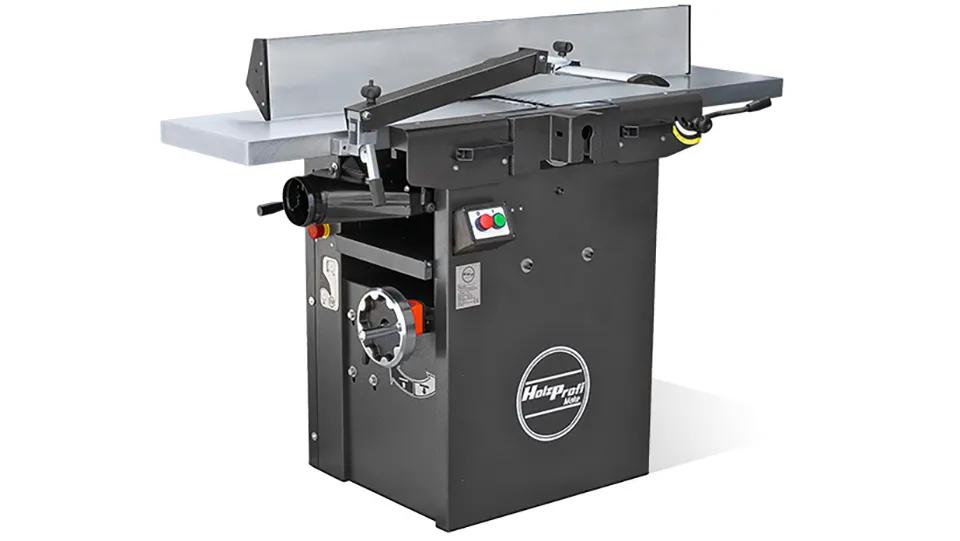

Planer Holzprofi Maker ADM410 spiral shaft 400V

400V | spiral shaft | 400mm planing width | NOT FOR SALE OUTSIDE EUROPE

Delivery time 2-3 days

4.452,59 €

incl. VAT / excl. shipping costs

FreightArticle is oversized / overweight and will be dispatched by a freight carrier.

Brand:Holzprofi
Article no.:HP-M1-ADM410SPIRAL
Weight:334kg

Planer Holzprofi Maker ADM410 spiral shaft 400V

The new planer from Holzprofi Maker is characterised by its solid construction and high level of user-friendliness.Spiral planer shaft, cast iron tables, mechanical digital display, swivelling aluminium fence, switchable feed, noise-reduced, very good bearings, motor protection, motor brake, zero-voltage release, CE-compliant.

Technical Data

Motor power output S6: 3.8 kW (3 kW-S1)
Planing knives: 72, 4 rows
Knife dimensions: 15 x 15 x 2.5 mm
Shaft diameter: 95 mm
Planing width: 400 mm
Planer table length: 1660 mm
Passage height: 230 mm
Feed speed: 6 m/min
Suction diameter: 100 mm
Thicknessing table: 410 x 600 mm
Voltage: 400 V
Max. chip removal (depending on board width and type of wood): 3-5 mm
Weight: approx. 334 kg

Properties & Advantages

Spiral planing shaft: The four-row spiral planing shaft with angled blades enables a pulling cut, which ensures excellent surface quality.
Cast iron tables: The robust cast iron tables offer stability and precision during planing.
Mechanical digital display: Enables exact settings for precise work results.

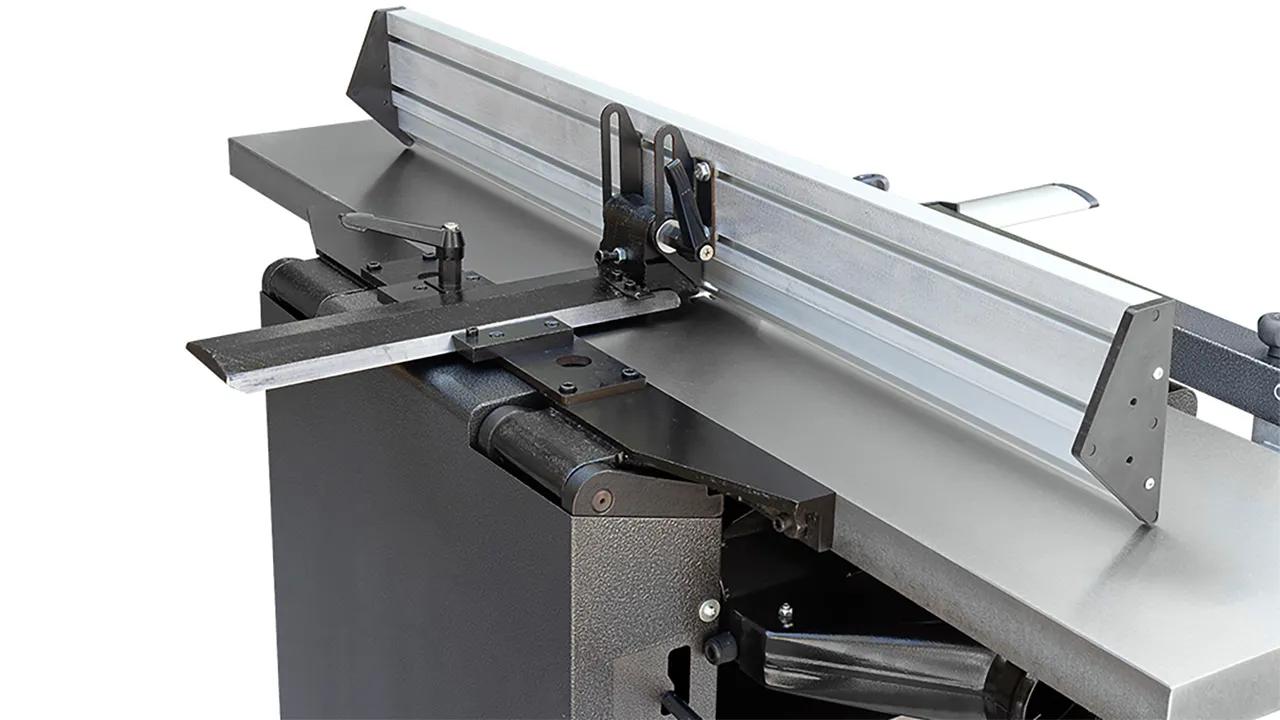

Swivelling aluminium fence: Offers flexibility at different working angles and supports precise dressing.
Switchable feed: Allows the feed speed to be adapted to different types of wood and requirements.
Noise reduction: The machine is designed for quiet operation, which increases working comfort.
Safety features: Equipped with motor protection, motor brake and zero voltage release for safe working.

These features make the ADM410 an excellent choice for precise and efficient planing work in professional woodworking.
