RUWI miniature chamfer cutter 45°

RUWI miniature chamfer cutter 45°

Name: sauter GmbH
Address: Arzbergerstraße 4, Herrsching a.Ammersee, Germany, Bayern, 82211, Deutschland
Telephone: +49 8152 92898-88

E: 45° | D: 10 mm | NL: 5 mm | S: 6 mm | SL: 19 mm

Delivery time 2-3 days

156,65 €

incl. VAT / excl. shipping costs

Brand:RUWI
Article no.:RU-30190
Weight:0.1kg

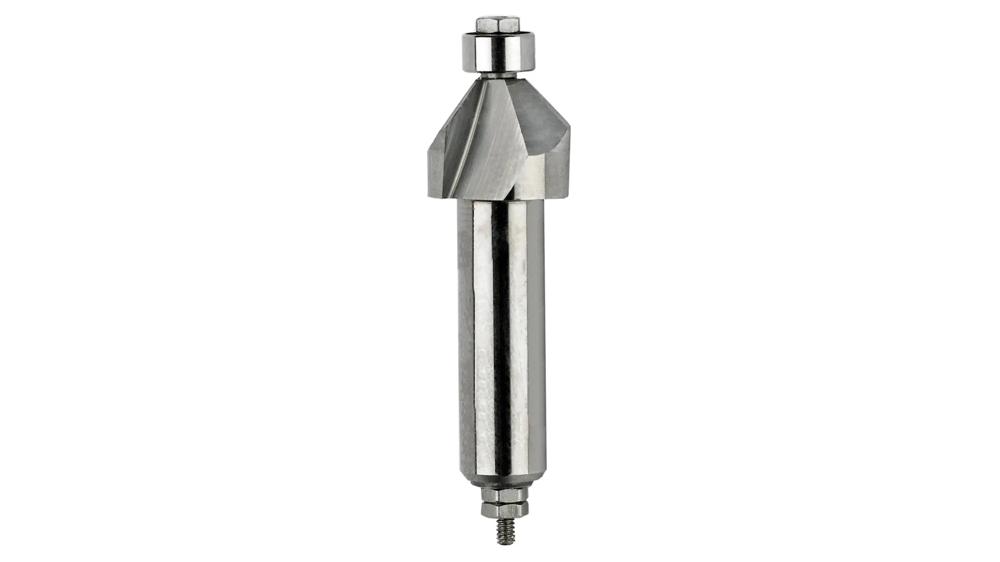

RUWI miniature 45° chamfer cutter

The 45° chamfer cutter with thrust bearing is used for deburring and chamfering solid wood, coated boards and wood-based materials. The particularly small thrust ring makes it possible to machine the smallest inside radii or to chamfer an inside corner almost seamlessly.

Technical Data

Chamfer: 45°
Shank diameter: Ø 6 mm
Shank length: 19 mm
Useful length / working length: 5 mm
Total length: 34 mm
Tool / outer diameter: 10 mm
Ball bearing diameter: Ø 5 mm
Thrust bearing: Ø 5 mm
Material of the cutting edges: Solid carbide
Number of cutting edges: Z2 - six cutting edges
Rotation: Clockwise
Area of application: Free-cutting steel, cast iron, chilled cast iron, hardened steels, softwood, hardwood, coated boards
Machines: RUWI milling tables, manual router, table router, CNC milling machine
Also required: 6 mm collet chuck (item no. 30400 or Performance 30425)
Weight: 11 g
