RUWI clamping system for Ø20mm multifunctional tables
RUWI Vertical Clamps for Ø 20 mm MFT Tables

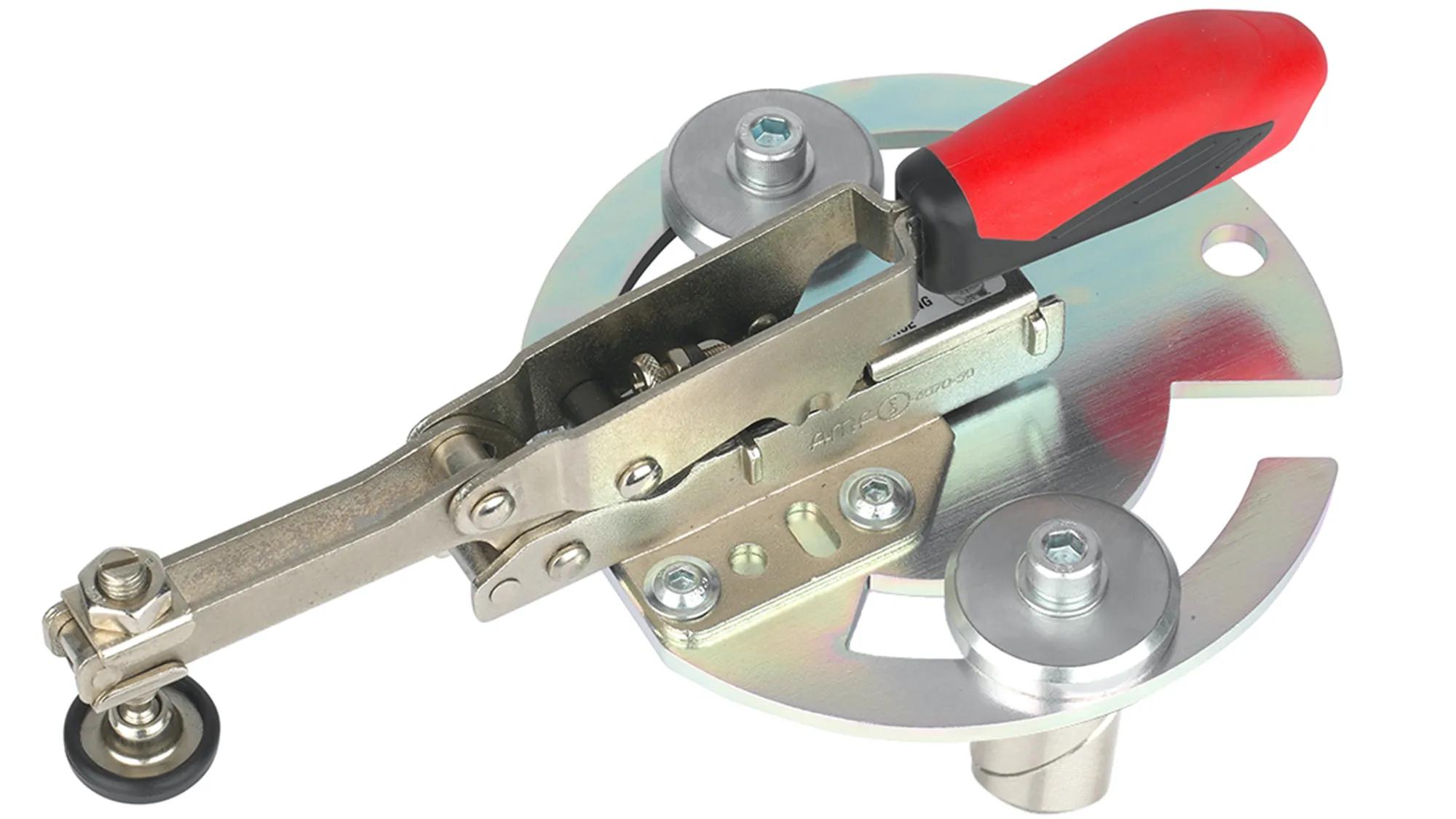

set-waagrechtspanner-lochrasterplatte-20mm-ruwi-ru-21154-01

RUWI Vertical Clamps for Ø 20 mm MFT Tables

Length: 244 mm | for multifunction and perforated grid tables

Shipping within 24 hours (working days)

140,67 €

incl. VAT / excl. shipping costs

Brand:RUWI
Article no.:RU-21154
Weight:2kg

RUWI Vertical Clamps with Ø 20 mm Clamping Bolt

Quick clamping system for vertical clamping of workpieces

The vertical clamp is easily clamped with the two clamping bolts in the 20 mm holes of multifunctional and perforated grid tables with a wood thickness of min. 16 mm (metal 4 mm). The quick-release clamp can now be positioned extremely flexibly through the holes of the round adapter plate. The pressure screw with articulated plate can be adjusted via the thread.

Technical Data

Length: 244 mm
Max. Height compensation: 40 mm
Diameter of round adapter plate: 140 mm
Automatic stroke compensation: 35 mm
Clamping system: hole grid Ø 20 mm

Properties & Advantages

Vertical clamp in a set with a round adapter plate and two clamping bolts with infinitely variable compensation function 35 mm for workpieces with different material thicknesses.
Maximum height compensation 40 mm
Clamping bolt stainless steel Ø 20 mm with Allen screw for fixing in the hole grid
Round adapter plate with slotted hole, thus extremely flexible positioning possible.
