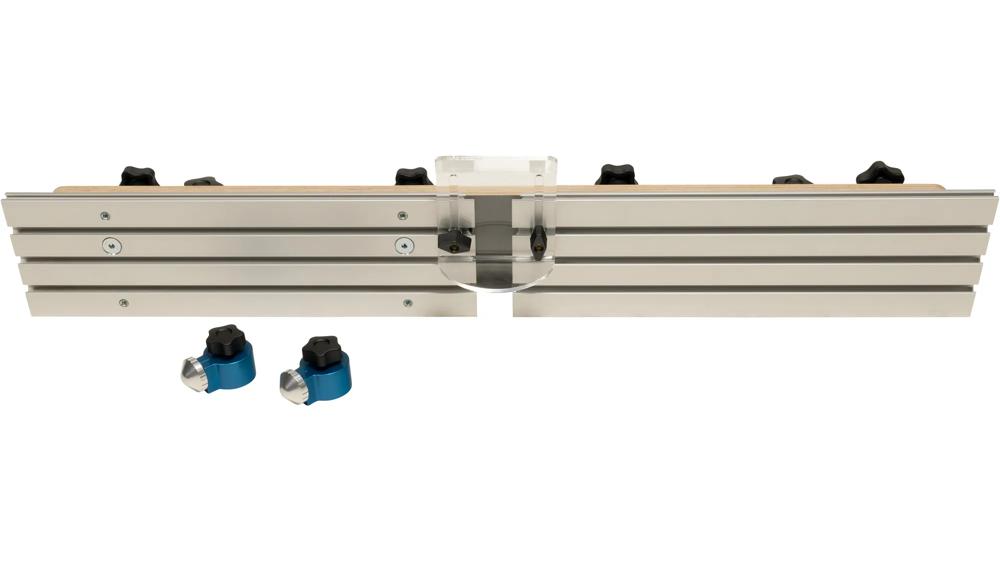

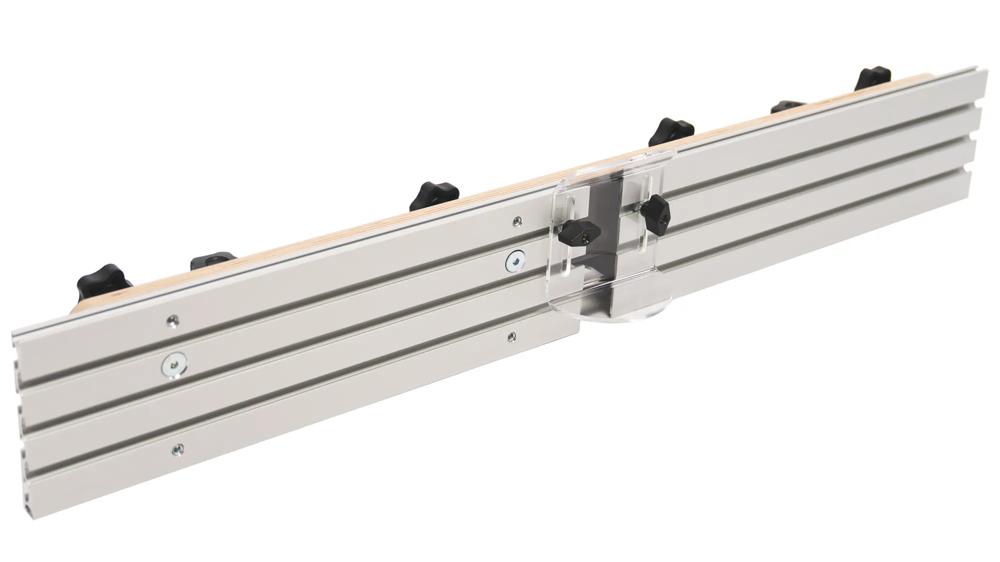

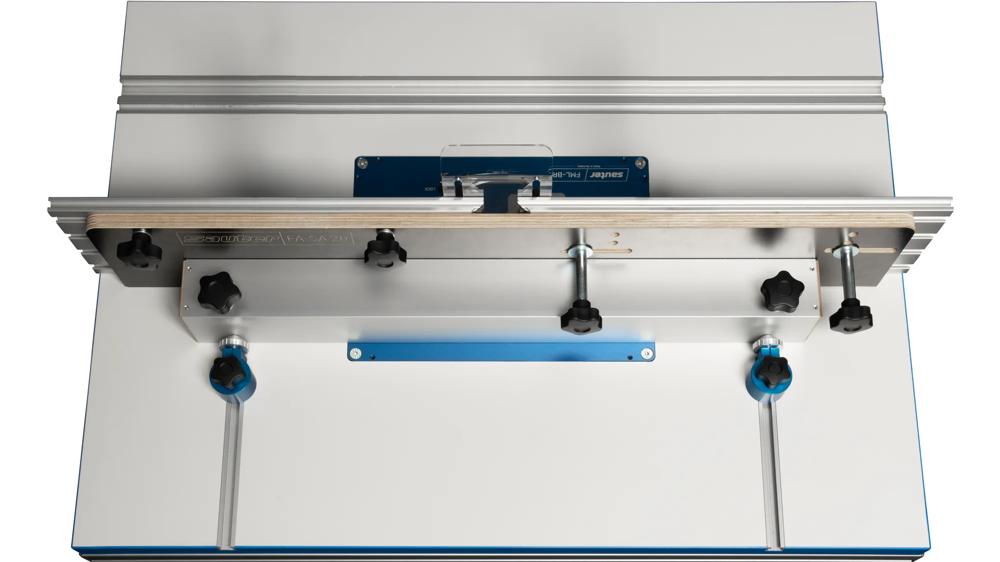

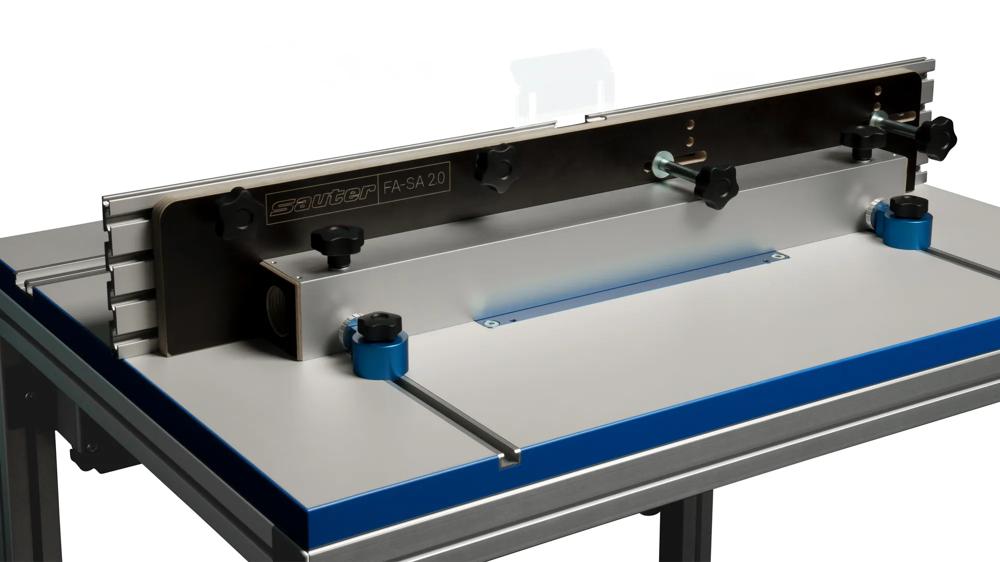

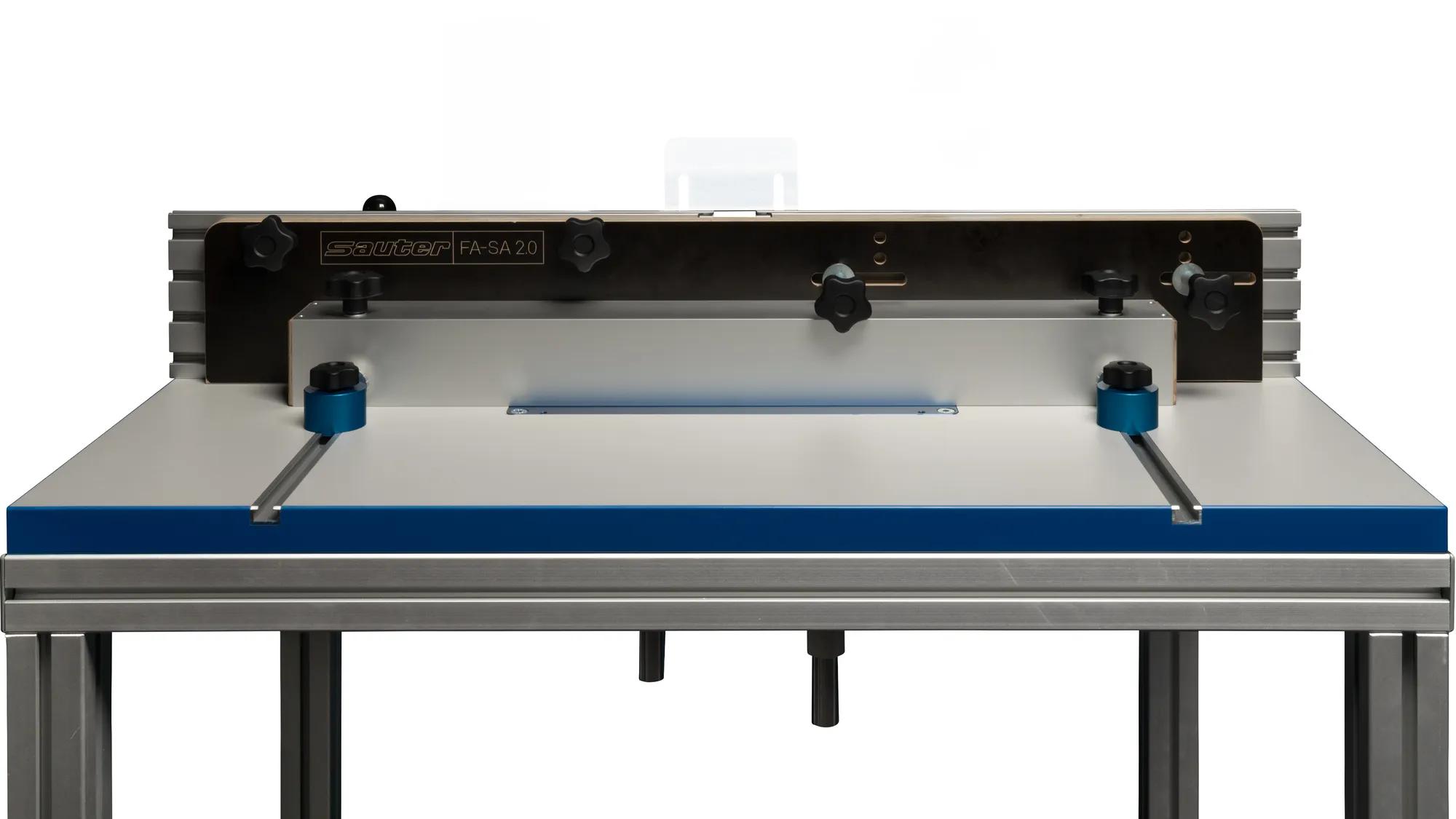

sauter Router Fence FA-SA 2.0 incl. fine adjustment

Precise and customised | clean routing fence incl. 1 pair of fine adjustments | suitable for the FTP & HPL router table tops

Shipping within 24 hours (working days)

332,50 €

incl. VAT / excl. shipping costs

Brand:sauter
Article no.:SET-FA-SA20-FEIN
Weight:10.4kg

sauter routing fence FA-SA 2.0 incl. fine adjustment

Compatible with all sauter FTP and HPL router table tops for router tables

The parallel fence with infinitely variable jointing function: Adjustable pick-up jaw for jointing work

Aluminium stop jaws with M8 grooves at the front and M6 groove at the top offer a wide range of options for clamping accessories.Made from a 3 mm thick, anodised aluminium profile, the perpendicularity of the parallel fence is perfectly guaranteed.All milled and drilled holes are precise and accurate thanks to state-of-the-art CNC production.

Technical Data

Milling fence FA-SA 2.0:

Parallel fence dimensions:
Length (closed/open): 800 mm to 913 mm
Height: 120 mm
Depth: 93 mm
Base support: Aluminium square tube, 610 x 60 x 60 mm, wall thickness: 3 mm
3x M8 grooves on the front, 4x M8 grooves on the back of the stop jaws.
Right stop jaw reversible

Fine adjustment:

Materials: Aluminium; anodised (blue)
Minimum length: 65mm
Max. length: 75 mm
Length of travel: 10 mm
adjustable from | to | 0.05 mm

Properties & Advantages

FA-SA 2.0 routing fence:

Compatible with all sauter FTP and HPL router table tops for router tables.
Aluminium fence jaws: stable and torsion-resistant for precise results

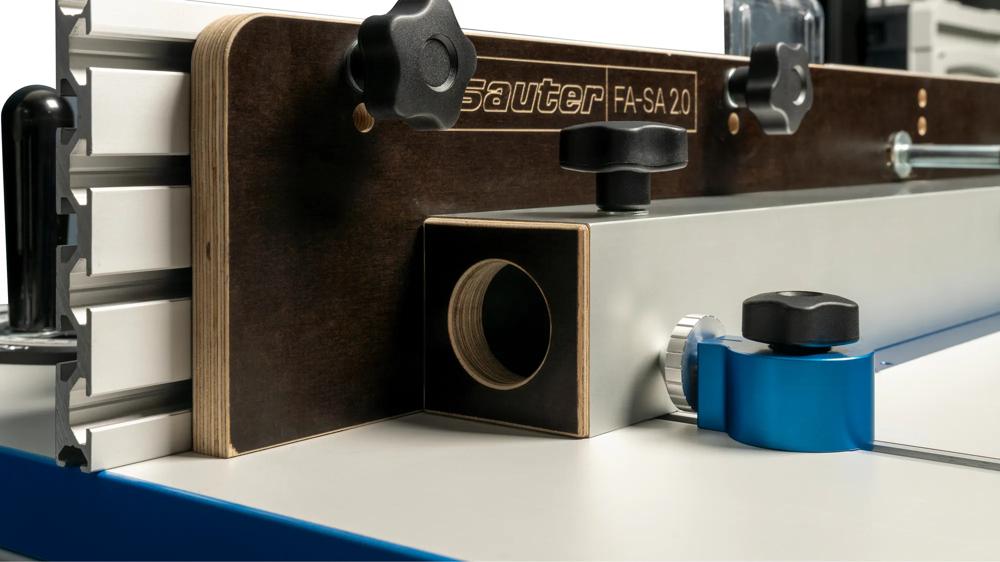

Integrated suction channel: in the square aluminium base support with Ø35 mm connection (other connection sizes optional)
Infinitely variable joining function: levelling of the removal jaw via four grub screws
Adjustable stop jaws: safe routing and optimised dust extraction for perfect adjustment to the router bit
M8 sliding nut guide: clean sliding in clean C-profile rails for smooth adjustment of the milling depth
Stop jaws with M8 slots (front): Individual attachment of pressure combs and stops
Stop jaws with M6 groove (top): Fastening option on the top side
Ideal for precise adjustment: two fine adjustments are included in the set!

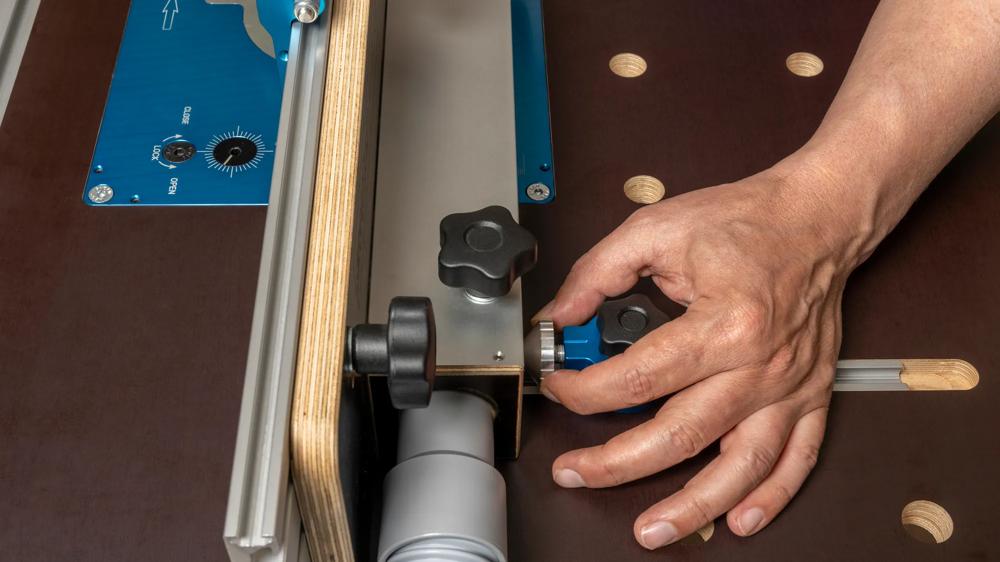

Fine adjustment:

Useful addition to sauter routing stops.
Unique solution for fine adjustment of the routing fence.
Easy to operate by simply turning the knurled screw.
Ultimately precise fine adjustment with the adjustment screw adjustable from | to | 0.05 mm
Compatible with sauter routing fence FA-SA 2.0
Compatible with all sauter FTP and HPL router table tops for router tables
Anodised to protect against corrosion and give them our unmistakable "sauter blue" design.
Made in Germany.
