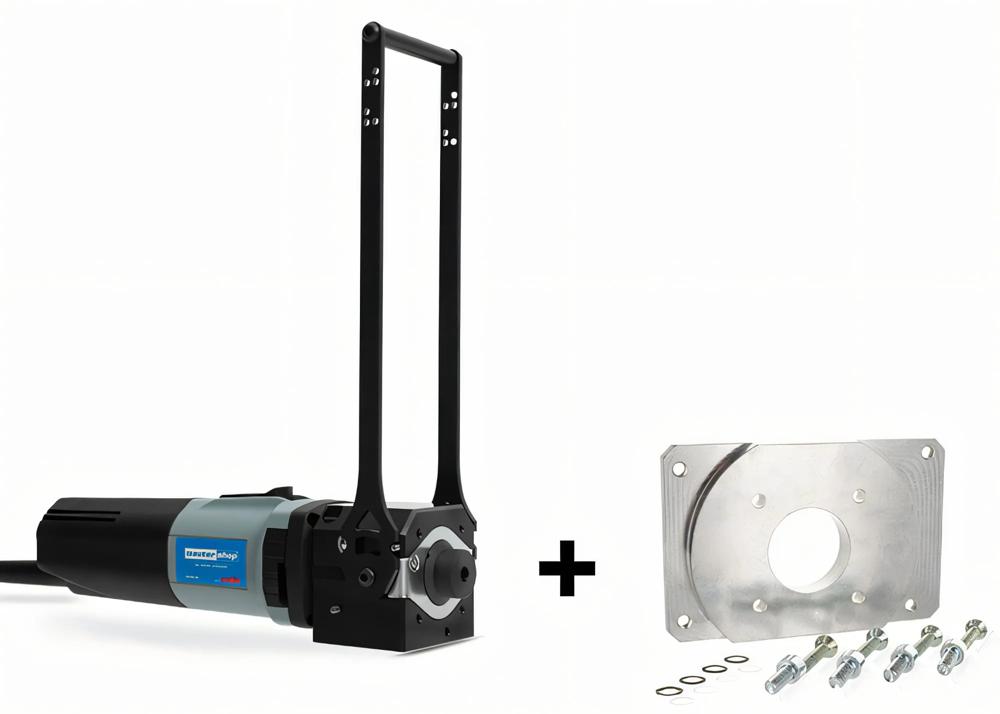

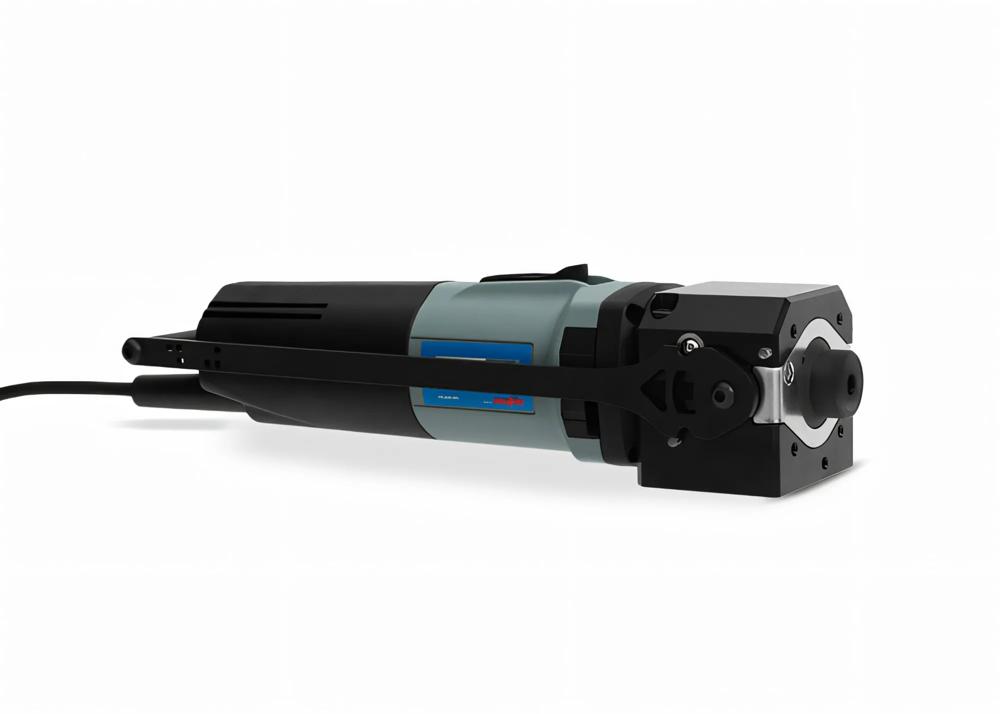

sauter router motor FM1000-OFL with innovative quick-clamping system incl. adapter OFL
Tool-free cutter change and can be ideally combined with sauter router lifts OFL.

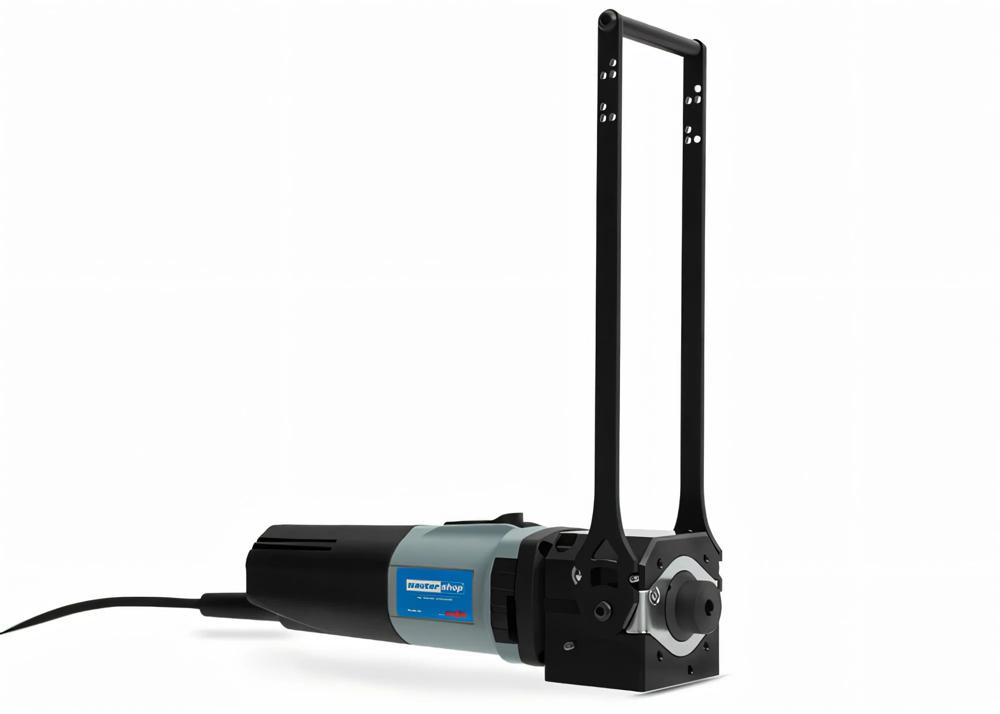

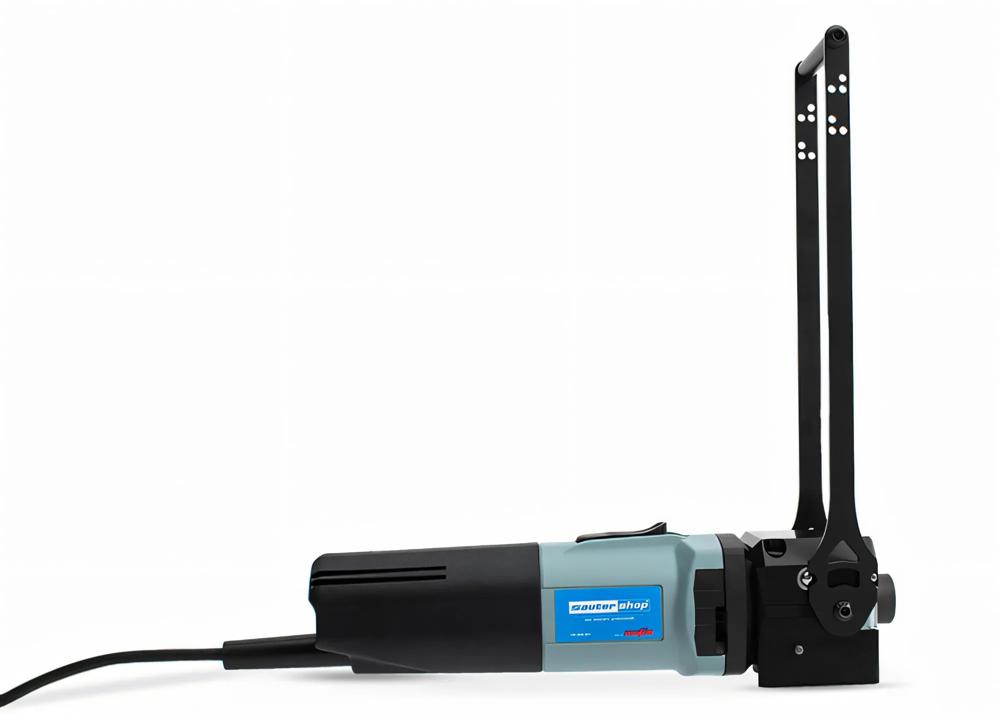

The FM1000-OFL is an efficient and extremely quiet router motor that revolutionises traditional router bit changing. With the innovative quick-release tool system, router bit changes are straightforward and completely tool-free: lever open - router bit in/out - lever closed
Shaft reducer for FM1000-OFL router motor & LO55 router | Easy to fit | Genuine accessories | Securely clamped
Shipping within 24 hours (working days)
26,18 €
incl. VAT
Art.-Nr: MAF-207947
6 Products
Technical Data
Power: 1,000 W
Speed: 4,000 - 25,000 rpm
Overload indicator with LED status indicator.
Connection cable: 4 m
Universal motor: 230 V / 50 Hz
Shaft mount Ø: 8 mm
Box dimension motor: 80 x 80 mm
Motor length without bracket: 280 mm
Motor length bracket closed: 330 mm
Bracket length: 300 mm
Mounting plate: 125 mm x 82 mm x 9 mm

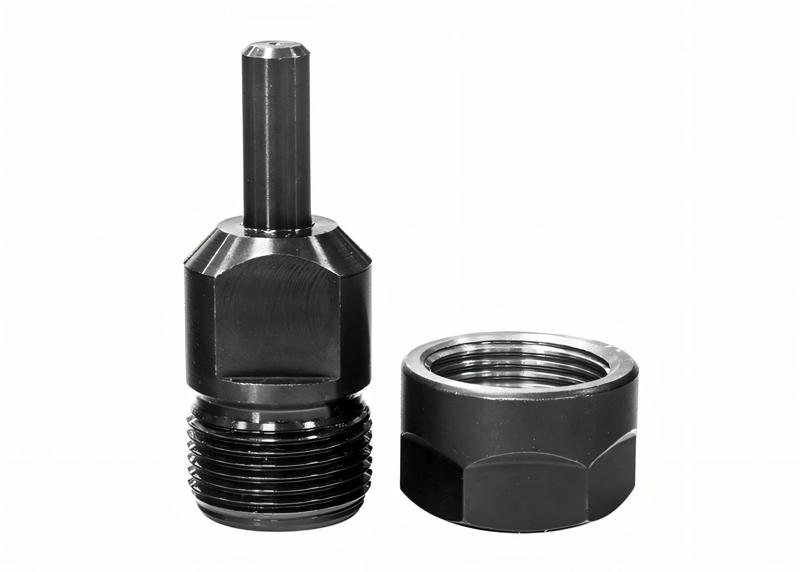

The inclusion of further shaft sizes is possible with reducing sleeves or collet adapters for OZ or for ER collets (see accessories)
Sound pressure level: 71 db (A)
Fixing to sauter router lifts OFL (drill holes): 4x M6
Gantry mounting (holes): 6x M6
Weight: 2.8 kg
Properties & Advantages
Tool-free cutter change thanks to innovative quick-clamping system.

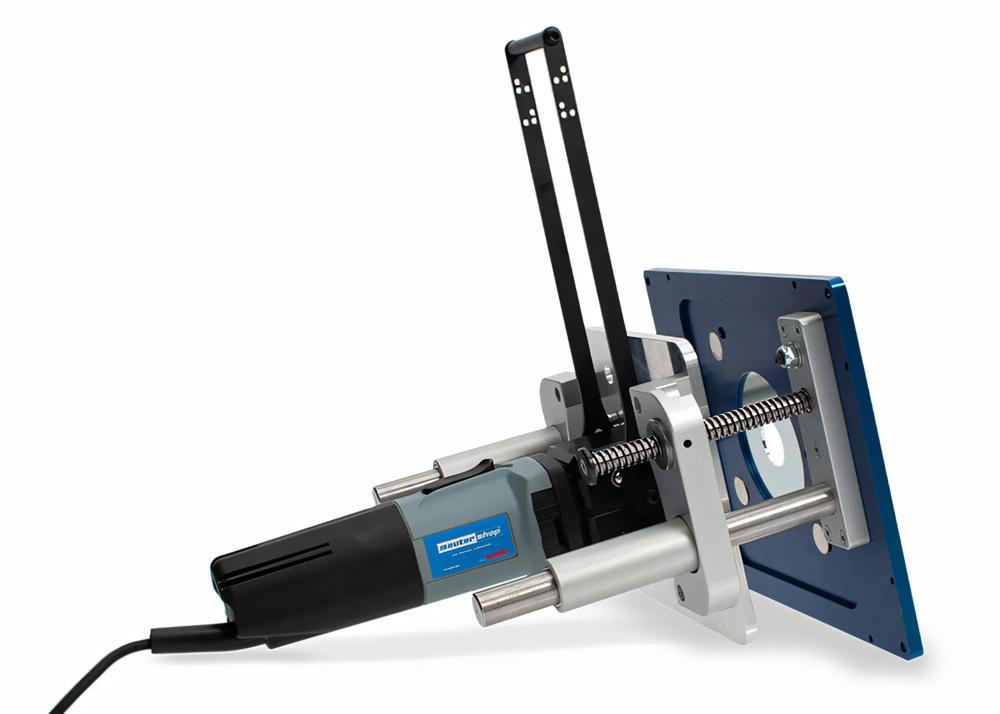

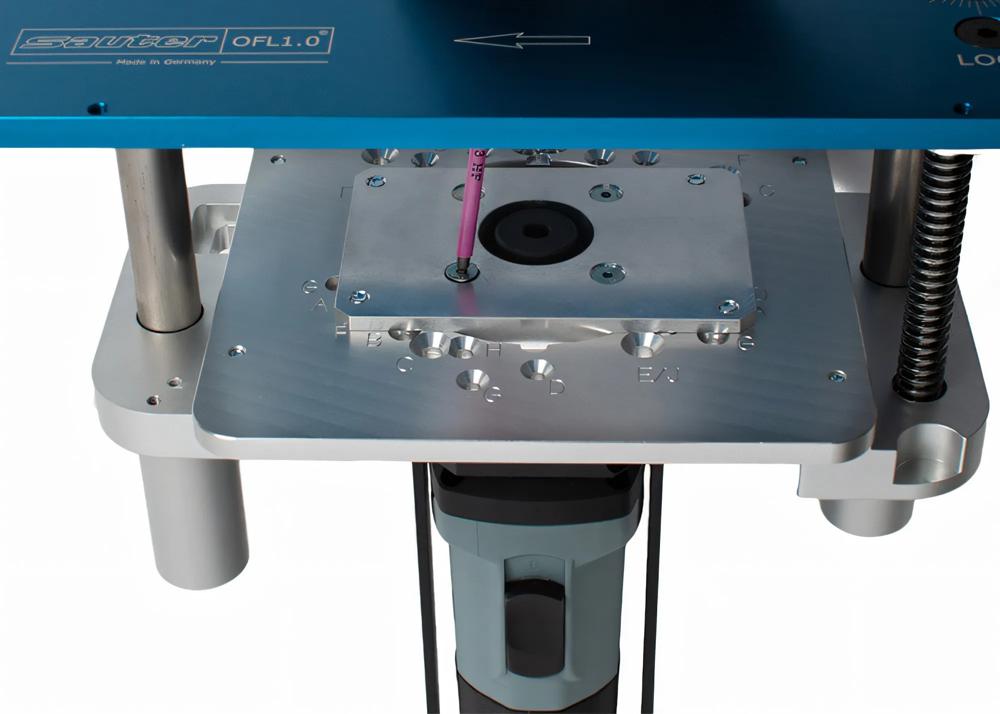

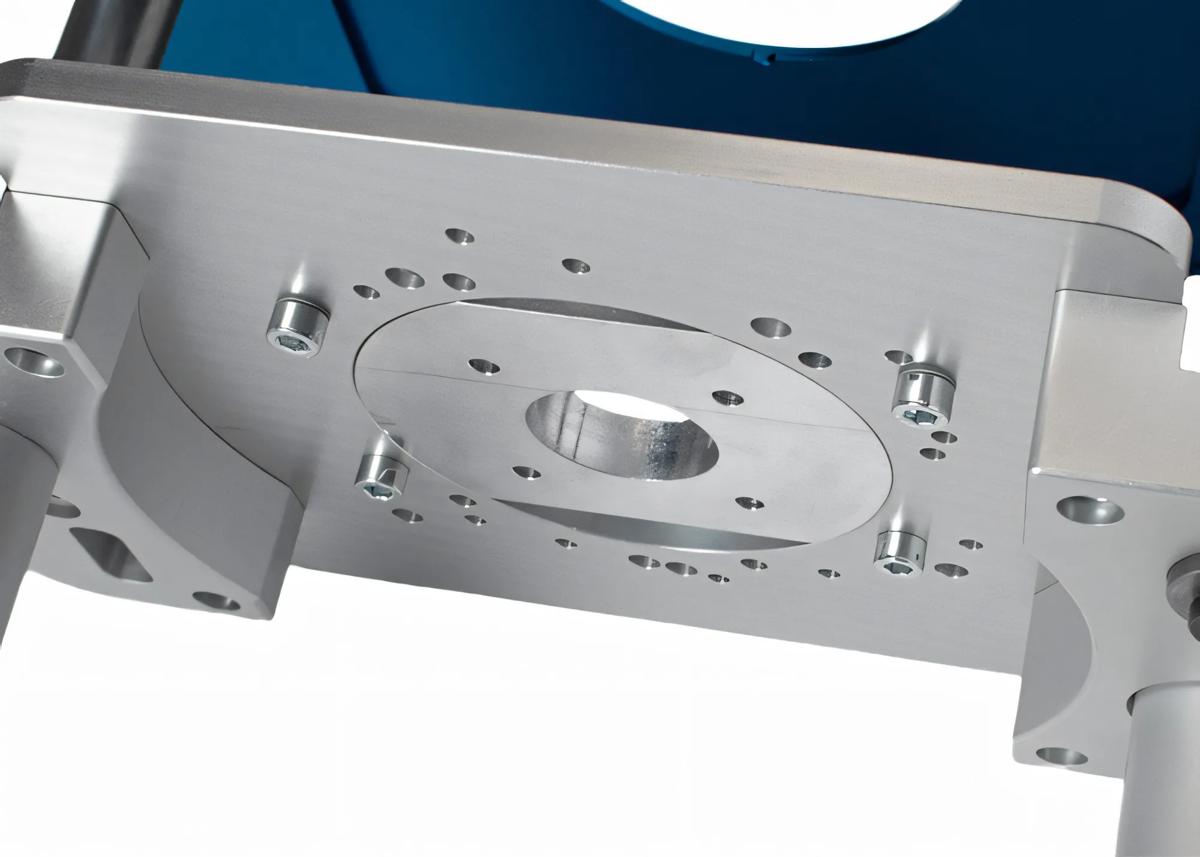

Thanks to the included receiver adapter, the router motor fits the sauter router lifts OFL1.0, OFL2.0, and OFL2.0-AD43.

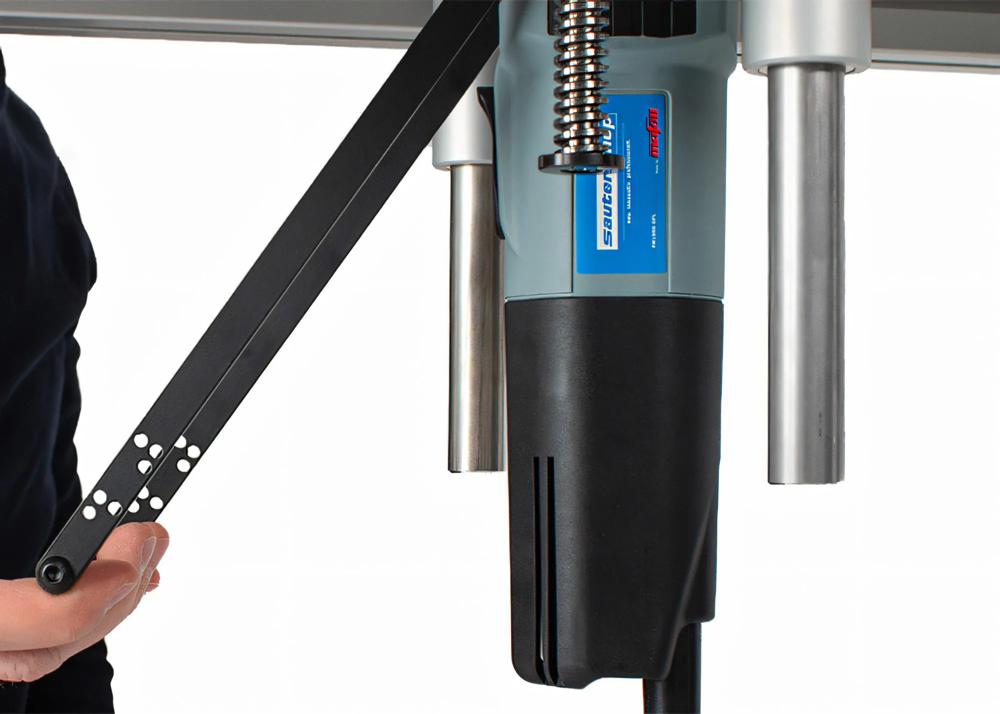

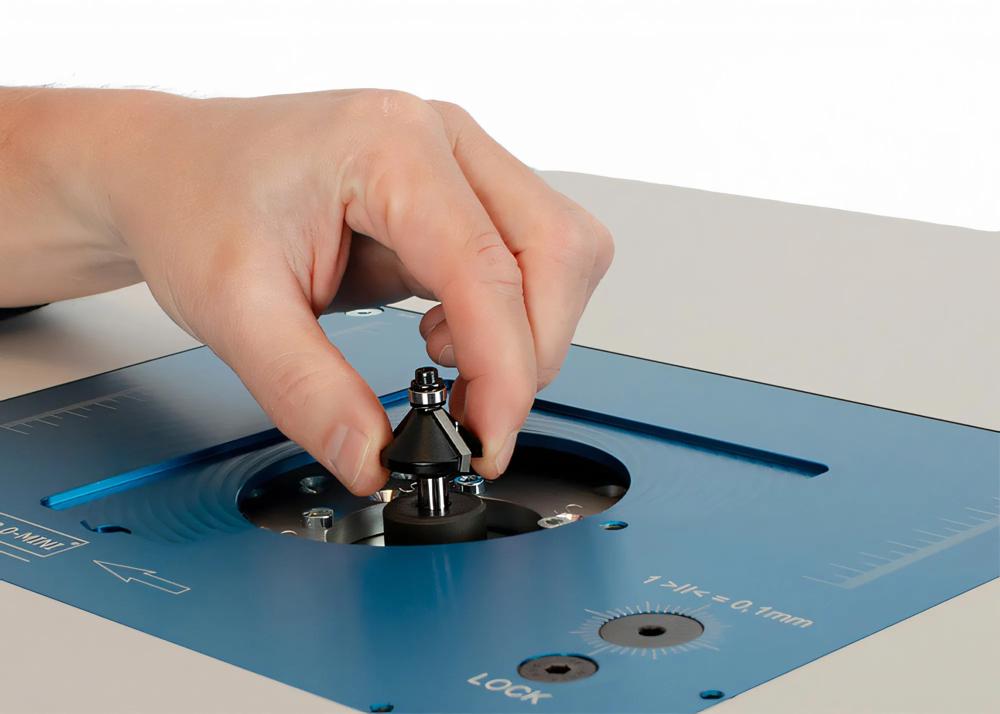

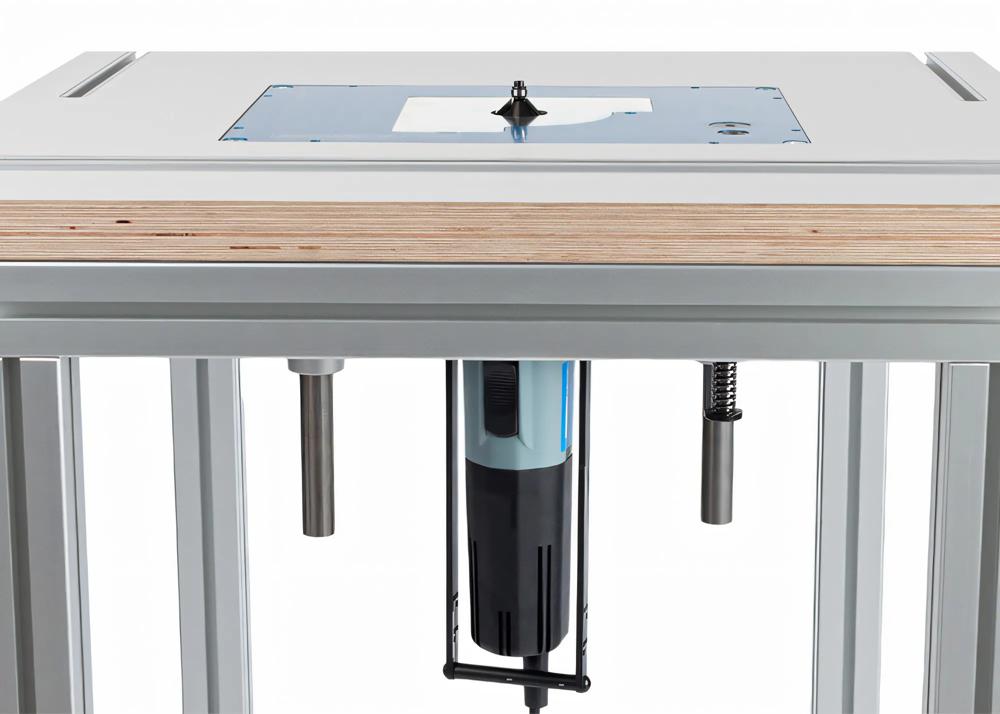

Ideal solution for the router table: the long lever allows router bits to be changed from above in seconds.
The router motor is extremely quiet with a sound pressure level of only 71 db(A).
Highest concentricity thanks to perfect matching of all components such as the double-bearing spindle and the innovative tool quick-clamping system.
Optimal use in CNC portal milling machines for e.g. model making, mould making, advertising technology, engraving, etc.
Quality Made in Germany.The router motor was optimised for use in sauter router tables in cooperation with the company Mafell.
Compatibilities:
Compatible with the Adapter: OFL1.0, OFL2.0, OFL2.0-AD43.
Directly compatible with the sauter router lift OFL2.0-MINI (models from purchase date March 2020). The fastening screws are included with the engine (4x M6).
