Set clamping element variable with 2K handle + adapter 20 mm

variable projection + adapter 20 mm hole system | Bolt - Ø 16 mm | clamping height max. 200 mm | with 2K handle

Delivery time 2-3 days
84,51 €
incl. VAT / excl. shipping costs
1
  • Brand:BESSEY
  • Article no.:SET-TWV16-20-15-2K-20
  • Weight:1.55kg

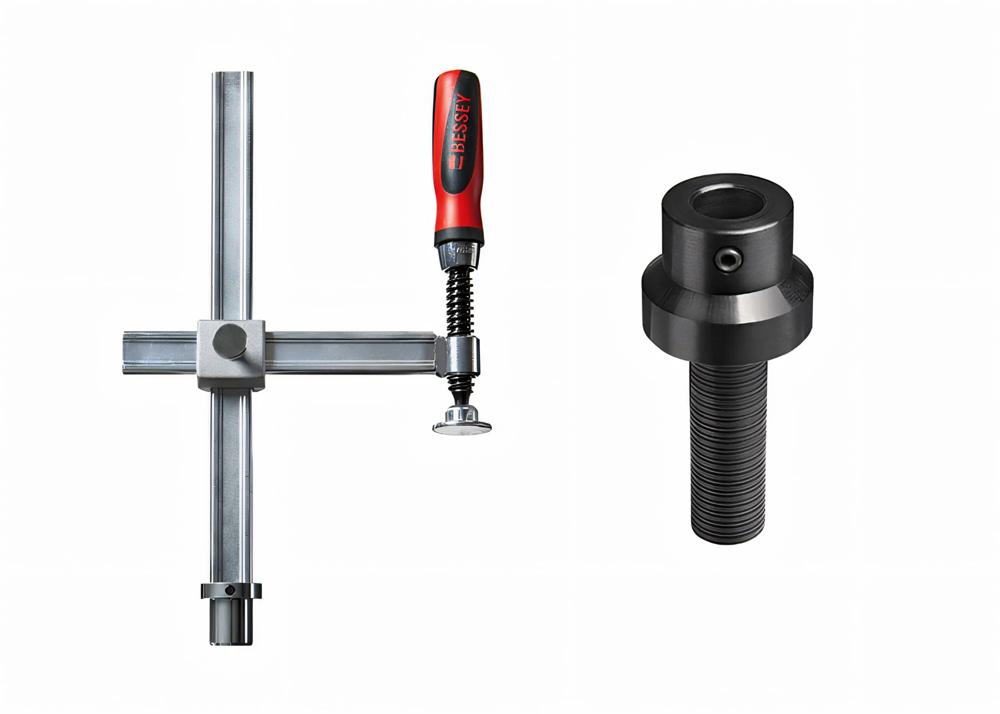

BESSEY SET Clamping element with variable throat depth + adapter 20 mm

BESSEY SET SPANNELEMENT MIT VARIABLER AUSLADUNG + ADAPTER 20 MM

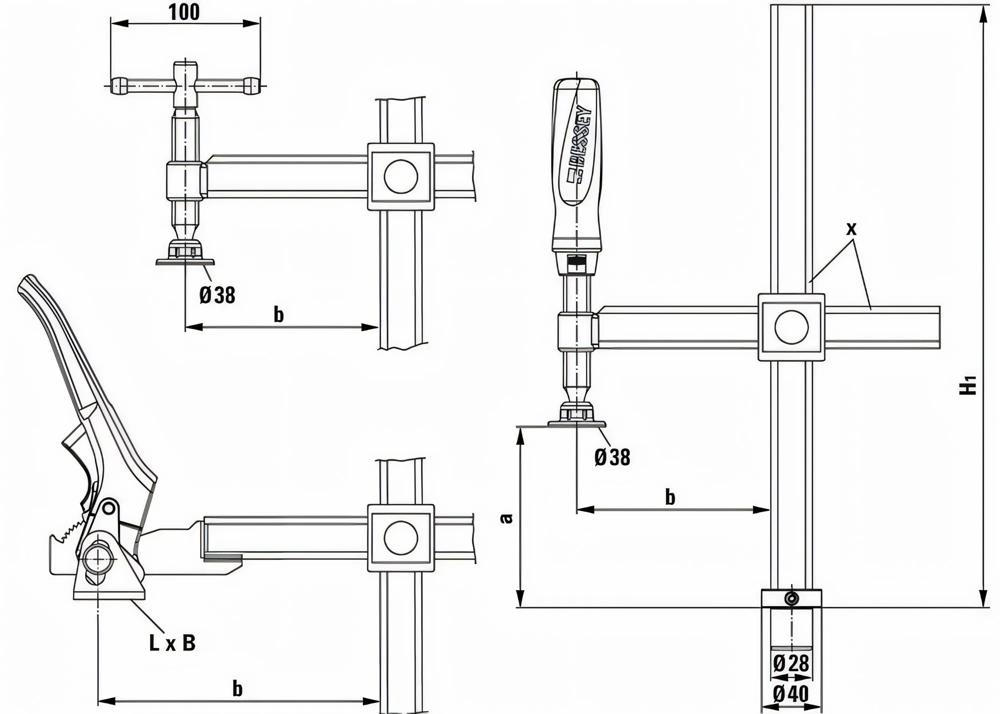

Technical Data

Clamping element:

  • Ø bolt (c): 16 mm
  • Bolt height (h): 20.5 mm
  • Max. clamping height (a): 200 mm
  • Projection (b): 100 mm
  • Basic height (H1): 265 mm
  • Pressure Plate size (LxW): 41 x 26 mm
  • Foot Ø (e): 30 mm
  • Foot height: 10 mm
  • Rail profile (x): 22 x 8.5 mm
  • Weight: 1,01 kg

Adapter:

  • Ø socket pin for clamping element: 16 mm and length of 60 mm
  • suitable for: Ø 20 mm hole system

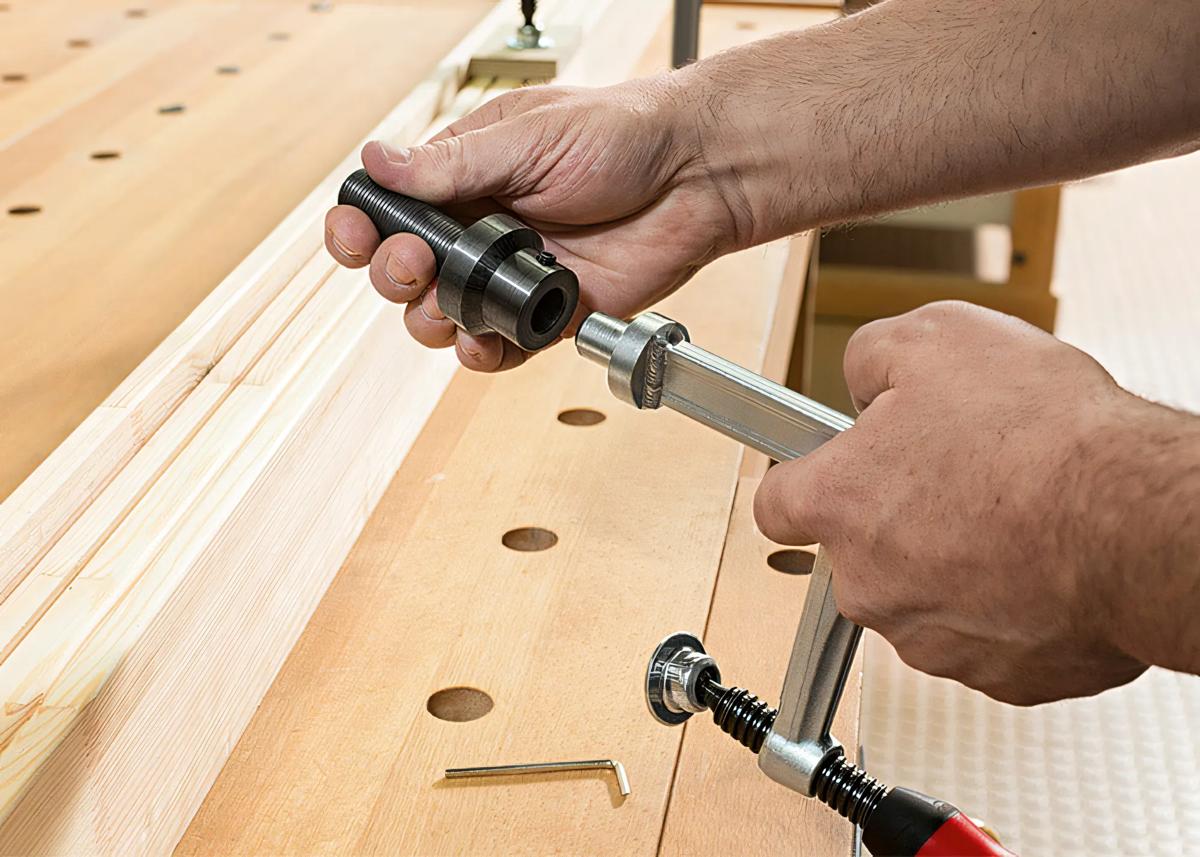

set-spannelement-variabel-2k-griff-adapter-20mm-bessey-set-twv16-20-15-2k-20-02

Properties & Advantages

Clamping element:

  • Precisely positioned, individual clamping
  • Quenched and tempered profile and sliding bracket for resilient and elastic clamping
  • Lever handle with detent mechanism for metered, fast and vibration-free clamping

Adapter:

  • Suitable for all standard workbenches with Ø 20 mm hole system
  • For clamping elements with a bolt Ø of 16 mm

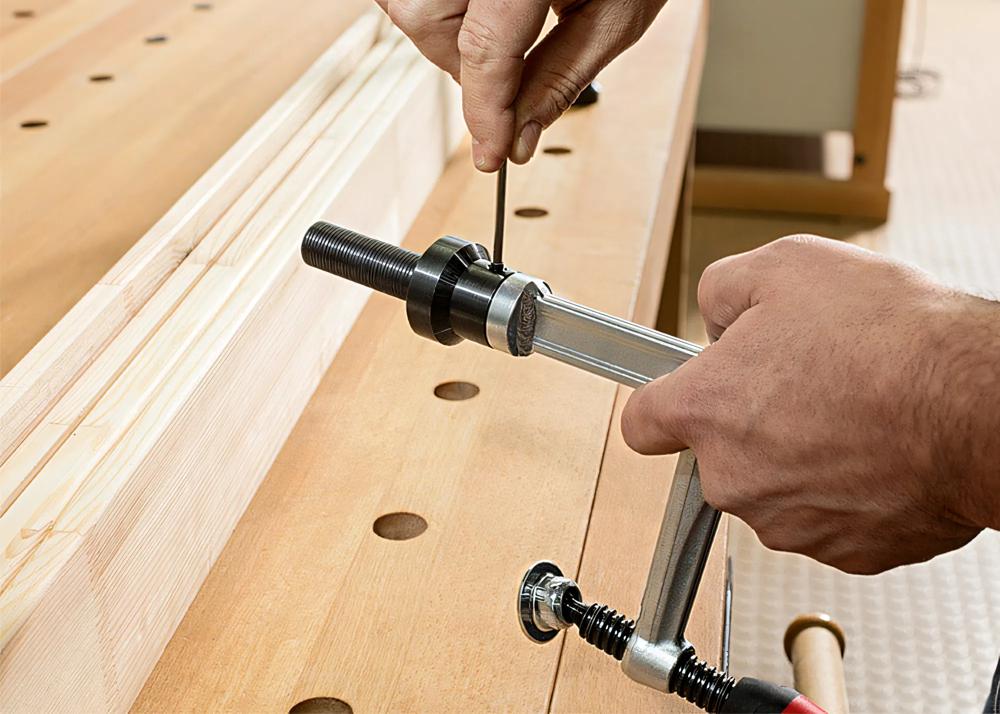

  • Can be used without tools
  • Socket pin exchangeable for use with other hole systems
  • Quenched and tempered profile and sliding
