Shaper Bench Pilot + Workstation + Shelf Upgrade Kit

Benefit from the SET advantage! | Bench Pilot | Workstation | Shelf Upgrade Kit Pre-orders are possible. Delivery will take place end of the year 2025.

Delivery time 2-3 days

2.556,12 €

2.347,87 €

incl. VAT / excl. shipping costs

Brand:SHAPER TOOLS
Article no.:SET-SO2-BUNDLE-12
Weight:40.8kg

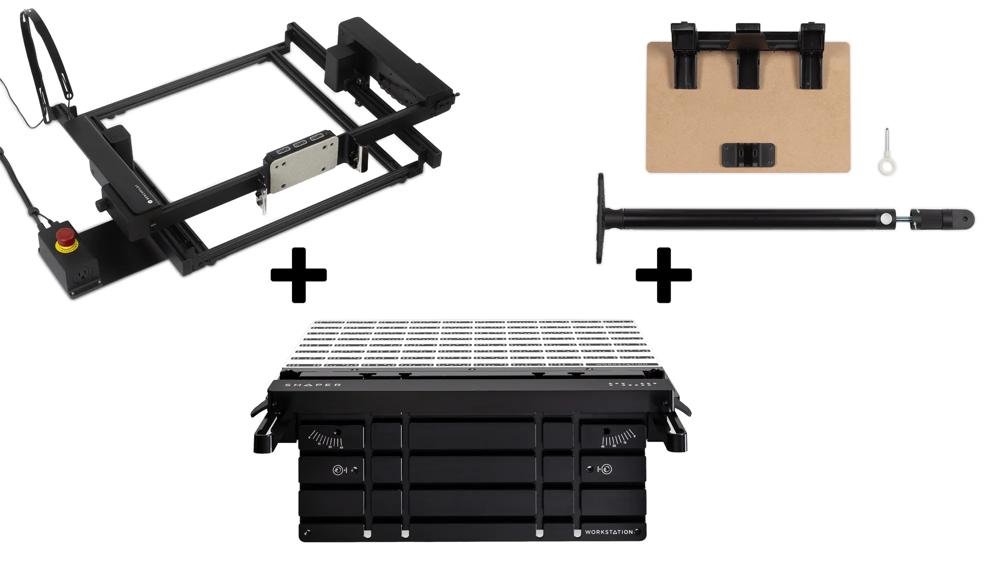

Shaper Bench Pilot + Workstation + Shelf Upgrade Kit

Hands free when your hands are full!

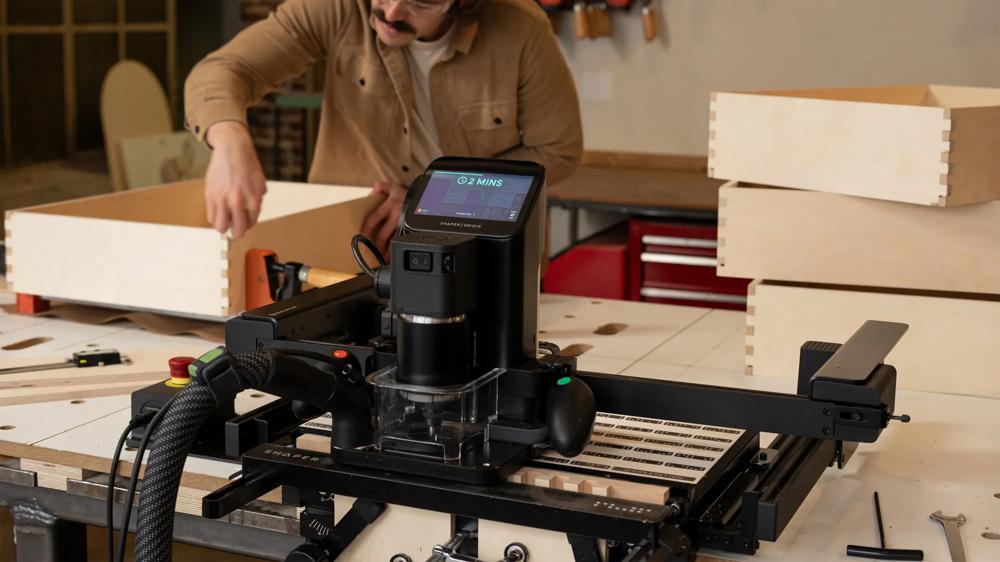

Tired of always having to guide Origin by hand? With BenchPilot you can mill Origin (Gen1 and Gen2) automatically and concentrate on other tasks. During the milling process, BenchPilot moves Origin from point A to point B, while Origin continues to perform the small precision milling movements itself - like an autopilot for Origin.

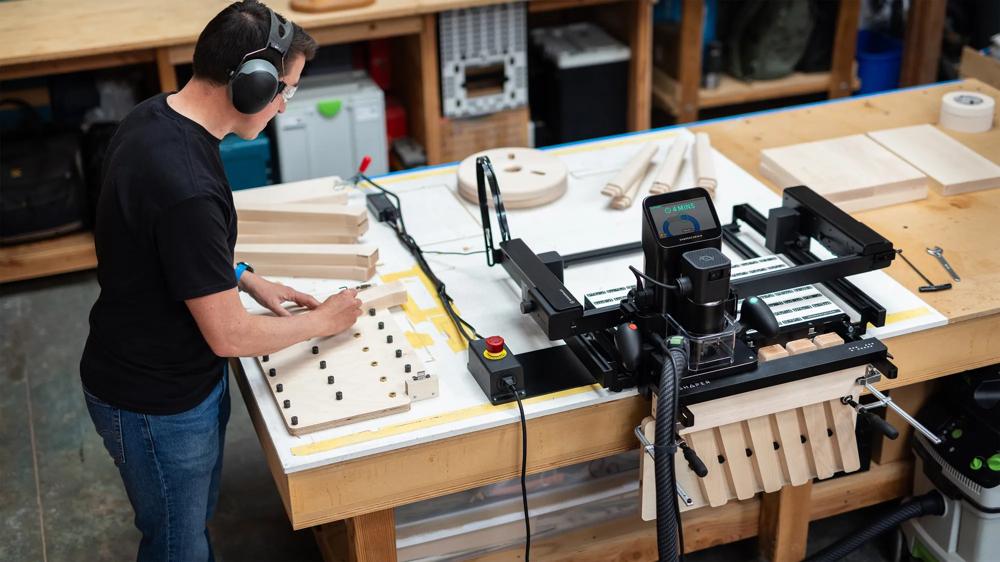

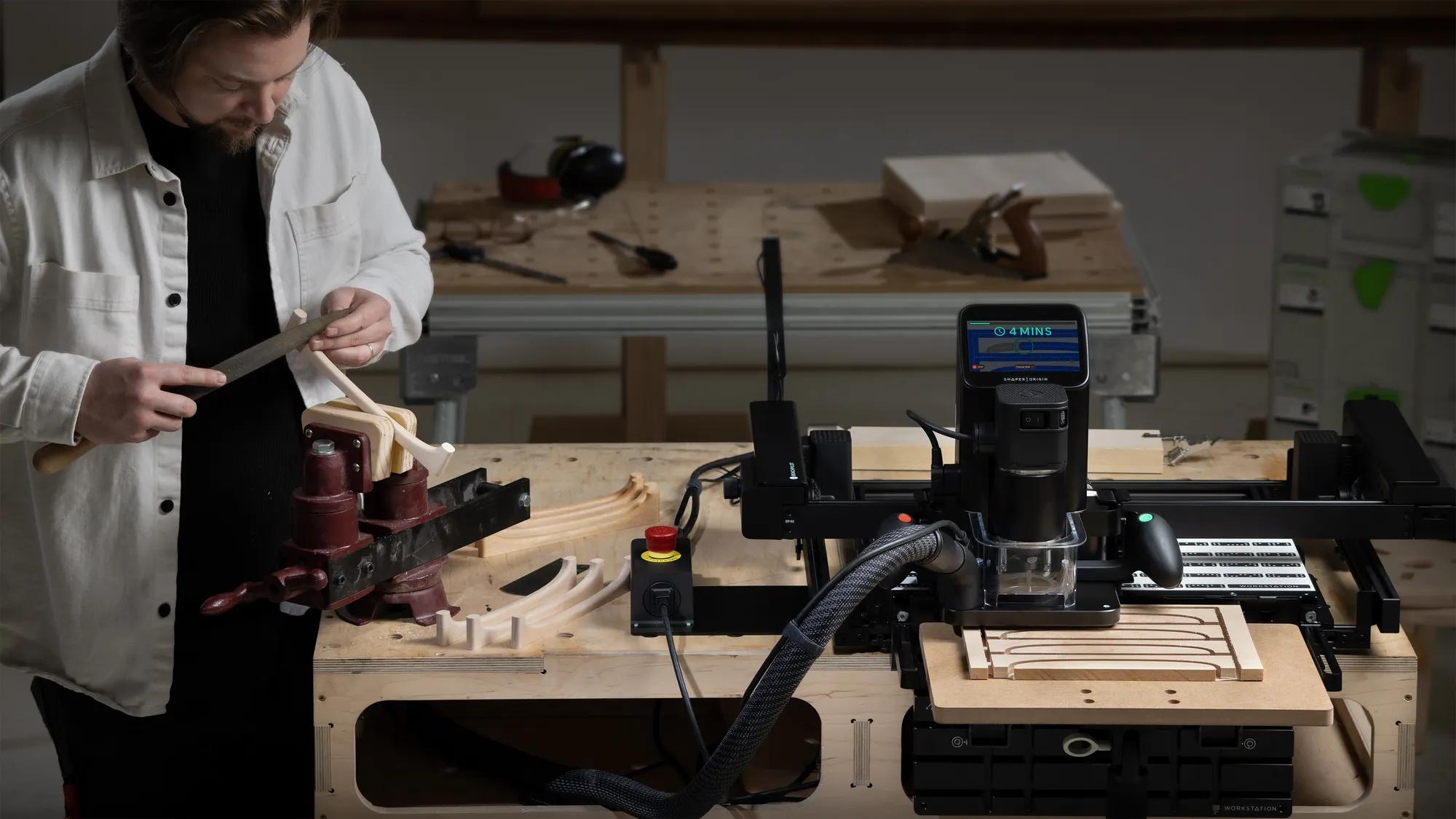

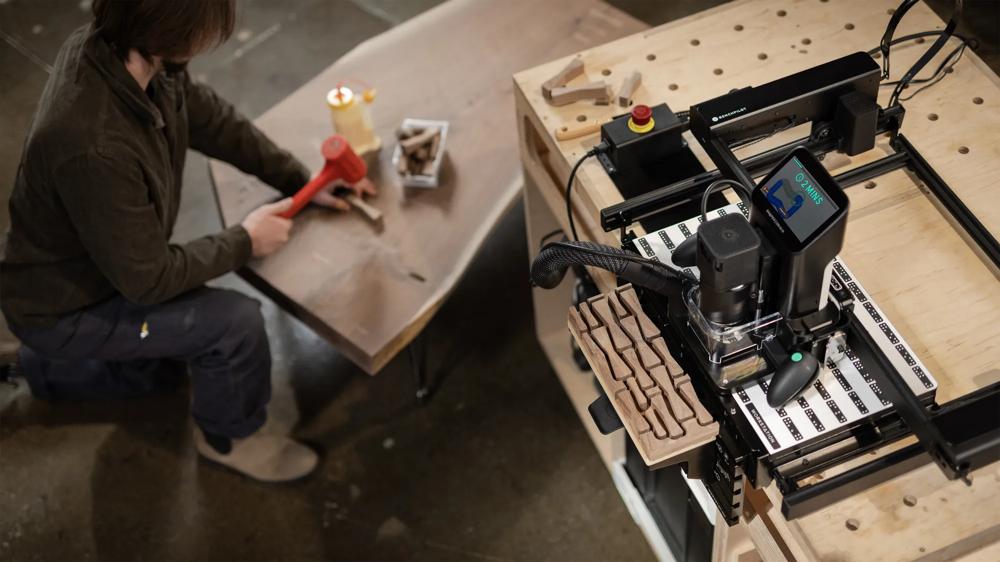

BenchPilot is mounted on the workstation or directly on your work surface and forms a gantry-like system. This makes it possible to carry out both flat and end-face processing, such as milling joints, inlays, intricate engravings or profiles. This is ideal for series production or time-consuming work. Best of all, no complicated software, G-code or other CNC programming is required.

It really is that simple!

If you can operate Origin, you can operate BenchPilot. Once Origin is connected to BenchPilot, set up your project as usual with Origin and then click "Pilot" to start milling.

Design directly on the tool.
You can start milling in just a few minutes.
Interrupt the milling process if necessary.
Simply continue milling.

Technical Data

Shaper workstation:
- Max. height: 250 mm
- Depth: 465 mm
- Width: 515 mm
- Total weight: 9.75 kg

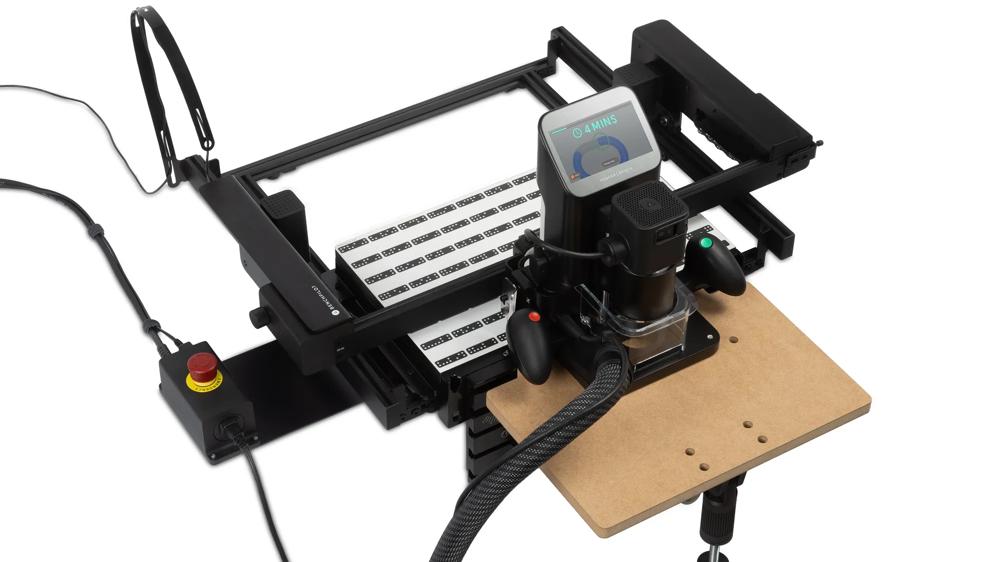

Shaper Bench Pilot:
- 176 x 955 x 568 mm (H x W x D)
- Total weight: 12.85kg
- Compatible with Origin Gen1 and Gen2
Shaper Shelf Upgrade Kit
- Weight: 6.8kg
- Dimensions (LxWxH): 825 x 390 x 178 mm

Properties & Advantages

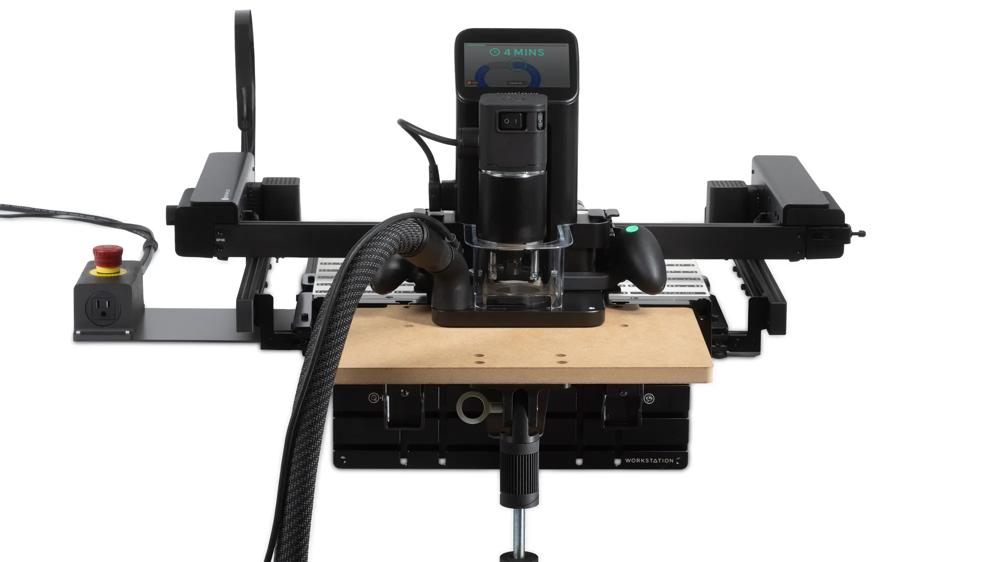

Shaper Workstation:
- Equipped with durable ShaperTape surface
- Front panel with T-slots
- Height-adjustable workpiece carrier
- Ideal for tenons & grooves, finger joints and much more
- Base plate: With the ShaperTape surface, it is the core of the workstation and support surface for Origin.
- Front plate: A versatile clamping device with T-slots, which is attached to the base plate at a 90° angle.
- Workpiece carrier: A height-adjustable carrier for securing small or difficult-to-clamp workpieces.
- Hold-down clamps: T-slot clamps for versatile and secure fastening of workpieces.
- Sacrificial strips: Sacrificial material (MDF) used to minimise tear-out during routing.
- Support bar: Extended support surface for Origin and help to correctly align workpieces.
- Support arms: Keep the support bar and therefore Origin level with the ShaperTape surface.
- Angle fence: Easily adjustable fence for easy alignment of a workpiece at the appropriate angle.
Shaper Bench Pilot:
- Controls Origin automatically
- Transforms Origin into a gantry system
- Easy insertion and removal of Origin, for maximum freedom
- Compatible with Origin Gen1 and Gen2
- Ideal for tenoning, vertical or horizontal routing
- Rotary knob for variable feed speed control
- Design directly on Origin, no programming required
- Origin display shows the remaining milling time
- Emergency stop button in case of emergency

Shaper Shelf Upgrade Kit
- Over three times the size of the workpiece holder supplied with the workstation
- Enlarged milling area and more stability
- Adjustable support foot with coarse and fine adjustment
- Suitable for the workstation
