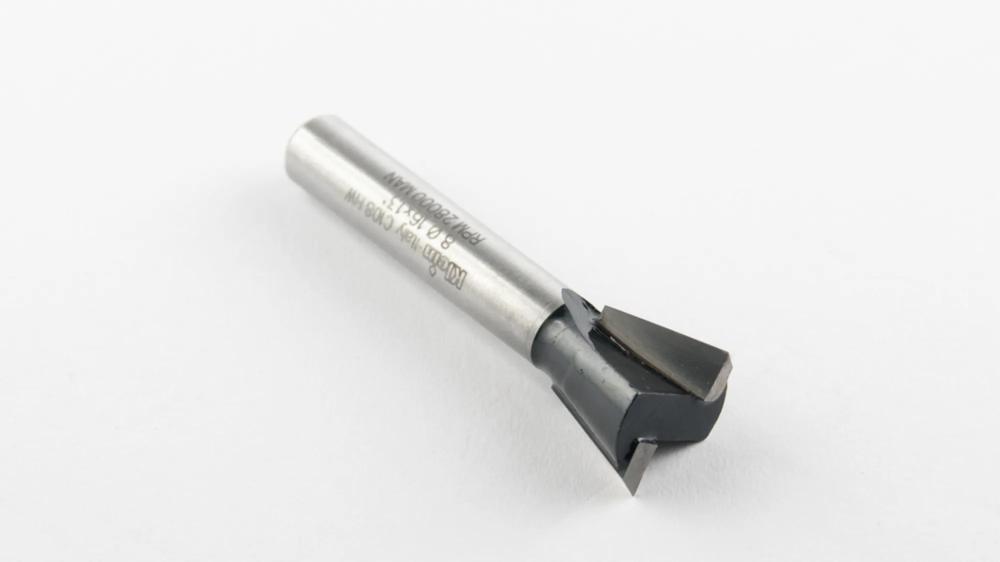

Tine cutter D 6.4 mm

Name: sauter GmbH
Address: Arzbergerstraße 4, Herrsching a.Ammersee, Germany, Bayern, 82211, Deutschland
Telephone: +49 8152 92898-88

E: 7° | D: 6.4 mm | B: 8 mm | L: 44 mm

Shipping within 24 hours (working days)

33,39 €

28,38 €

incl. VAT / excl. shipping costs

Brand:Klein
Article no.:KLE-C108-064-R
Weight:0.018kg

Tine cutter HW (HM) Z2

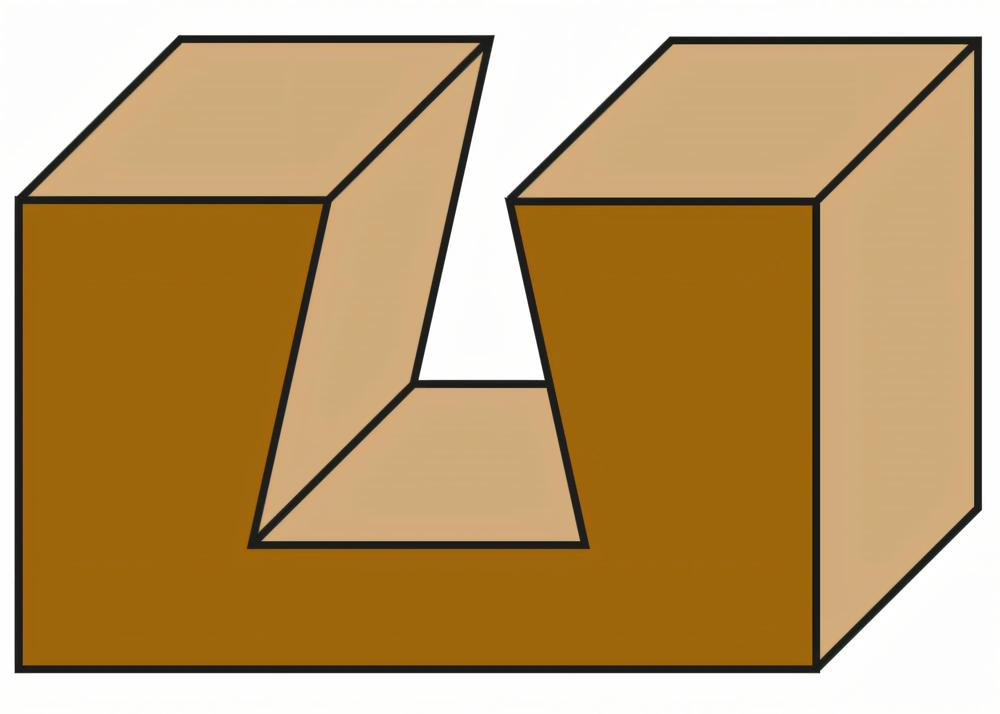

The double-edged tine cutter for Routingdovetail joints. Dovetail tines for wooden drawers can be produced by machine. This version is without pre-cutter and ball bearings.

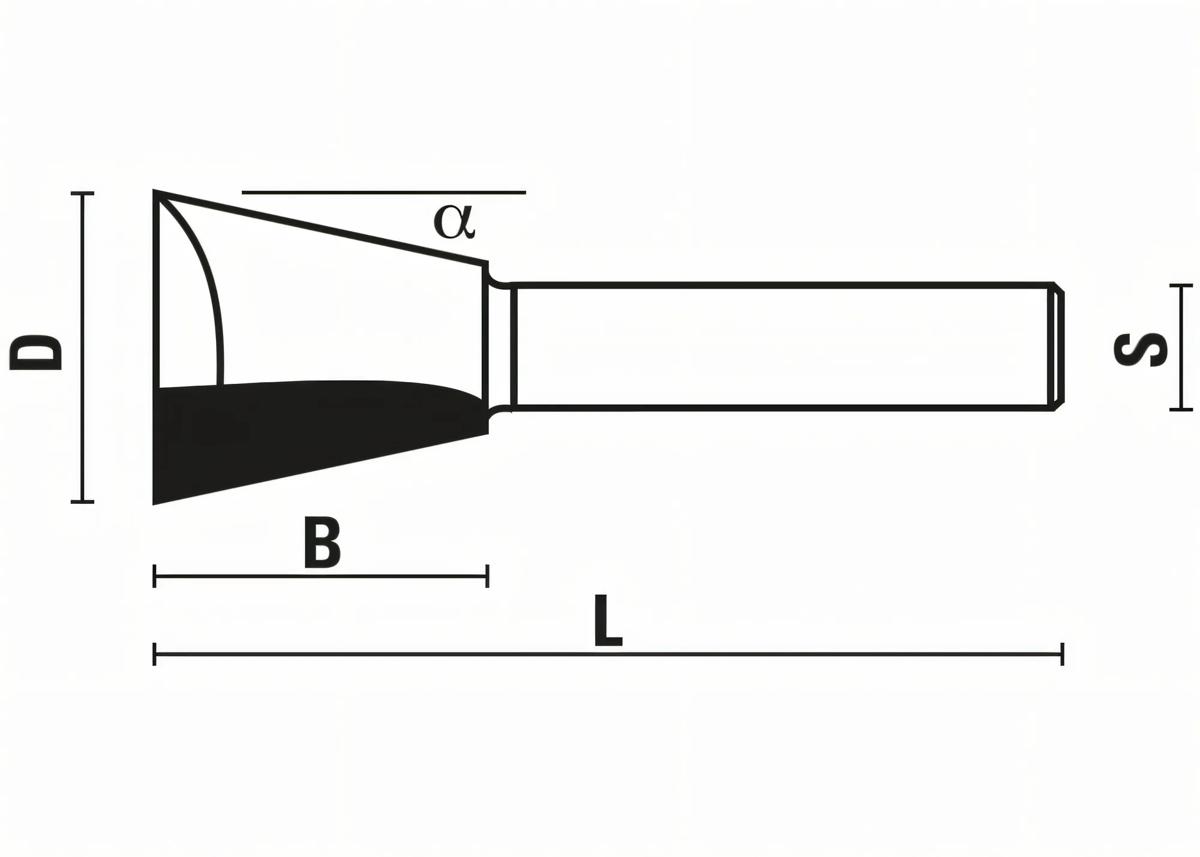

Technical Data

D: 6.4 mm
E (a): 7°
B: 8 mm
L: 44 mm
S: 8 mm

Properties & Advantages

For hardwood and softwoods
For plastics (acrylic, polypropylene and polycarbonate)
For laminates (HPL, Trespa...)
For veneered board materials (chipboard, fibreboard, plywood)
