Tormek T-4 Original incl. SE-77 and cherry chisel

nassschleifmaschine-kirschen-stechbeitel-set-tormek-tm-t-4-aktion-01

nassschleifmaschine-kirschen-stechbeitel-set-tormek-tm-t-4-aktion-02

nassschleifmaschine-kirschen-stechbeitel-set-tormek-tm-t-4-aktion-03

nassschleifmaschine-kirschen-stechbeitel-set-tormek-tm-t-4-aktion-04

nassschleifmaschine-kirschen-stechbeitel-set-tormek-tm-t-4-aktion-05

nassschleifmaschine-kirschen-stechbeitel-set-tormek-tm-t-4-aktion-06

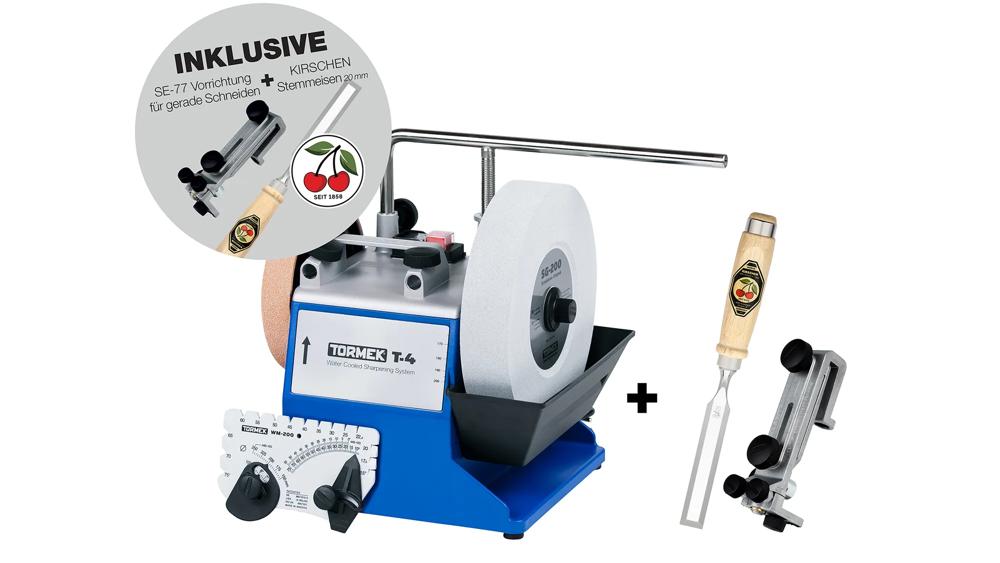

Tormek T-4 Original incl. SE-77 and cherry chisel

Grinding disc diameter 200 mm | Grinding jig for chisels and plane irons | Two Cherries chisel with hornbeam handle, 20 mm

Delivery time 2-3 days

518,24 €

480,76 €

incl. VAT / excl. shipping costs

Brand:Tormek
Article no.:TM-T-4-AKTION
Weight:9.8kg

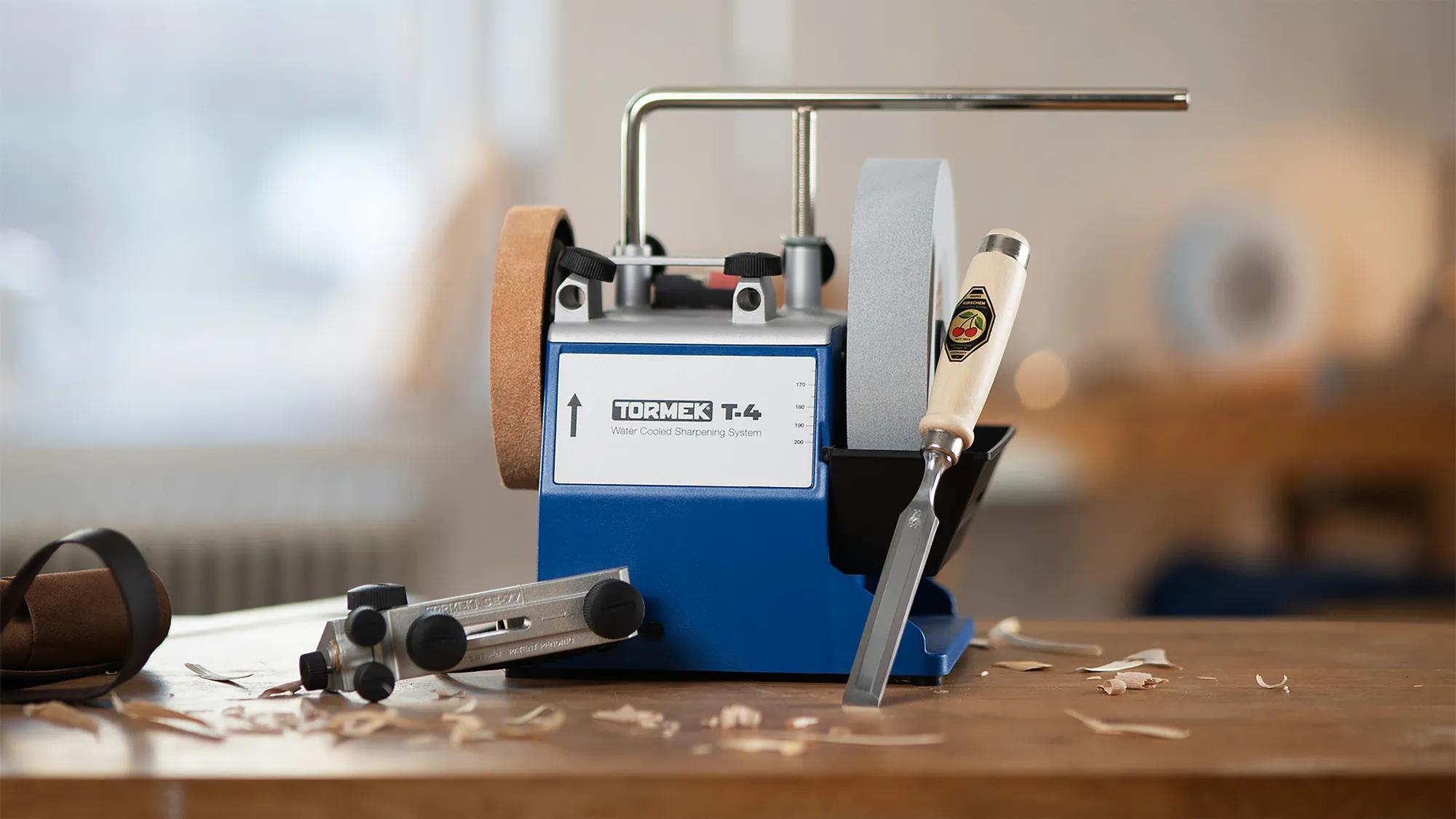

Tormek T-4 Original incl. SE-77 and Two cherries chisel

Perfect for the home and hobby craftsman or for tight professional workshops. Comes with the grinding device for straight cutting edges and chisels.

The water-cooled grinding system grinds all cutting tools precisely, consistently and efficiently - with customisable grit.

Technical Data

Tormek T-4 Original:
- Motor: 120 W (input), 230 V, 54 db, maintenance-free
- Power: 120 rpm, 8.4 Nm torque
- Grinding wheel: Ø 200 x 40 mm, aluminium oxide
- Honing disc: Ø 146 x 26 mm, cowhide from Tärnsjö Garveri and ABS plastic
- Drive type: Drive wheels made of RKX18 rubber, self-adjusting for load
- Main axle: Stainless steel shaft with EzyLock
- Dimensions W x D x H: 240 x 205 x 260 mm
- Weight: 8 kg
- Cable length 1.7 m
- Housing: Zinc die-cast, powder-coated, and ABS plastic
Tormek SE-77 Square Edge Grinding Jig:
- For blade widths up to 77 mm
- Material: Precision die-cast zinc, black composite
- Weight: 0.63 kg
Two Cherries chisel:
- Blade made from special tool steel (+/- HRc 61)
- Handle made of hornbeam, oiled
- Cutting edge angle: 25°
- Cutting edge width: 20 mm
- Chamfered sides

Properties & Advantages

Easily sharpens knives, chisels, scissors, lawnmower blades, carving tools and other small tools.
The machine is equipped with a maintenance-free industrial motor that hardly loses speed even under high loads.
The stainless steel shaft with composite EzyLock makes it easy to replace the grinding disc.
The SG-200 sanding stone from Tormek can be easily adjusted in grit size - from 220 to 1000 - using the SP-650 stone preparator.
The motor and main shaft are installed in a die-cast zinc housing, in which the patented sleeves for the universal support are also embedded - for unbeatable precision.
Fine adjustment with trapezoidal thread and scale for precise setting of the sharpening angle.
8-year guarantee with online registration for private use, 2-year guarantee for commercial, industrial or training purposes.
Efficient steel removal, razor-sharp blades and a long service life for tool and machine.
The universal support enables precisely reproducible sharpening results to be achieved, while the leather honing disc ensures perfect sharpness.
Simply measure the sharpening angle with the enclosed angle gauge.
The cutting edge marker helps to set the sharpening angle.

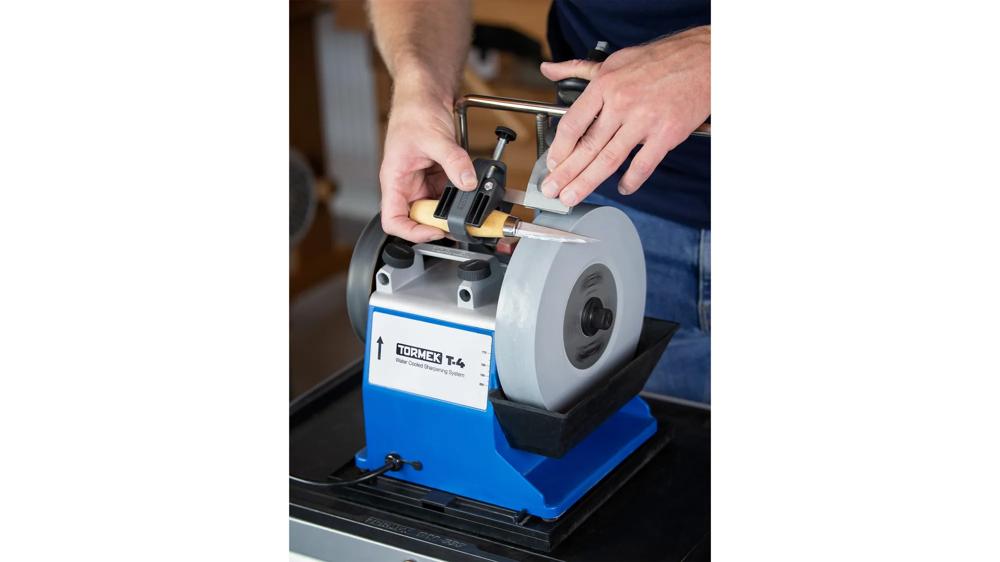

The sharpening device is easy to set up and use.
The well thought-out design ensures stable positioning of the tool - from the centre to the edges.
Adjustment screws allow fine adjustment to compensate for small deviations in the tool design.
Japanese chisels with a conical shape can also be sharpened without any problems.
As a rounded shape is advantageous for most plane irons, the SE-77 device can be adjusted to suit by setting up a pendulum movement.
