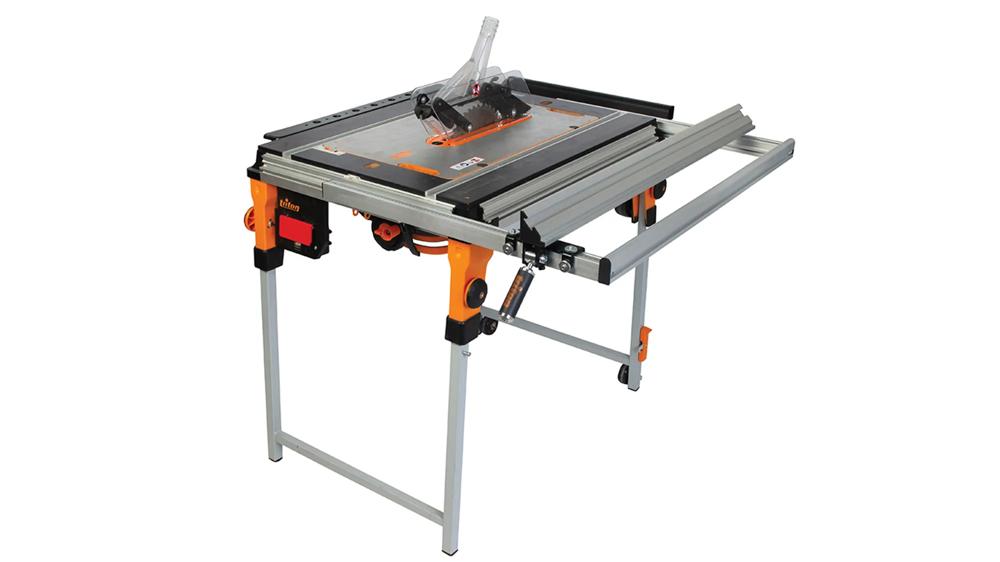

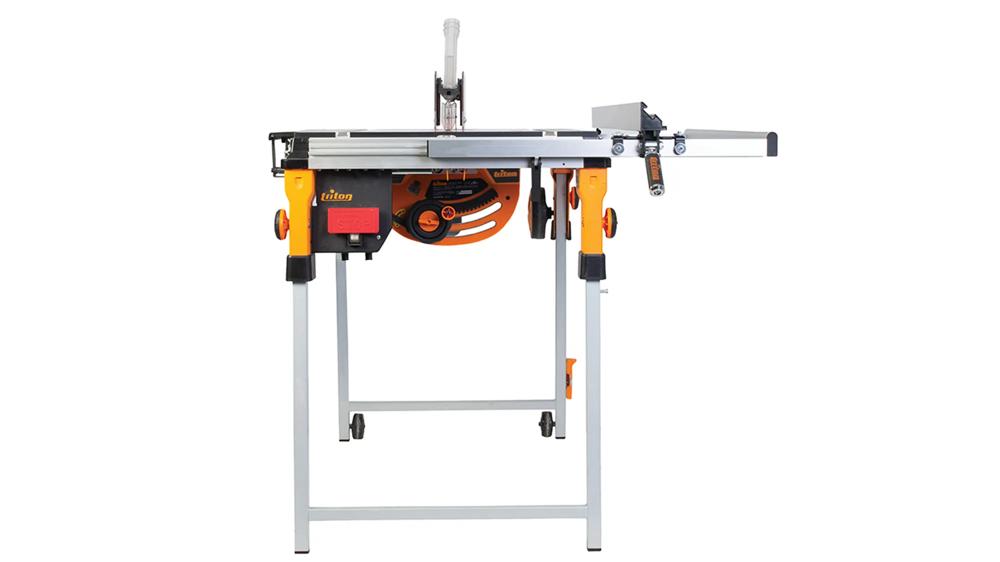

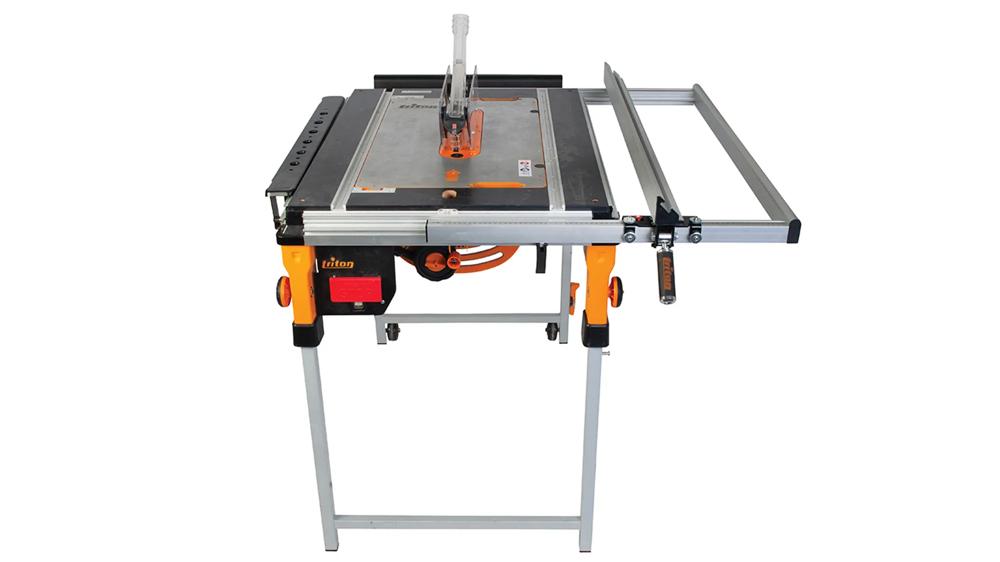

The ideal combination of foldable base TWX7 and saw.
Achieve professional results with this set. A powerful 1800 watt motor and the 254 mm carbide precision saw blade complete the circular saw module. The dust extraction device set up under the table top ensures effective dust removal. Effortless assembly and configuration.
Robustly built table saw for workshop and assembly | Rack and pinion guided fence | 77mm cutting depth | Effective extraction | At present shipping is only possible to the EU, Switzerland and Norway
Delivery time 2-3 days
674,05 €
619,89 €
incl. VAT
Art.-Nr: D-DWE7492-QS
2 Products
Technical Data

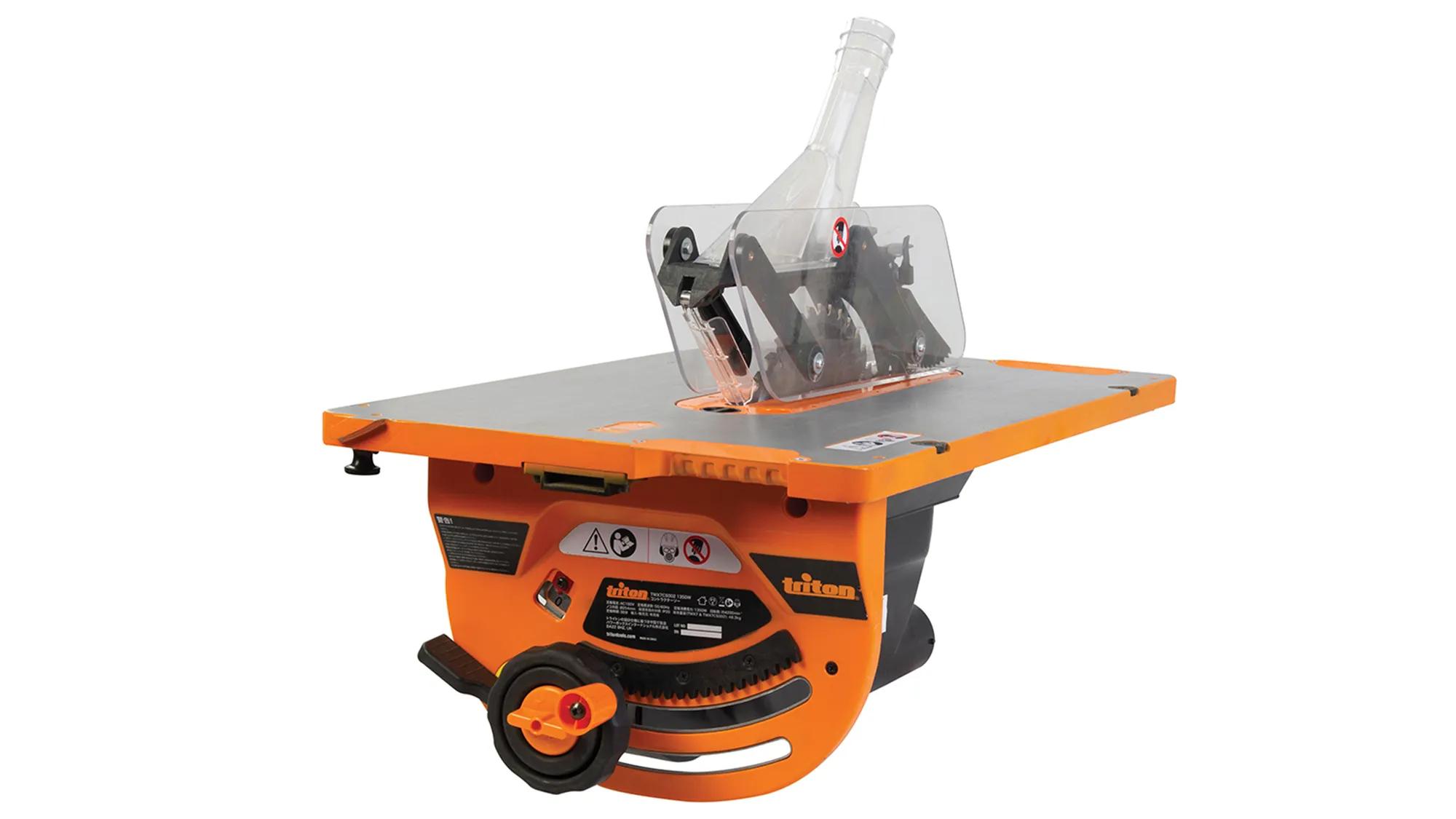

Saw module:
Saw blade: 40 TCT ATB (complies with standard EN847-1)
Bore diameter of the cutting disc: 30 mm
Mitre angle range: 0 - 45°.
Max. Cutting depth (45°): 59.5 mm
Max. Cutting depth (90°): 86 mm
Idle speed: 4,500 min-1
Power: 1800 W
Weight: 15,2 kg
Table dimensions: 851 x 650 mm
Module plate dimensions: 660 x 410 mm
Table top edge - module bottom edge dimension: 300 mm
Longitudinal cutting capacity: 775 mm
Saw blade diameter: 254 mm
Ø suction nozzle ID/AD: 26/32 mm

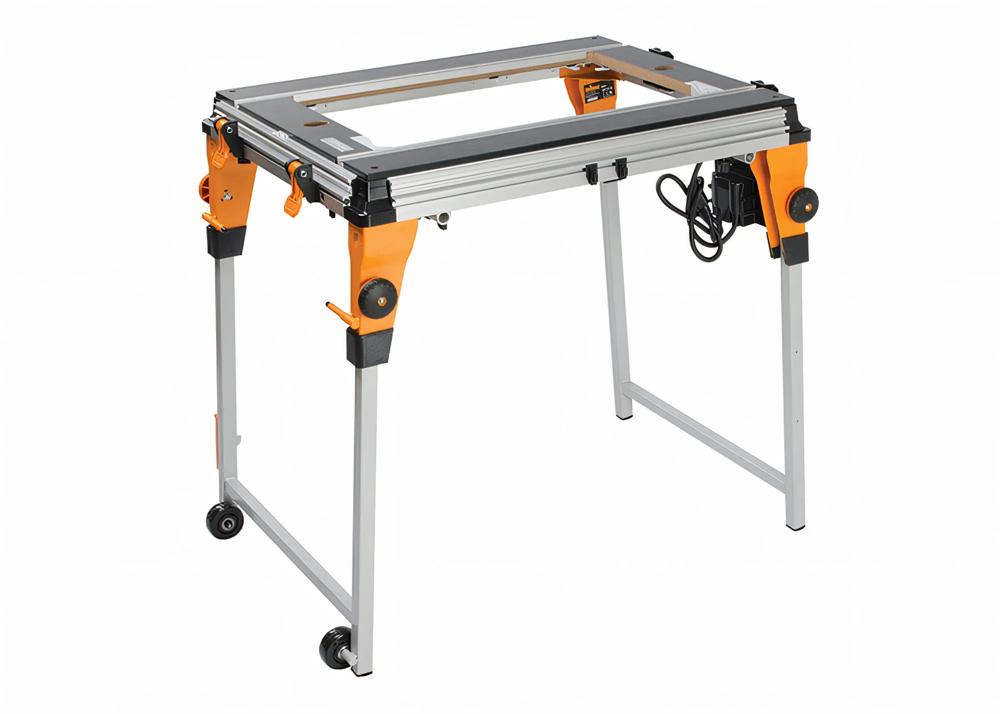

TWX underframe:
Max. Load capacity: 150 kg
Dimensions folded (L x W x H): 995 x 737 x 317 mm
Dimensions when set up (L x W x H): 1036 x 737 x 900 mm
Weight: 23,5 kg
Voltage: 230 V
Rated power: max. 2,000 W
Mains cable: 1.2 m
Inner dimension of bottom guide groove: 23 mm
Inner dimension of guide groove, top: 19.05 mm
Distance between rails centre to centre: 445 mm
Properties & Advantages
Powerful 1,800 watt motor and 254 mm precision saw blade on the folding base.
Protractor, rip fence, dust extraction, push stick and built-in mains socket - all included.
Module levelling screws allow effortless calibration of the surface, resulting in an absolutely flat worktop.
