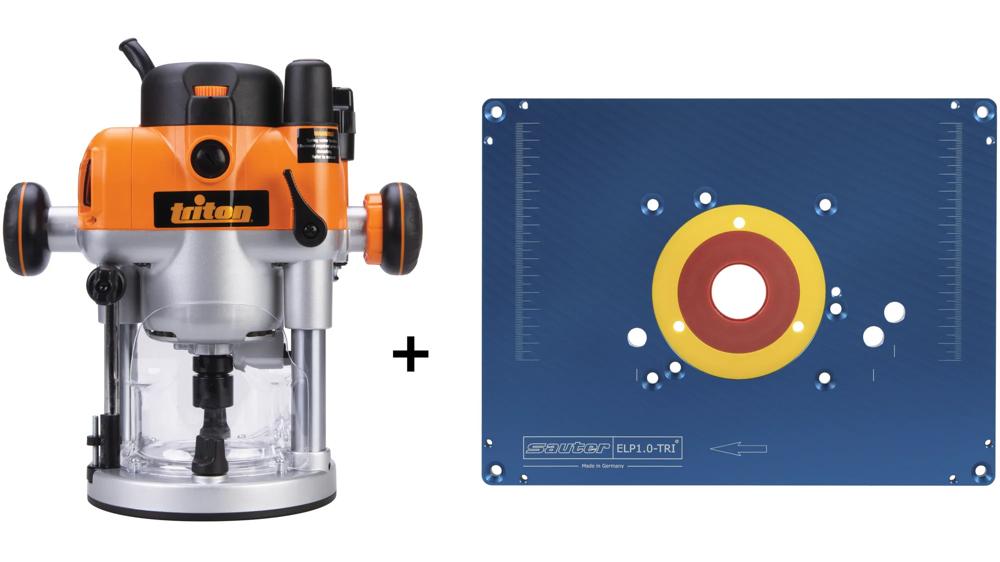

Triton TRA001 2400W and sauter insert plate ELP1.0
The ideal solution for your Router Table

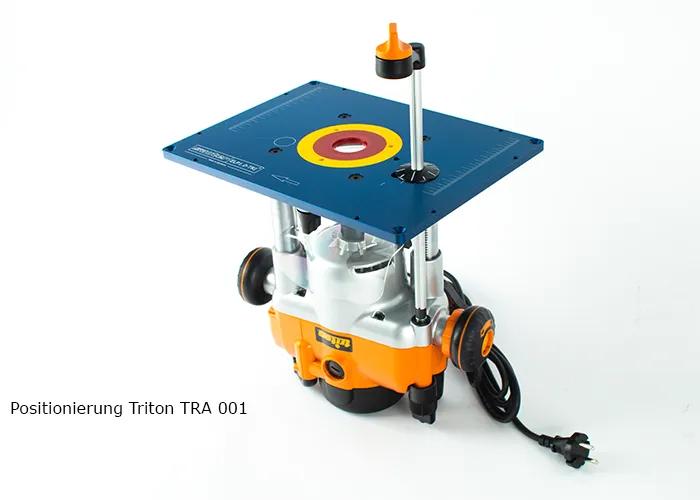

With this set you have a powerful combination for your router table. The powerful router from Triton together with the premium ELP1.0 insert plate from sauter. To the inlay plate also fits the Triton router MOF001 with 1400 Watt and the Triton JOF001 with 1010 Watt.
Powerful router T14EK with pre-drilled insert plate ELP1.0 | Router with collets 8 mm and 12 mm incl. union nuts | Height adjustment from above, through the router table
Shipping within 24 hours (working days)
849,00 €
819,01 €
incl. VAT
Art.-Nr: SET-T14-ELP1.0
1 Products
Technical Data

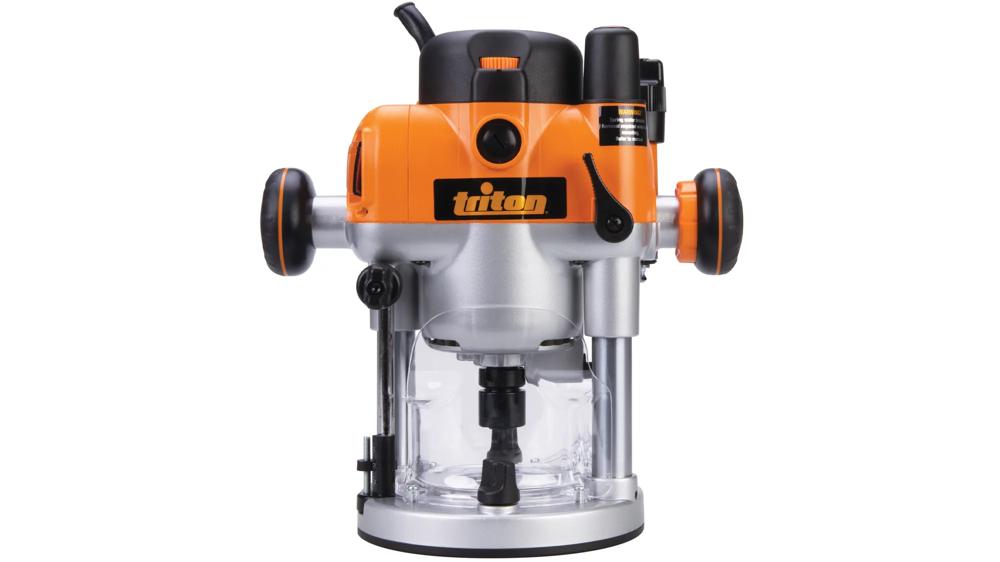

Triton TRA001:
Output: 2,400 W
Electronically adjustable speed: 8.000-21.000 rpm with soft start

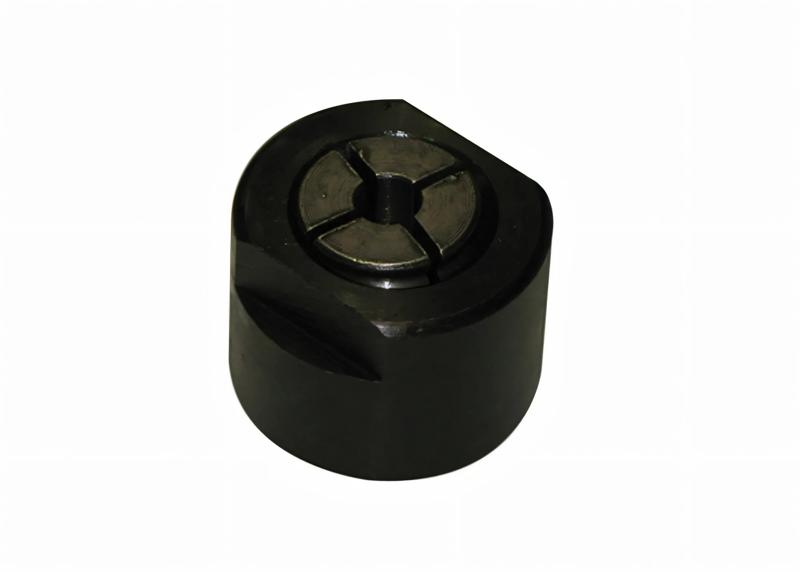

Collets: 12 mm & 12.7 mm (1/2 inch) → further collets 6 and 8 mm to be purchased separately
Lifting cage: 0-68 mm with fine adjustment
Recess of the base plate without suction connection: approx. 80 mm
Recess of the base plate with suction socket: approx. 68 mm
max. cutter diameter: 55 mm
Inner-Ø suction opening: 38 mm
Dimensions base plate: Ø 180 mm
Weight: 6,2 kg

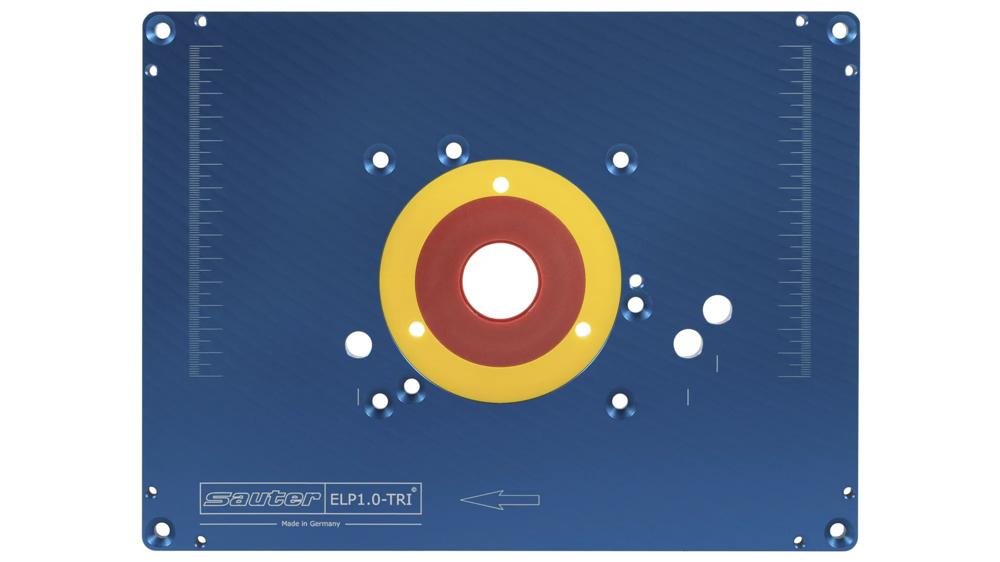

Insert plate ELP1.0:
Dimensions: 306 x 229 x 9 mm.
Ø cutter openings: 32, 68 and 98 mm
Properties & Advantages
Constant electronics with soft start
Bypass of the restart protection for table operation with enclosed grub screw
With electrical control
Easy cutter change thanks to automatic spindle locking and union nut protruding beyond the base plate for quick loosening and closing
Incl. on/off switch with safety cut-out

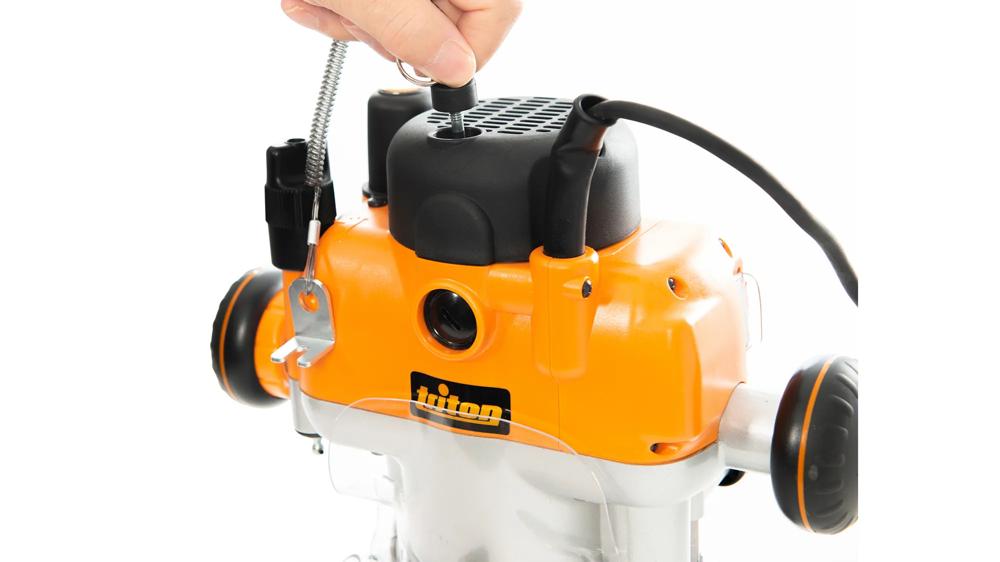

Fine height adjustment also possible from "above/below", through the table
Matching insert plate made of 9 mm thick aluminium for ultimate stability, robustness and flatness,
Scale for precise positioning of the rip fence.
Includes fastening screws for the plate in the table and for fastening the router to the insert plate
