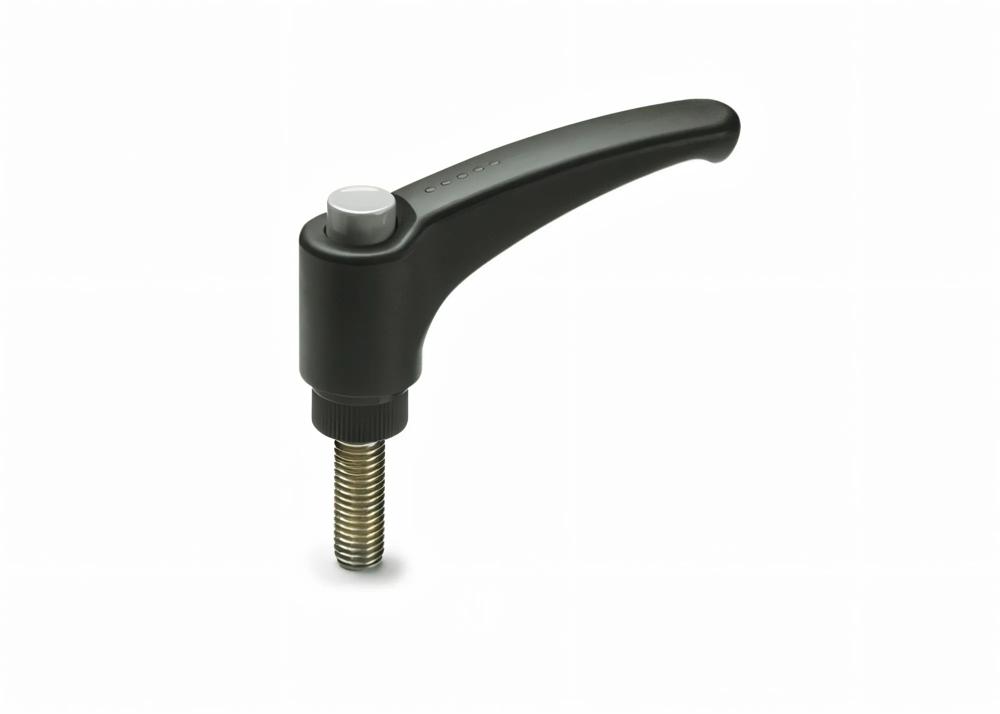

Adjustable clamping lever with M12 thread

Clamping lever M12 | 1 piece | adjustable with thread length 50 mm

Delivery time 2-3 days

7,45 €

incl. VAT / excl. shipping costs

Brand:GANTER
Article no.:GN-C78M1250
Weight:0.078kg

Adjustable clamping lever with thread M12

Verstellbarer Klemmhebel mit Gewinde M12

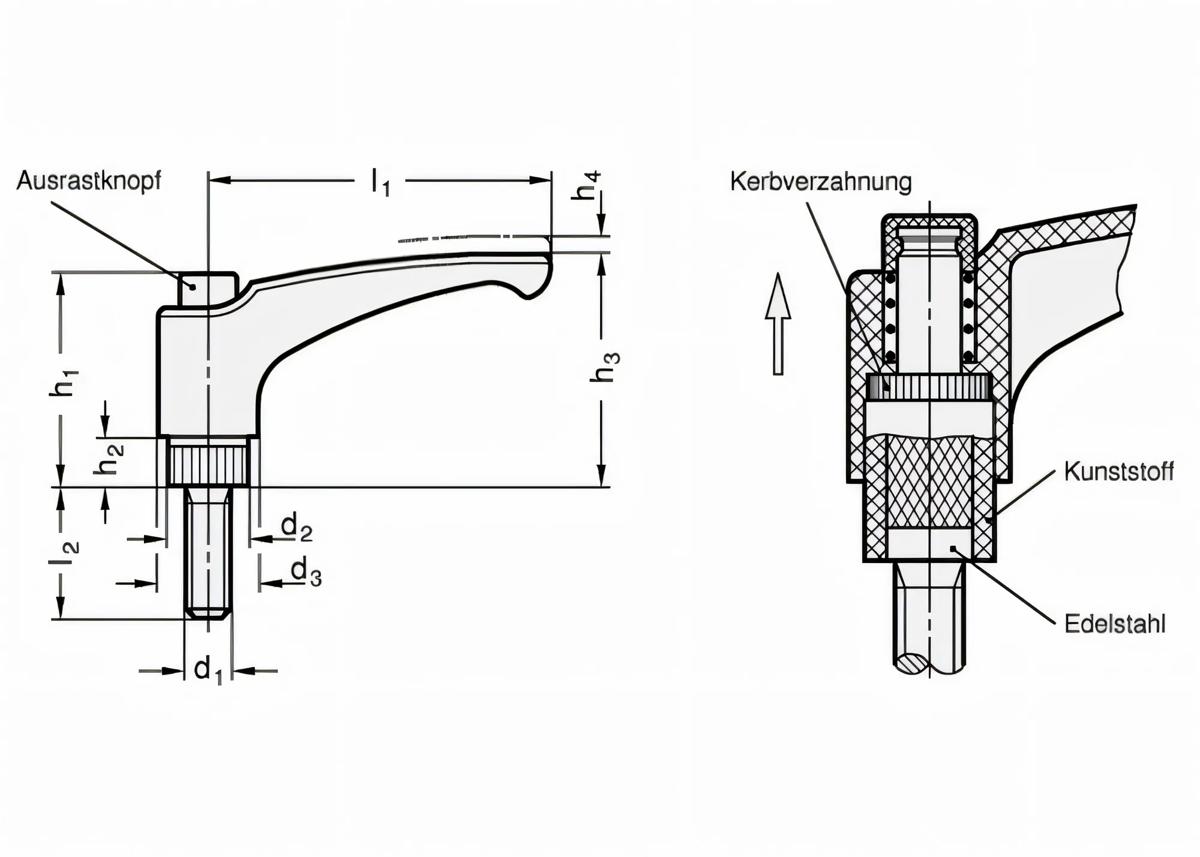

Technical Data

l1 = 78 mm

l2 = 50 mm

d1 = M12

d2 = 19 mm

d3 = 23 mm

h1 = 47 mm

h2 = 12 mm

h3 = 54 mm

h4 = 4 mm (locking path)

Properties & Advantages

High quality design with black adjustment knob.

Like all adjustable levers, preferably to be used when the clamping range is limited or a specific clamping position is desired. The threaded insert is detachably connected to the handle by serrations. The disengagement knob allows effortless disengagement. However, this design is limited to applications where it is not necessary to disassemble the lever when screwing it in.

With disengagement knob.
Temperature resistant up to 130 °C.
Colour: black-grey, matt.
Lever material: glass-fibre reinforced plastic.
Material screw insert: galvanised steel, blue passivated.
