klemmhebel-ganter-gn-c63m830-01
klemmhebel-ganter-gn-c63m830-02
  • klemmhebel-ganter-gn-c63m830-01
  • klemmhebel-ganter-gn-c63m830-02

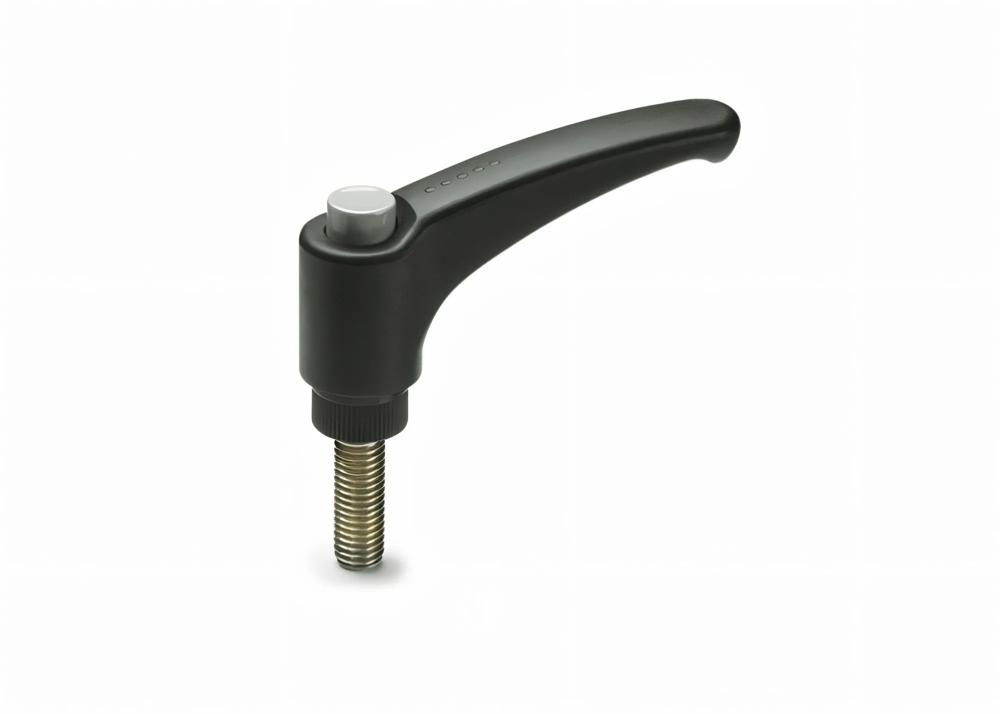

Adjustable clamping lever with M8 thread

Clamping lever M8 | 1 piece | adjustable with thread length 30 mm

Shipping within 24 hours (working days)
5,70 €
incl. VAT / excl. shipping costs
1
  • Brand:GANTER
  • Article no.:GN-C63M830
  • Weight:0.034kg

Adjustable clamping lever with thread

Verstellbarer Klemmhebel mit Gewinde M8

Great alternatives

klemmhebel-ganter-set-c63m830-4-01
Adjustable clamping lever with thread M8 - 4 pieces
Clamping lever M8 | 4 pieces | adjustable with thread length 30 mm
Shipping within 24 hours (working days)
16,27 €
incl. VAT
Art.-Nr: SET-C63M830-4

Technical Data

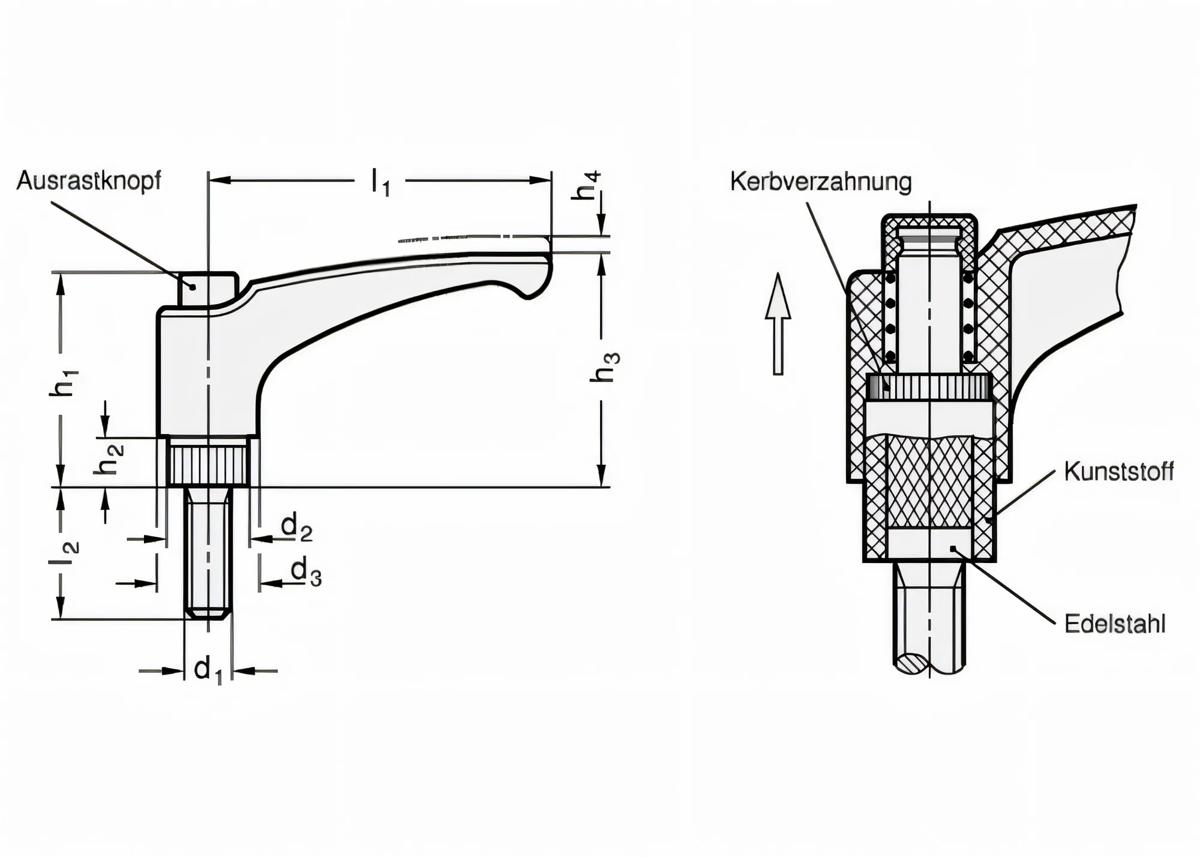

l1 = 63 mm l2 = 30 mm d1 = M8 d2 = 15 mm d3 = 19 mm h1 = 37,5 mm h2 = 8 mm h3 = 43 mm h4 = 4 mm (locking path)
klemmhebel-ganter-gn-c63m830-02

Properties & Advantages

High-quality design with black adjustment knob



  • With disengagement knob.
  • Temperature resistant up to 130 °C.
  • Colour: black-grey, matt.
  • Lever material: glass-fibte reinforced plastic.
  • Material screw insert: steel, galvanised, blue passivated.
