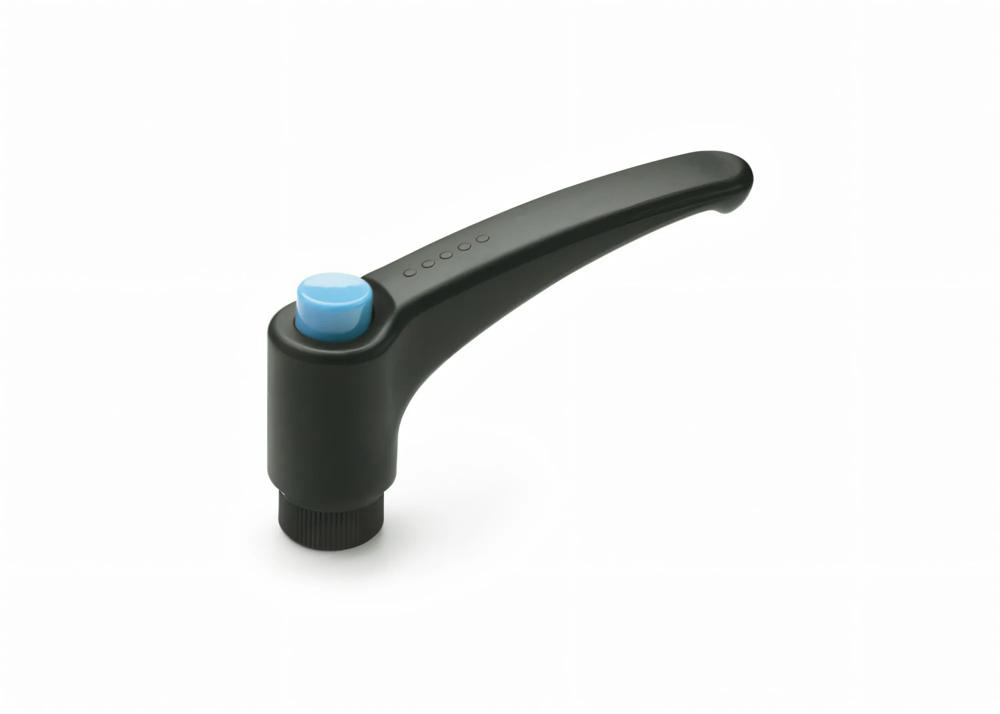

Adjustable clamping lever with threaded bush M6

Clamping lever M6 | 1 piece | adjustable with threaded bush

Shipping within 24 hours (working days)

5,70 €

incl. VAT / excl. shipping costs

Brand:GANTER
Article no.:GN-D44M6
Weight:0.011kg

Adjustable clamping lever with threaded bushing M6

Verstellbarer Klemmhebel mit Gewindebuchse M8

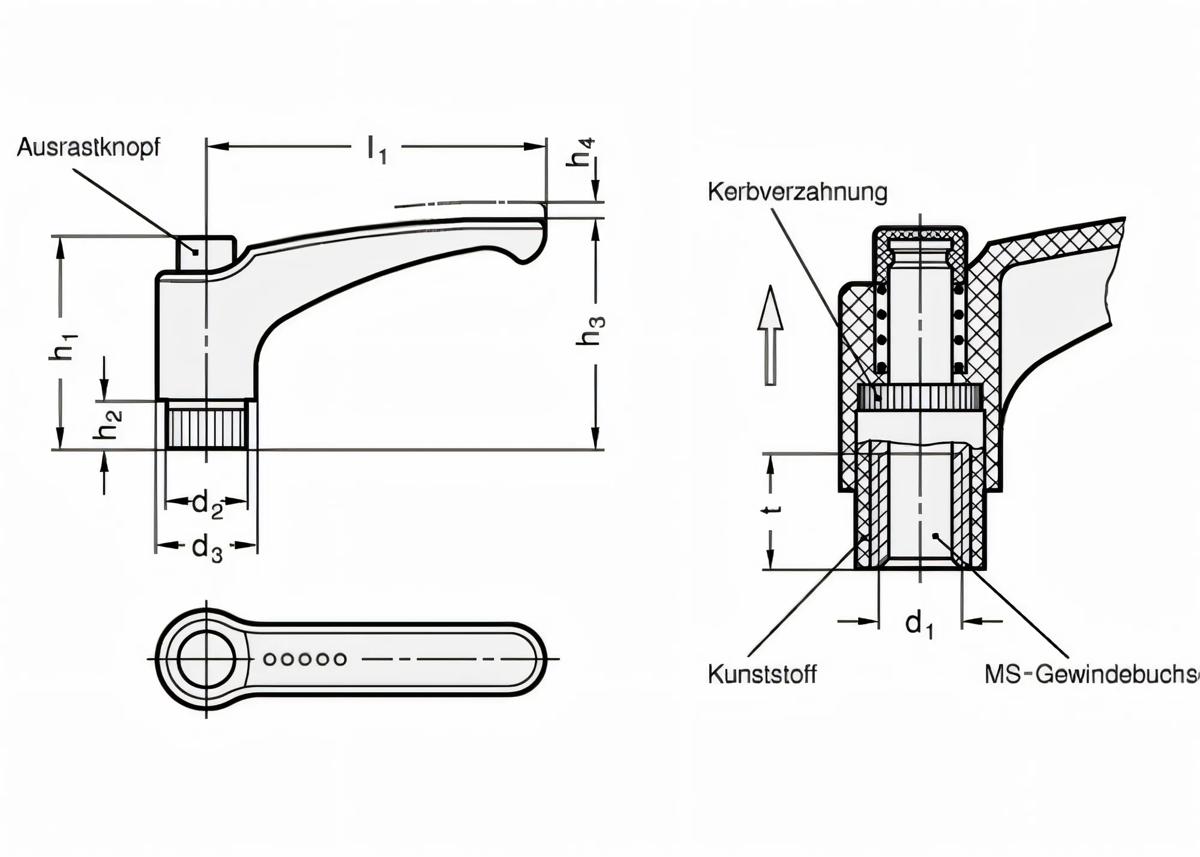

Technical Data

l1 = 44 mm d1 = M6 d2 = 12 mm d3 = 15,5 mm h1 = 29,5 mm h2 = 6 mm h3 = 32,5 mm h4 = 3.5 mm (locking path) t = 10 mm

Properties & Advantages

High quality design with black adjustment knob.

Like all adjustable levers, preferably to be used when the clamping range is limited or a specific clamping position is desired. the threaded insert is detachably, connected to the handle by serrations. The disengagement knob allows effortless disengagement. However, this design is limited to applications where it is not necessary to disassemble the lever when screwing it in.

With disengagement knob.
Temperature resistant up to 130 °C.
Colour: black-grey, matt.
Lever material: glass-fibre reinforced plastic.
Material screw insert: galvanised steel, blue passivated.
