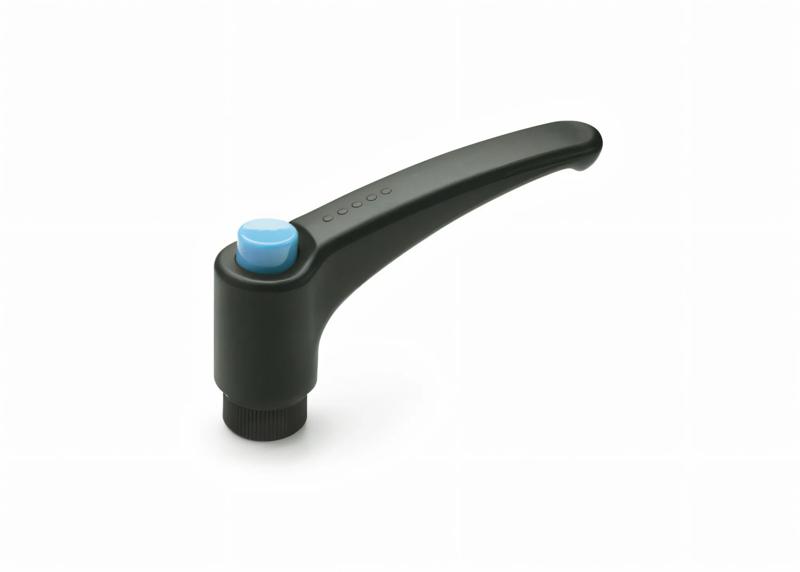

Adjustable clamping lever with threaded bush M8

Clamping lever M8 | 1 piece | adjustable with threaded bush

Shipping within 24 hours (working days)

5,95 €

incl. VAT / excl. shipping costs

Brand:GANTER
Article no.:GN-D63M8
Weight:0.022kg

Adjustable clamping lever with threaded bushing M8

Verstellbarer Klemmhebel mit Gewindebuchse M8

Great alternatives

Adjustable clamping lever with threaded bush M8 - 4 pieces

Clamping lever M8 | 4 pieces | adjustable with threaded bush

Shipping within 24 hours (working days)

16,27 €

incl. VAT

Art.-Nr: SET-D63M8-4

1 Products

Technical Data

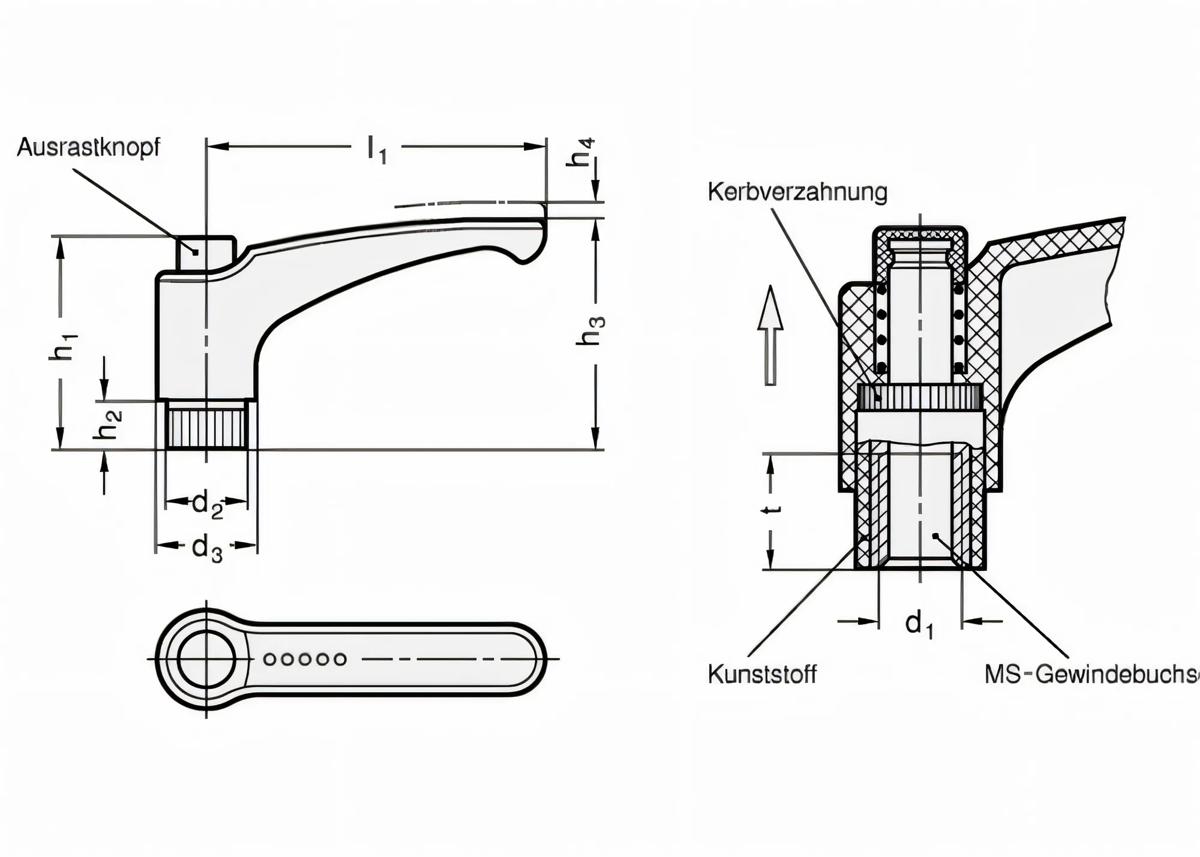

l1 = 63 mm d1 = M8 d2 = 15 mm d3 = 19 mm h1 = 37,5 mm h2 = 8 mm h3 = 43 mm h4 = 4 mm (locking path) t = 13 mm

Properties & Advantages

High-quality design with black adjustment knob.

Like all adjustable levers, preferably to be used when the clamping range is limited or a specific clamping position is desired. The threaded insert is detachably connected to the handle by serration. The disengagement knob enables effortless disengagement. However, the design is limited to applications where it is not necessary to disassemble the lever when screwing it in.

With disengagement knob.

Temperature resistant up to 130 °C.
Colour: black-grey, matt.
Lever material: glass-fibre reinforced plastic.
Material screw insert: steel, galvanised, blue passivated.
